Standard: EN 196-1, EN 459-2, EN 13454-2, ASTM C109, ASTM C348, ASTMC349, BS 3892-1,4551-1

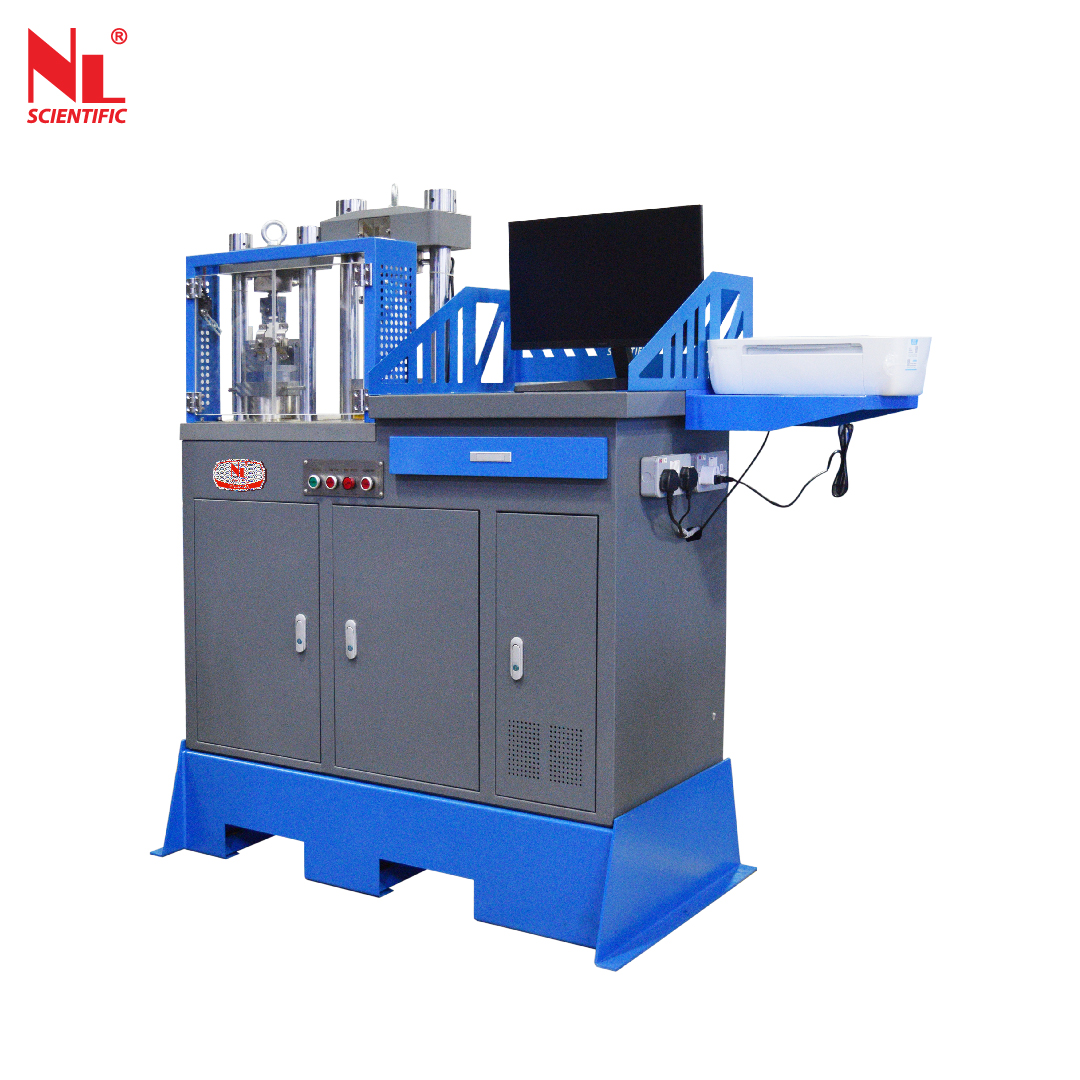

Mortar Compression & Flexural Test

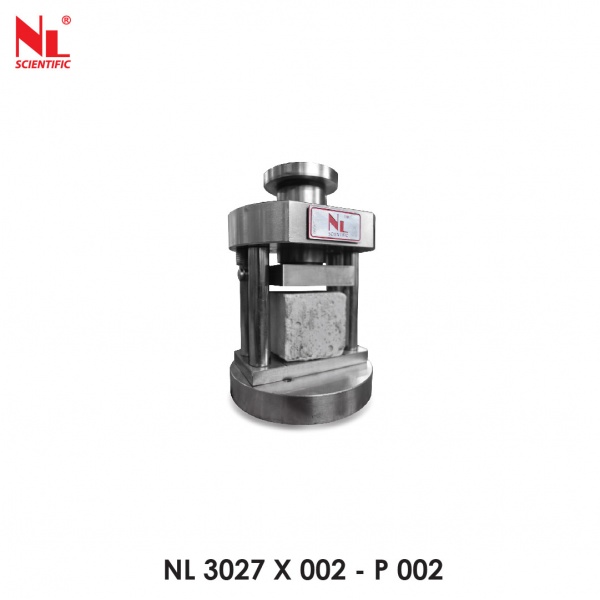

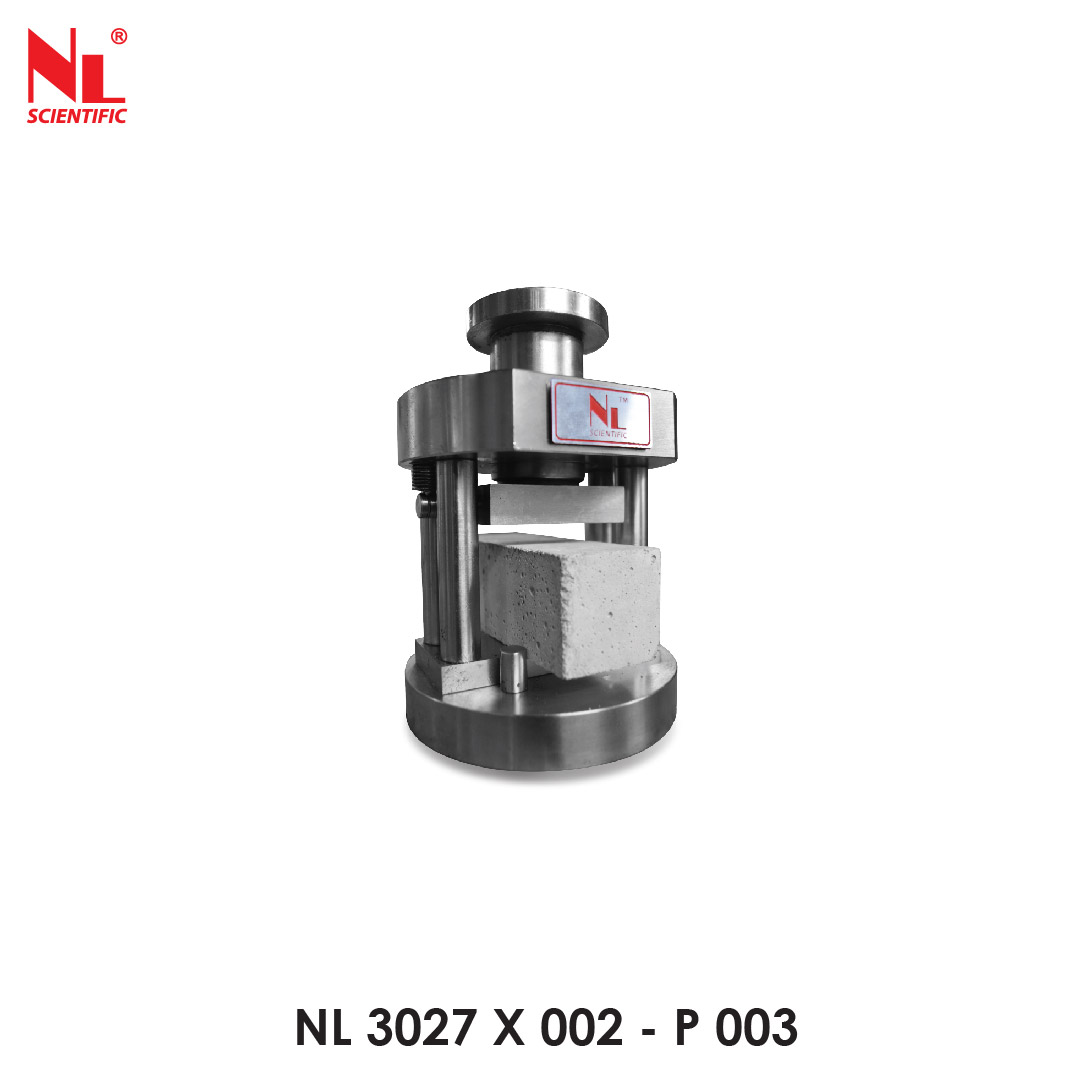

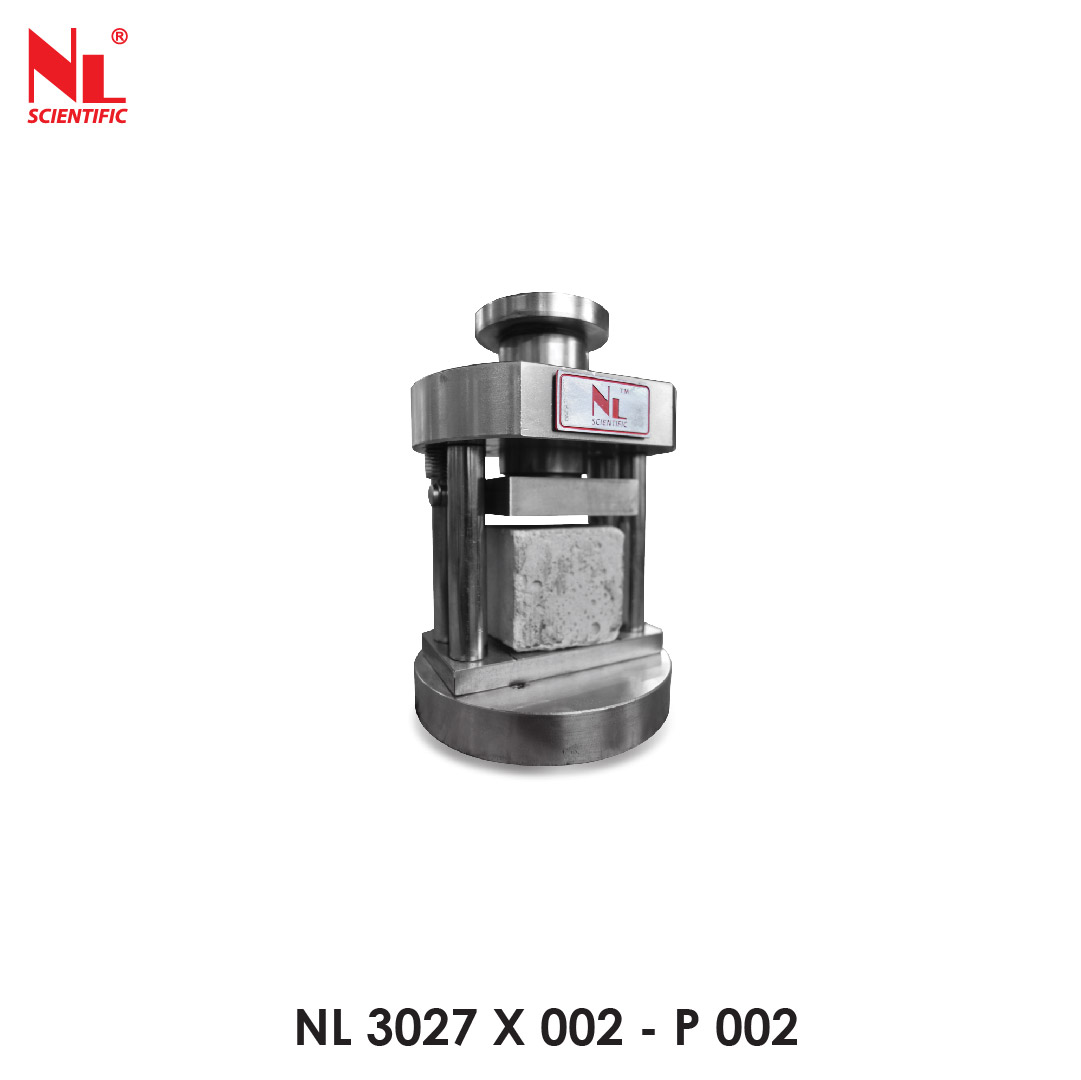

This machine is designed for flexural & compression test of cement mortar equipped with two loading frames with two independent measuring ranges for better and consistent performance. Its fully automatic computer controlled provides constant loading rate for both compression and flexural test. The advanced and user friendly computer software enables results to be acquired automatically with the test curve display and result database being saved virtually unlimited inside the computer. Suitable for testing on flexural and compression of 40 x 40 x160 mm mortar prism and compression of 50 mm mortar cubes.
Super Test Software
-User friendly operation
-Real time display of load, strength and test speed
-Unlimited saving of test results

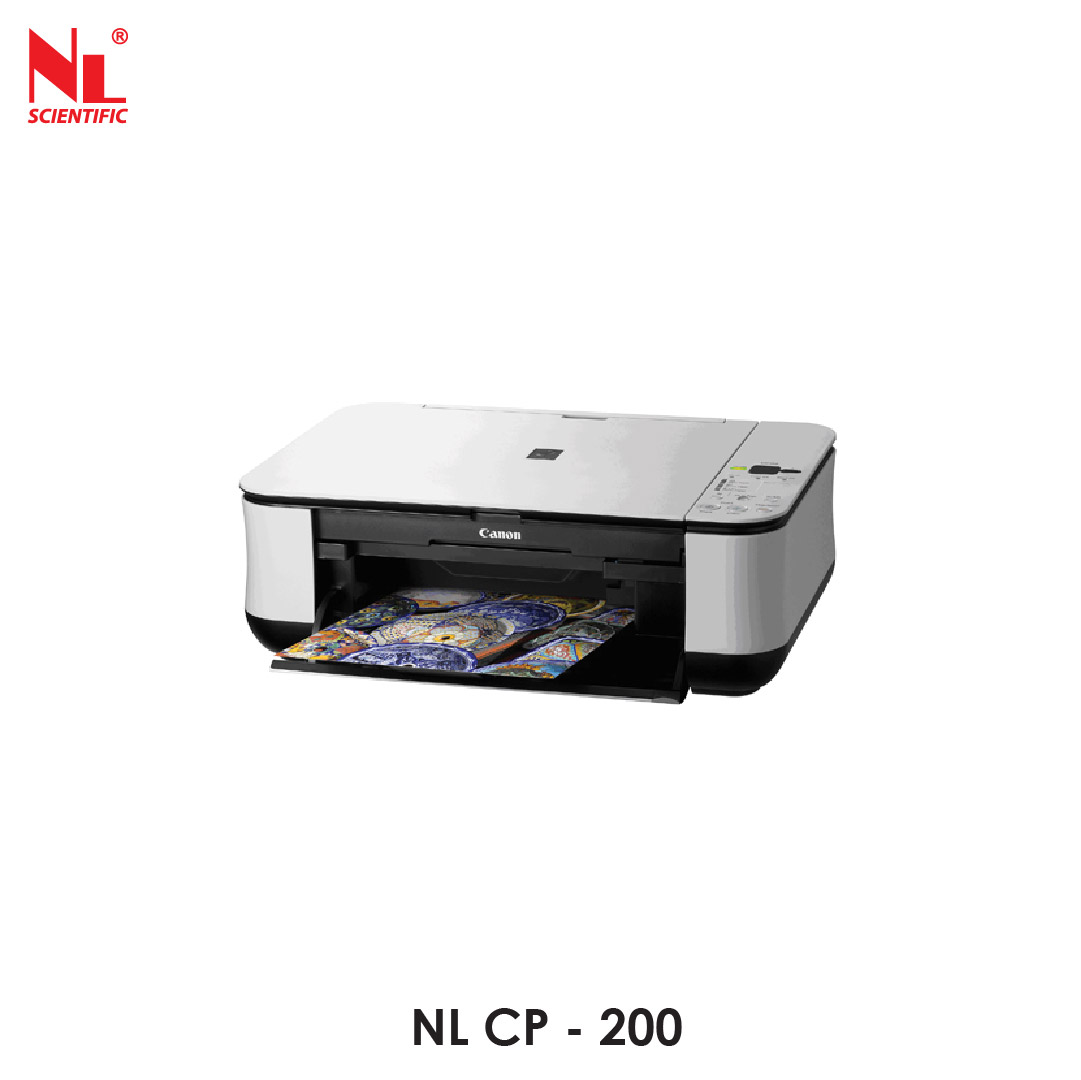

-Test report can be printed immediately after test
Technical Specifications:
| Model Number |
NL 3033 X / 002 |
| Type of Mode |
Compression |
Flexural |
| Max.Capacity |
300 kN |
15 kN |
| Piston Stroke |
120 mm |
60 mm |
| Speed Control Range |
0.1 ~ 10 kN/s |
5 ~ 200 N/s |
| Vertical Clearance |
180 mm |
| Fixed Top Compression Platen |
Ø108 mm |
Ø60
|
| Fixed Bottom Compression Platen |
Ø205 mm |
Nil |
| Speed Control Accuracy |
±0.1 % |
| Load Accuracy |
±1.0 % |
| Resolution |
0.01 kN |
0.1 N |
| Overall Dimensions |
600(W) x 1300 (L) x 1620 (H) mm |
| Power |
240 V, 750 W, 1 ph, 50/60 Hz |
| Approx. Weight |
460 kg |
