Standard: API 13B-2
Baroid Mud Balance
The Baroid Mud Balance is used to determine accurately the mud density or weight of drilling mud in drilling operations within the oil and gas industry. Drilling mud, also known as drilling fluid, is a component of the drilling process as it helps to lubricate the drill bit, carry cuttings to the surface, control formation pressures, and provide stability to the borehole.

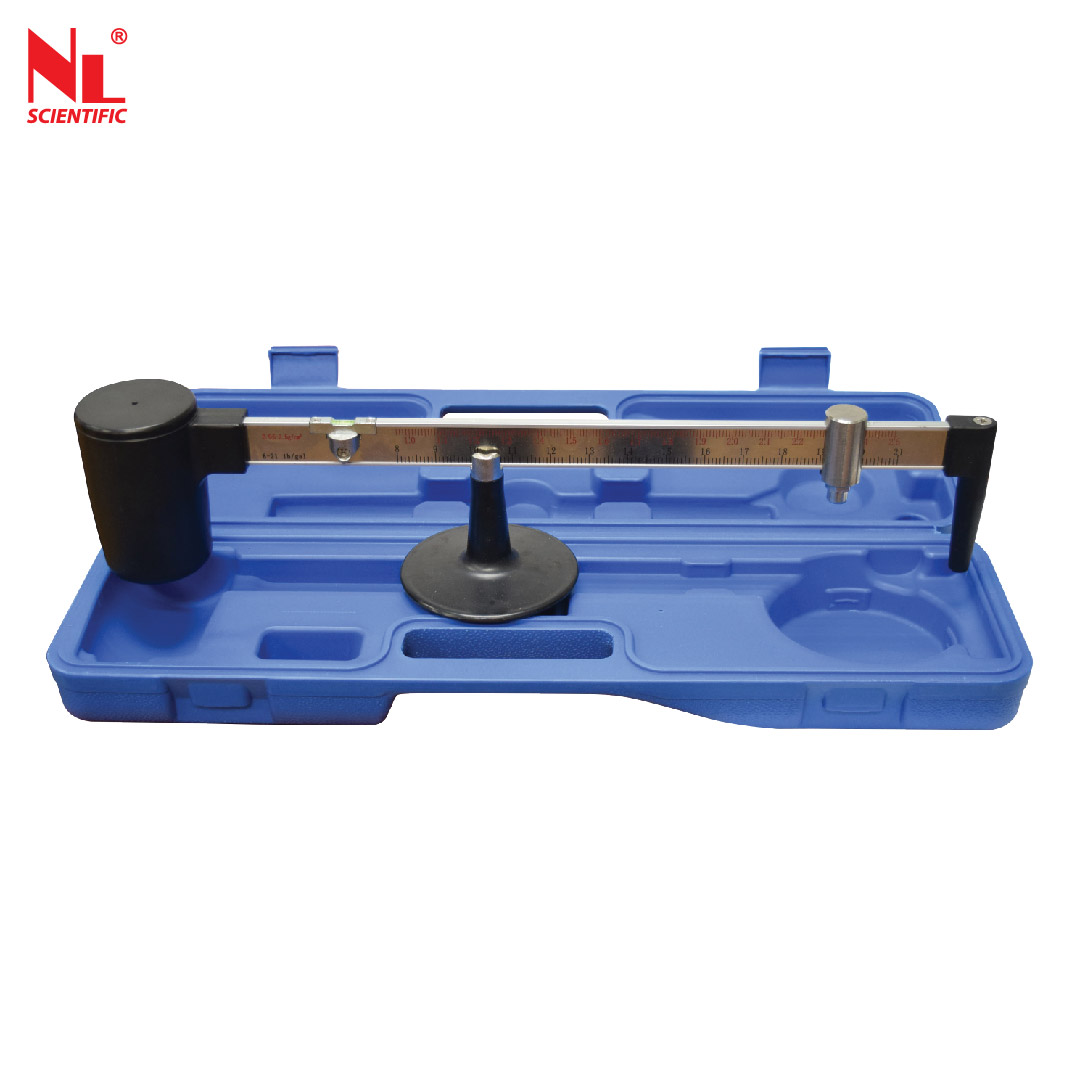

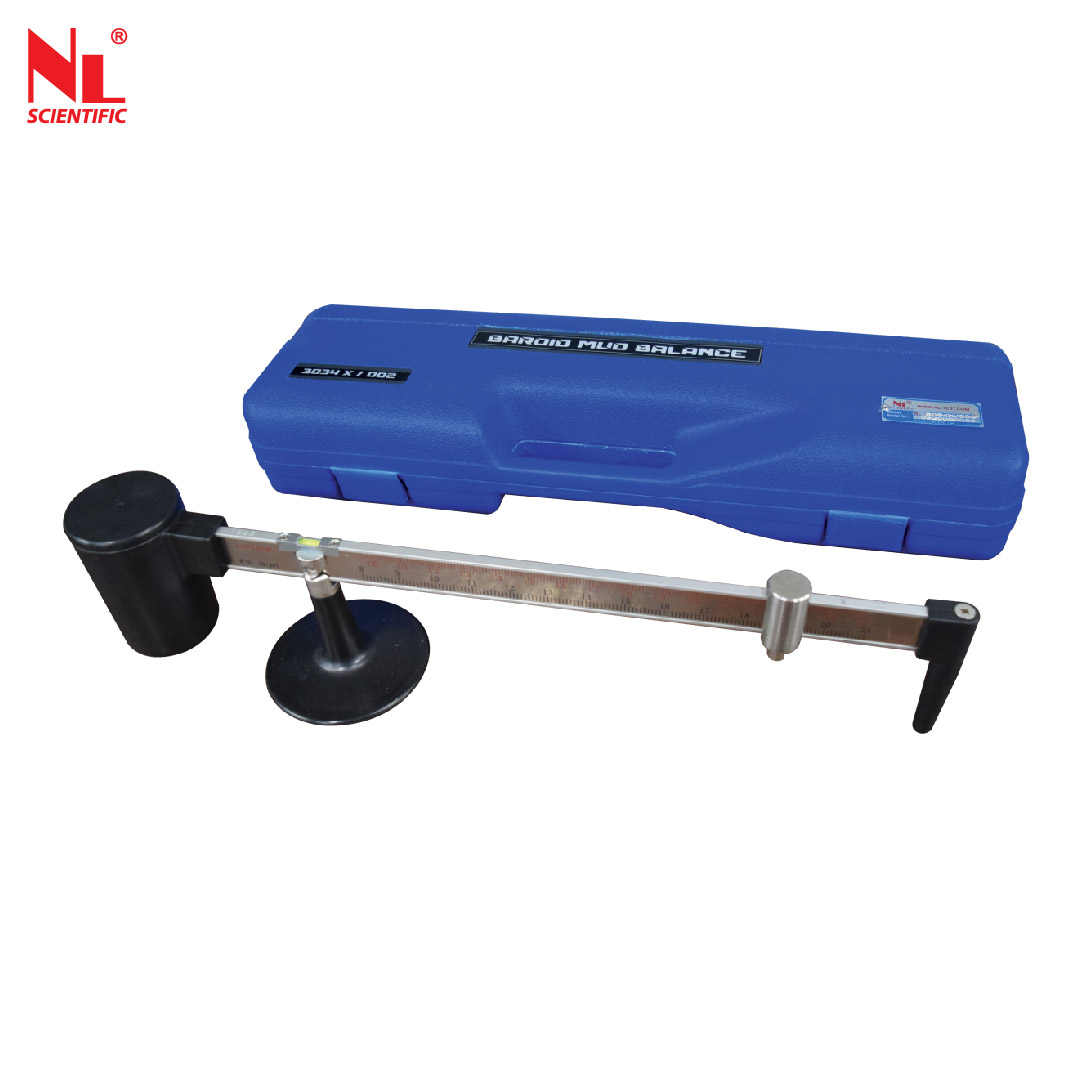

The mud balance consists of a base and graduated arm with a cup, lid, knife edge, rider, built-in spirit level, counterweight, and carrying case. The constant volume cup is affixed to one end of the graduate arm and the counterweight on the opposite end. The float is immersed in the drilling mud, and the counterweight is adjusted until the arm is balanced. The density of the mud is then read directly from the scale on the arm, typically in pounds per gallon or pounds per cubic foot.
Accurate measurement of mud density is crucial in drilling operations to ensure proper well control and stability. Too low density can lead to formation fluid influx or well collapse, while too high density can cause wellbore instability or formation damage. The mud balance provides drillers with a quick and reliable method for monitoring and adjusting mud density as needed during drilling operations.
Features of Baroid Mud Balance
- Measurement Units: Typically reads density in pounds per gallon (ppg) or pounds per cubic foot (lb/ft³).
- Portability: Comes with a carrying case for easy transport and storage.
- Standardization: Complies with industry standards for drilling fluid density measurement.
Technical Specifications
| Model Number |
NL 3034 X / 002 |
| Measuring Range |

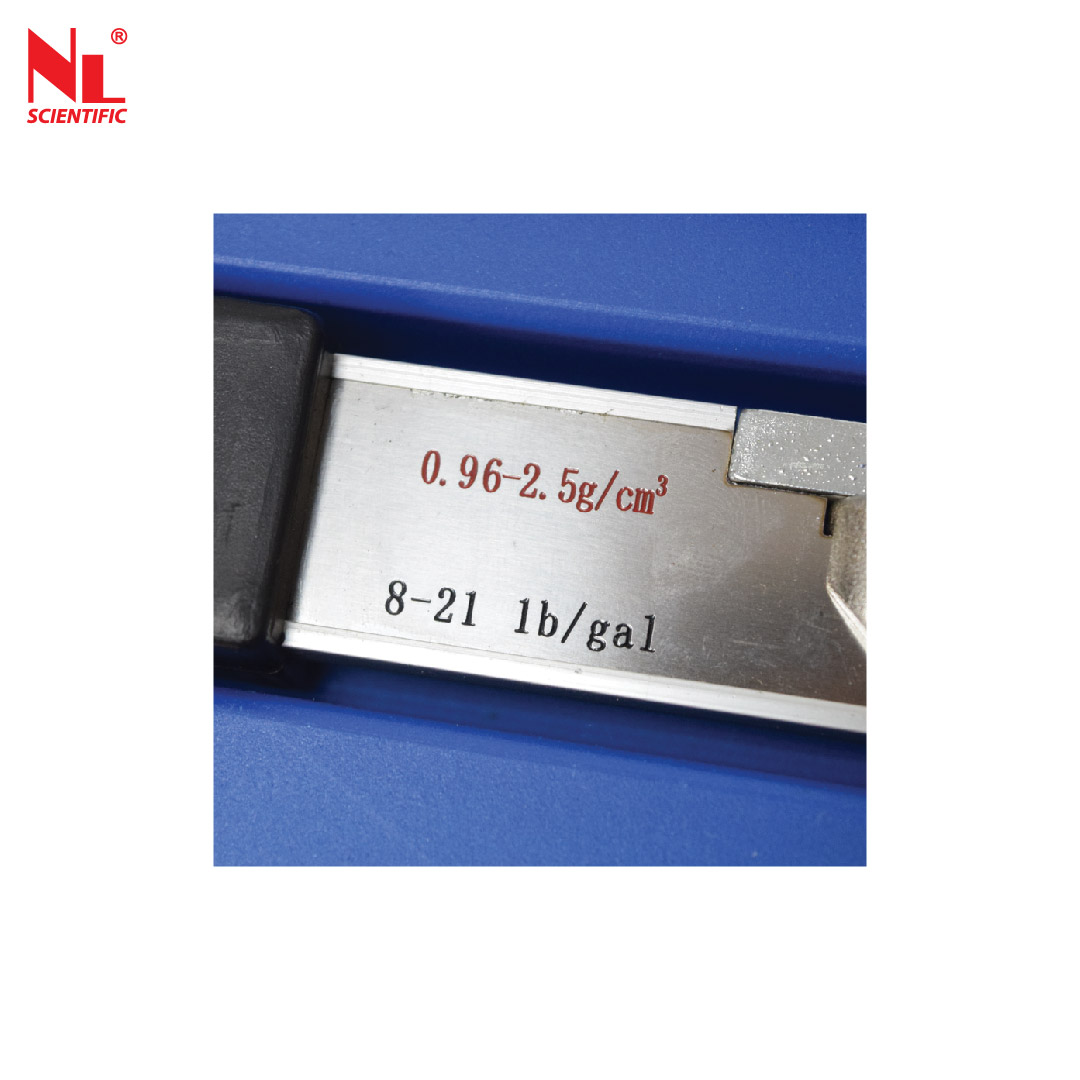

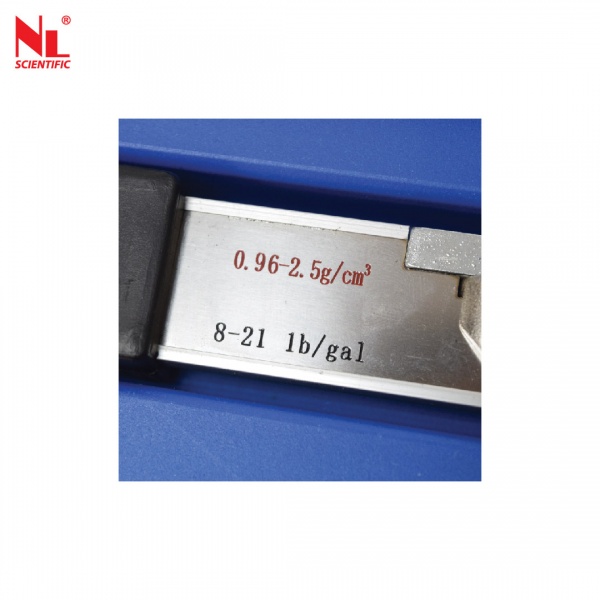

0.96 - 2.5 g/cm³ (8.0 - 21 1b/gal) |
| Product Dimension (mm) |
480 (L) x 100 (W) x 120 (H) |
| Carry Case Dimension (mm) |
510 (L) x 150 (W) x 90 (H) |
| Approx. Weight |
1.2 kg |
Standards
API 13B-2 outlines procedures and equipment specifications for conducting tests to determine the apparent viscosity of drilling fluids. This standard ensures consistency and reliability in viscosity measurements, helping to maintain drilling fluid properties within acceptable limits for safe and efficient drilling operations.
Test Procedure of Baroid Mud Balance
- Preparation of Mud Sample: Take a representative sample of the drilling mud from the mud pit or mud tank. Stir the mud sample thoroughly to ensure homogeneity.
- Filling the Cup: Fill the cup of the mud balance with the prepared mud sample, making sure there are no air bubbles trapped in the sample.
- Immersion of Float: Lower the float into the mud sample until it is fully immersed. Allow the float to settle without touching the sides of the cup.
- Balancing: Adjust the counterweight on the balance arm until the arm is perfectly balanced horizontally. This indicates that the buoyant force acting on the float is equal to the weight of the mud sample displaced by the float.
- Reading: Once the balance arm is balanced, read the scale on the arm to determine the mud density. The density is typically displayed in pounds per gallon (ppg) or pounds per cubic foot (lb/ft³).
- Recording: Record the density reading obtained from the mud balance for documentation and further analysis.
- Cleanup: After completing the measurement, clean the mud balance thoroughly to remove any residual mud and prevent contamination for future measurements.
