Standard: BS ISO 1920-8 Shrinkage Determination Used for determination of linear shrinkage of concrete. Characteristic:- Internal surface;smooth finished- Substantially leak proof- Substantially enough to hold their from without distortion Technical Specifications : Model Number NL ...Read more

Shrinkage Mould

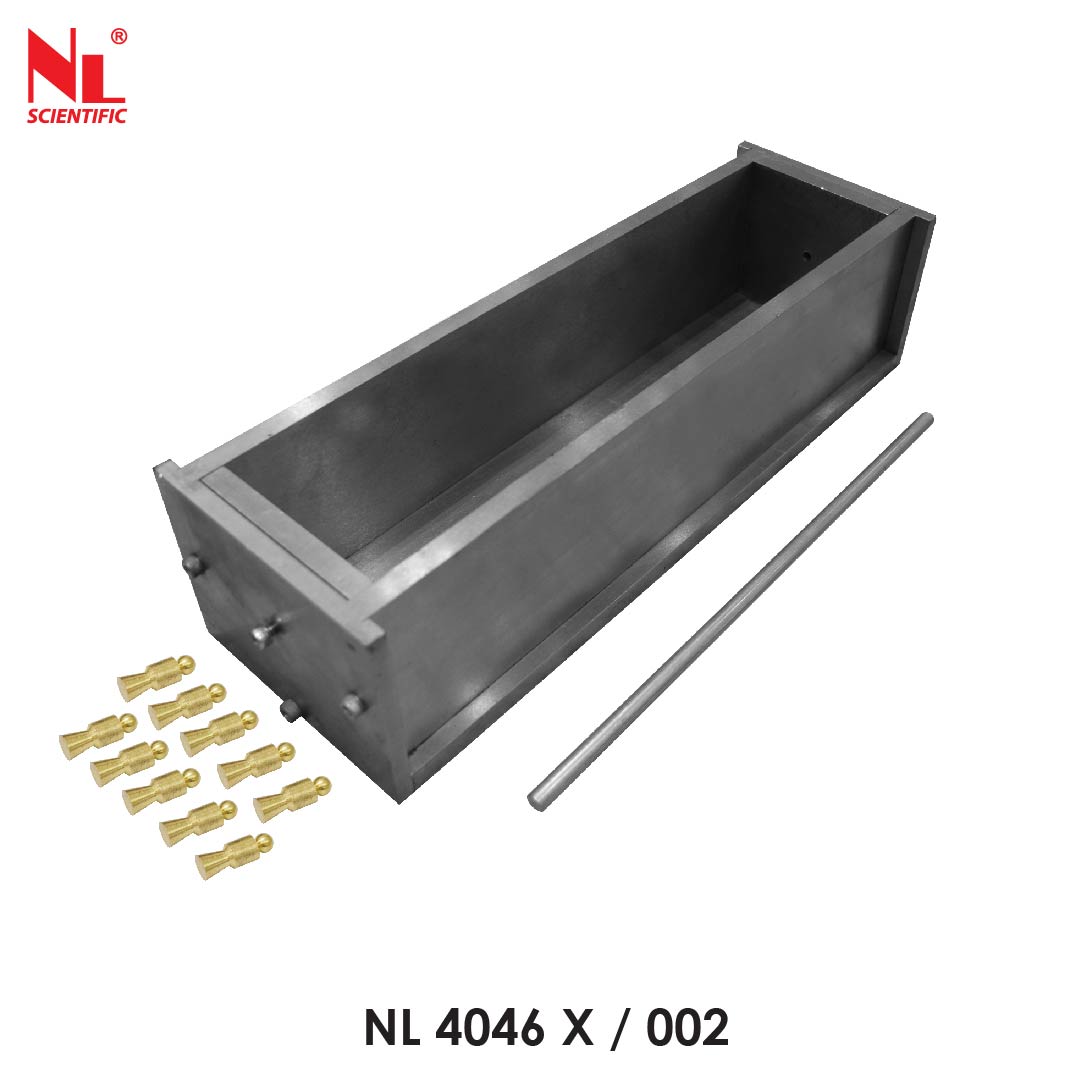

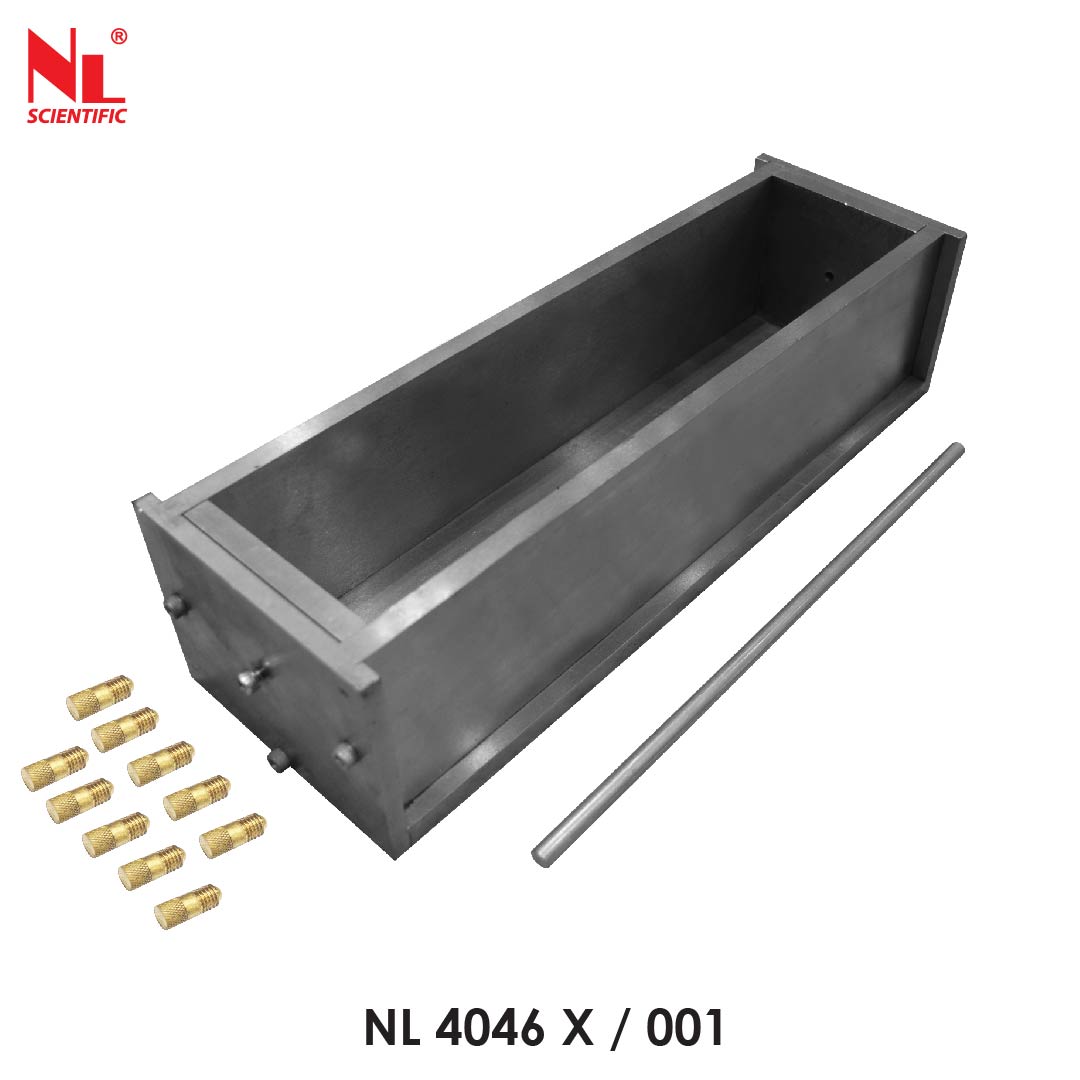

NL 4046 X / 001 & 002

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: BS ISO 1920-8

Shrinkage Determination

Used for determination of linear shrinkage of concrete.

Characteristic:
- Internal surface;smooth finished
- Substantially leak proof
- Substantially enough to hold their from without distortion

Technical Specifications :

Model Number	NL 4046 X / 001	NL 4046 X / 002
Specimen Dimension	75x75x280 mm	100x100x400mm
Material	Polish Surface Mild Steel
Mould Dimension	347(L)x97(W)x86(H)mm	445(L)x144(W)x113(H)mm
Mould Appx. Weight	8 kg	18 kg
