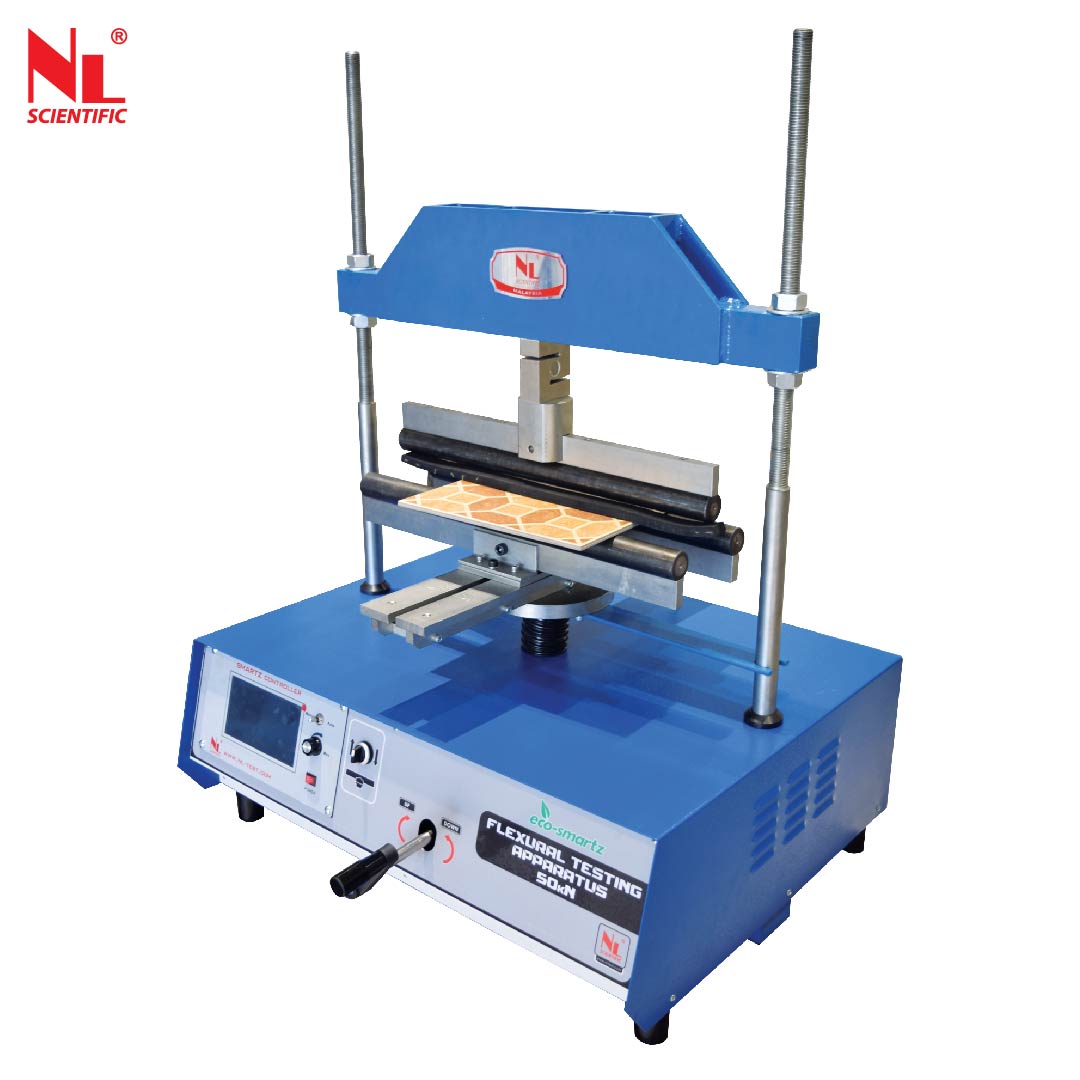

Flexural Testing Machine
NL 4043 X / 001

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: BS EN 491, EN 538 , BS 6073:1

Breaking & Compression Strength

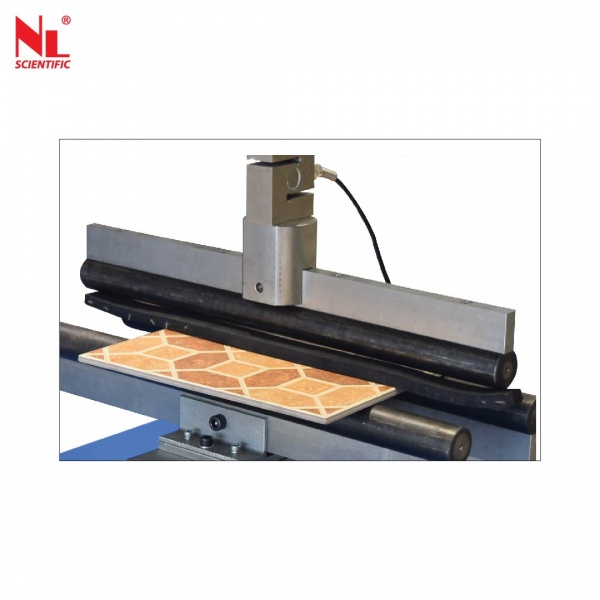

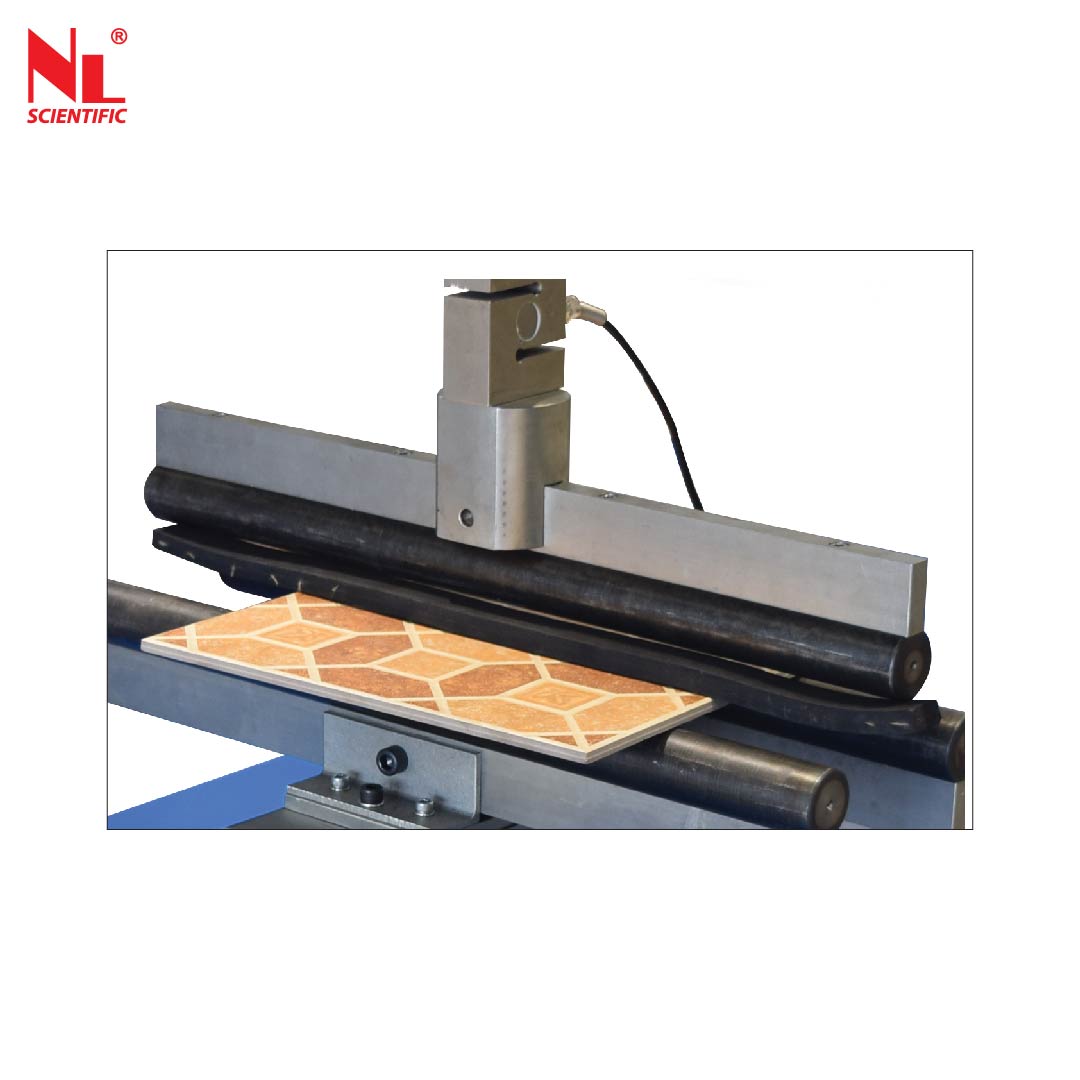

The machine is equipped with a DC motor. Flexural, breaking and compression strength tests can be perform under load or displacement control by using suitable accessories up to the machine capacity. Supplied with 50 kN capacity load cell. Consist with two layer rounded metal bearers in a horizontal plane whose centers are spaced of the hanging length of the specimen to be tested, and a single rounded metal upper bearer positioned centrally between the two lower bearers. The testing machine consist of base containing the transmission components and holds two robust columns connected by upper cross head and digital graphics data acquisition and control system. The upper cross head can be adjusted to set the vertical test space for different tests.

Technical Specifications :

Model Number	NL 4043 X / 001
Max. Capacity	50 x 0.01 kN sensitivity

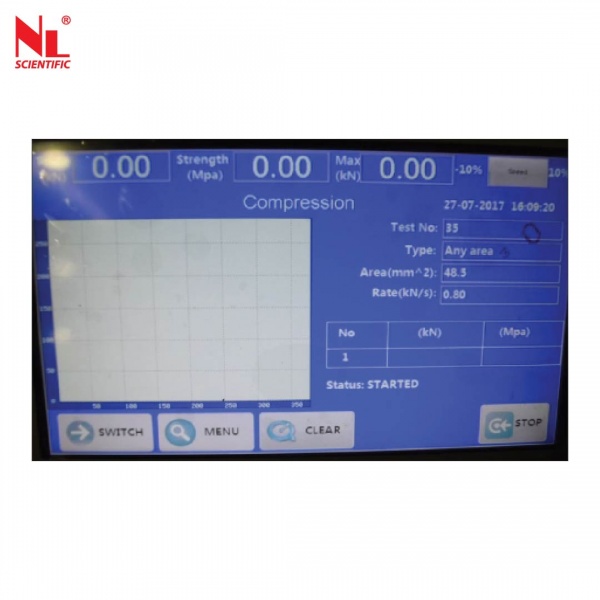

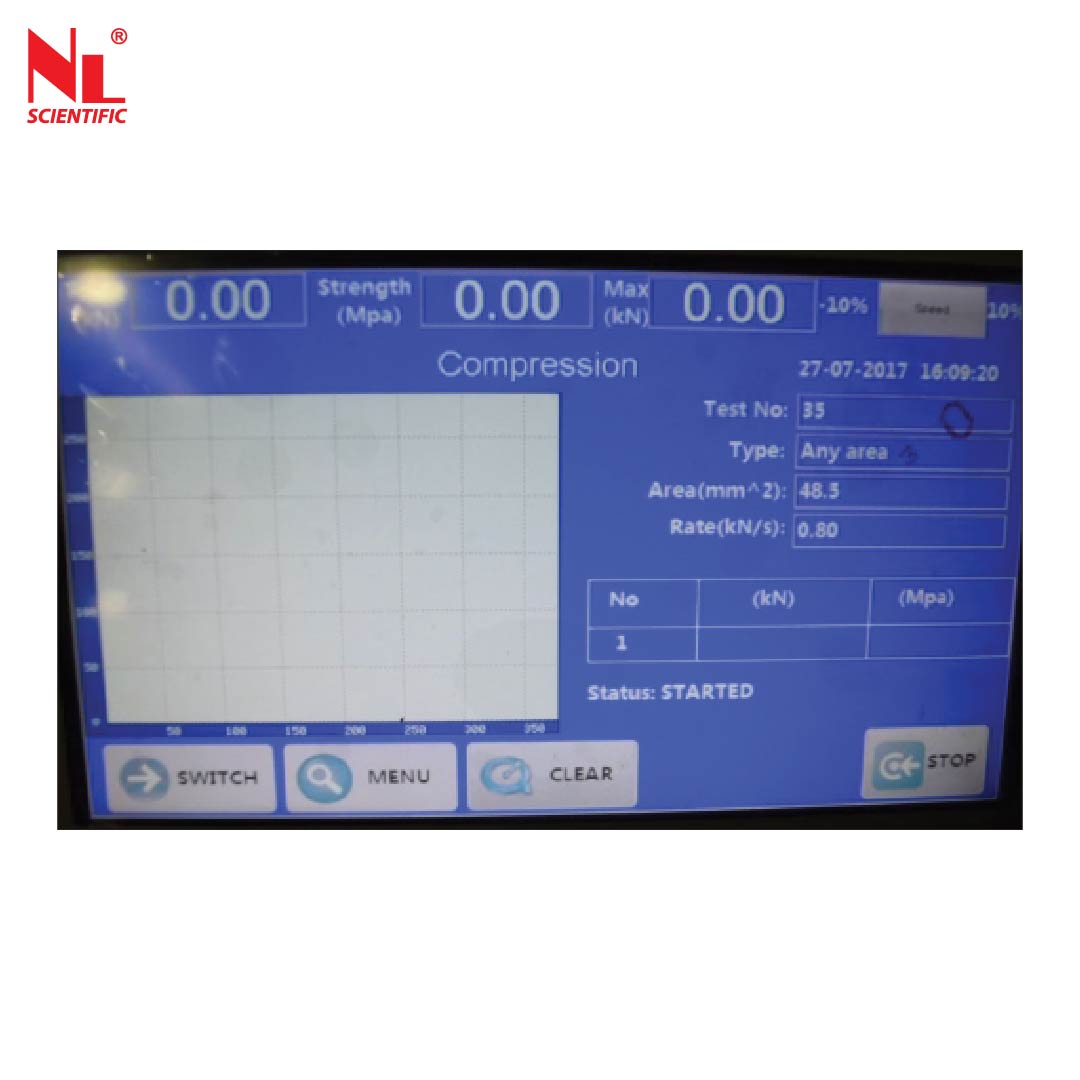

Display Unit	Eco-Smartz Controller with Touch Screen Display
Max, Vertical Test Space	300 mm (H) x 550 mm (W)
Load Rate	0.02 kN/s - 2 kN/s (Depend on Specimen Stiffness)
Distance between Lower Rollers	400mm Max.
Memory Storage	550 Test Result
Dimensions Approx.	830 (L) x 663 (W) x 1135 (H)
Power	240 V, 0.37 kW, 3 A, 1Ph, 50 / 60 Hz
Approx. Weight	225 kg
