Concrete Testing Equipments

Product Range

Concrete Crack Detector Simple yet useful instrument for measuring crack width in concrete and other materials. This high definition microscope operates with an adjustable light source powered by batteries provides a well illuminated scale under all working conditions. Supplied in a convenient size ...Read more

Crack Detection Microscope Meter
NL 4027 X /

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Concrete Crack Detector

Simple yet useful instrument for measuring crack width in concrete and other materials. This high definition microscope operates with an adjustable light source powered by batteries provides a well illuminated scale under all working conditions. Supplied in a convenient sized carrying case.

Technical Specifications :

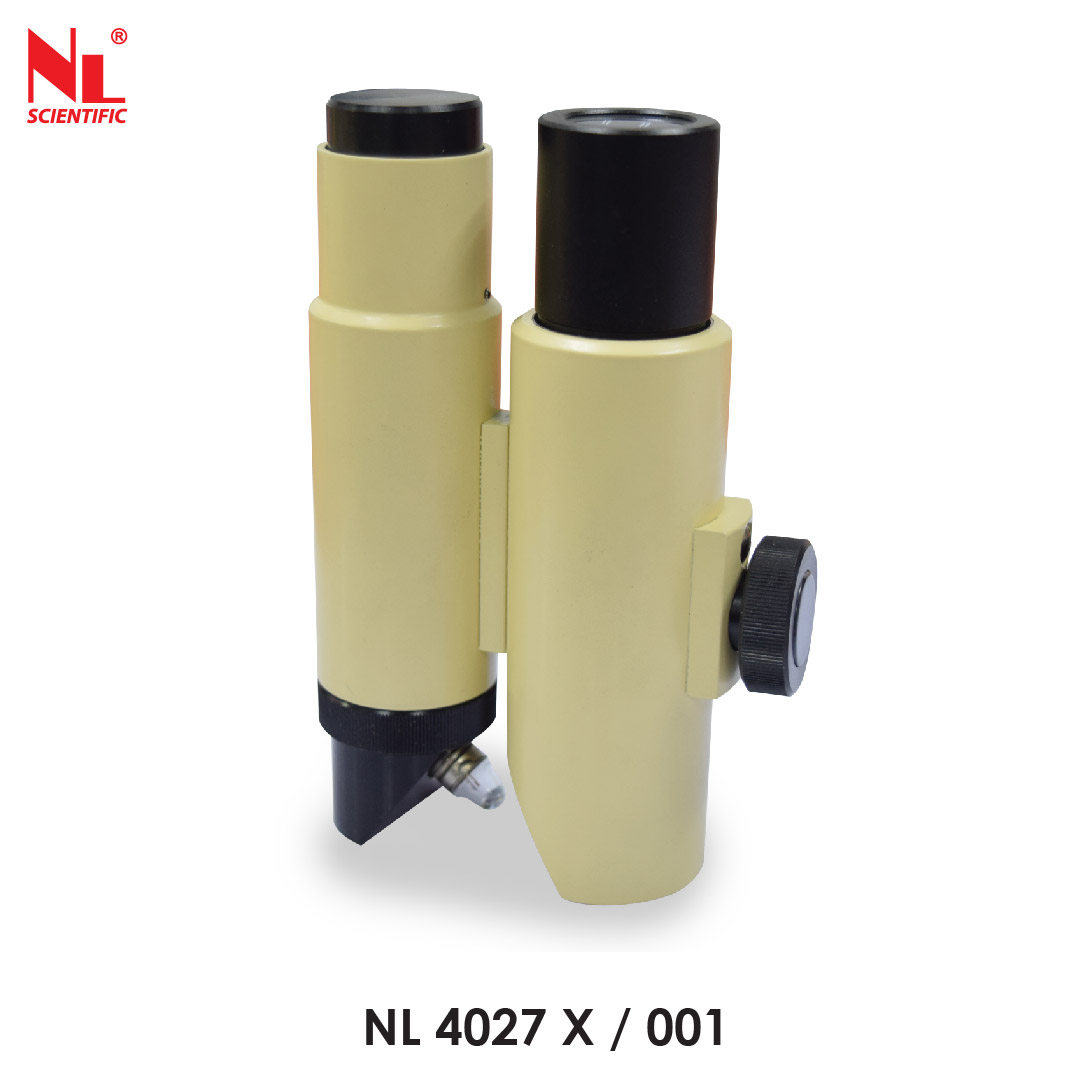

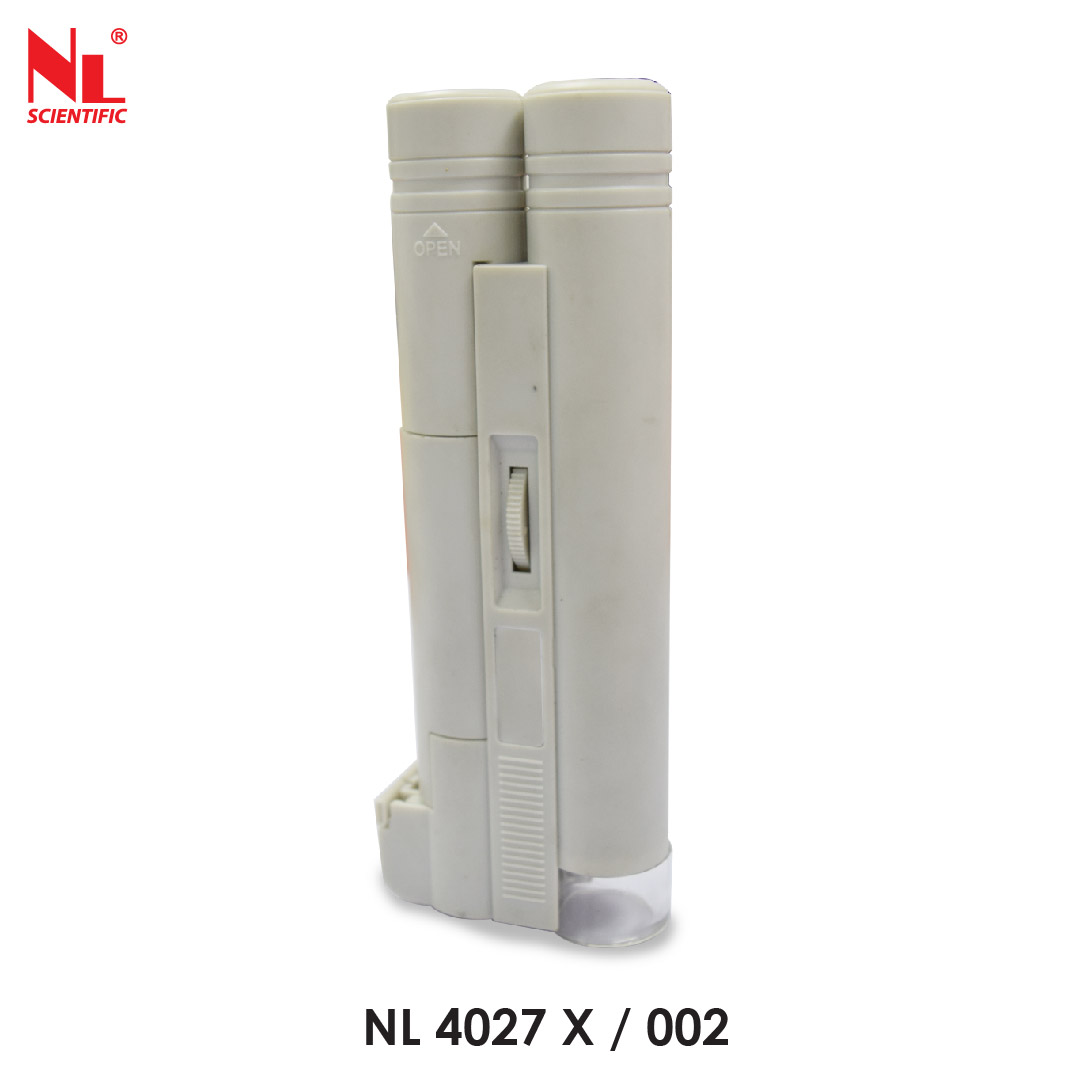

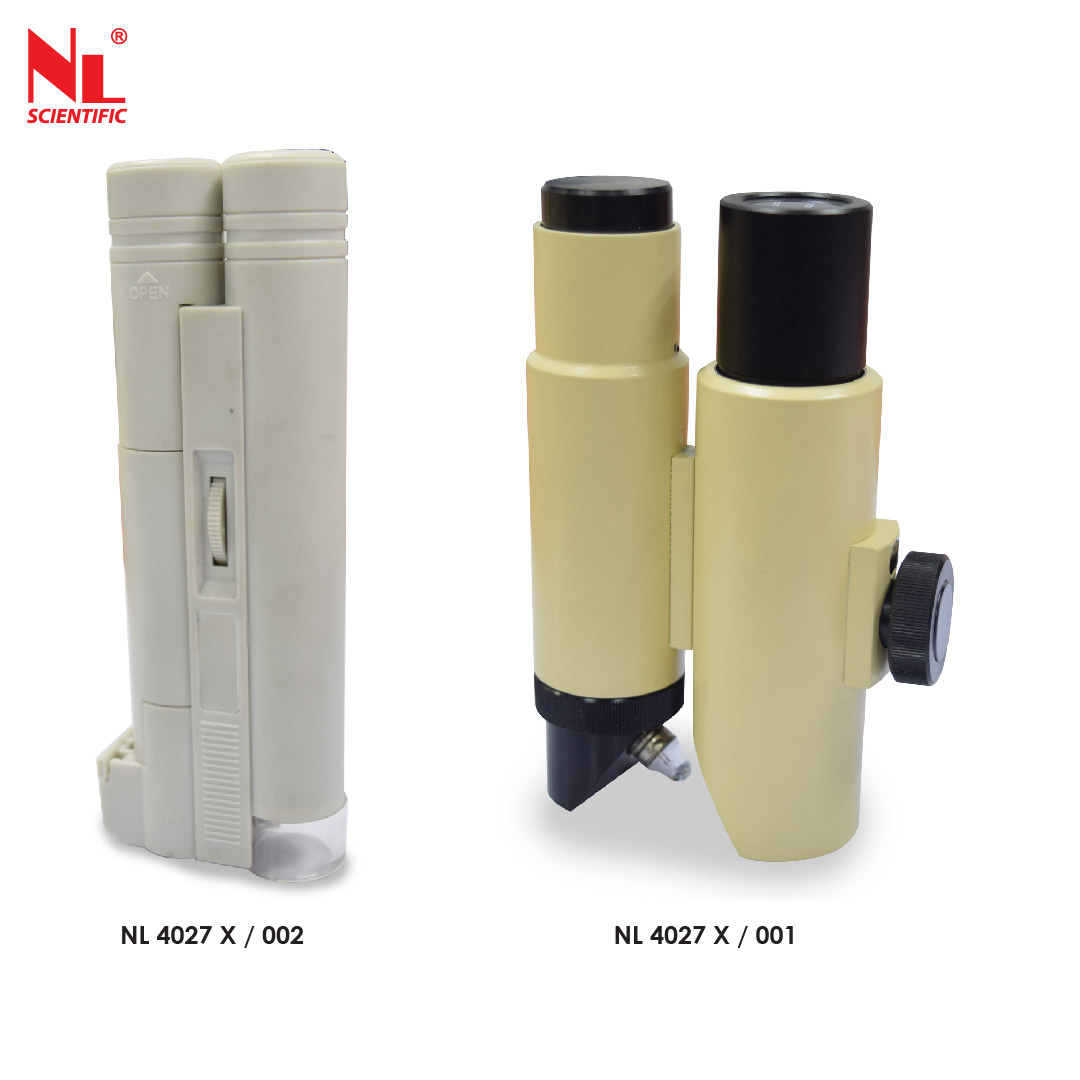

Model Number	NL 4027 X / 001	NL 4027 X / 002
Alternate Code	-	MG 10085-1
Magnification	35 Times	40 times
Scale	4 mm x 0.02 mm per division	4 mm x 0.05 mm per division
Dimension (LxWxH) (mm)	40 x 90 x 150 (case)	150 x 50 x 30
Approx. Weight	600 g	200 g
