Digimatic Load Cell Series
NL 4031 X Series

  • Description

Load & Force Verification

The Digimatic Load Cell is designed for calibrating compression testing machines. It consists of a high strength alloy steel sensing element fitted with precision strain gauges. When a compressive load is applied, the strain gauges detect the deformation and generate an electrical signal, which is amplified and converted into a digital load reading.

Features :
• High stability and accuracy.
• Compact design for easy installation.
• Customizable to meet specific requirements.
• Stable anti-interference signal.
• Durable high strength alloy steel construction.
• Suitable for a wide range of industrial applications

Applications :
• Compression Testing Machines
• Universal Testing Machines
• Force Calibrations System
• Hydraulic Presses
• Industrial Force Measurement
• Material Testing Laboratories



Technical Specifications :

 Model Number NL 4031 X / 002N NL 4031 X / 003N NL 4031 X / 004N NL 4031 X / 006N NL 4031 X / 007N
 Capacity 2000 x 0.01 kN
 3000 x 0.01 kN
 300 x 0.001 kN 5000 x 0.05 kN 1000 x 0.01 kN
 Measurement Mode Compression (Canister Type)
 Repeatability 0.1% F.S.
 Operating Temperature (-10)°C - 50°C
 Material 42CrMoA Alloy Steel
 Safe Overload 150% (of Rated Capacity)
 Ultimate Overload      200% (of Rated Capacity)
 Cable Specifications Ø5 x 3 m Length
 Approx. Weight  16 kg 30 kg 4 kg 57 kg 9 kg
 Power Supply AC Adaptor / Rechargeable Battery

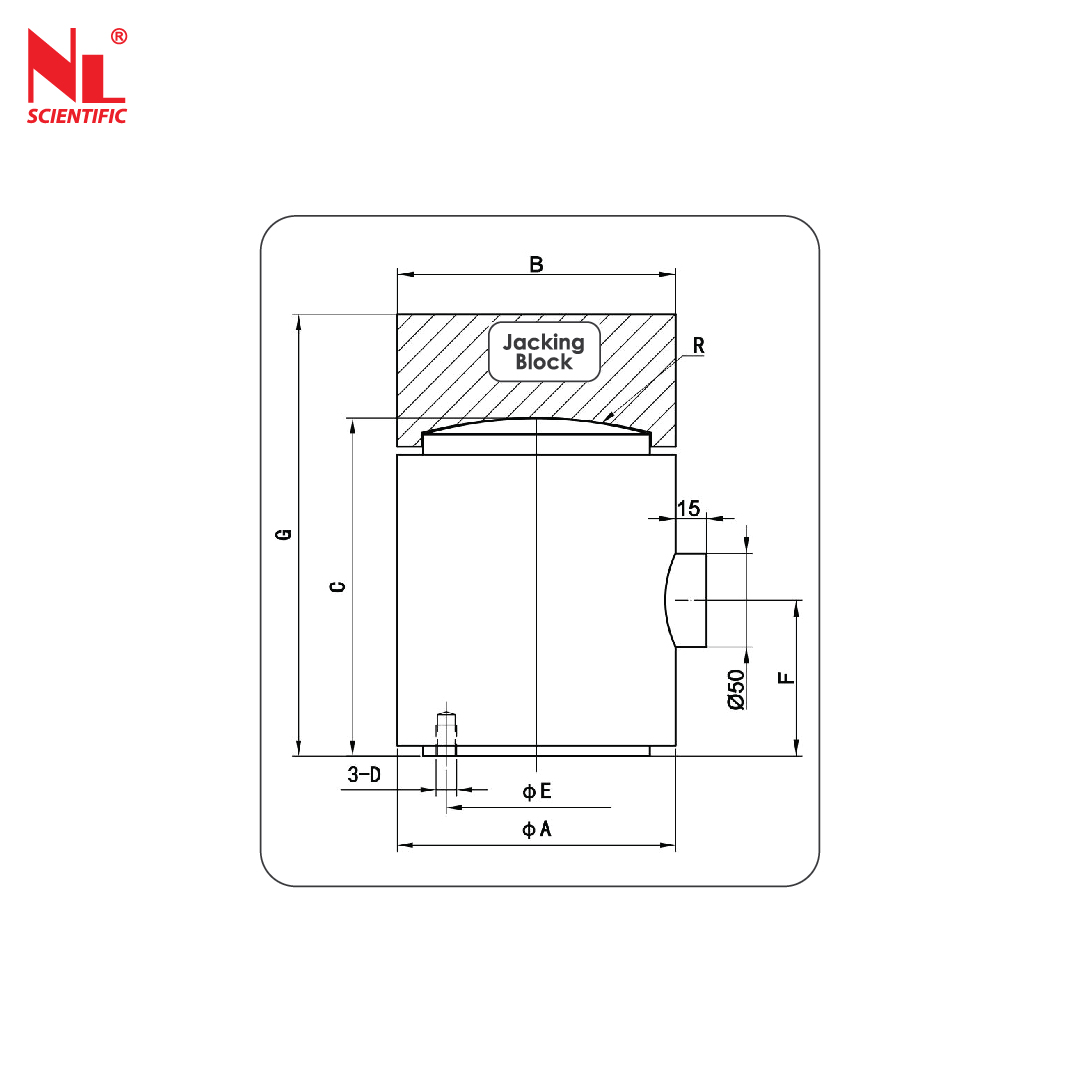

  Load Cell Dimension (mm)
 ØA (mm) 128 154 78 196 98
 ØB (mm) 128 154 78 196 98
 C (mm) 140 170 100 220 100
 D M6 M8 M6 M10 M6
 E 100 120 55 150 75
 R 200 300 100 400 120
 G 180 215 125 275 140
 F 70 85 47 110 55

*1 Copy of Manual Instructions
