A Concrete Cylinder Grinding Machine is used to smooth and polish concrete cylinders (Ø100mm & Ø150mm) that are commonly prepared for compressive strength testing. These cylinders are typically molded from concrete mixes and are then tested to assess the material’s strength. The grinding machine ...Read more

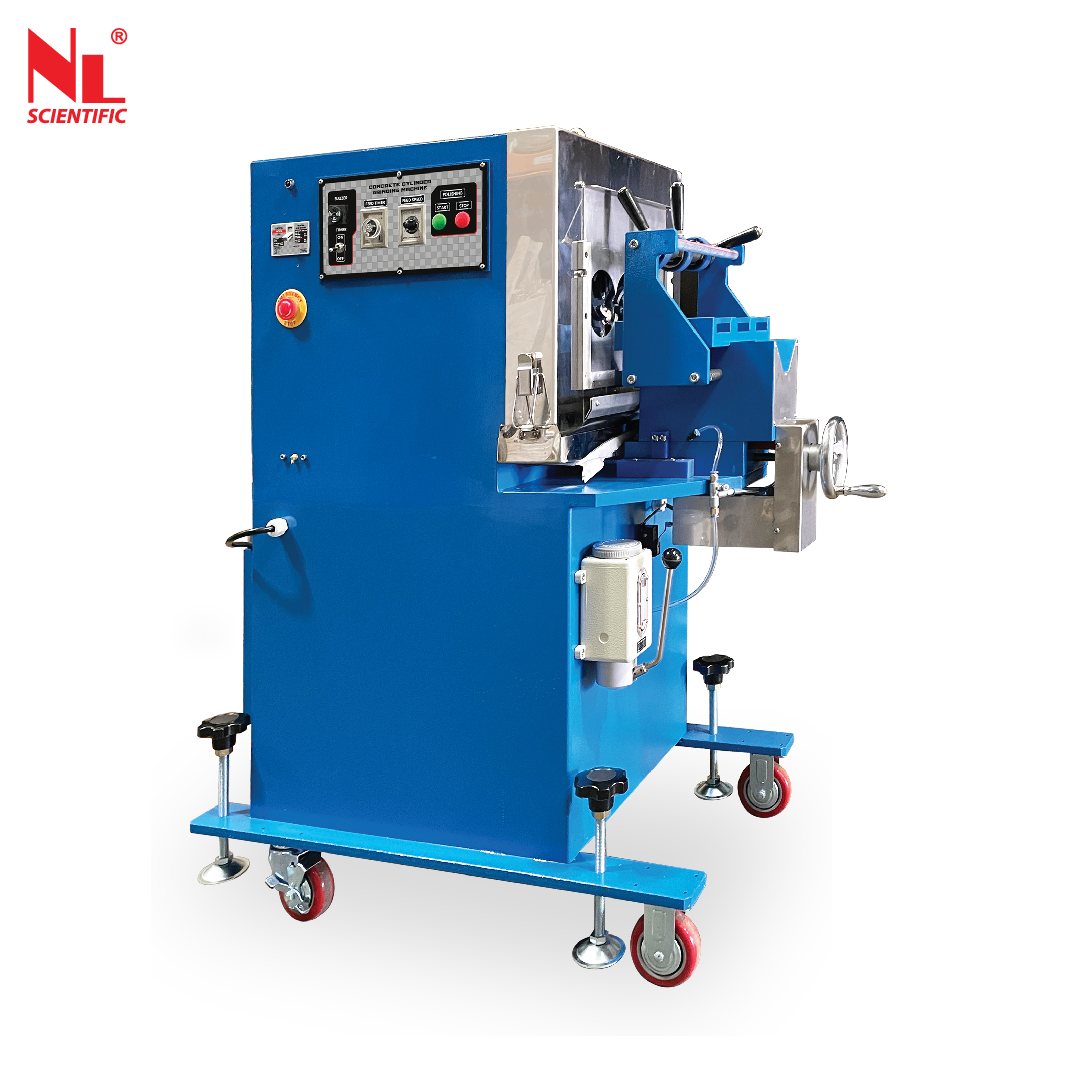

Concrete Cylinder Grinding Machine
NL 4034 X / 003N

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Technical Specifications :

Model Number	NL 4034 X / 003N
Specimen Options	3 Nos (Ø100mm) or 2 Nos (Ø150mm)
Disc Rotation	1800 r.p.m
Feed Control (Polishing)	0.2 mm/min to 2.5 mm/min (approx.)
Timer (Polishing)	Electric Timer
Water Supply	Automatic Water Flow
Polishing Disc	Ø8” Diamond Polishing Disc
Dimension	600 (L) x 850 (W) x 1350 (H) mm
Weight	290kg
Power	220~240 V, 0.75 kW, 1 Ph, 50/60 Hz, 1.8 A

*1 Copy of Manual Instructions

Unit Consists Of :

Model Number	Parts Description	Qty
NL 4034 X / 003 – P 001	4” or 100mm Dia. Specimen Holder Base	1pc
NL 4034 X / 003 – P 002	4” or 100mm Dia. Specimen Cover Plate	1pc
NL 4034 X / 003 – P 003	6” or 150mm Dia. Specimen Cover Plate	1pc
NL 4034 X / 003 – P 004	Tubing Set (Drain Tube x 2.5m), (Cooling Water Supplied Tube x 3m)	1pc

Optional Accessories :

Model Number	Accessories Description
NL 4034 X / 003 – A 001	Ø8” Diamond Polishing Disc
NL 4034 X / 003 – A 002	3 Sample Ø 50mm Dia. Clamping Jig
