Making Concrete Specimens The characteristics of concrete mixer :*Suitable for field mixes of low / medium strength concrete.*Steering system and reinforced tow bar for safe and easy movement.*Device for absorbing vibrations: it reduces to the least the vibrations produced by electrical motor, ...Read more

Electrical Drum Mixer
NL 4025 X / 007A, 011 & 012

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Making Concrete Specimens

The characteristics of concrete mixer :
*Suitable for field mixes of low / medium strength concrete.
*Steering system and reinforced tow bar for safe and easy movement.

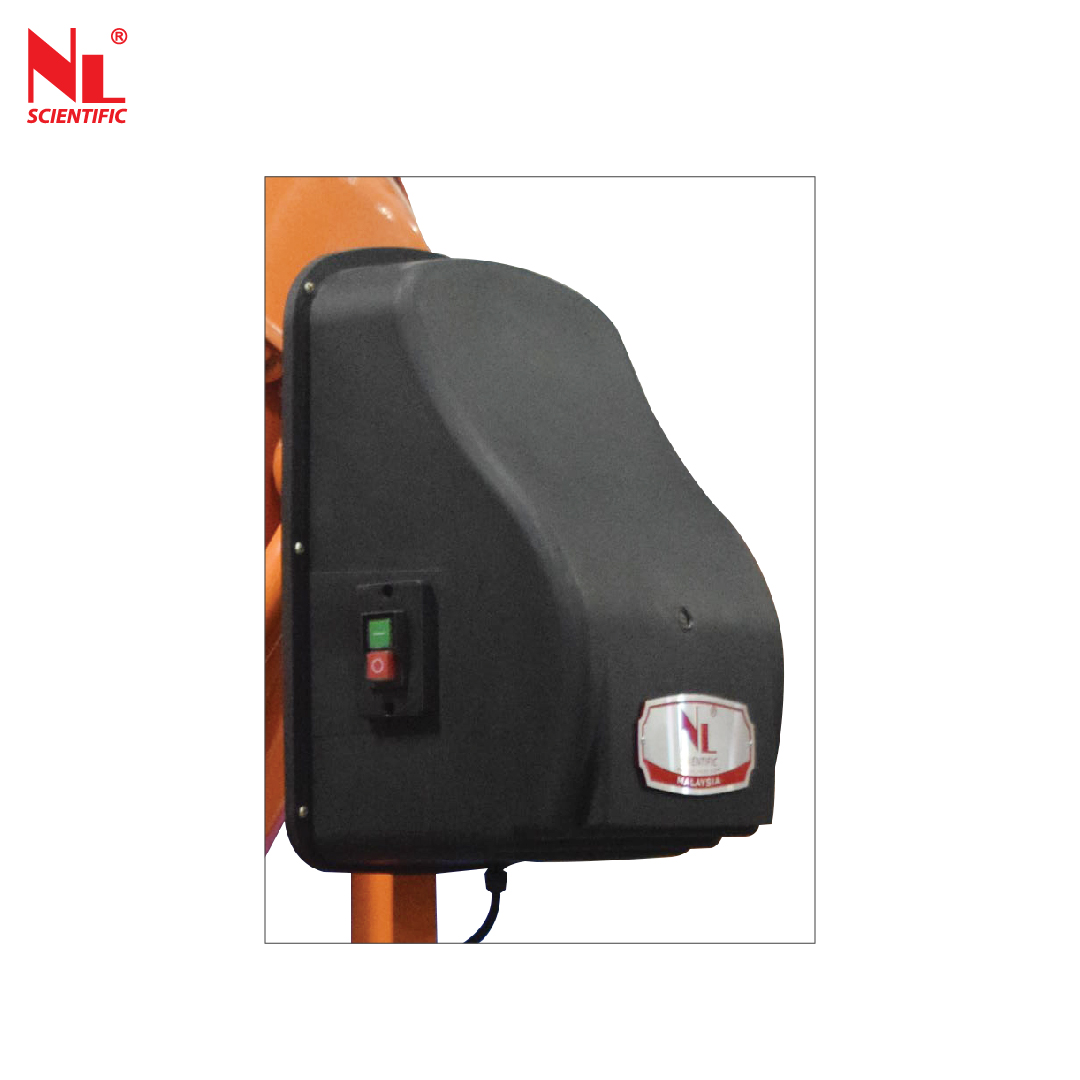

*Device for absorbing vibrations: it reduces to the least the vibrations produced by electrical motor, for a more noiseless machine that has a long duration in time.
*Telescopic legs for an absolute stability of the machine.

Technical Specifications :

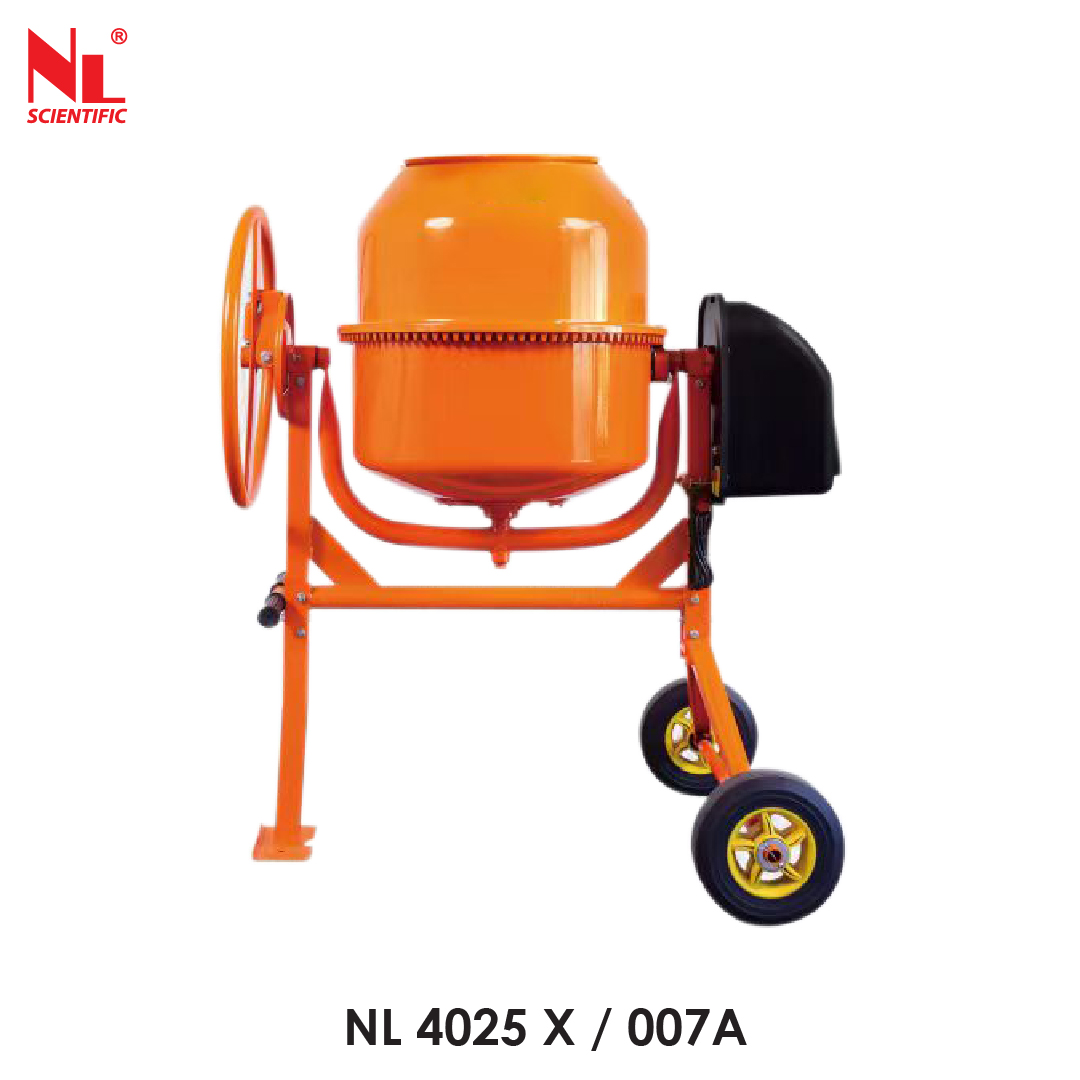

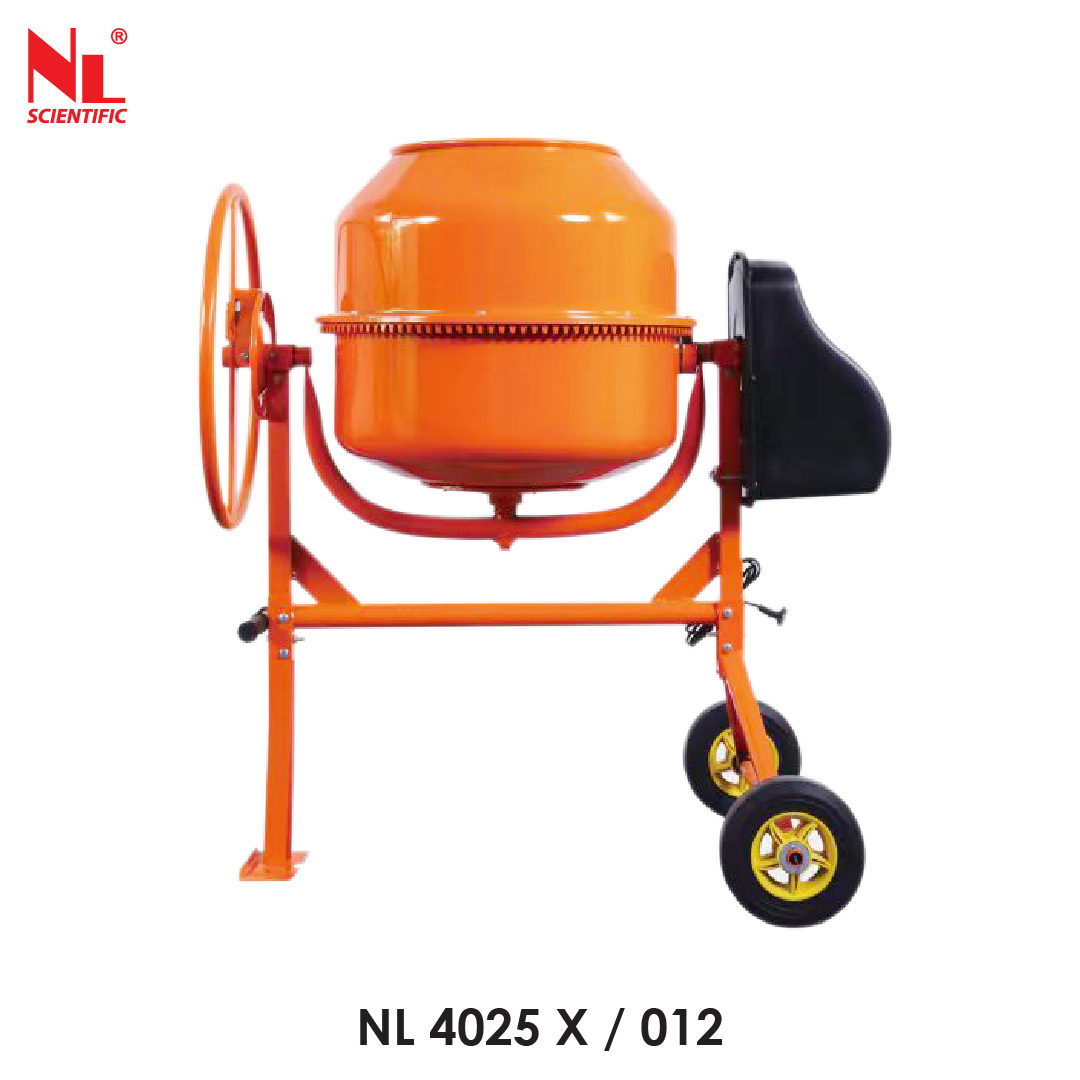

Model Number	NL 4025 X / 007A	NL 4025 X / 011	NL 4025 X / 0012
Drum Capacity	120 L	180 L	200 L
Max. Mixing Capacity	105 L	153 L	170 L
Drum Rotation Speed	28 ~ 34 RPM
Drive Part	Cast Steel Ring Gear
Product Dimension (mm)	1020 (L) x 730 (W) x 1280 (H)	1160 (L) x 730 (W) x 1240 (H)	1160 (L) x 730 (W) x 1310 (H)
Packing Dimension (mm)	700 (L) x 600 (W) x 390 (H)	770 (L) x 700 (W) x 370 (H) mm	770 (L) x 700 (W) x 370 (H)
Approx. Weight	55 kg	58 kg	65 kg
Power	220~240 V, 550 W, 50 / 60 Hz, 1Ph	220~240 V, 850 W, 50 / 60 Hz, 1Ph	220~240 V, 1000 W, 50 / 60 Hz, 1Ph
