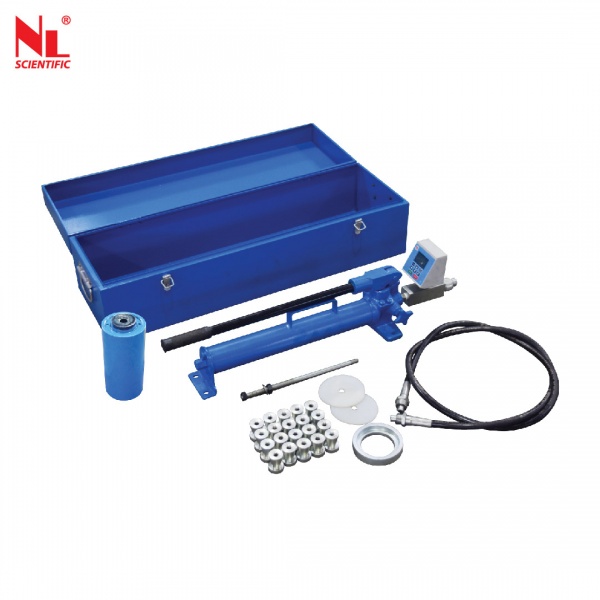

Pull Out Test Apparatus
NL 4016 X / 002


  • Description

Standard: ASTM C900, BS 1881-207, EN 1542



Strength Evaluation

Used to evaluate the concrete resistance as per the strength applied to extract an insert in concrete. A keyhole slot for easy linkage to fix a bearing ring. The load application is achieved via a hand operated hydraulic pump. Maximum load capacity 100 kN (10 tons). An integral movement indication is provided allowing “First Movement” to be identified as well as total displacement before failure. A precise loading provides smoother operation eliminating hydraulics backlash.



Technical Specifications :

 Model Number  NL 4016 X / 002
 Capacity  100 kN
 Case Dimension (mm)   800 (L) x 200 (W) x 230 (H)
 Approx. Weight  22 kg
