Standard: EN 196-1
Preparation of Mortar Prisms

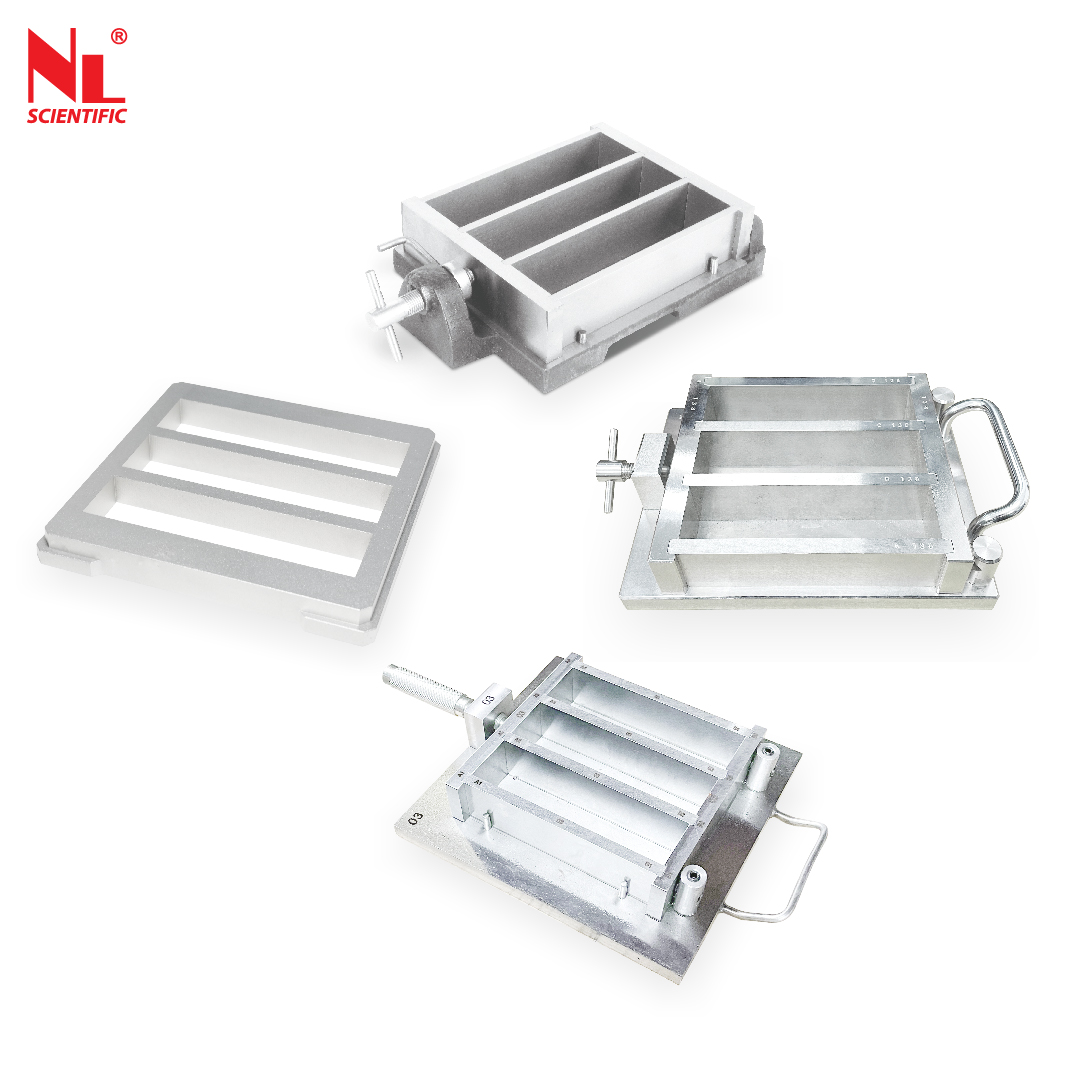

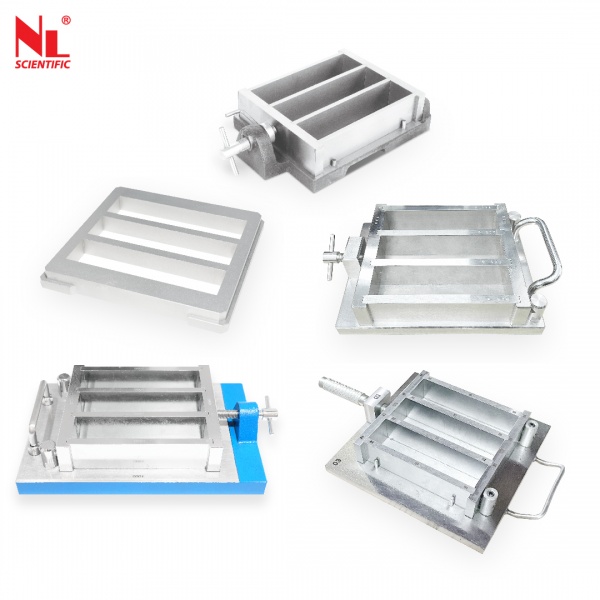

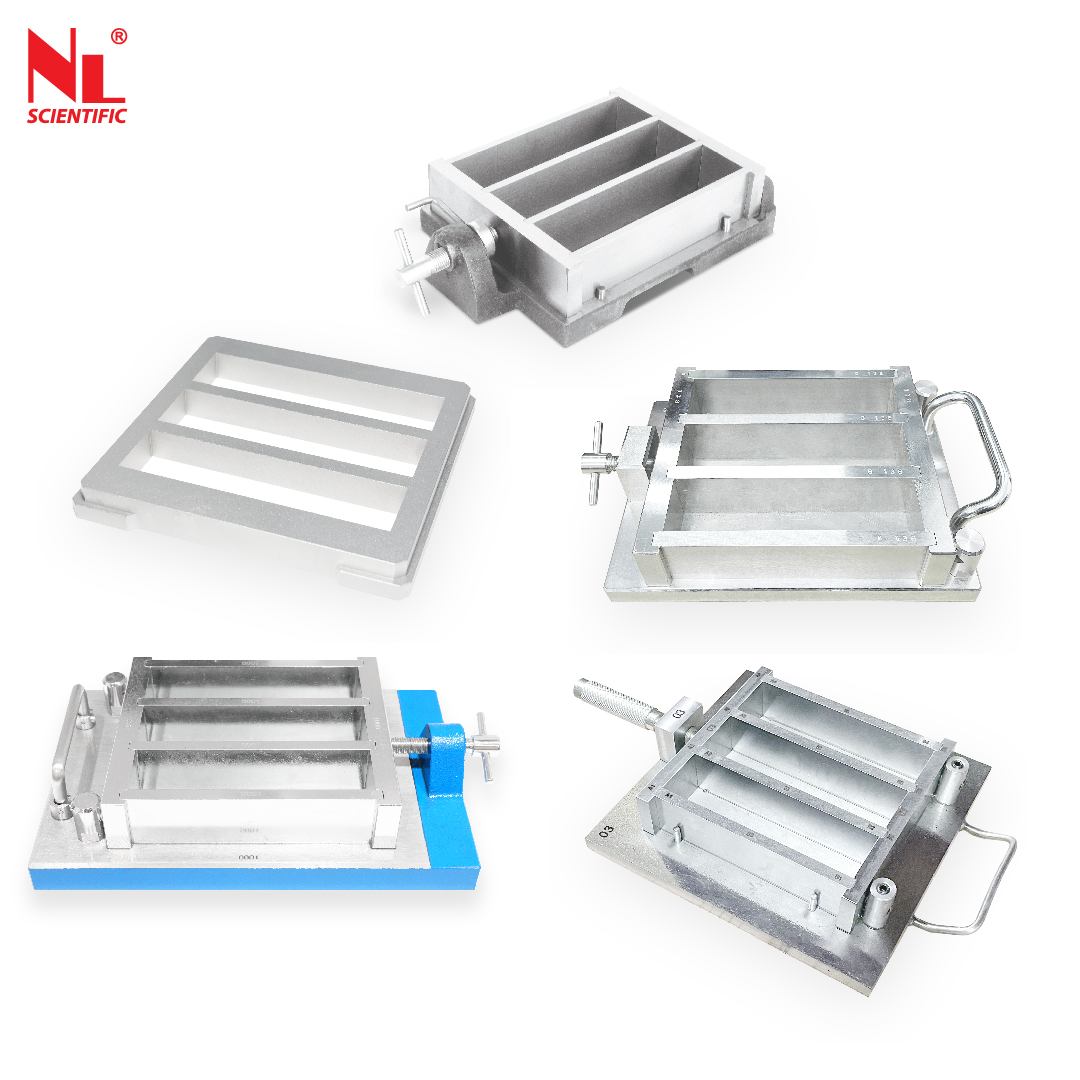

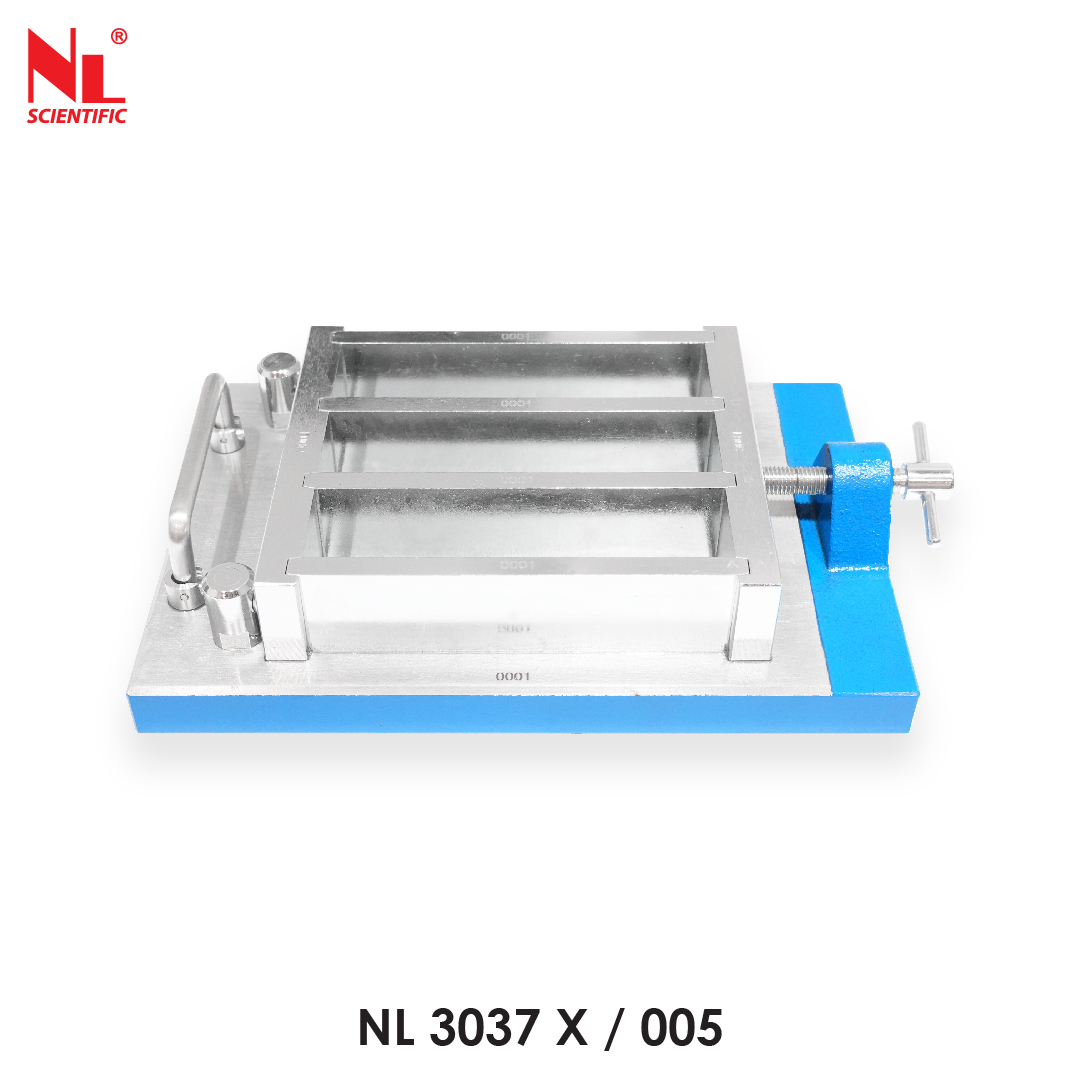

These three gang moulds are used to cast mortar prism specimens for flexural and compression tests, with dimensions as per standard requirement. Made from special alloy steel with a minimum surface hardness of HV200 and flat surfaces ensure reliable test result.
Technical Specifications:

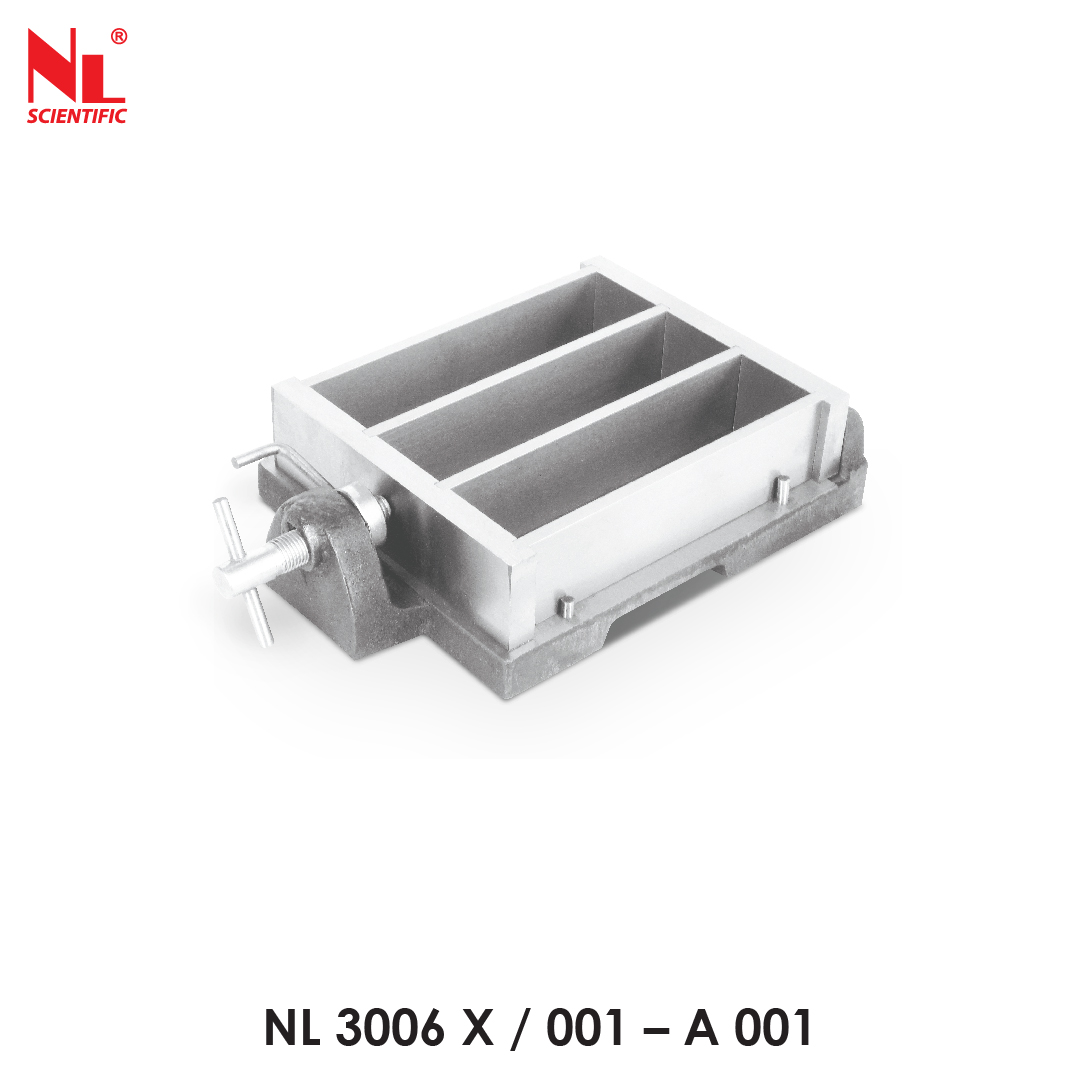

| Model Number |
NL 3006 X / 001 - A 001 |
| Material |
Carbon Steel & Cast Iron |
| Type of Prisms (mm) |
40 x 40 x 160 |
| Dimension (mm) |
270 (L) x 167 (W) x 60 (H) |
| Approx. Weight |
6.5 kg |
Technical Specifications:
| Model Number |
NL 3037 X / 002 |
| Material |
Carbon Steel |
| Type of Prisms (mm) |
40.1 x 40 x 160 |
| Dimension (mm) |
224 (L) x 224 (W) x 52 (H) |
| Hardness |
Over 500 HV |
Technical Specifications:

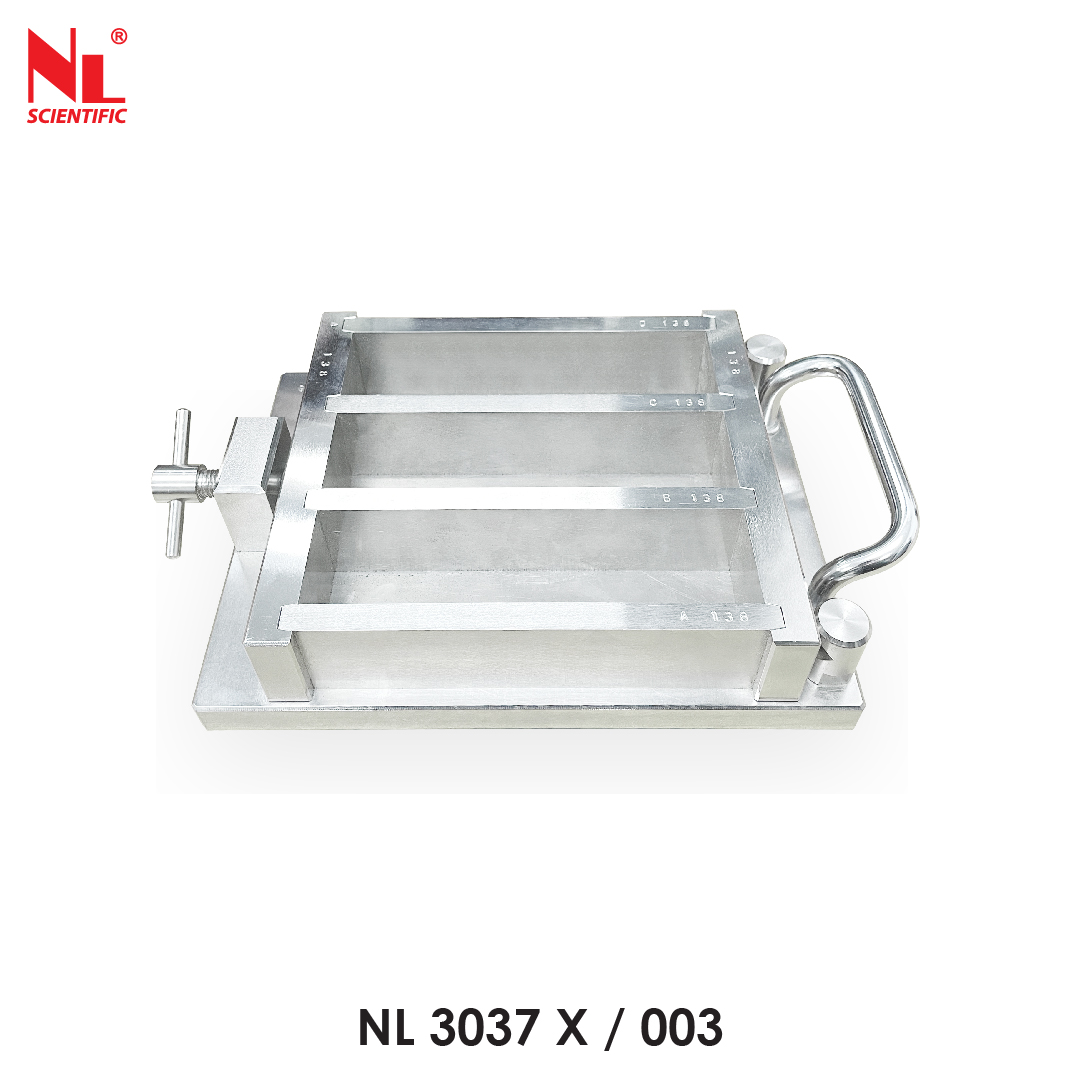

| Model Number |
NL 3037 X / 003 |
| Material |
Carbon Steel |
| Type of Prisms (mm) |
40.1 x 40 x 160 |
| Dimension (mm) |
243 (L) x 175 (W) x 57 (H) |
| Hardness |
Over 200 HV |
| Approx. Weight |
9.5 kg |
Technical Specifications:

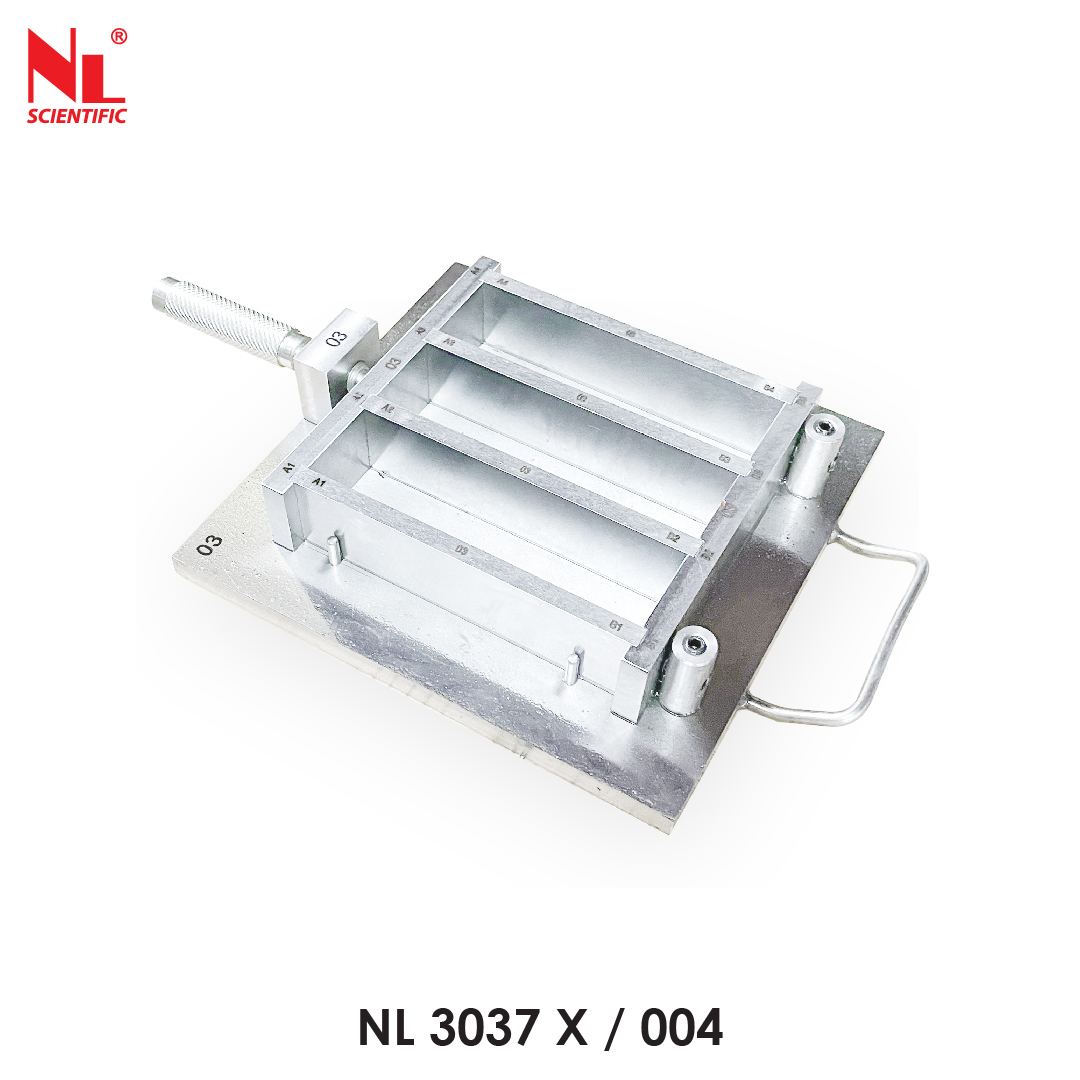

| Model Number |
NL 3037 X / 004 |
| Material |
Carbon Steel |
| Type of Prisms (mm) |
40 x 40 x 160 |
| Dimension (mm) |
350 (L) x 230 (W) x 55 (H) |
| Hardness |
Over 200 HV |
| Approx. Weight |
10.9 kg |
