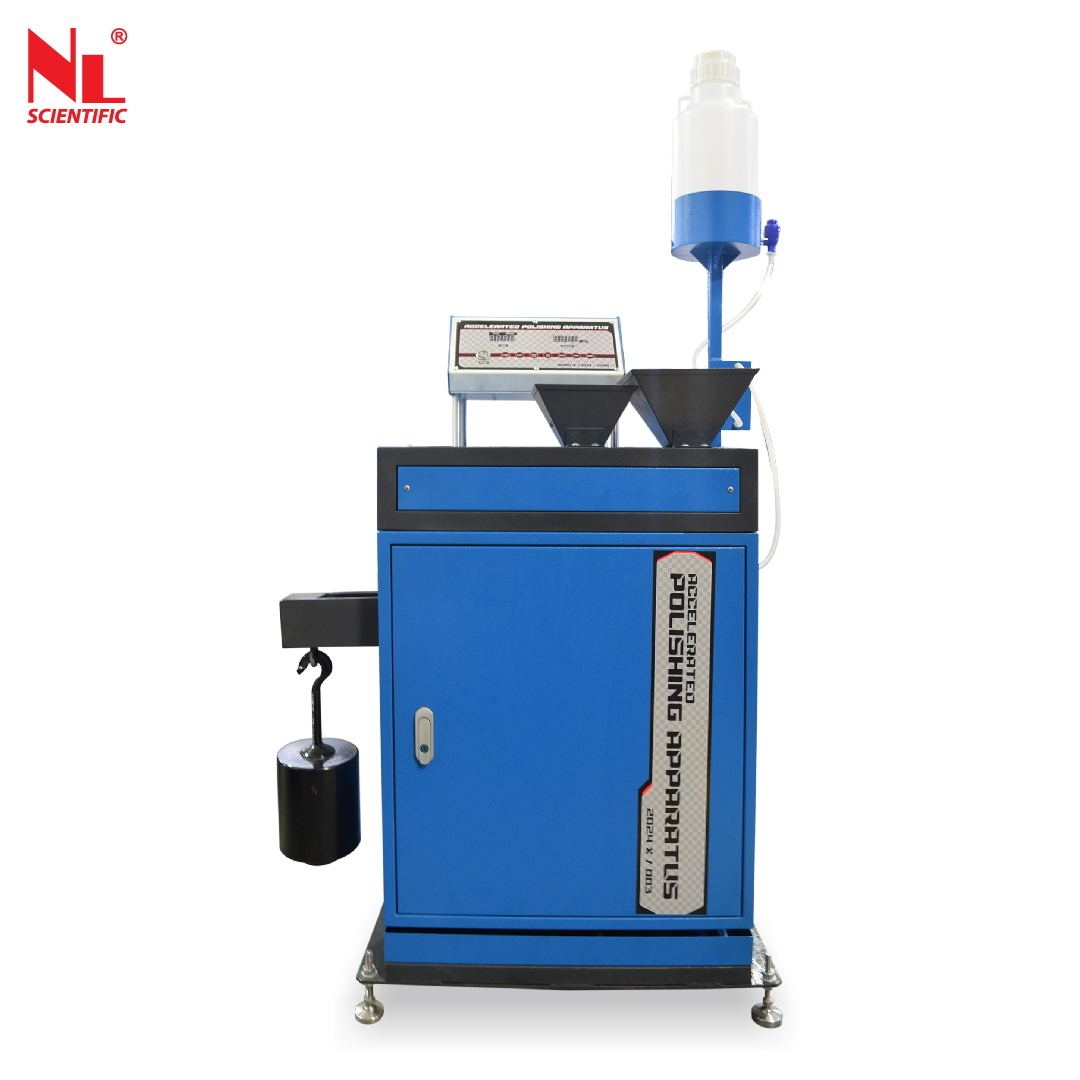

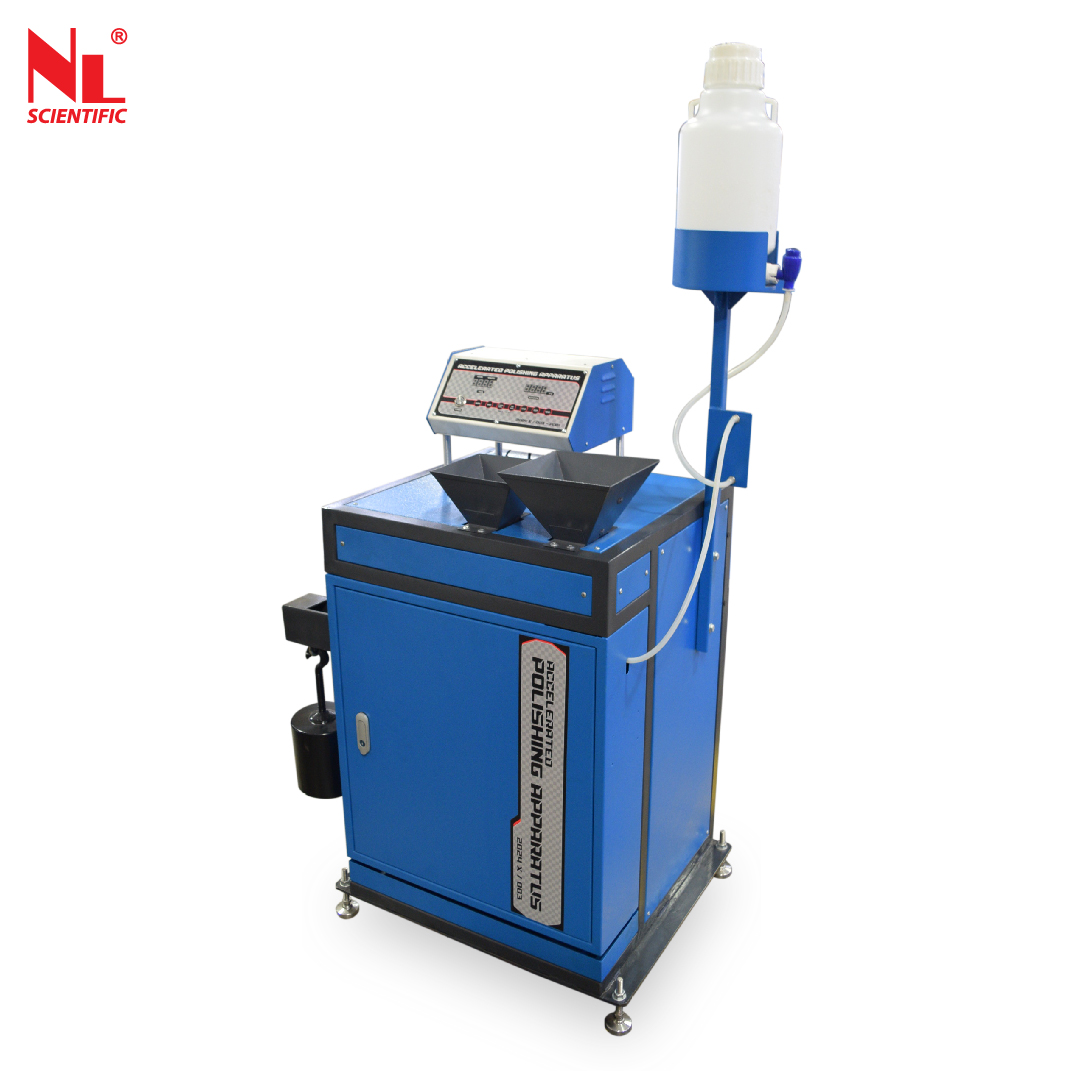

Accelerated Polishing Apparatus
NL 2024 X / 003

  • Description

Standard: BS 812:114, EN 1097-8, NF D18-575T

Determination of the Polished Stone Value

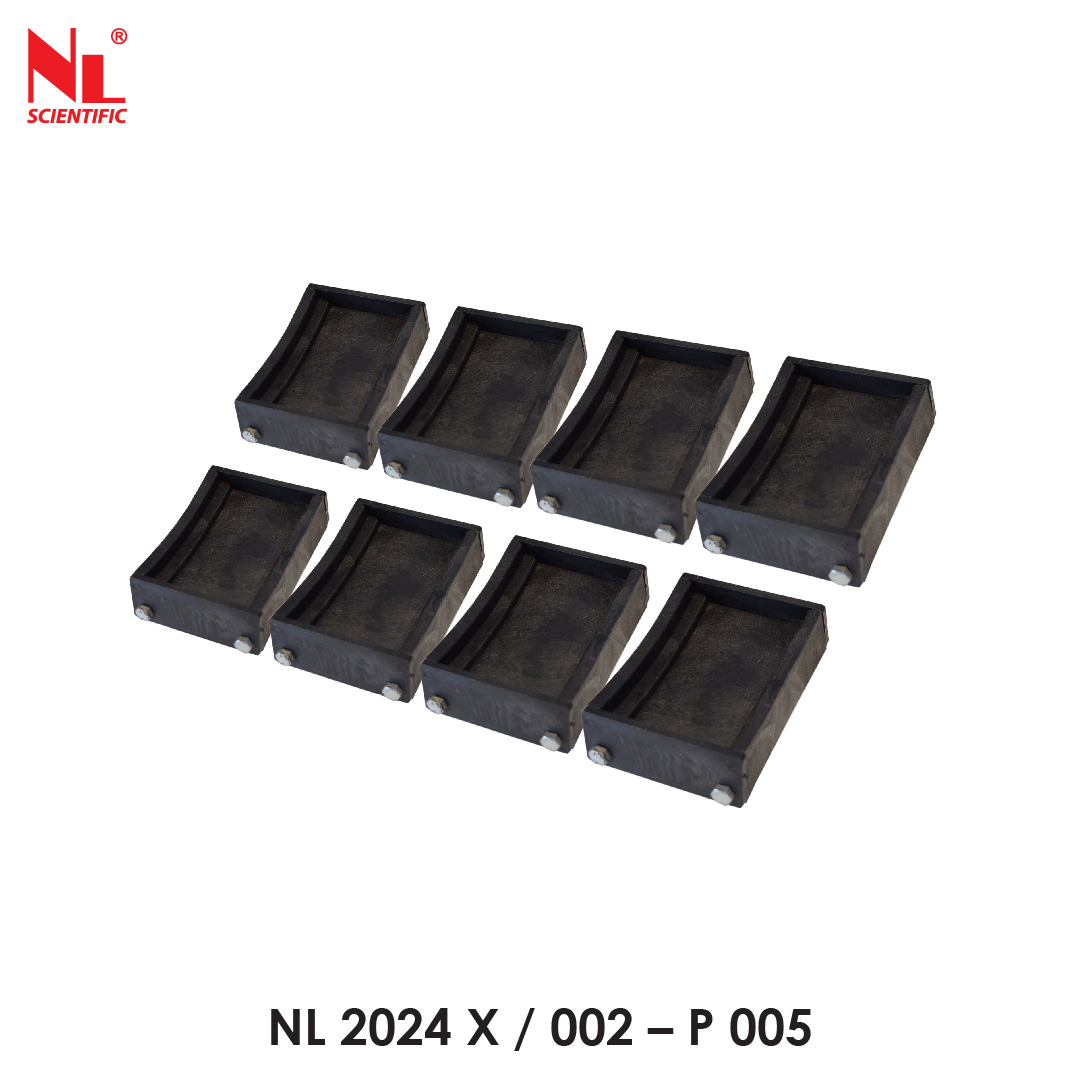

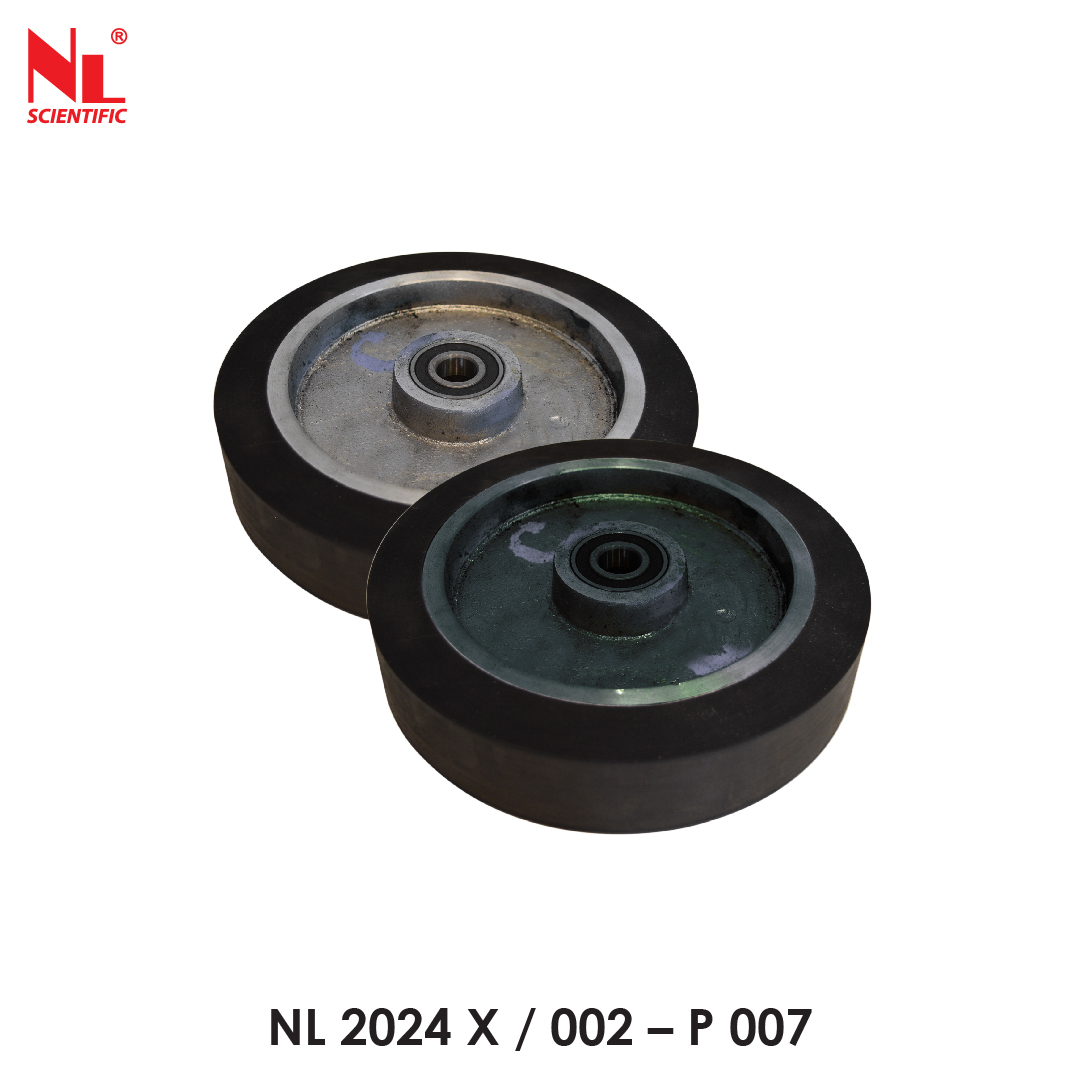

The apparatus is used for determining resistance of aggregates used for road wear caused by polishing action of vehicle tyres on a real surface. It used to prepare aggregate samples for testing resistance by using Skid Resistance Apparatus. Maximum of 14 specimens to be mounted on a road wheel and specimens are brought into contact with a rubber tyres wheel and by increasing loads during operation.



Technical Specifications:

 Model Number  NL 2024 X / 003
 Road Wheel Rotation Speed  320 r / min
 Rubber Wheel Outer Diameter  203 mm
 Water Flowability  0 ml/min to 60 ml/min
 Rubber Wheel Hardness  69 IRHD
 Road Wheel Outer Diameter  406 mm
 Dimension  1000 (L) x 570 (W) x 1750 (H) mm
 Approx. Weight  141 kg
 Power  220~240 V, 1.4 kW, 6 A, 1 Ph, 50 / 60 Hz
