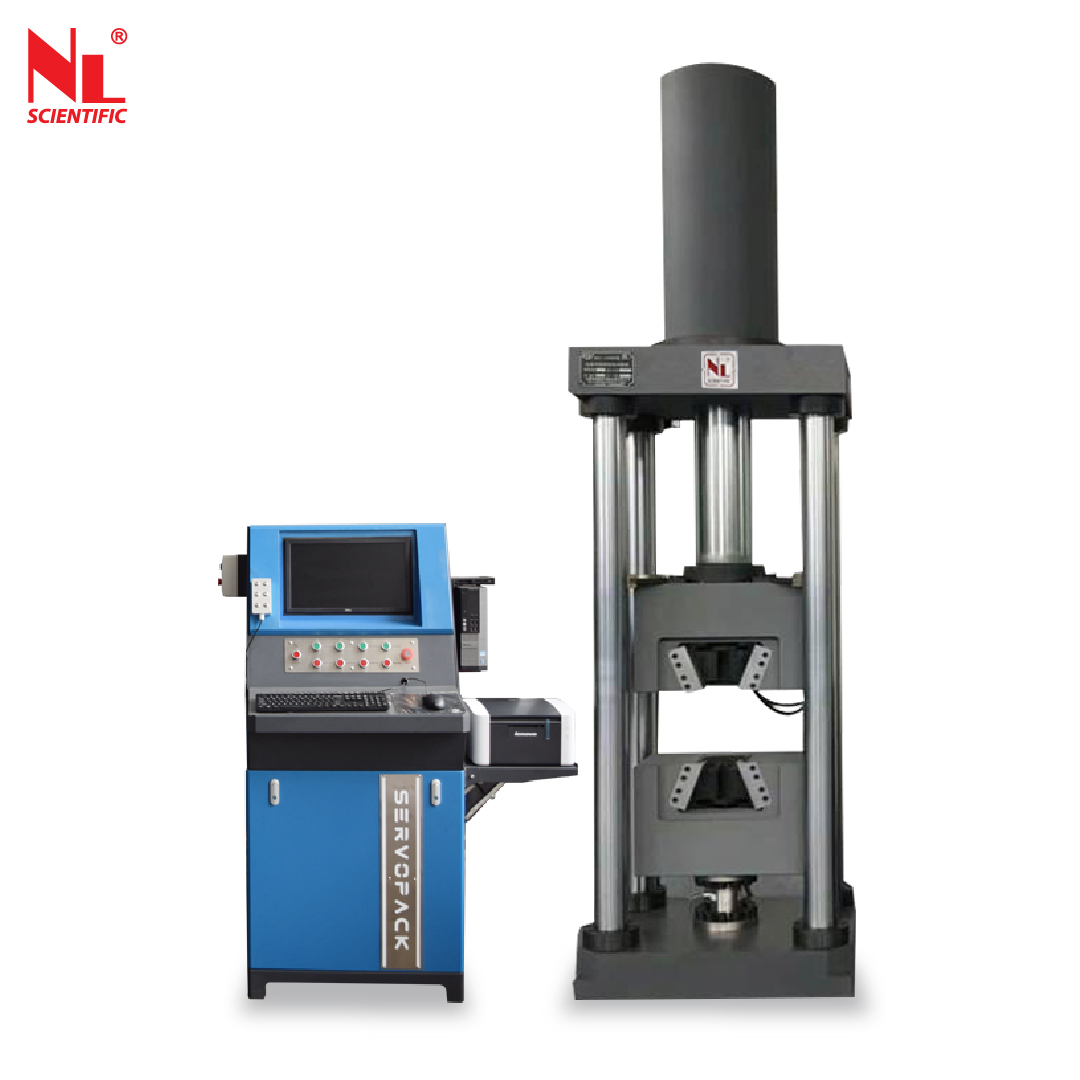

Electro-Hydraulic Servo Control Universal Testing Machine 2000kN (Single Pull Version)
NL 6000 X / 016SP


  • Description

Standard: BS EN 10002-1, ISO 7500-1, ASTM A370



This NL 6000 Series UTM used for the mechanics property test such as the tensile, bending, compression and etc to various metallic and non-metallic materials. The testers have been developed according to BS EN 10002-1,ISO 7500-1 & ASTM A370 “Metal Tensile Test Method” with the adoption of the electro-hydraulic servo control and electronic measurement. It can automatically process the test result for statistical purpose and print default or user-defined test report.

NL 6000 Series UTM use the micro-computer automatic data collection and processing, real time display of the test data and curves. It has the functions such as unlimited storage of test result in the computer, printing the test results and curves, processing the batch test result report, managing the database and so on. It also has the network interface. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation and etc.

NL 6000 Series UTM have the features such as the high precision, advantage performance, high reliability, convenient operation and etc.

OPERATION DISPLAY
Computer Screen Display unit with the following functions
*Test force display
*Break detection
*Full auto test range switching function
*Auto return function
*Peak / Break value display function
*Test conditions

SAFETY FEATURES
The system include with the followings safety features
*Emergency stop switch
*Overload limit
*Hydraulic pump motor over-current & over heating protection
*Leak / over current protection
*Automatic stop control
*Safety Guard

CONTROL & DATA PROCESSING SOFTWARE
*User friendly & easily due to clear and brief operation – operation interface
*Automatically save the test conditions & results
*User define test curves including : Stress / Strain, Force / Elongation, Strength / Time to suit various requirement
*Individual or combine display test curves on the same screen to compare with other several data at the same time
*Compatible with Microsoft Excel by import or export function
*Base of testing with digital sample break detection, auto ranging, auto calibration, quick tare & auto return facilities
*Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
*Tension, Compression, Shear, Cycling & Creep Test facilities
*User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
*Advanced protection features with software setting or / & hardware switch upper & lower limit setting
*Operation fully control by computer
*USB communication system & ethernet
*Grips & fixtures for tension, compression, flexural, shear & products testing available
*Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
*Report sheet consist of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength etc
*Force display unit : kN,N,tons, & mN
*Stress display unit : GPa,Mpa,Pa,psi,N/sq.mm,Kg/sq.mm & Tons/sq.inch
*User define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc



Unique Feature :

*Over size prestressed 4 column with twin screw
*High toughness fragment safety guard with transparence sliding door
*High precision load cell ram
*Console Control Unit



Technical Specifications :

 Model Number  NL 6000 X / 016SP
 Max. Test Capacity  2000 kN
 Machine Class  Class 0 - 5T
 Relative Error of Indicated Value  ±1%
 Effective Measurement Range  1% - 100 % F S (Full Range without binning)
 Deformation Measurement Range   1% - 100 % F S
 Relative Error of Deformation Indication  ±1%
 Relative Error of Displacement Indication  ±1%
 Displacement Resolution  0.001 mm
 Relative Error of Stress Rate Control  ±2%
 Relative Error of Displacement Rate Control  ±1%
 Strain Rate Control Adjustment Range  0.00025/s / 0.0025/s
 Relative Error of Strain Rate Control  ±2%
 Force, Deformation, & Displacement
Retention Control
 0.3% - 100% F S
 Relative Error of Force, Deformation & Displacement Retention Control  ≤1%
 Piston Movement Speed  190 ~ 240 mm / min
 Max. Compression Space  500 mm
 Max. Tensile Space  800 mm
 Effective Distance Between 2 Column  580 mm
 Piston Stroke  800 mm
 Test Speed  Max. 190 mm/min
 Round Specimen Size   Ø20 - Ø70 mm
 Flat Specimen Size  Max. 50 mm Thick
 Size of Compression Platen  180 mm x 350 mm
 Dimension (Frame)  1100(L) x 800(W) x 3600(H) mm
 Dimension ( Control Console)  790(L) x 730(W) x 1600(H) mm
 Power  380~415V, 3ph, 4kW, 8.1A, 50/60 Hz
 Weight (Control Console)  300 kg
 Weight ( Frame)  5600 kg
