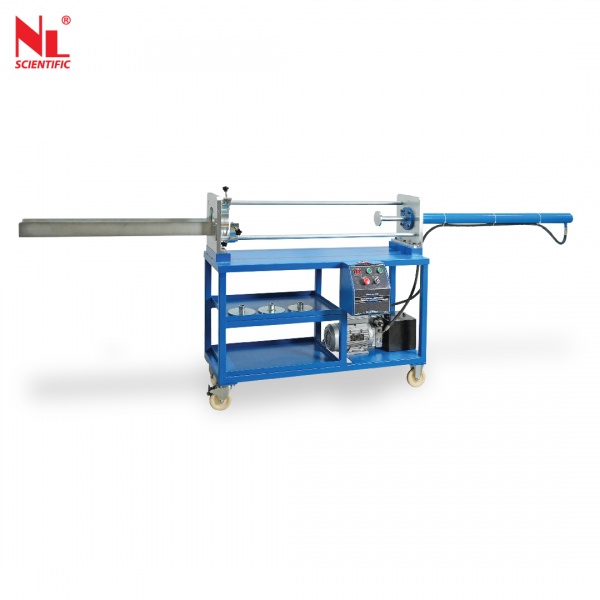

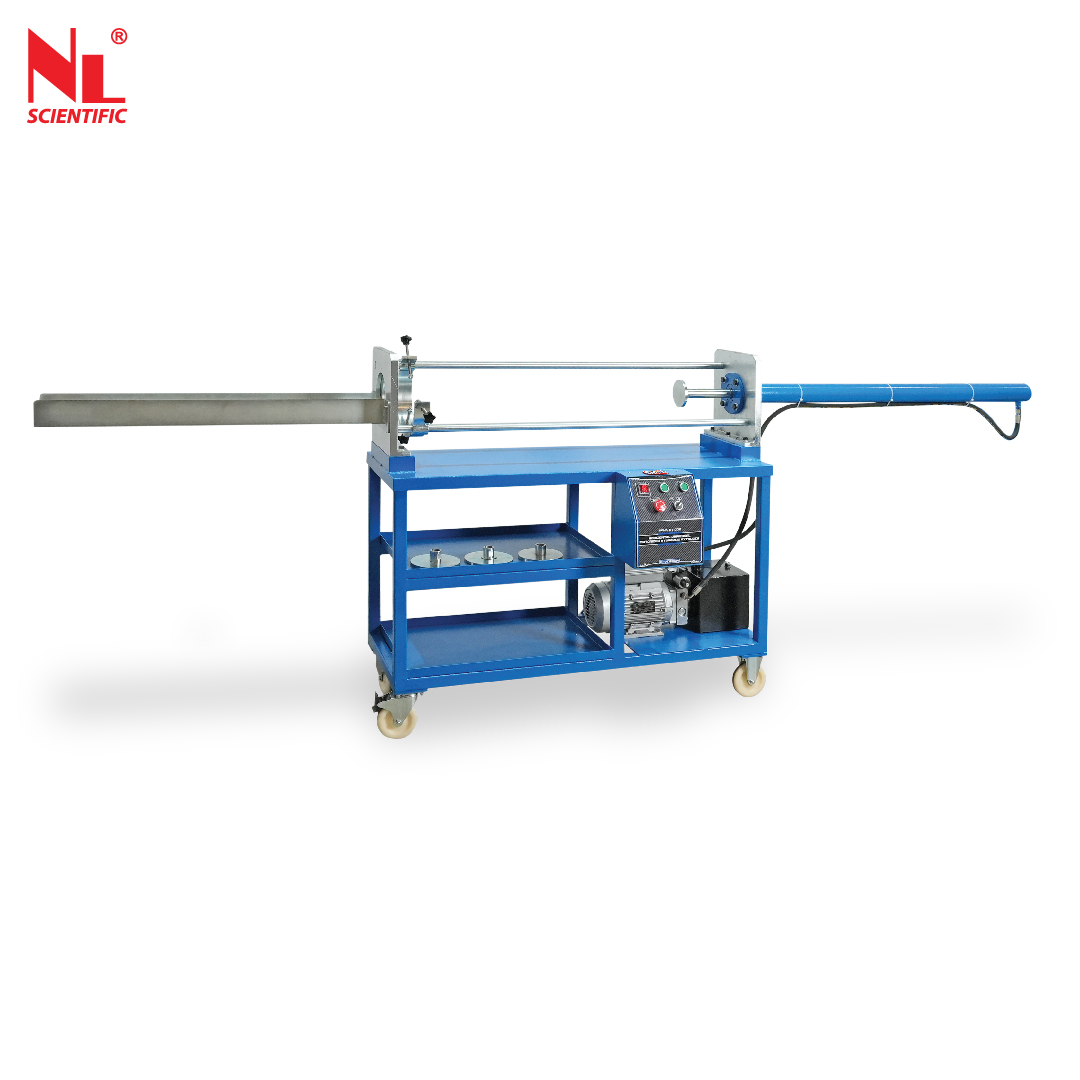

Horizontal Universal Motorized Hydraulic Extruder (E-Version)
NL 5045 X / 002

  • Description

Standard: BS 598:107/1377:4/1924:2, ASTM D698/D1587/D1883



Extruding Soil Samples

Motorized Hydraulic Extruder designed for the extrusion of undisturbed and disturbed soil samples from thin-walled tubes, suitable for sample diameters ranging from 38 mm to 150 mm and lengths up to 1000 mm.



Technical Specifications :

 Model Number  NL 5045 X / 002
 Maximum Stroke  1000 mm
 Maximum Load  50 kN (5000 kgf)
 Product Dimension  3640 (L) x 620 (W) x 1210 (H) mm
 Packing Dimension  1400 (L) x 720 (W) x 1360 (H) mm
 Approx. Weight (kg)  200 kg
 Power  220~240 V, 2.2 kW, 1 Ph, 50 Hz
