Description

Standard: ASTM D698/D1587/D1883, BS 598-107/1377-4/1924-2

Soil Samples

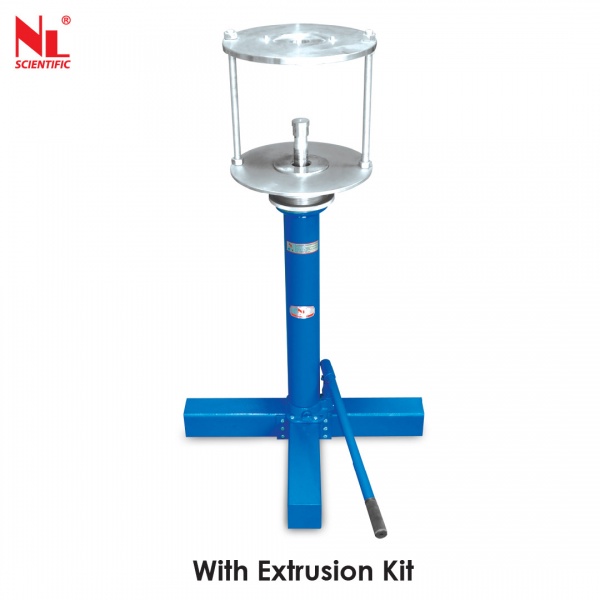

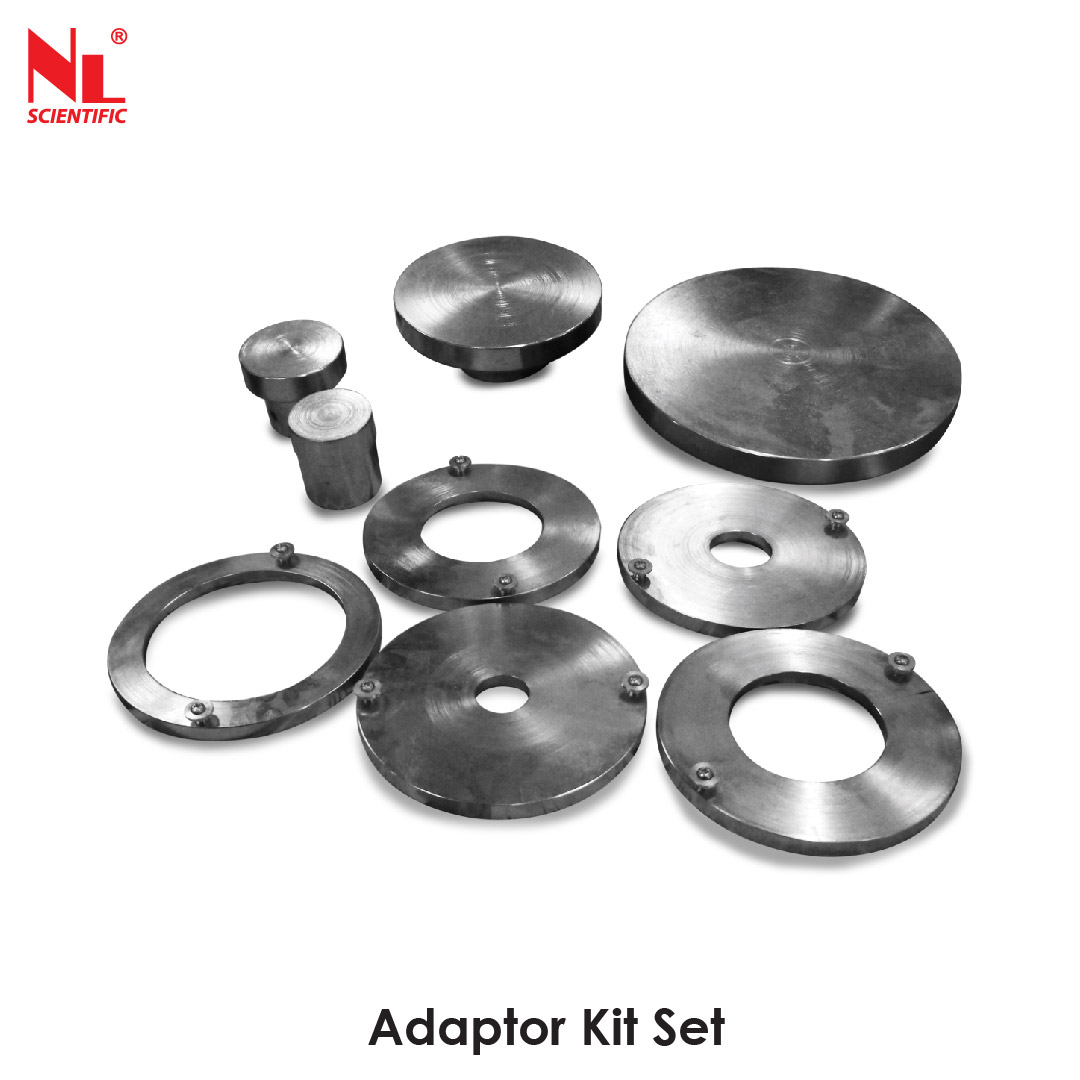

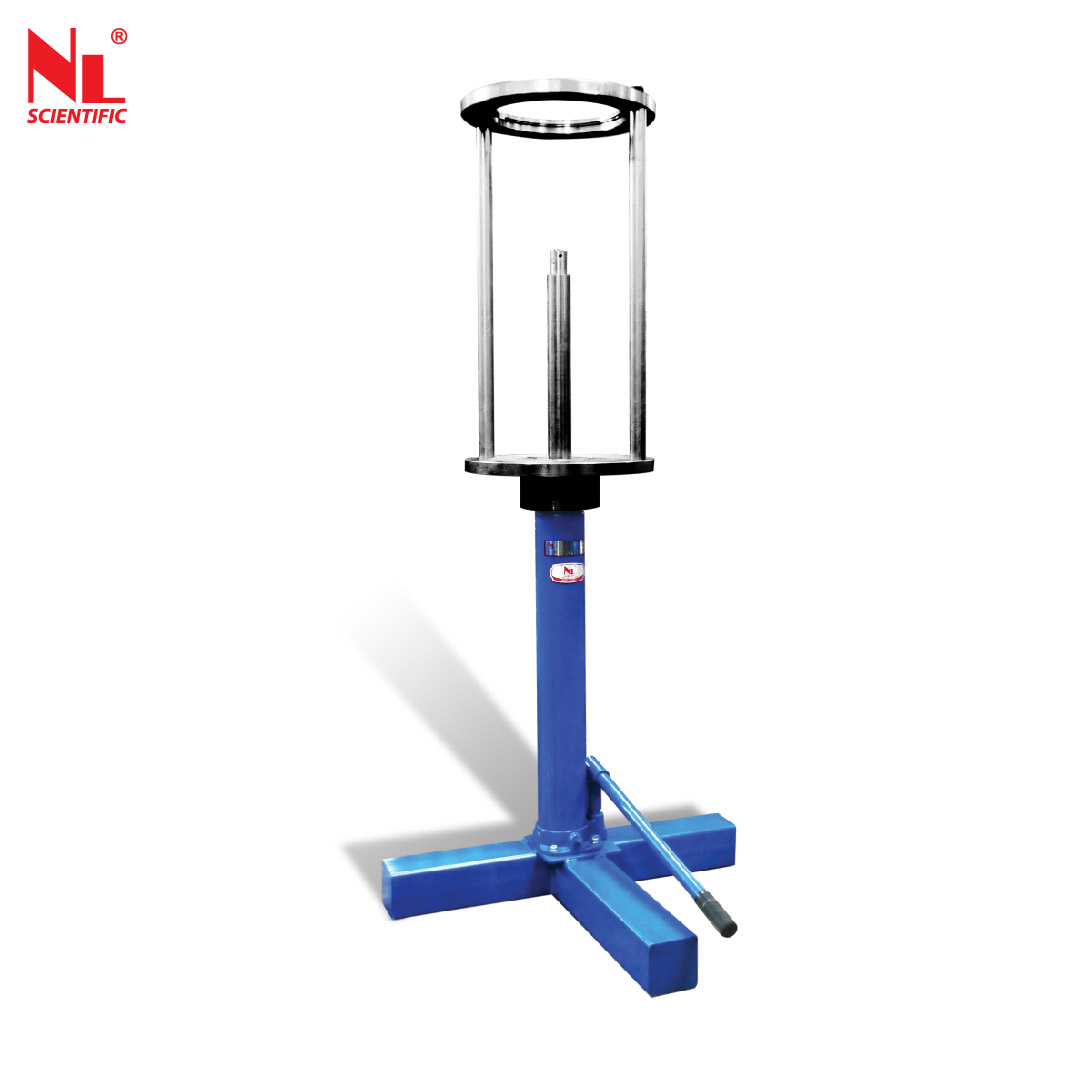

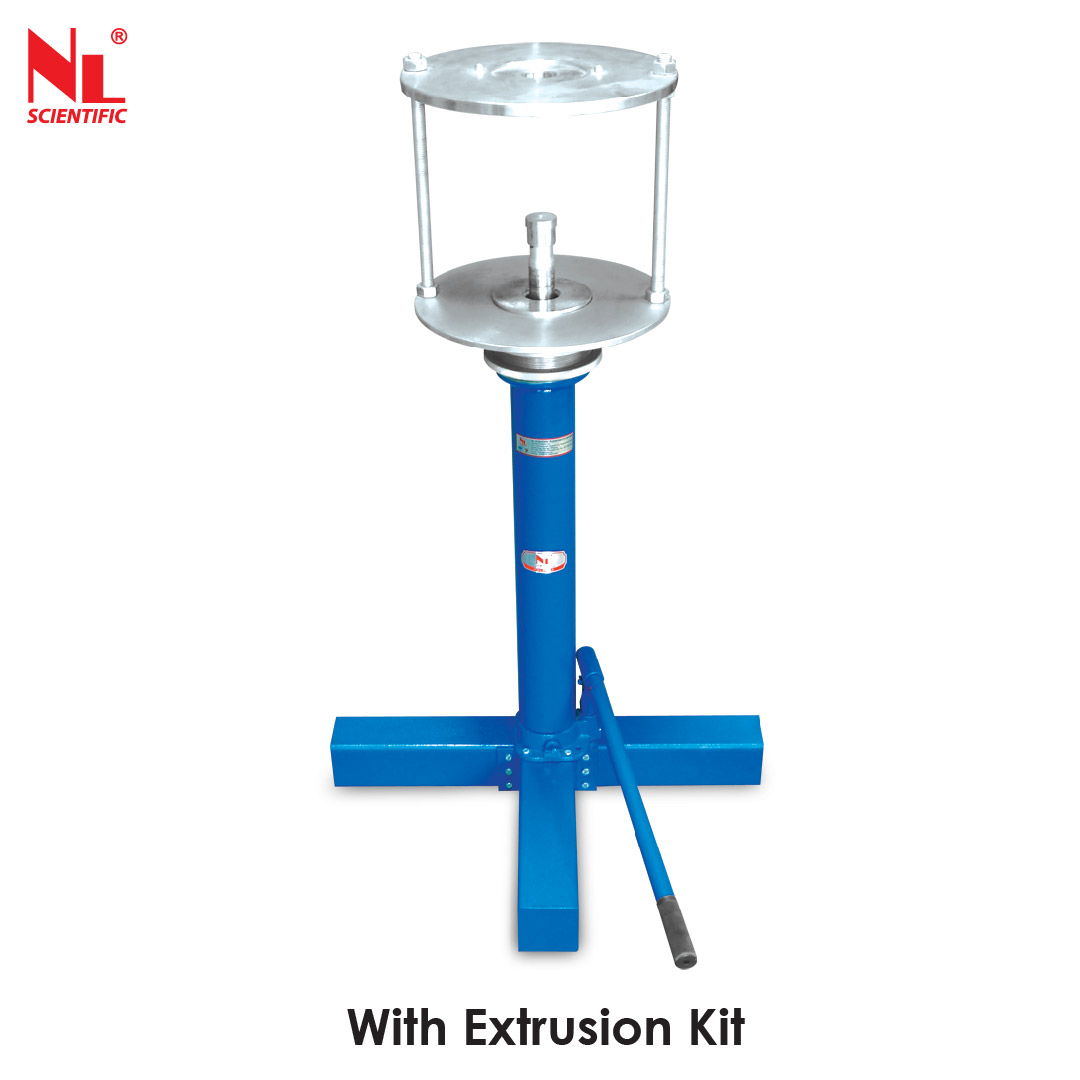

A free seating unit with hand pump and hydraulic jack. This Vertical Universal Extruder has maximum extruding force of 3 tons and a total ram stroke of 500 mm. The extruder head can attach all range of adaptors to enable specimens to be extruded from 38 to 152 mm diameter specimens.
All the extruder kits have to order separately.

Technical Specifications :

Model Number	NL 5041 X / 002
Dimension (mm)	610 (L) x 540 (W) x 1240 (H)
Maximum Force	3 tons
Ram Diameter	30 mm
Max. Ram Stroke	500 mm
Approx. Weight	45 kg
