Standard: BSEN 10002-1, ISO 7500-1, ASTM A370
Tensile & Compression

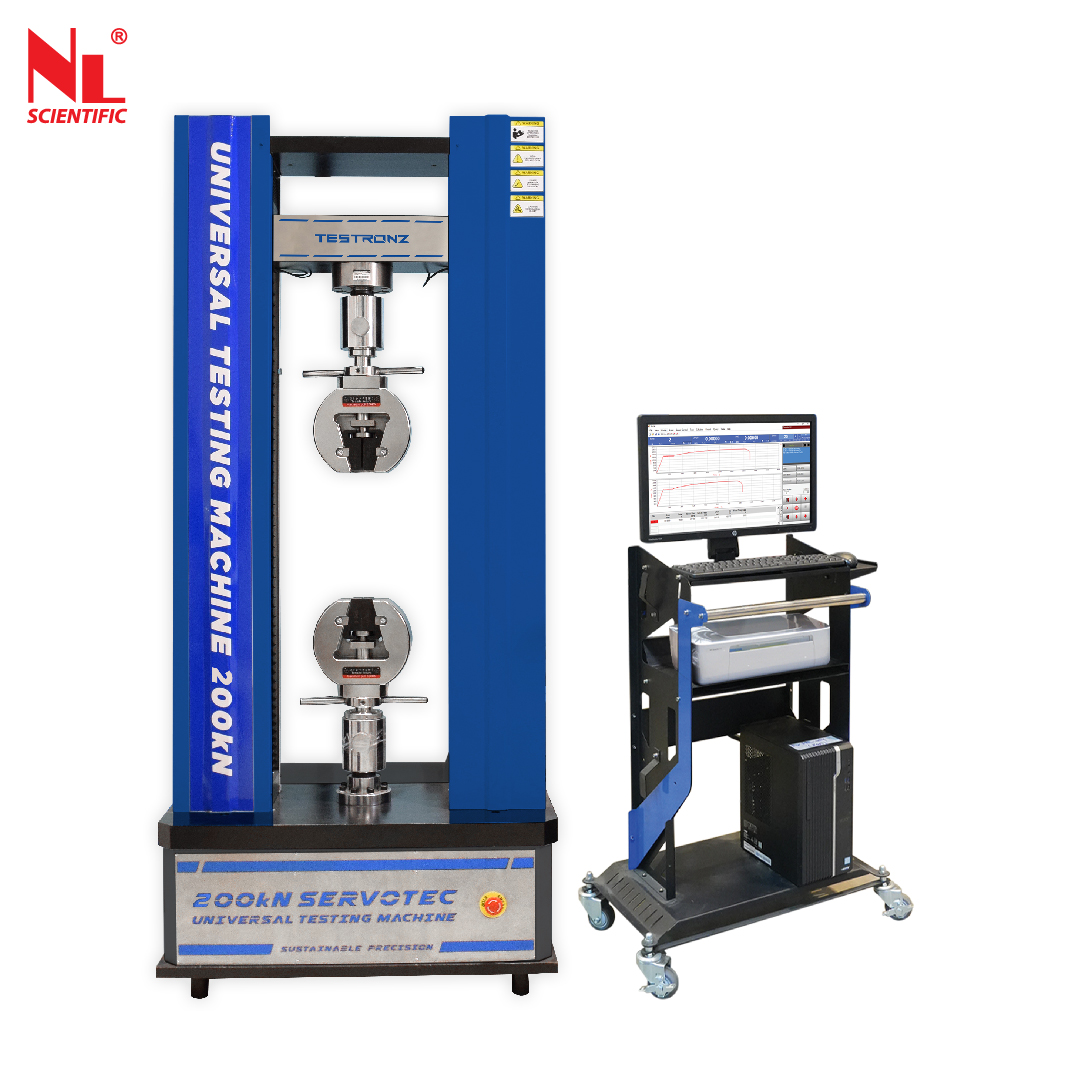

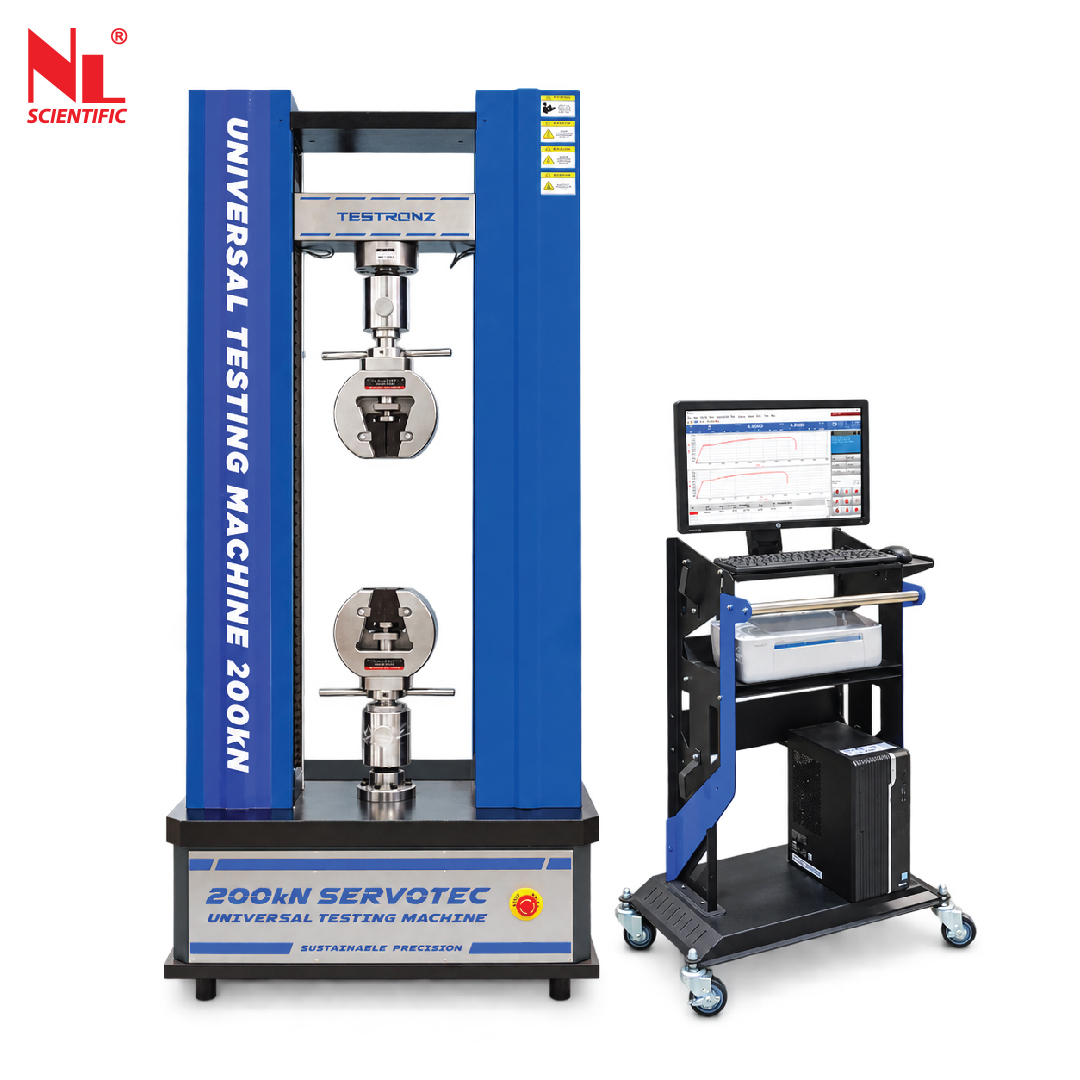

Universal Testing Machine 200kN Servo Fully Automatic
Universal Testing Machine 200kN is used for measurement & test of mechanical properties & analytical study of metal, non-metal & composite material. Such as aviation, petrochemical, machinery manufacture, wire, cable, textile, fiber, plastic, rubber, ceramic, food, medicine packaging, aluminum plastic tube, plastic doors & windows, geo-textile, film, wood, paper, metal material & manufacture industry, etc.
It can record the max. test force, fracture value, yield value, max. compression value automatically. It can also calculate the fracture extension & all kinds of strength values manually. The RA232 connector can function by communicating with a computer to do the data work. It is an essential equipment for manufacture, construction unit, product quality supervision & inspection bureau & building material test department. It also could be used in the university for teaching purposes.
TT Servotec Fully Automatic Universal Testing Machine out tester adopts DC speed regulating servomotor & reduction gears as the power source. Its real-time displays test data & test status with an LCD module. A professionally designed servo control system realizes the PWM pulse width modulation control mode. It comes up with test speed closed-loop control mode. It is controlled by a single chip automatically control.
Features of Universal Testing Machine 200kN Servo Fully Automatic
Testable Items
General test item: (General display value and calculated value)
- Tensile stress
- Tensile strength
- Pulling strength
- Stable tensile stress
- Constant stress force value
- Tear off the elongation
- Constant stress elongation
- Tear strength
- Any point force value.
- Any point elongation
- Extraction
- Computation of adhesion and peak value
- Pressure test
- Bending test
- Adhesive force stripping force test
- Extraction force piercing force test
- Cycle test

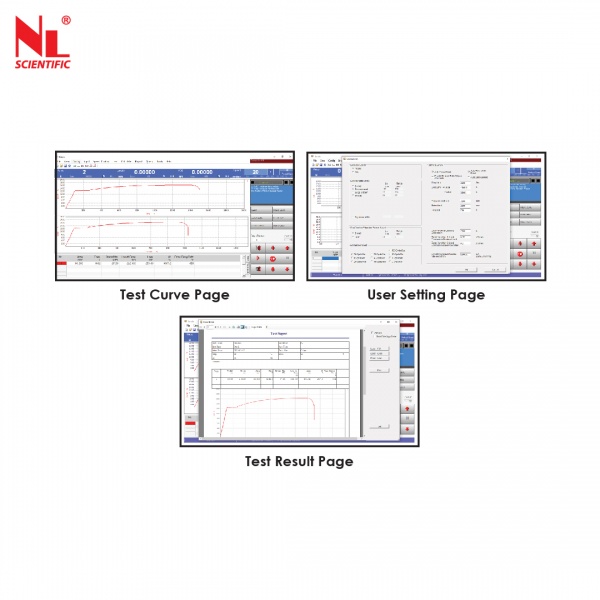

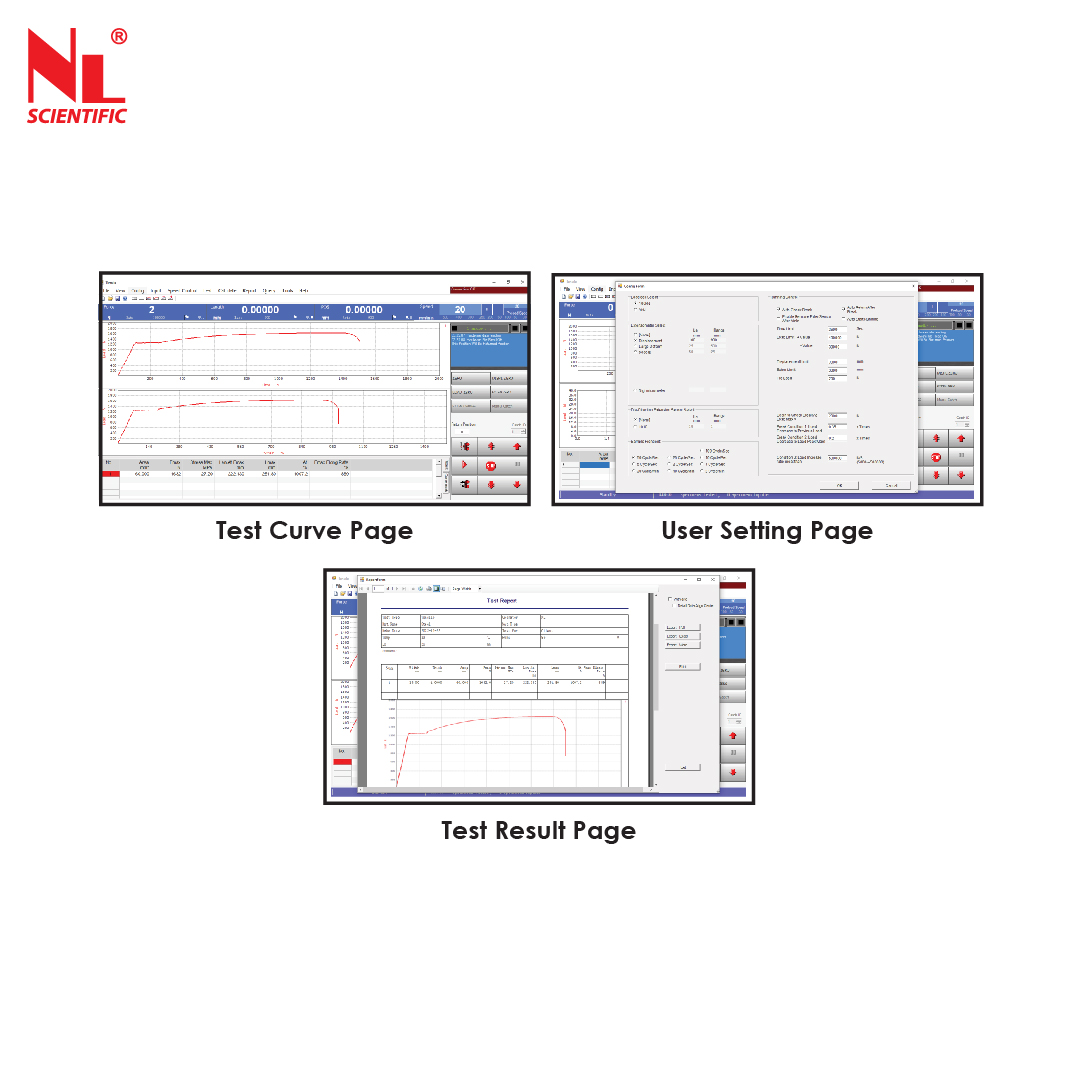

TM 2101 Software of Universal Testing Machine 200kN Servo Fully Automatic
- Standard Windows interface for easy navigation
- Real-time display, displacement, stress-strain curves during tests
- Freely switch between curve screens and view user settings
- Various control modes: constant speed, fixed displacement, constant force rate, constant stress, constant strain rate
- Powerful statistical and curve analysis tools (zoom, pan, cross cursor, take point)
- Multiple historical test data for comparative analysis
- Open test result editing for customized results
- Innovative Microsoft Word report format for easy editing
- Permission management system for secure and reliable software operation
TM 2101 Hardware of Universal Testing Machine 200kN Servo Fully Automatic
- Main controller: 32-bit ARM processor for high-speed operation and precise control
- Data acquisition: 24-bit AD with a sampling rate of 2000 times/sec, resolution up to 50000 degrees
- 6-point calibration technology for improved accuracy (better than national 0.5 standard)
- Closed-loop technology for accurate control of speed, displacement, and power waveforms
- Extensive interface expansion: 4 analogue inputs (24-bit), 3 analogue outputs (16-bit), 3 pulse outputs, 3 AB PHASE encoder inputs, 9 switch inputs, 8 switch outputs
- Additional interfaces: 1 USB, 1 RS232, 1 RS485, 4 LCD interfaces, 1 parallel port micro printer interface, 1 8x4 matrix keyboard interface
Standards
- ASTM A370 is a standard specification by ASTM International that defines the mechanical testing of steel products.
- BSEN 10002-1 is a standard for tensile testing of metallic materials.
- ISO 7500-1 is a standard for "Testing Machines - Calibration and Verification of the Force-Measuring System.
Technical Specifications of Universal Testing Machine 200kN Servo Fully Automatic
| Model Number |
TT 6000 X / 024N |
| Max Test Force |
200 kN |
| Structure Type |
Twin Rigid Column With Twin High Precision Ball Screw |
| Traveling Space |
950 mm (exclude fixtures) |
| Width Space |
440 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.1 - 250 mm/min |
| Load Resolution |
1/100 000 |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5%
|
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5%
|
Accuracy of Extenders
|
±1 mm
|
| Measuring Range |
0.5% - 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Curve Display |
Selectable Axial Parameters:
Y-axis - time, load, displacement, deformation, stress, strain.
X-axis - time, load, displacement, deformation, stress, strain. |
| Data Display |
Max. Force, Speed, Specimen Detail, Strength (Kpa, Mpa, N/mm, Nmm ) |
| Main Drive Unit |
Precision Servo Drive & Servo Motor |
| Safety Feature |
Emergency Stop, Overload Protection, Upper & Lower Limit Switch Load Sensor with Auto Retreat |
| Power Source |
380 ~ 415V, 1500W, 5A, 3Ph, 50/60 Hz, 2Hp |
| Dimension (LxWxH) |
910 x 480 x 2000 mm |
| Approx Weight |
780 kg |
Unit Consists Of:
| Model Number |
Parts Description |
Qty |
| TT LC – 200kNC |
200kN High Precision Load Cell (Cell Type) |
1 Unit. |
| TT 6ST – G05 |
Mechanical Wedge Clamp (0-9mm/300 kN) |
1 Unit. |
| TT 6ST – HC1 |
Handheld Magnetic Control Unit |
1 Unit. |
| TT 6ST – PC1 |

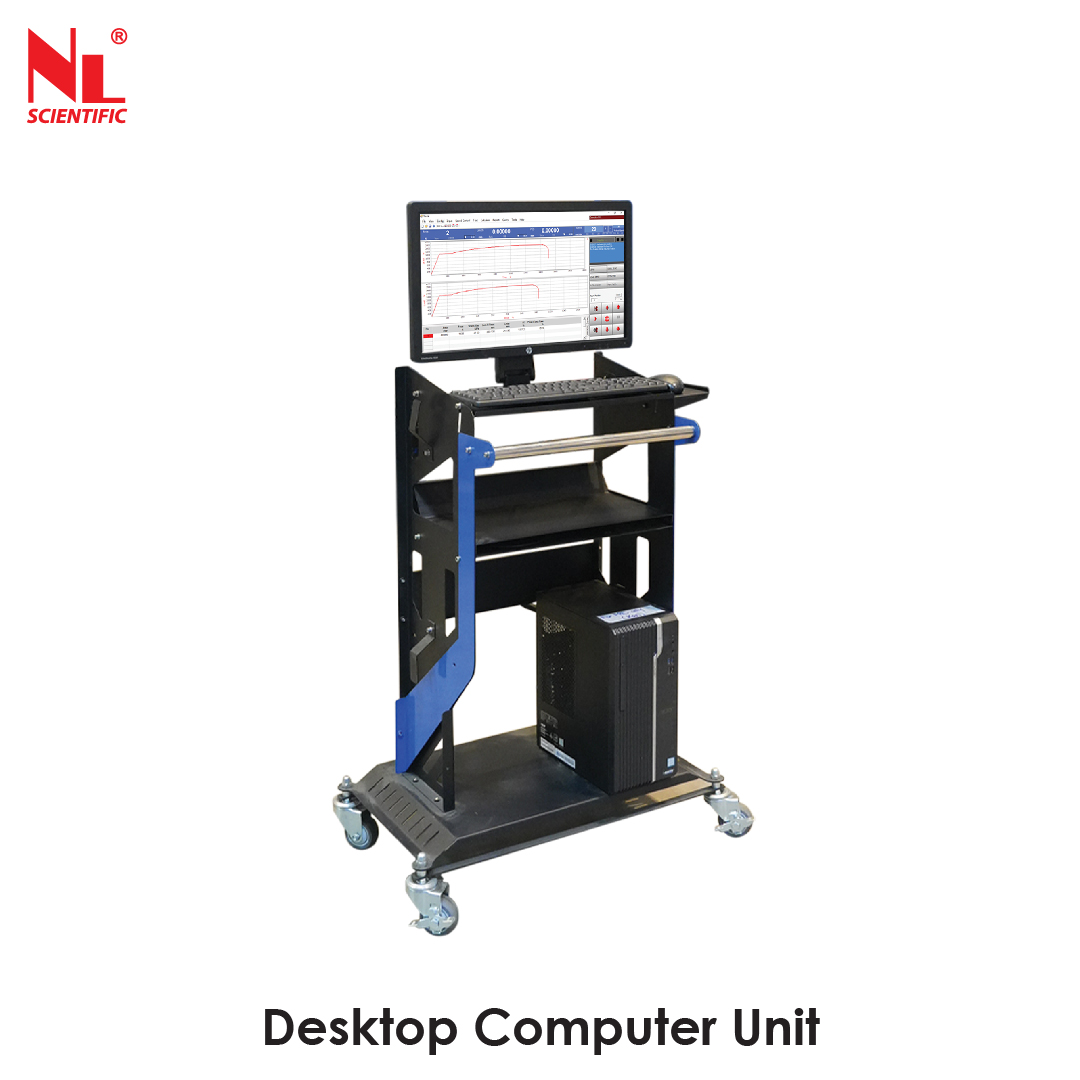

Desktop Computer Unit c/w Operation and the Software |
1 Unit. |
Optional Accessories:
| Model Number |
Parts Description |
Qty |
| TT 6ST – CTS |
Cycle Test Software |
1 No. |
| TT AEX – 25/10 |

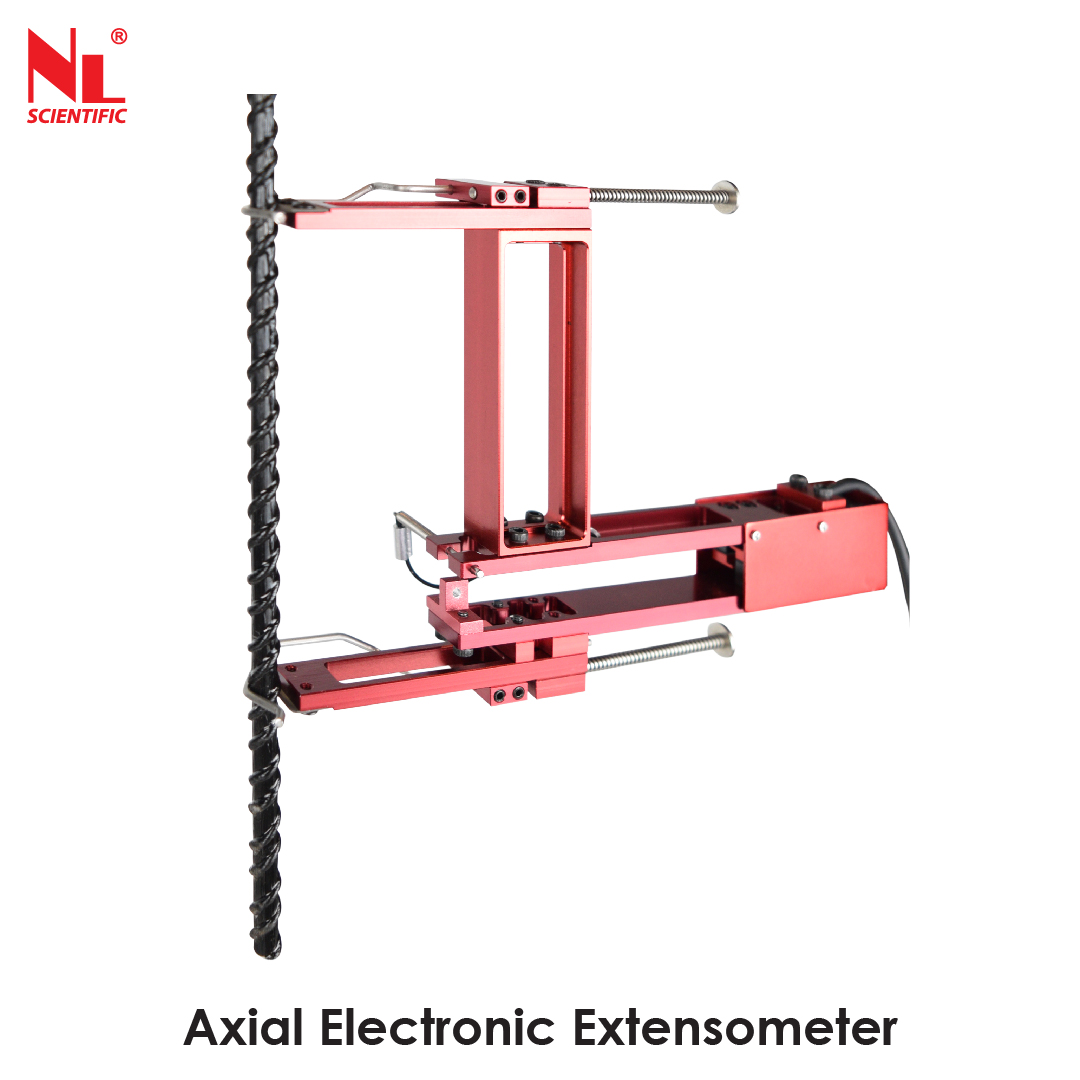

Axial Electronic Extensometer (GL25/D10) |
1 No. |
| TT AEX – 50/25 |
Axial Electronic Extensometer (GL50/D25) |
1 No. |
| TT AEX – 100/25 |
Axial Electronic Extensometer (GL100/D25) |
1 No. |
| TT 6ST – LTX-3 |

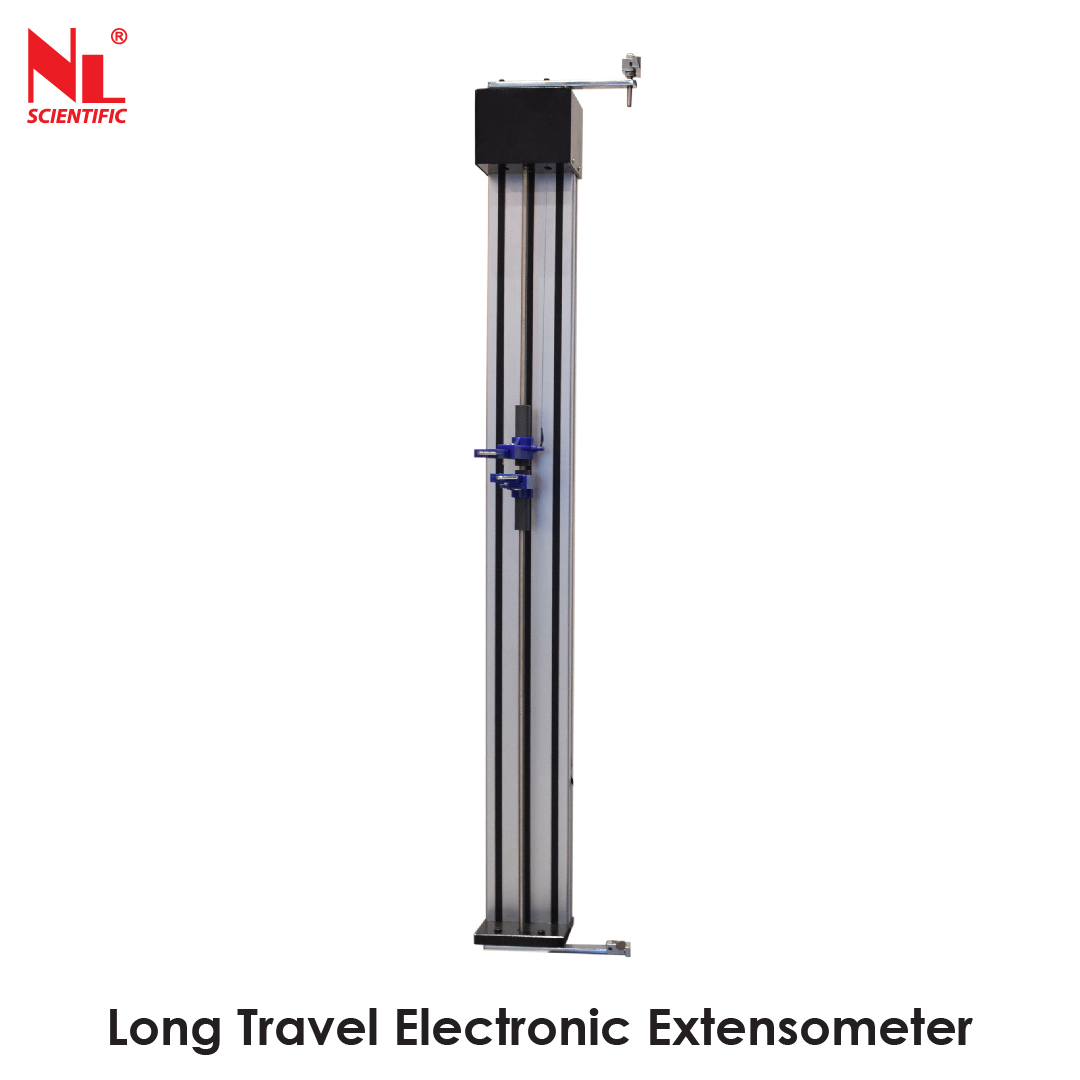

Long Travel Electronic Extensometer (LTX-3) |
1 No. |
| TT CP – 200 |

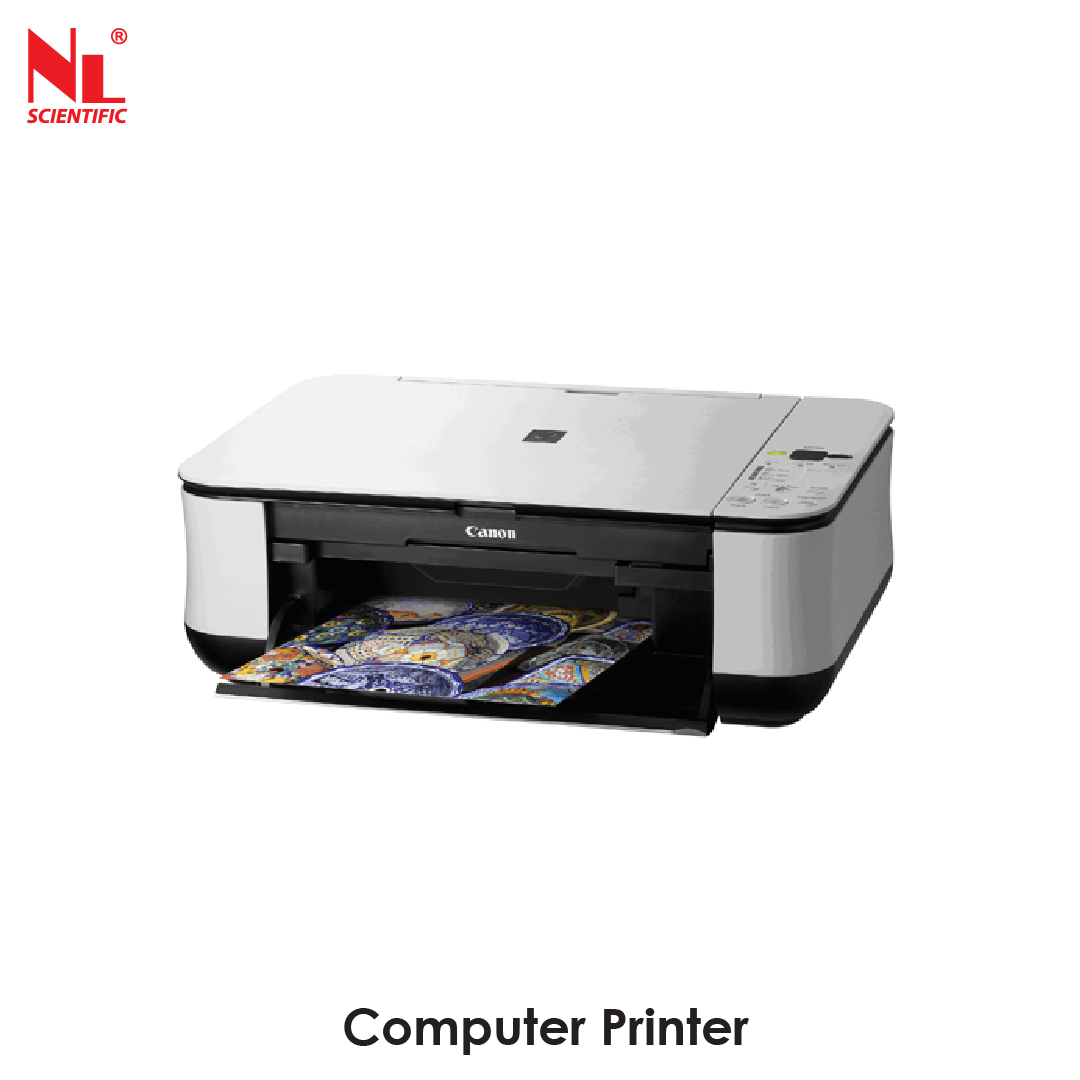

Computer Printer |
1 No. |
| TT 6ST – PBU |
Portable Bench Unit |
1 No. |
