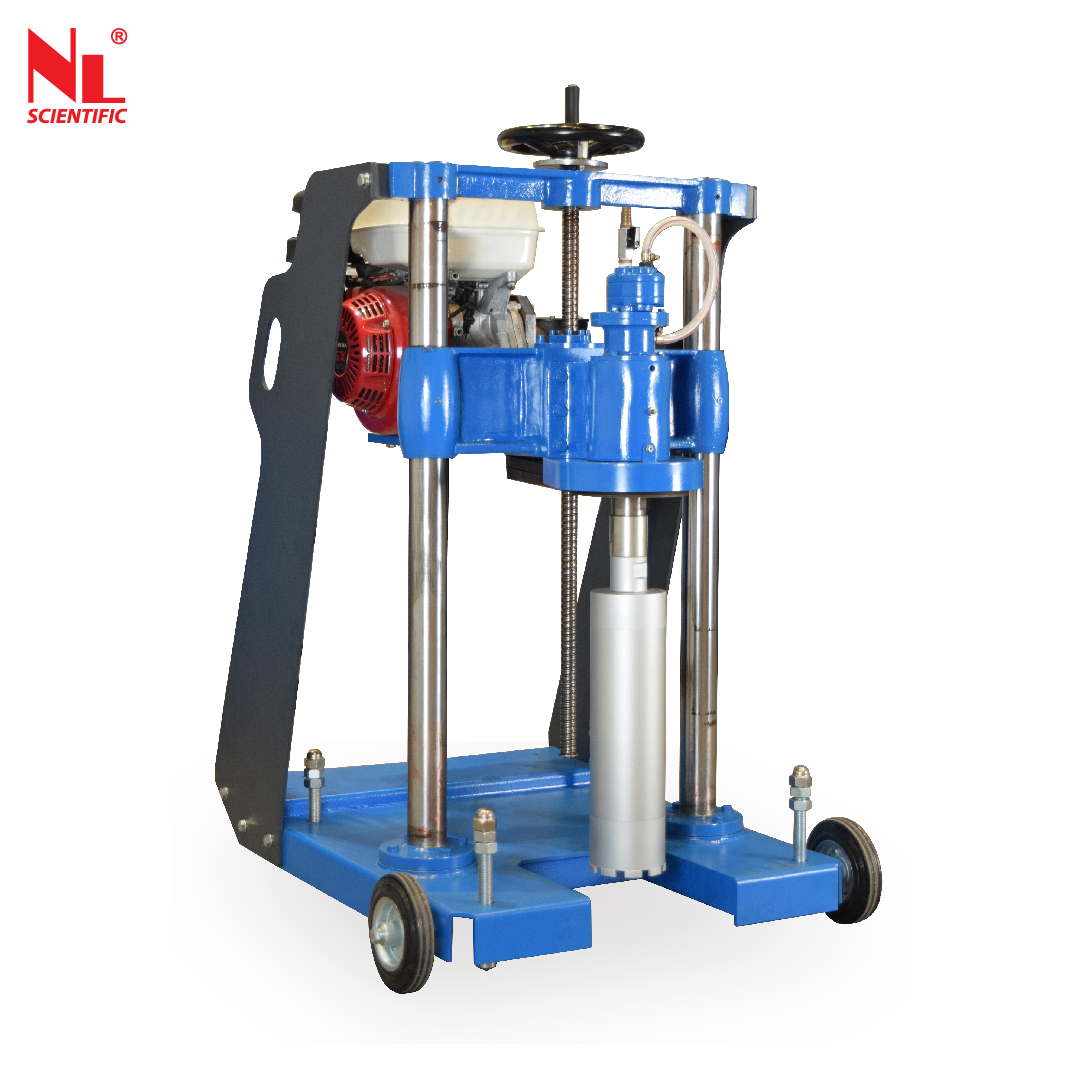

Coring Machine 9Hp 4 Stroke Petrol Engine
NL 4006 X / 003

  • Description

Standard: EN 12390-4, ASTM C39, AASHTO T22

Drilling & Coring

Portable petrol engine coring unit. Special cast aluminium main frame solid vertical movement pole and strong steel base with 4” Delrin wheels. Built-in water swivel for cooling the diamond bit.

*Supplied WITHOUT core bit set.

Technical Specifications :

 Model Number  NL 4006 X / 003
 Max. Core Bit  8” or 200 mm
 Engine  Honda Petrol Engine GX270 (9 Hp)
 Spindle Thread  1-1/4” UNC
 Product Dimension  900 (L) x 780 (W) x 1200 (H) mm
 Packing Dimension  1050 (L) x 930 (W) x 1350 (H) mm
 Approx. Product Weight  273 kg
 Approx. Packing Weight  280 kg

 *1 Copy of Manual Instruction

Unit Consists Of:

 Model Number

 Parts Description

Qty

 NL 4006 P / 002 - P002

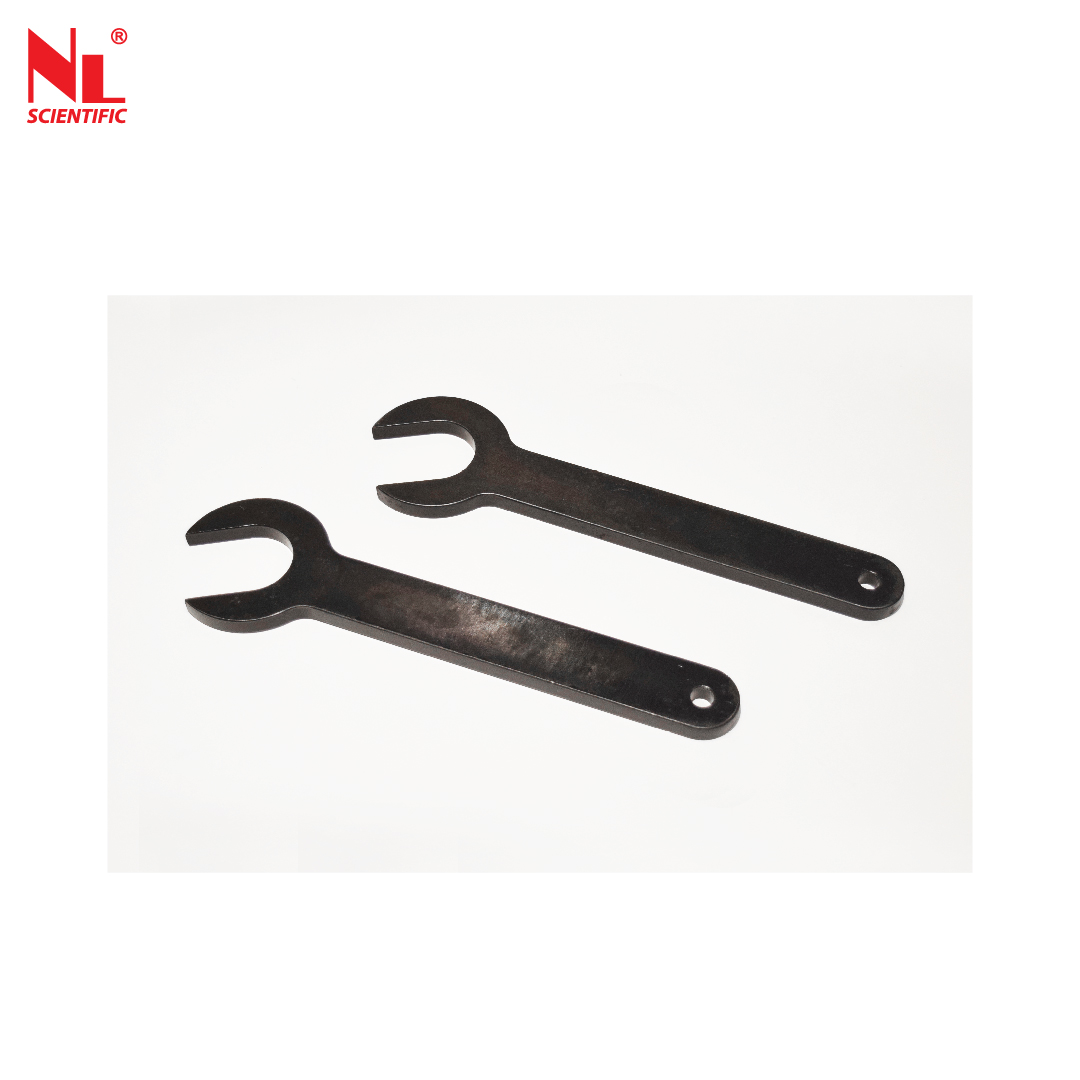

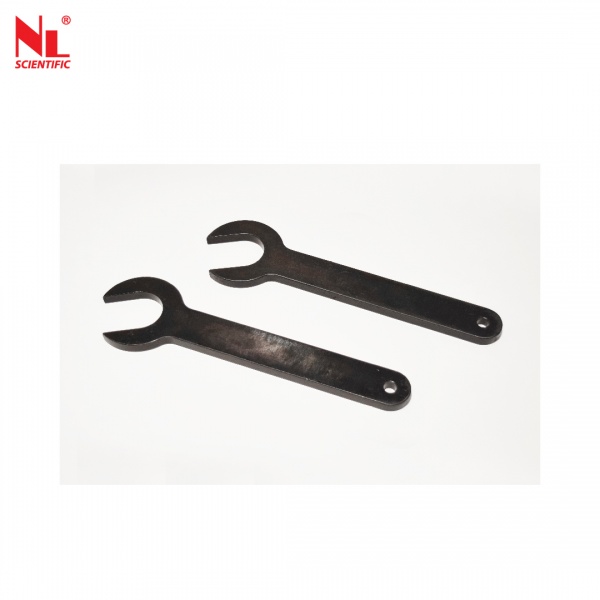

 Strap Wrench & Spanner

 1set

 NL 4009 X / 009 - P004

 1¼” x 3P Bit Adaptor

 1no.

Optional Accessories:

 Model Number  Parts Description  Qty
 NL 7018 X Serial  Core Bit Set (Refer to NL 7018 X Group)  1pc
 NL 4006 X / 002 - A001  Core Extractor  1set
