Standard: EN 12390-1, ASTM C39, C192 150mm Concrete Cube Mould, High Density Plastic The 150mm Concrete Cube Mould, High Density Plastic is a mold used in concrete testing to cast standardized cube specimens measuring 150mm on each side. Crafted from durable high-density plastic, this mould offers ...Read more

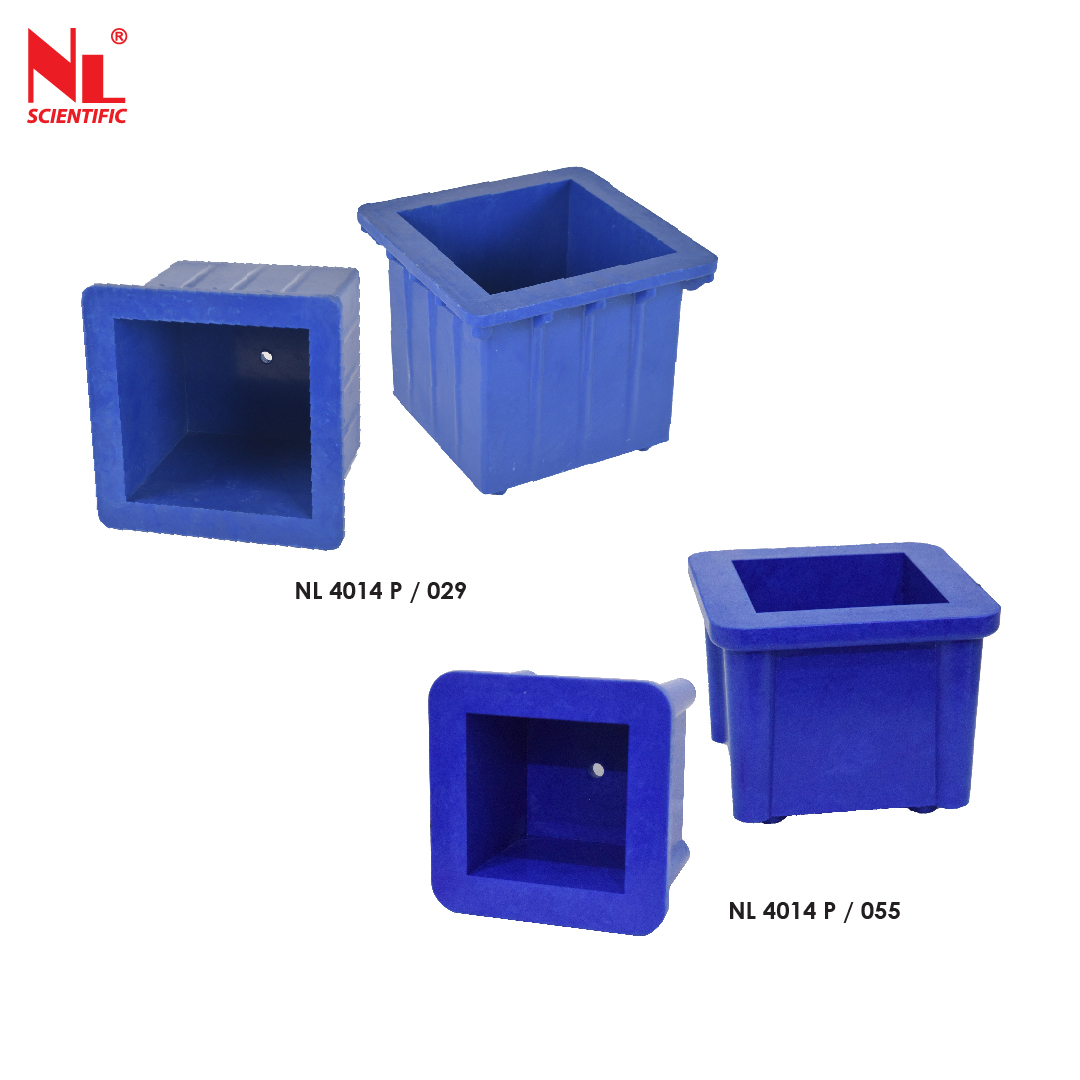

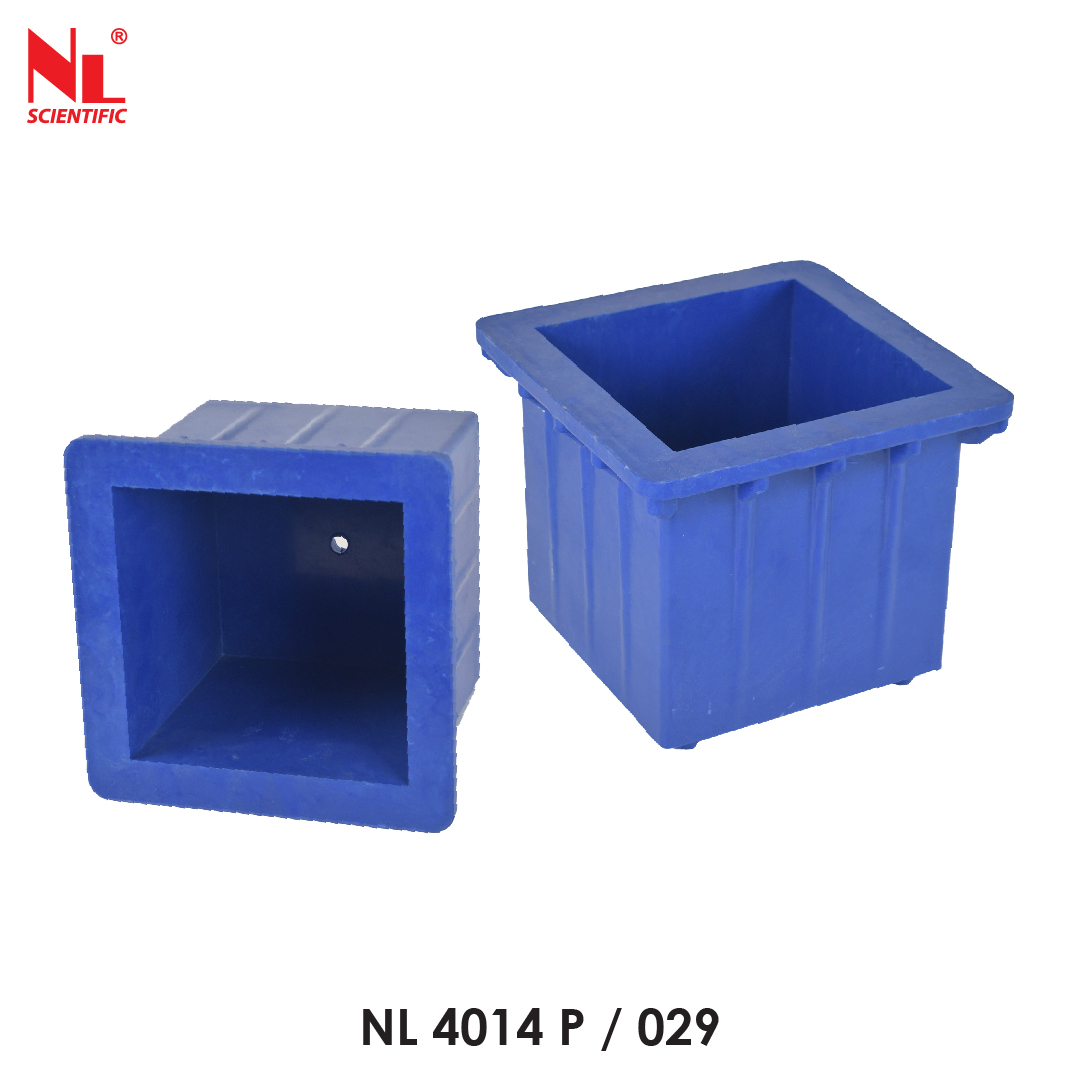

150mm Concrete Cube Mould, High Density Plastic


  • Description

Standard: EN 12390-1, ASTM C39, C192

150mm Concrete Cube Mould, High Density Plastic

The 150mm Concrete Cube Mould, High Density Plastic is a mold used in concrete testing to cast standardized cube specimens measuring 150mm on each side. Crafted from durable high-density plastic, this mould offers exceptional resilience against wear and tear, ensuring long-term reliability in testing procedures. Engineered with precision, it maintains consistent dimensions, guaranteeing uniformity in the size and shape of concrete specimens for reliable test results. Its lightweight design enhances ease of handling, making the concrete pouring process simpler and more efficient. The specimen is expelled from the mould by compressed air or water. They just require a simple clean and demould oiling before being ready for use again many times.

Features of 150mm Concrete Cube Mould, High Density Plastic

  • Durable Construction, crafted from high-density plastic, ensuring longevity and resilience in testing environments.

  • Precision Engineering maintains consistent dimensions for uniformity in specimen size and shape, guaranteeing reliable test results.

  • Lightweight Design for easy handling during the concrete pouring process, enhancing efficiency and ease of use.

  • Versatility that accommodates various concrete mixes and is suitable for both laboratory and field testing applications.

  • Compliance Assurance ensures testing protocols and accuracy in results.

Standard: EN 12390-1, ASTM C39, C192

  • EN 12390-1

The European standard specifies the guidelines for evaluating hardened concrete, focusing on compressive strength testing. It encompasses protocols for preparing specimens, conducting tests, and documenting results. By ensuring consistency in assessment methods, this standard promotes uniformity in evaluating concrete strength across construction projects, both within Europe and globally

  • ASTM C39

Published by ASTM International, ASTM C39 outlines the procedure for determining the compressive strength of cylindrical concrete specimens. This standard is widely recognized and utilized in the United States and other regions following ASTM guidelines for concrete testing.

  • ASTM C192

This standard, established by ASTM International, provides the practice for crafting and curing concrete test specimens in laboratory settings. This standard provides detailed procedures for preparing and curing concrete speicmens, ensuring uniformity and accuracy in specimen preparation, a critical aspect in achieving test results.

Testing Procedure of 150mm Concrete Cube Mould, High Density Plastic

  1. Concrete Preparation: Mix concrete according to specifications.
  2. Mould Preparation: Clean and apply a release agent to the mould.
  3. Fill Mould: Pour concrete, compact, and level.
  4. Cure: Cover and cure for a specified time.
  5. Demould: Carefully remove from mould.
  6. Test: Perform a compressive strength test.
  7. Record: Document results including compressive strength and any observations.

Technical Specifications of 150mm Concrete Cube Mould, High Density Plastic

 Model Number  NL 4014 P / 029
 Dimension  200 x 200 x 170 mm (LxWxH)
 Approx. Weight    1.8 kg



Optional Accessories

 Model Number  Accessories Description

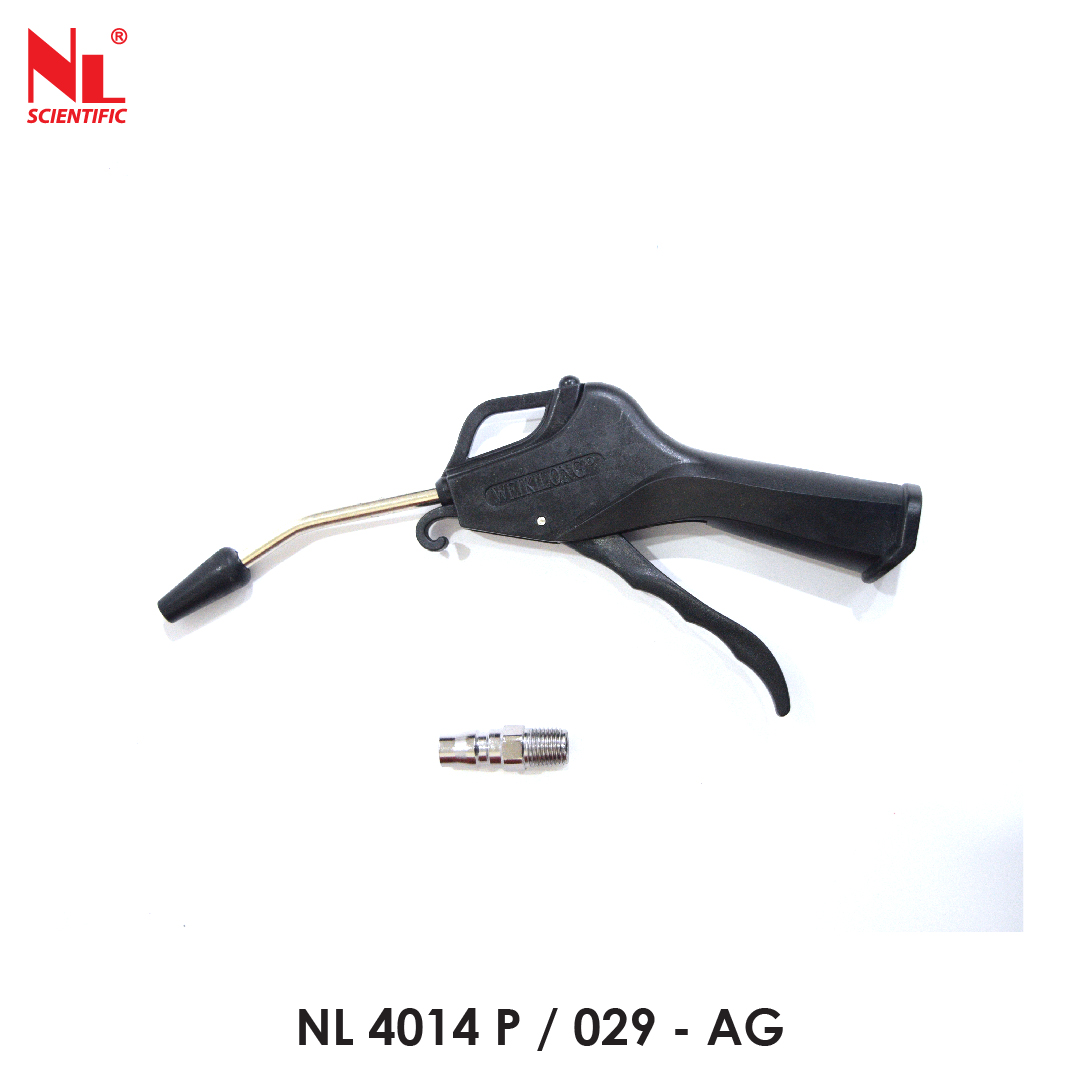

 NL 4014 P / 029 - AG  High Density Plastic Cube Mould Air Gun
 NL 4014P / 029 - BP  High Density Plastic Cube Mould Base Plug.
