Concrete Cube Mould 100mm, Two Gang
Concrete Cube Mould 100mm, Two Gangnl4014p052-02nl4014p052-03
Standard: EN 12390-1 / BS 1881:108 / ASTM C192, C39 / AASHTO T23, T126 / NF P18-400 Concrete Cube Mould 100mm, Two Gang The 100mm Two Gang Concrete Cube Mould is used to create two precise 100mm concrete test specimens simultaneously. Crafted from durable materials, it features a dual cavity desig ...Read more

Concrete Cube Mould 100mm, Two Gang


  • Description

Standard: EN 12390-1 / BS 1881:108 / ASTM C192, C39 / AASHTO T23, T126 / NF P18-400

Concrete Cube Mould 100mm, Two Gang

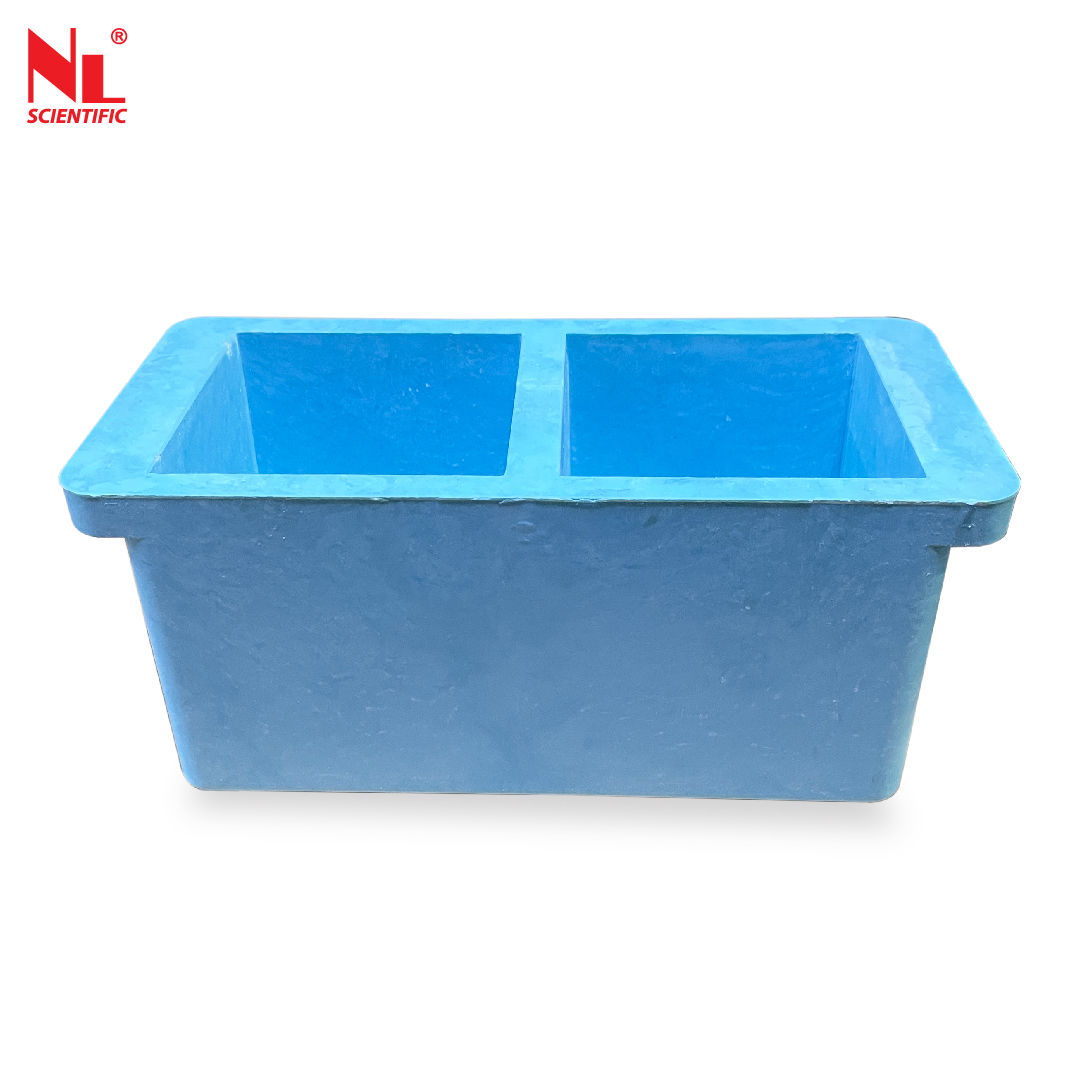

The 100mm Two Gang Concrete Cube Mould is used to create two precise 100mm concrete test specimens simultaneously. Crafted from durable materials, it features a dual cavity design for increased productivity. Engineered with precision, it ensures uniformity in specimen size and shape. Versatile and compliant with industry standards, it's essential for quality assurance in construction projects. Two Gang Concrete Cube Moulds, 100 x 100 x 100 mm plastic are manufactured in accordance with dimensions and tolerances stated in the relevant standard.

Features of 100mm Two Gang Concrete Cube Mould

  • Made from BMC (Bulk Moulding Compound).
  • More resistance to blows and to abrasion.
  • To grant low wear and longer life.
  • Easy to use.
  • Suitable for field and laboratory use.
  • Long Lasting.

Standard: EN 12390-1 / BS 1881:108 / ASTM C192, C39 / AASHTO T23, T126 / NF P18-400

  • EN 12390-1

This European standard outlines the requirements for testing hardened concrete. It covers procedures for compressive strength testing, specimen preparation, testing methods, and result reporting, ensuring standardized assessment of concrete strength across projects in Europe.

  • BS 1881:108

British Standard, BS 1881:108 specifies procedures for making and testing concrete test cubes. It ensures consistency and reliability in concrete testing practices, particularly within projects adhering to British standards.

  • ASTM C192

ASTM C192, published by ASTM International, dictates the protocol for crafting and curing concrete test specimens in laboratory settings. It meticulously outlines procedures for specimen preparation and curing to ensure consistency and precision in testing.

  • ASTM C39

ASTM C39 delineates the steps for determining the compressive strength of cylindrical concrete specimens. Widely recognized in the US and globally, this standard provides a reliable framework for concrete testing following ASTM guidelines.

  • AASHTO T23/T126

This standard, developed by the American State Highway and Transportation Officials (AASHTO), is crucial in maintaining the quality of concrete in transportation projects. AASHTO T23 outlines the methodology for fabricating and curing concrete test specimens, while AASHTO T126 focuses on testing the compressive strength of hardened concrete using cylindrical specimens.

  •  NF PI8-400

This French standard outlines the guidelines for testing concrete. It covers aspects such as specimen preparation, testing methods, and result interpretation, contributing to the standardization and quality assurance of concrete testing practices in France.

Testing Procedure of Concrete Cube Mould 100mm, Two Gang

  1. Prepare Concrete: Mix according to specifications.
  2. Prepare Mould: Clean, apply release agent.
  3. Fill Mould: Pour concrete into both cavities, compact, and level.
  4. Cure: Cover and cure for a specified time.
  5. Demould: Carefully remove specimens from mould.
  6. Test: Perform a compressive strength test on each specimen.
  7. Record: Document results, including the strength of each specimen.

Technical Specifications of Concrete Cube Mould 100mm, Two Gang

 Model Number  NL 4014 P / 052
 Dimension (mm)   265 (L) X 130 (W) X 120 (H)
 Approx. Weight  2.2 kg



Optional Accessories

 Model Number  Accessories Description

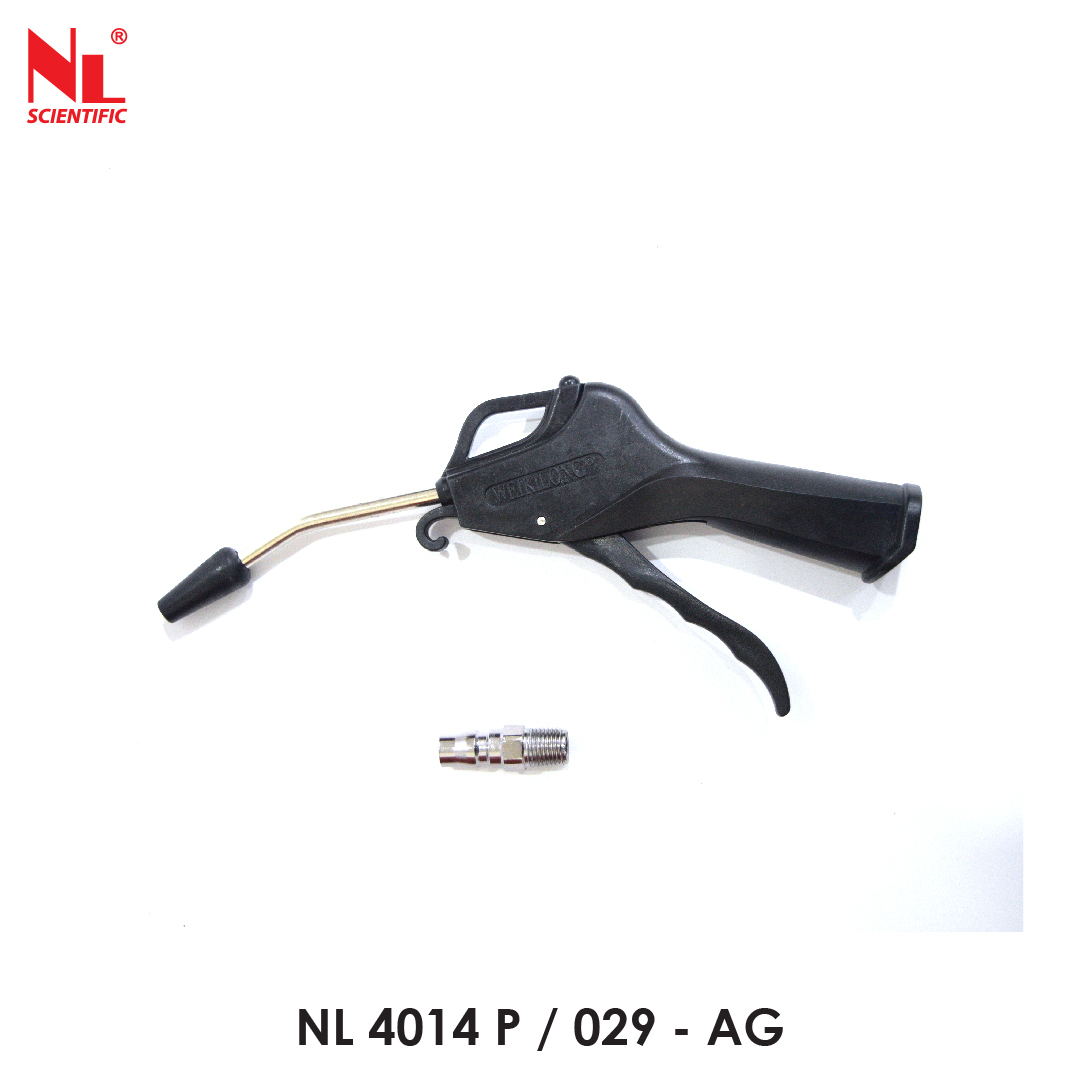

 NL 4014 P / 029 - AG  High Density Plastic Cube Mould Air Gun

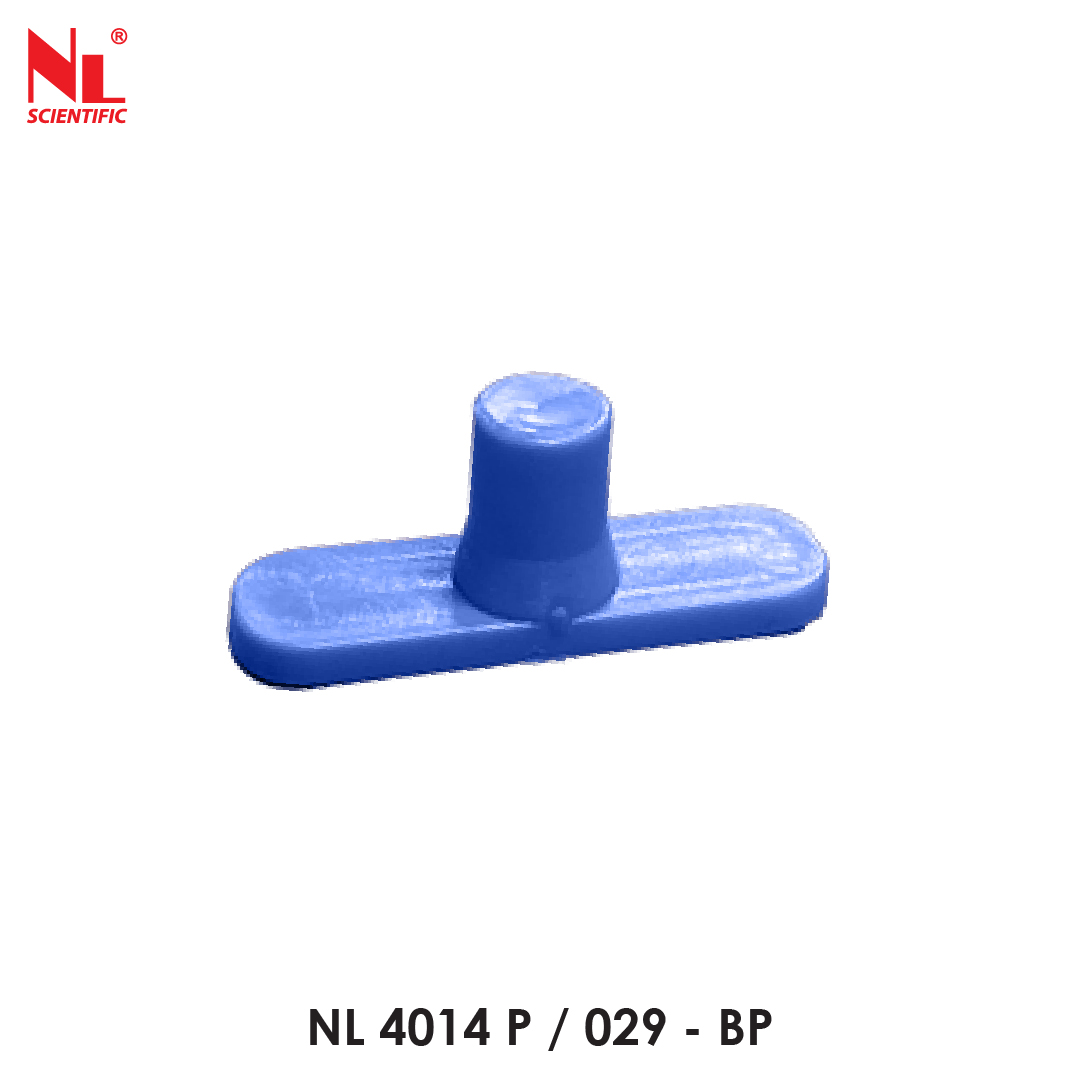

 NL 4014P / 029 - BP  High Density Plastic Cube Mould Base Plug.
