Standard: EN 12504:2 Calibration of Hammer The anvil is a tool for calibration and verification of the hammer. It is made of high-quality steel by fine grinding. Technical Specifications : Model Number NL 4021 X / 001 - A 001 NL 4021 X / 005 - A 001 Type of Strength S ...Read more

Concrete Hammer Anvil
NL 4021 X / 005 - A 001

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: EN 12504:2

Calibration of Hammer

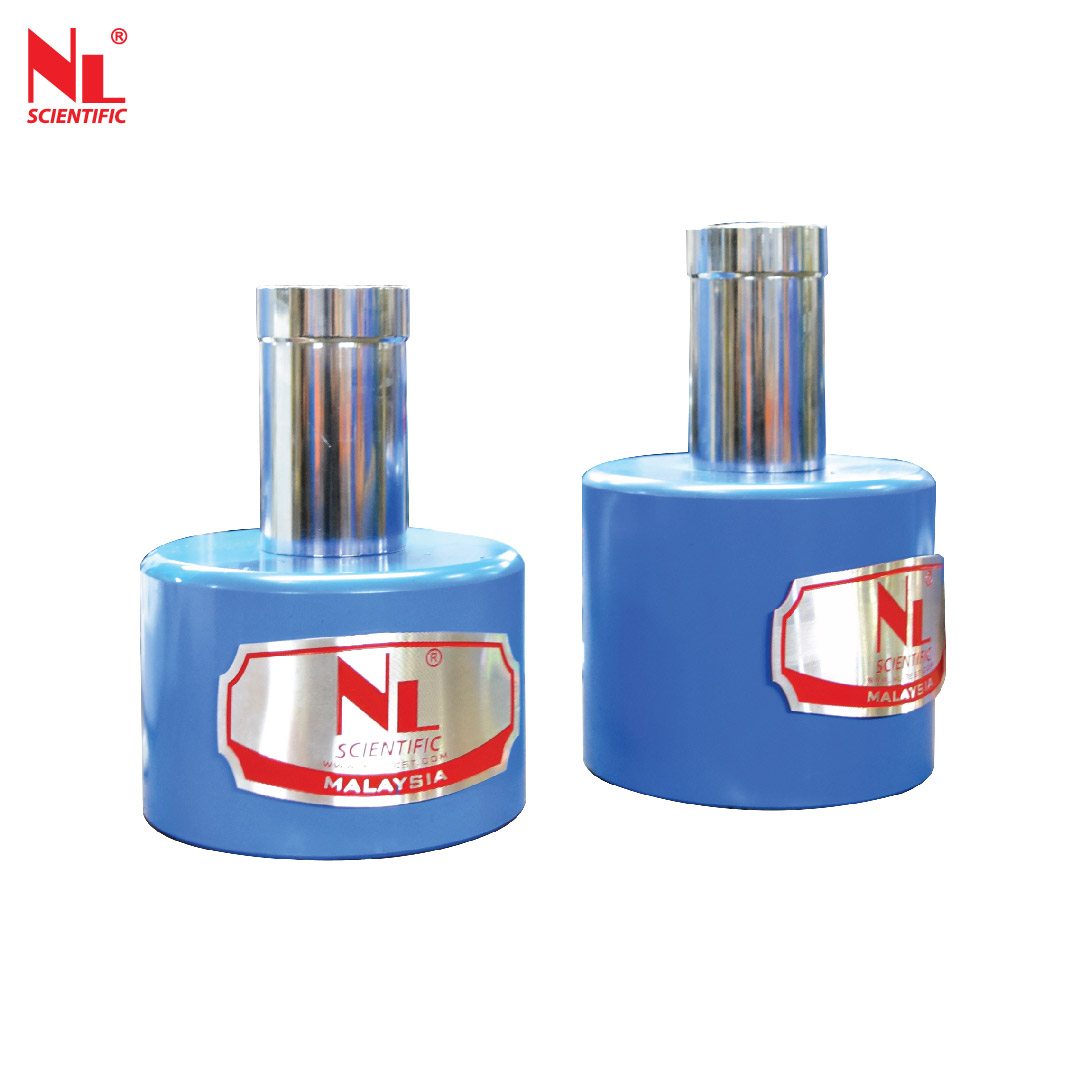

The anvil is a tool for calibration and verification of the hammer. It is made of high-quality steel by fine grinding.

Technical Specifications :

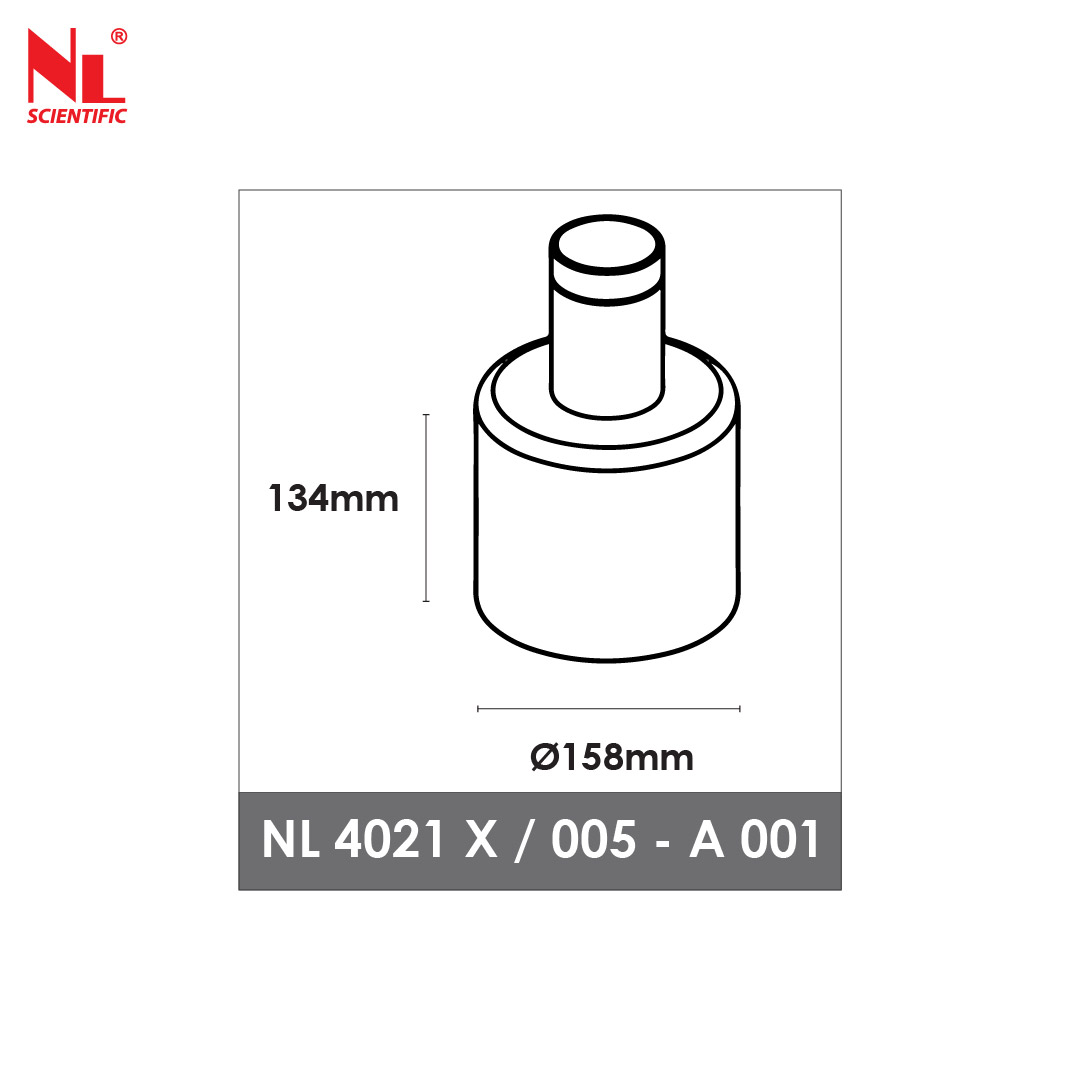

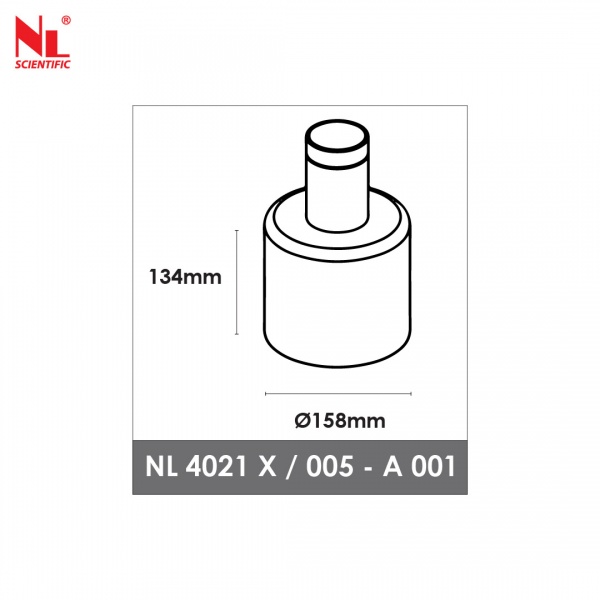

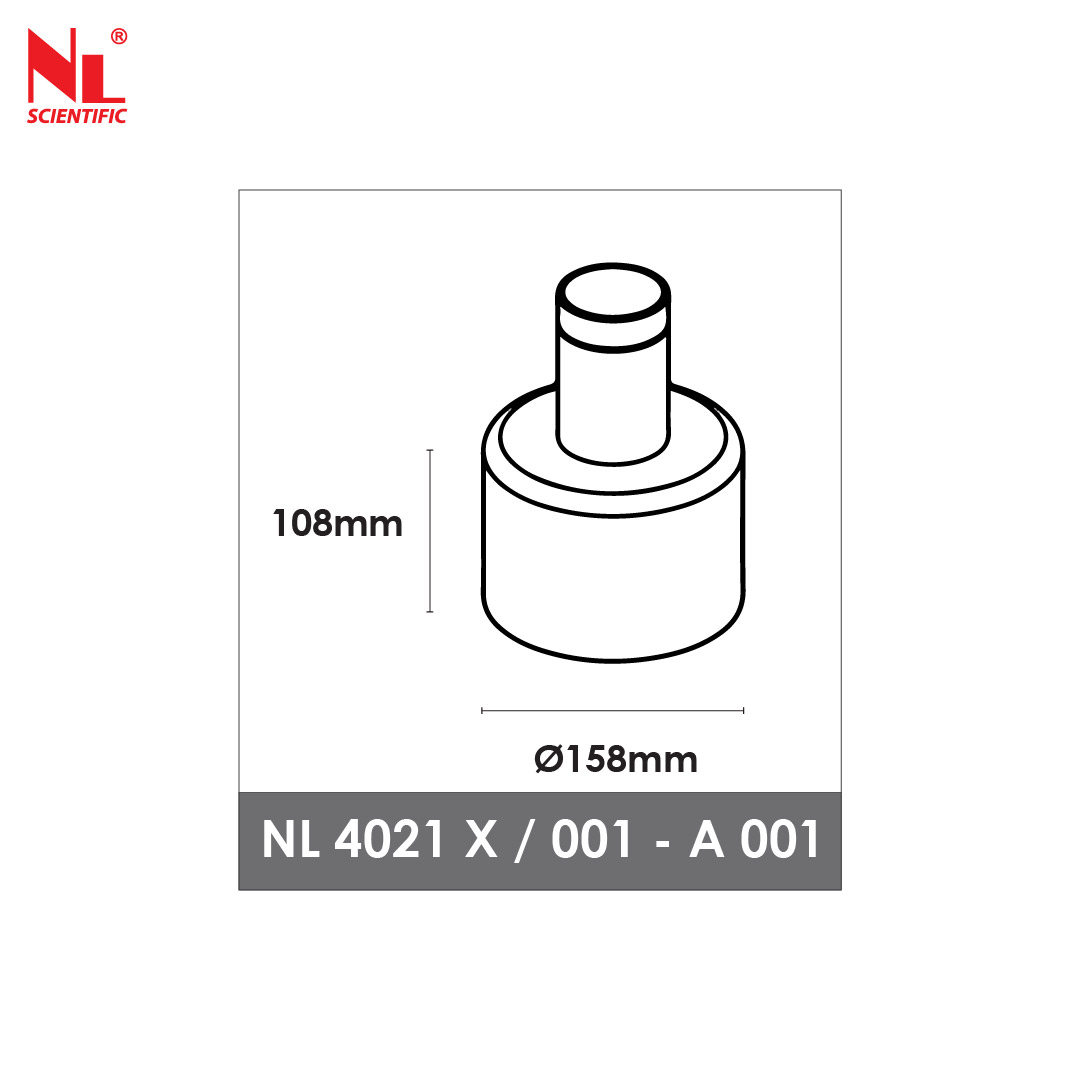

Model Number	NL 4021 X / 001 - A 001	NL 4021 X / 005 - A 001
Type of Strength	Standard	High
Reference Value	80±2 (for type-N)	88±2 (for type 4.5 J)
Dimension	Ø158 x 214 mm	Ø158 x 241 mm
Weight	16 kg	20 kg
Core Hardness	60±2 HRC	60±2 HRC
Impact Diameter	Ø16 mm	Ø21 mm
