Concrete Testing Equipments

Product Range

Standard: EN 12390-1, ASTM C39/C192, AASHTO T23/T126, BS 1881:108 Making Concrete Specimens Technical Specifications : Model Number Items Description Dimension (LxWxH) Approx.Weight NL 4014 C / 007 Ø 100 x 200 mm Cast Iron Cylinder Mould 200 x 190 x 220 mm 10.5 kg ...Read more

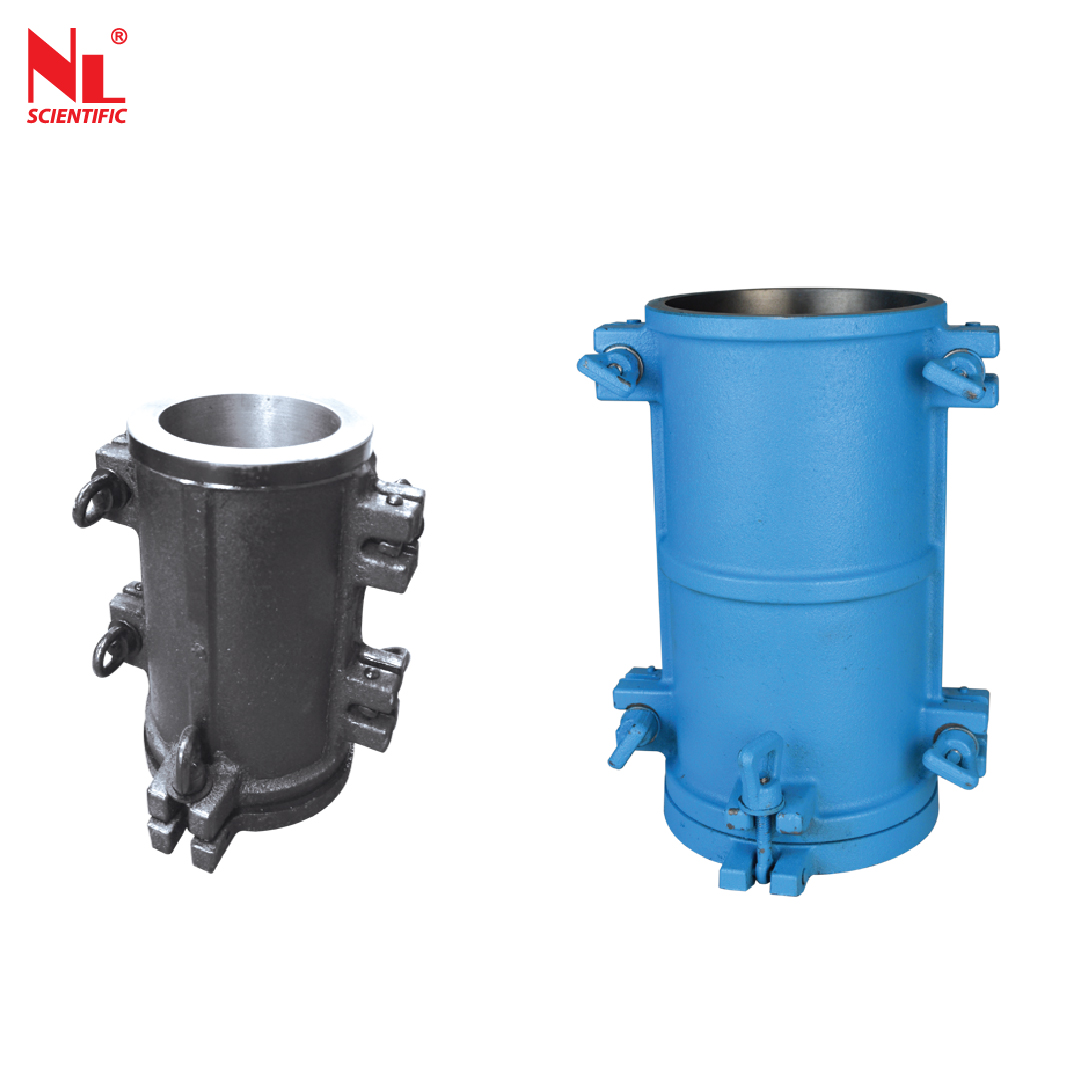

Cast Iron Cylinder Mould
NL 4014 C /

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: EN 12390-1, ASTM C39/C192, AASHTO T23/T126, BS 1881:108

Making Concrete Specimens

Technical Specifications :

Model Number	Items Description	Dimension (LxWxH)	Approx.Weight

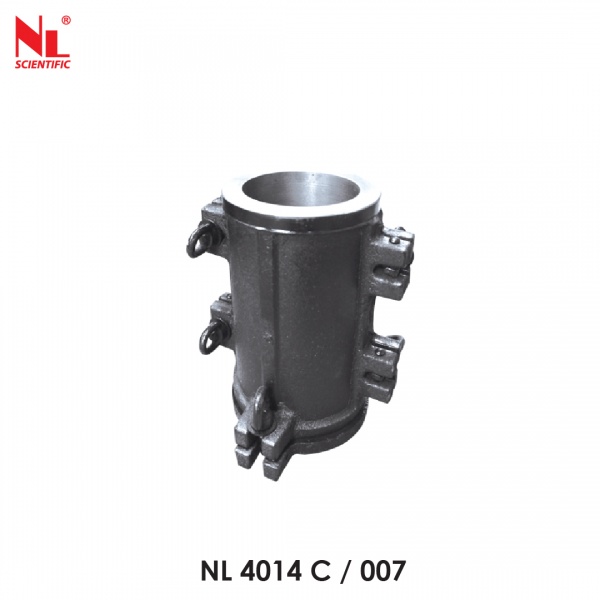

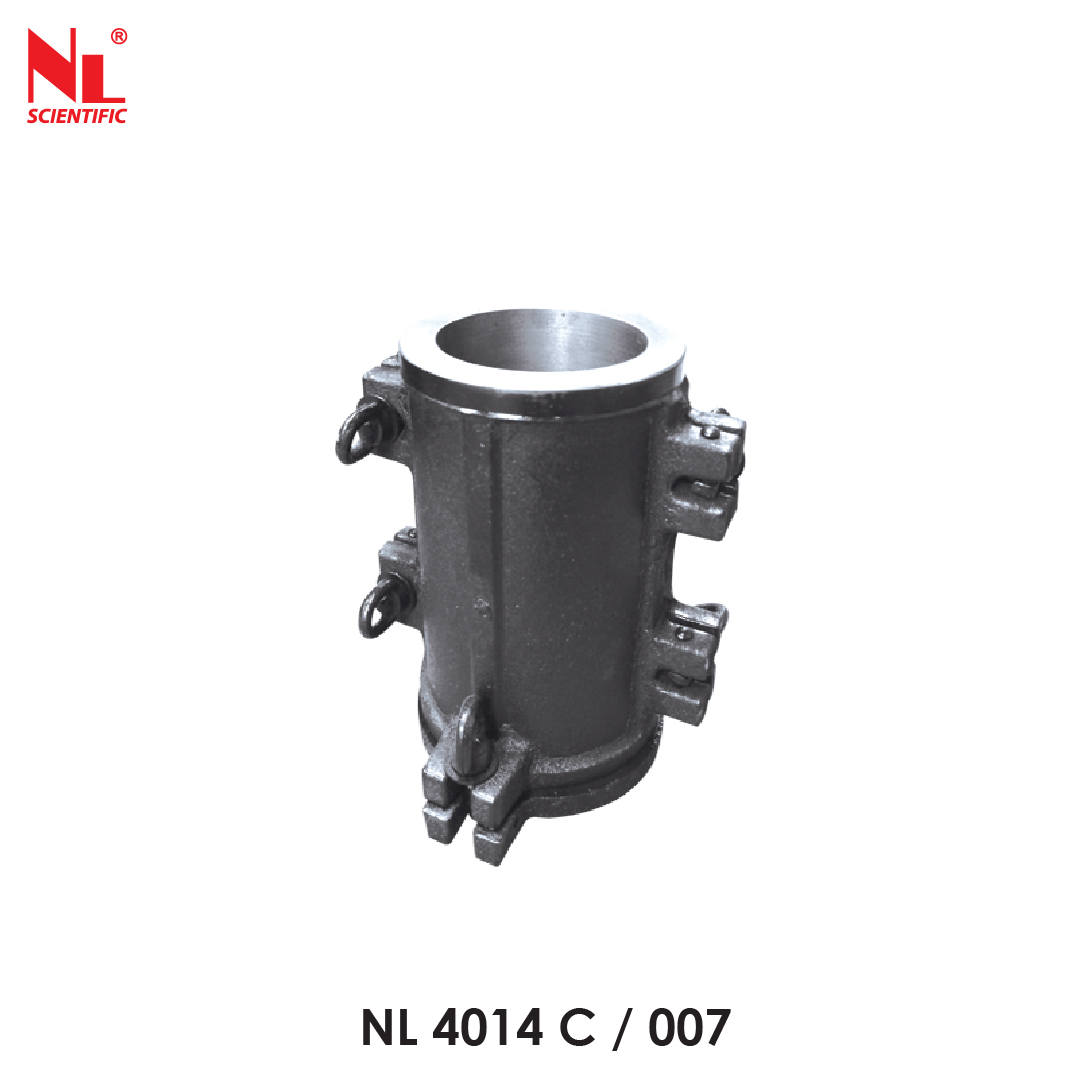

NL 4014 C / 007	Ø 100 x 200 mm Cast Iron Cylinder Mould	200 x 190 x 220 mm	10.5 kg
NL 4014 C / 009	Ø 150 x 150 mm Cast Iron Cylinder Mould	255 x 240 x 170 mm	12.8 kg

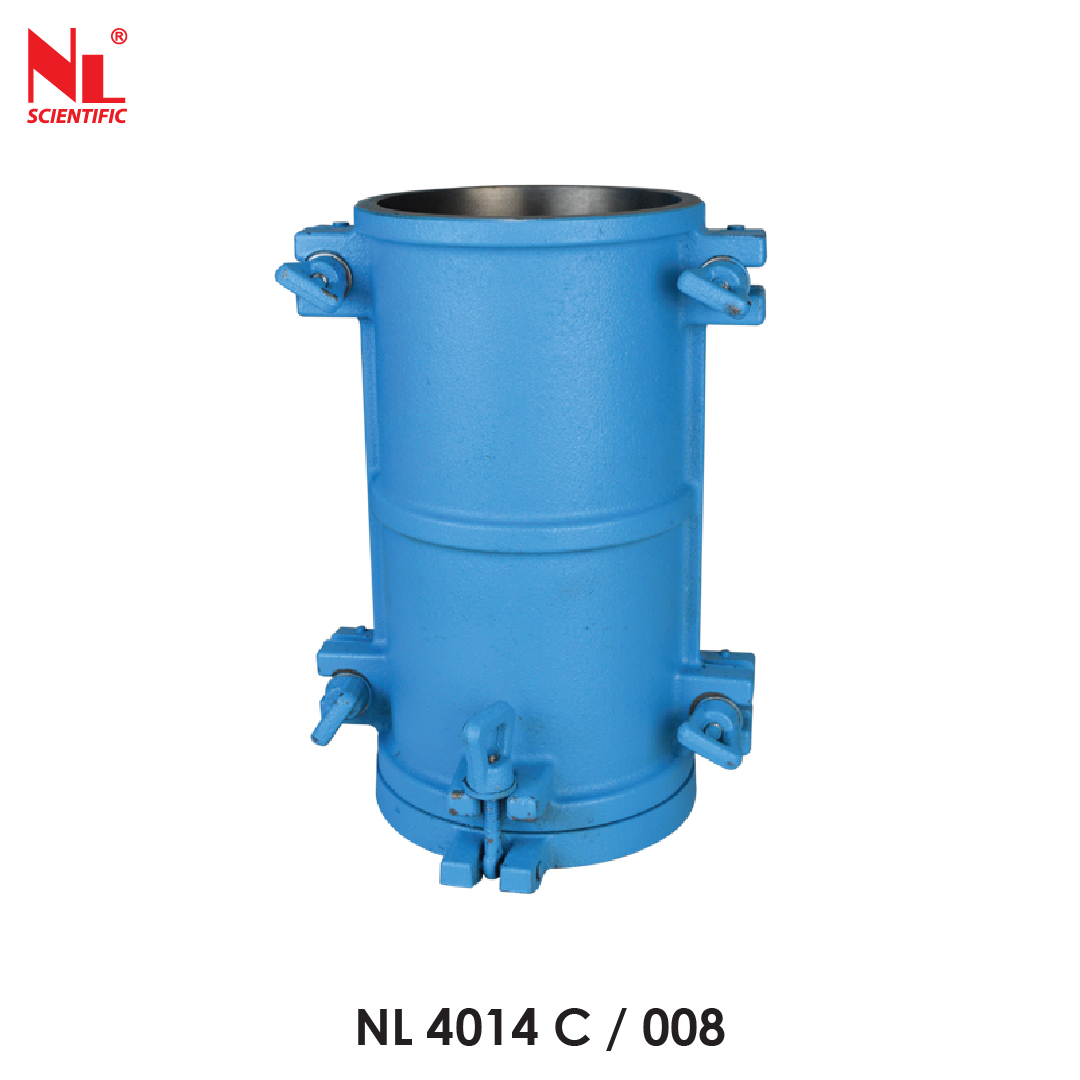

NL 4014 C / 008	Ø 150 x 300 mm Cast Iron Cylinder Mould	240 x 250 x 330 mm	9.2 kg
NL 4014 C / 044	Ø 50 x 100 mm Cast Iron Cylinder Mould	110 x 120 x 110 mm	4.0 kg
