PRODUCT DETAIL

Description

Standard: EN 12390-3 : 2009 (E)

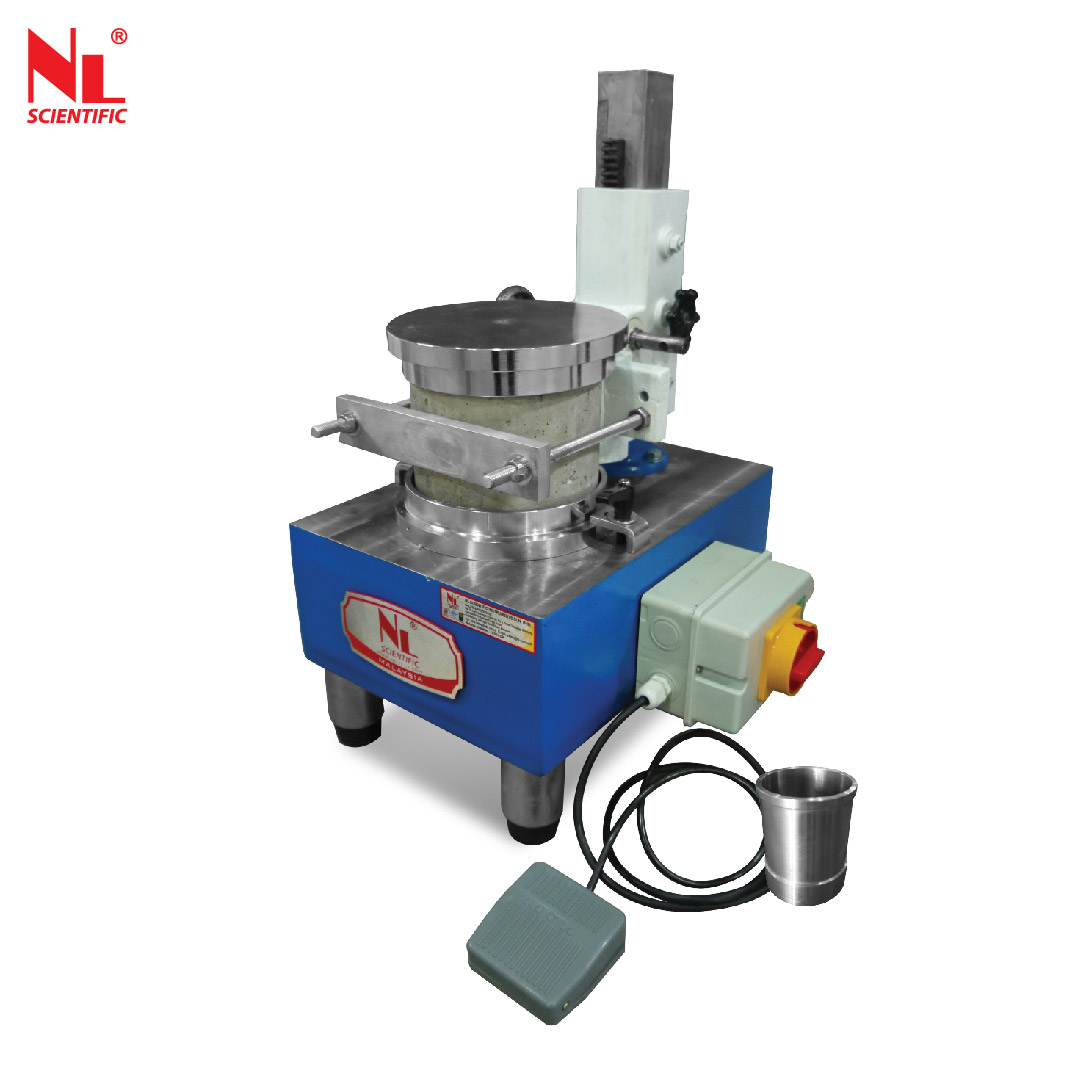

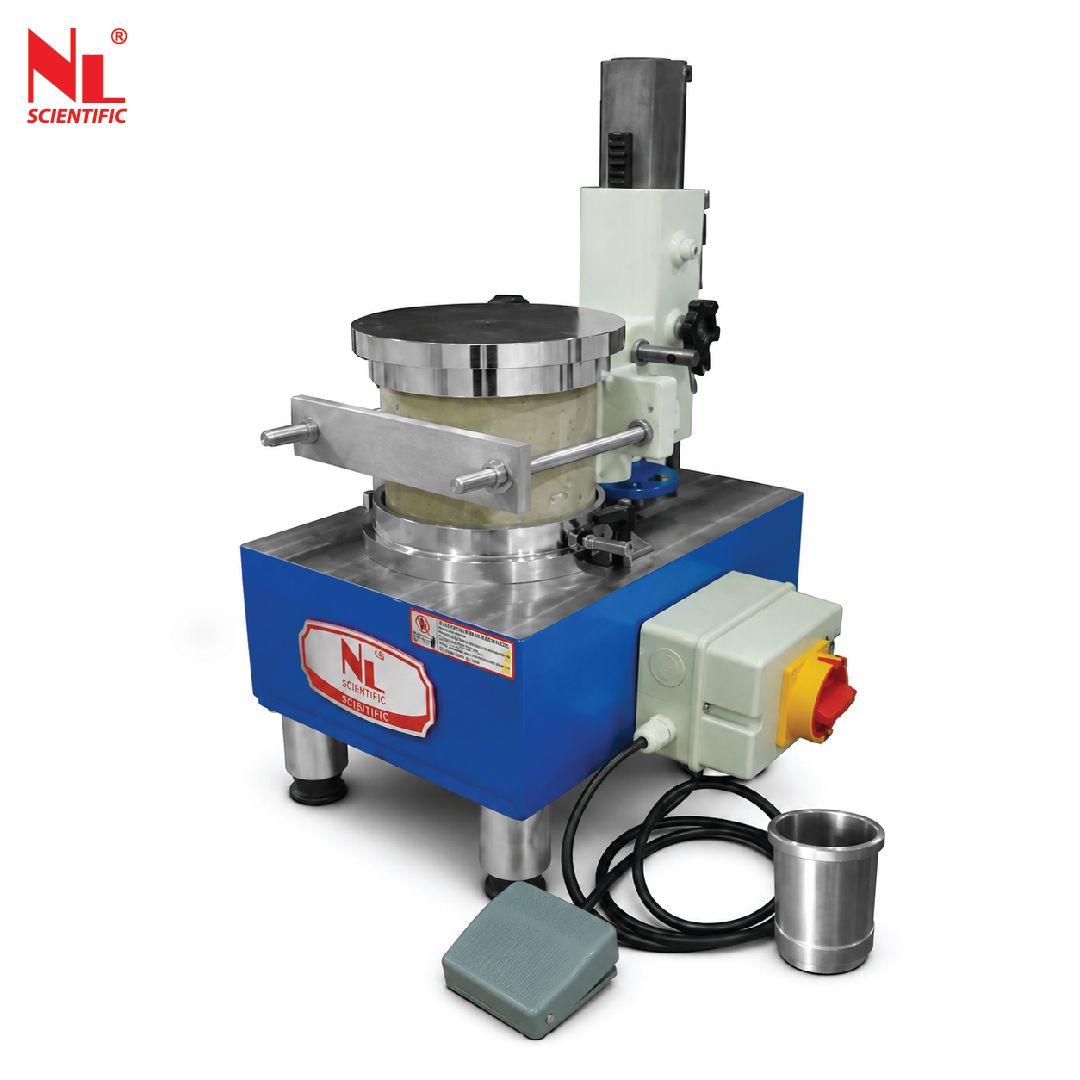

Cylinder Capping Sample

Used for cylinder capping sample preparation compression strength without limitation. This apparatus able to perform perpendicularity of 0.5 mm accuracy. With two box centering stopper integral with horizontal plane of the frame, mechanical locking system specimen guide system and some with small vibrating platform.

Technical Specifications :

Model Number	NL 4009 X / 009
Dimension (mm)	380 (L) x 400 (W) x 560 (H) mm
Approx. Weight	34.5 kg
Power	220 V, 50/60 Hz,1ph

Set Consists Of :

Model Number	Parts Description	Qty
NL 4009 X / 009 – P 002	Steel Boxes Retainer Plate (Set of 2)	1set
NL 4009 X / 009 – P 003	Calibration Container	1no

Optional Accessories :

Model Number	Accessories Description

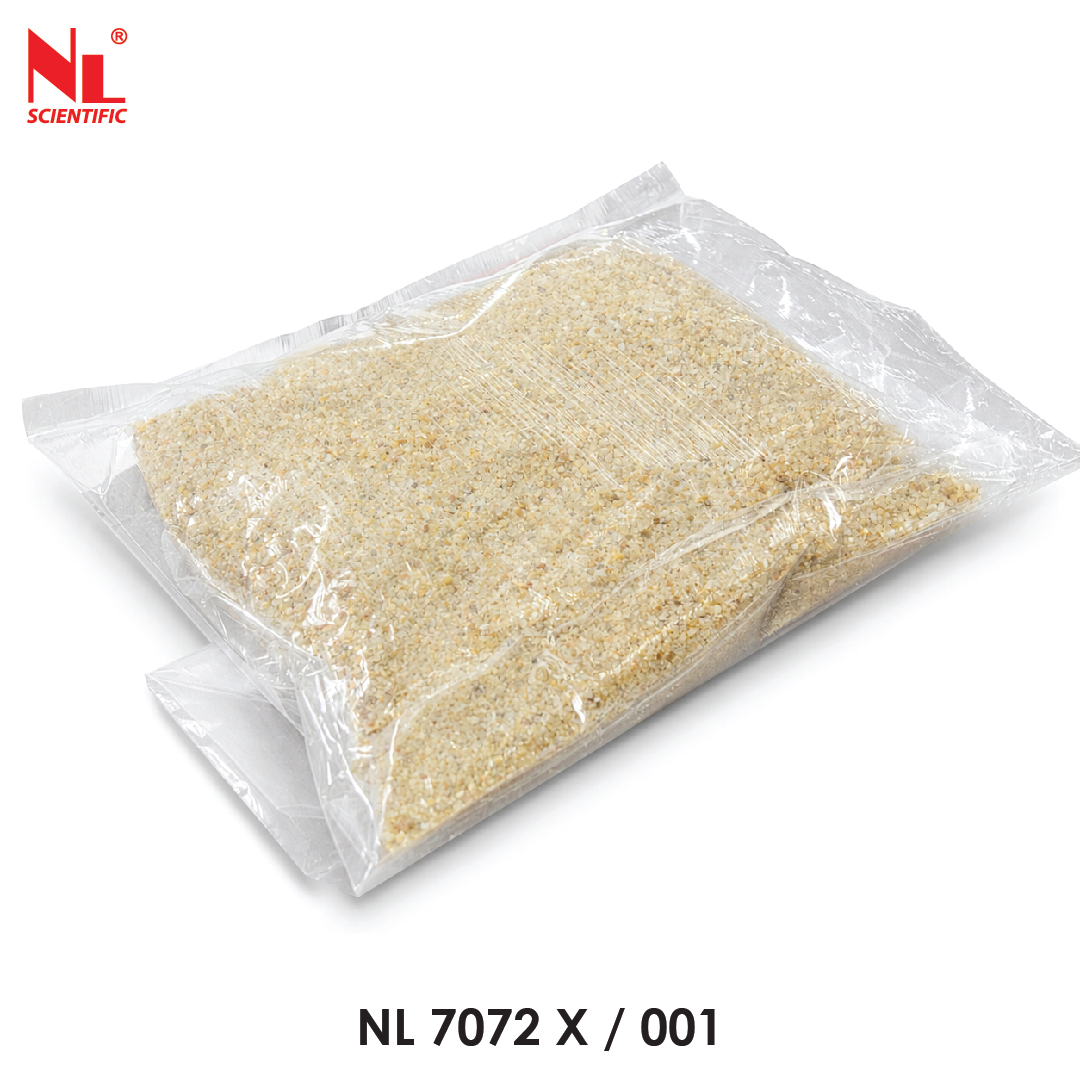

NL 7072 X / 001	Silica Sand 250/125 μm (25 kg / pack)

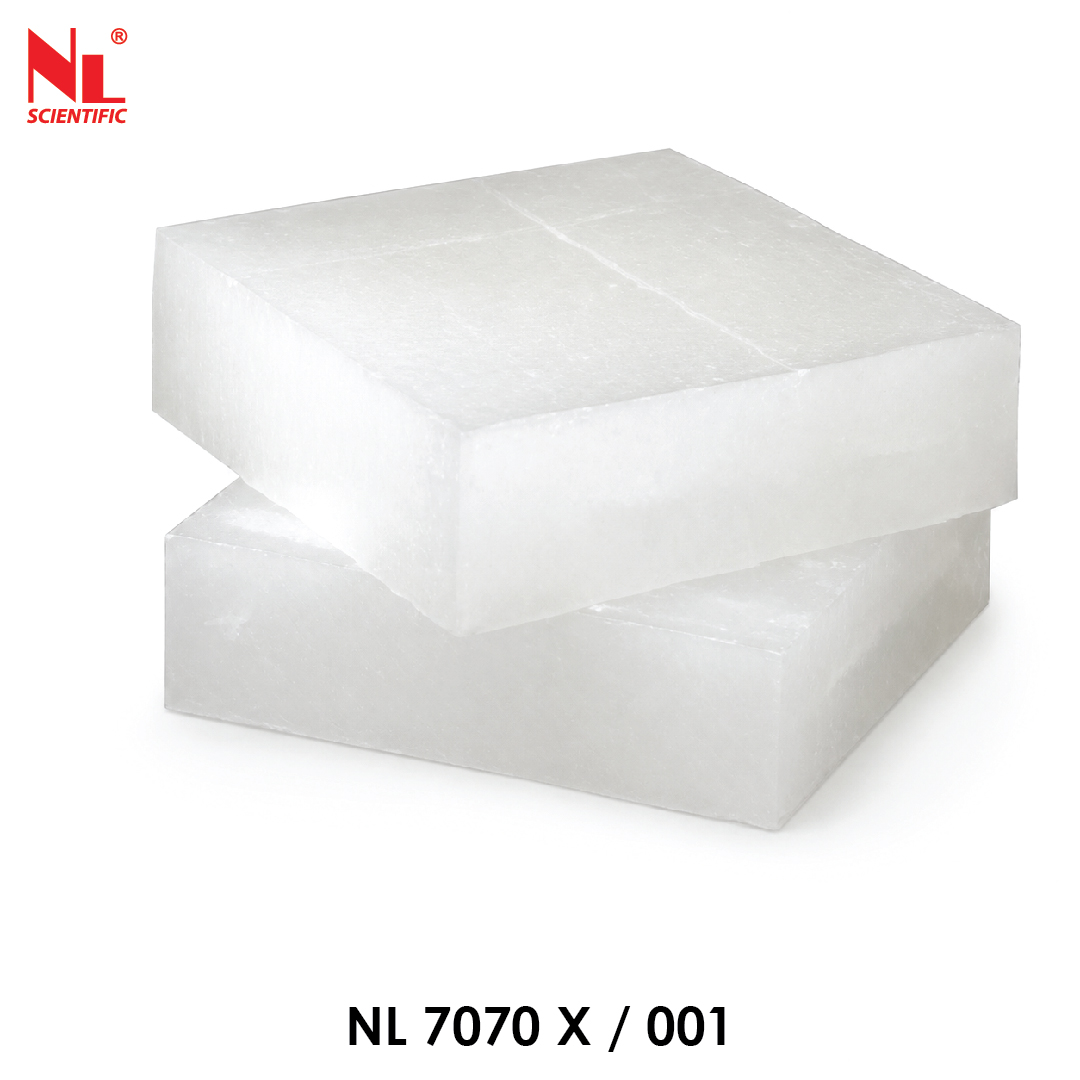

NL 7070 X / 001	Paraffin Wax (10 kg / pack)

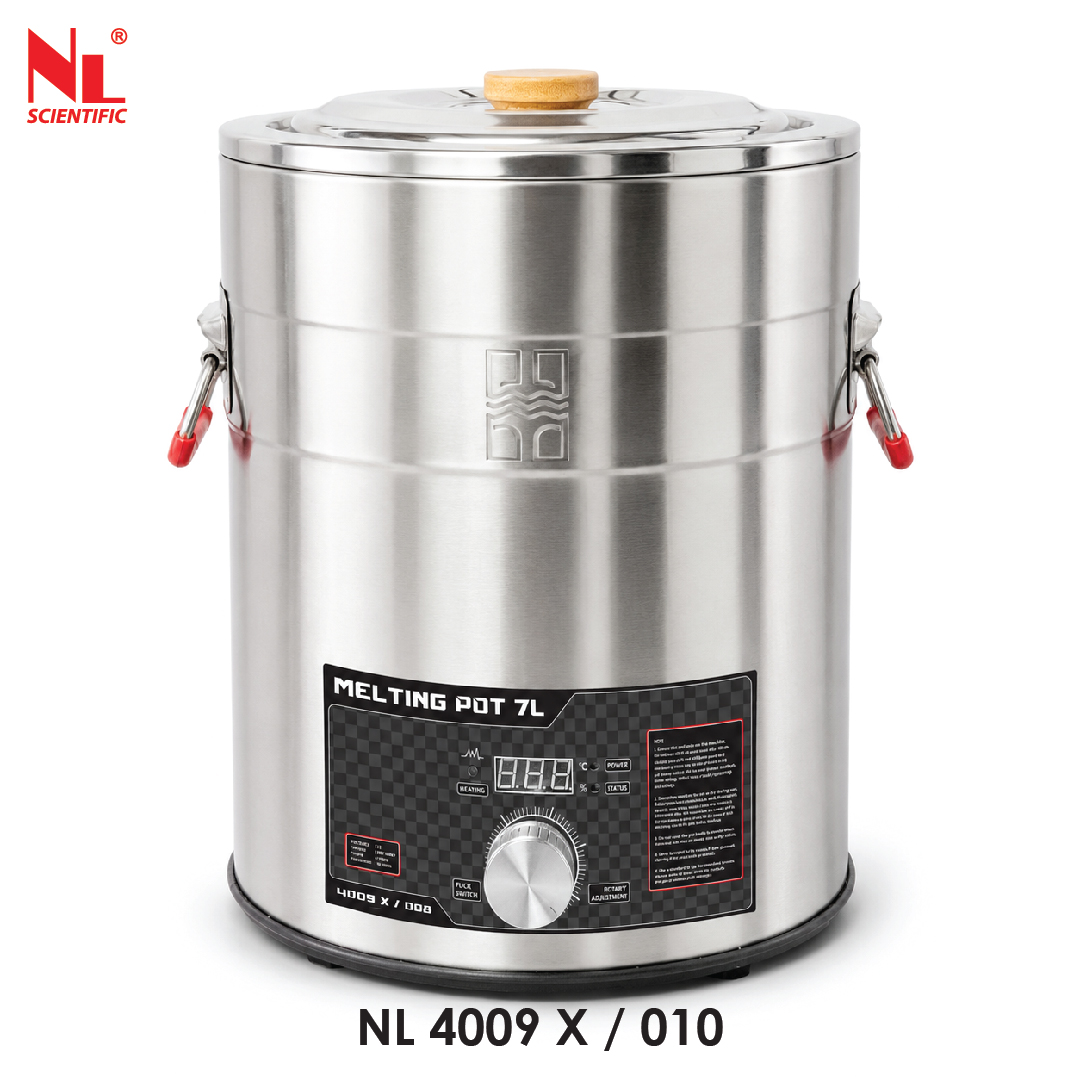

NL 4009 X / 010	Melting Pot 7 Litres

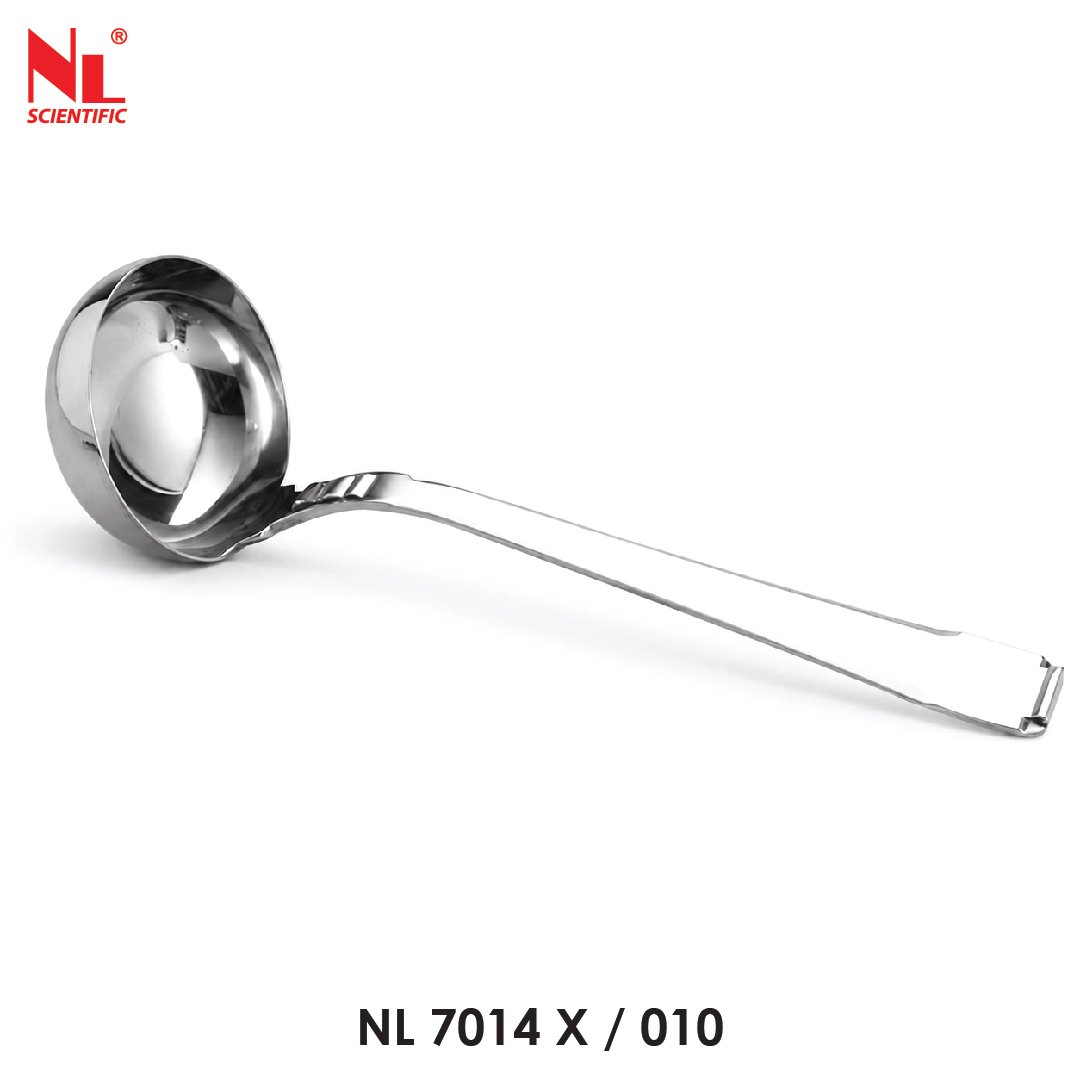

NL 7014 X / 010	Ladle 13’ Length

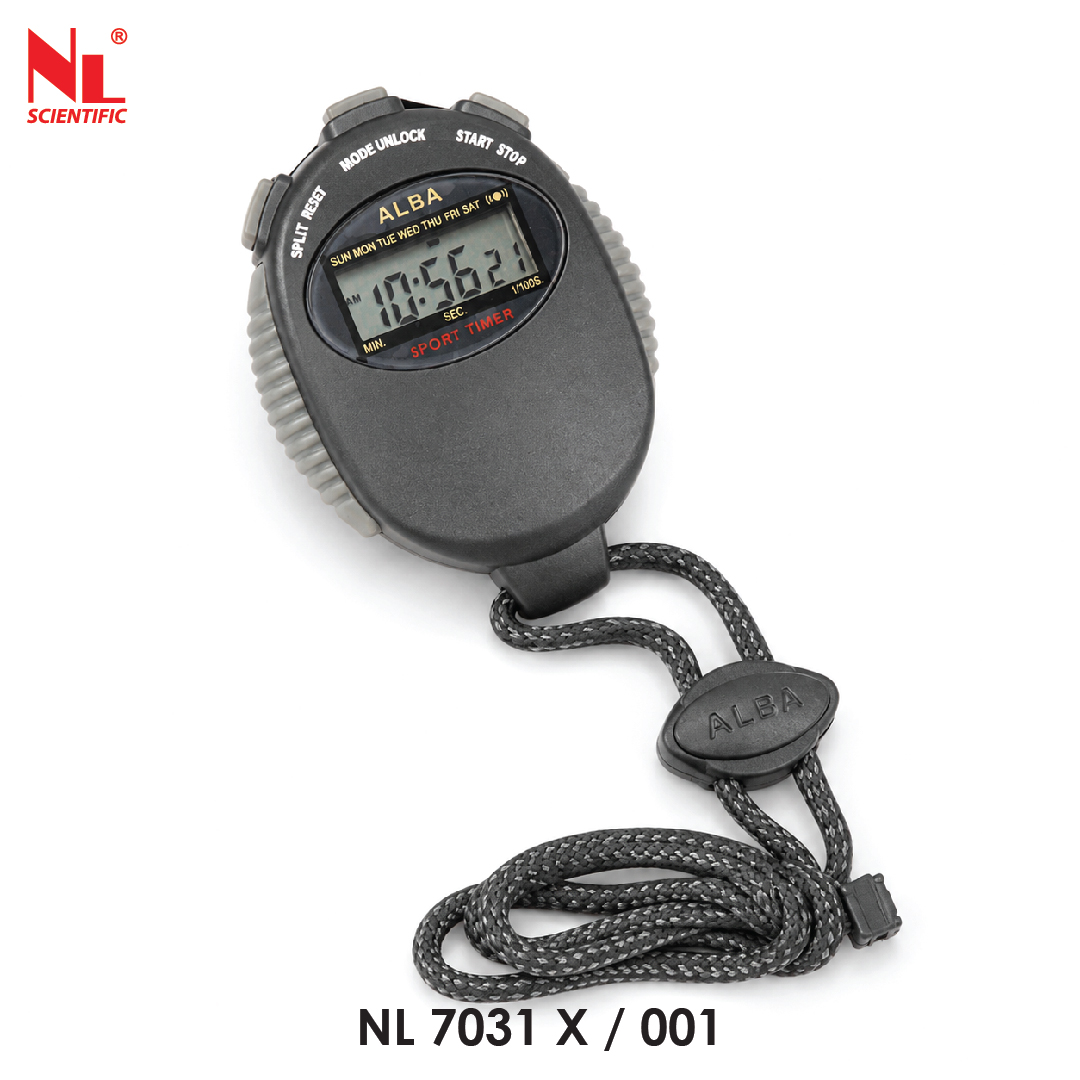

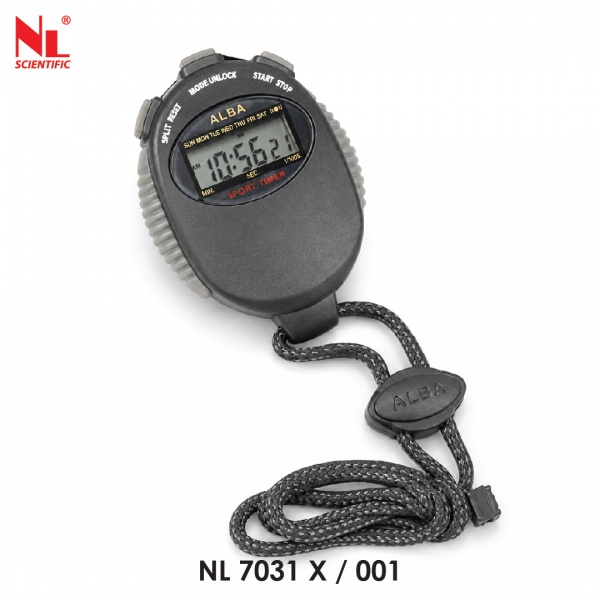

NL 7031 X / 001	Digital Stop Watch
