Standard: EN 12390-5, ASTM C78 & C293 Flexural Test Our flexural frame has been designed to achieved minimum deflection at maximum pressures resulting in very high accuracy. Overall structure are rigid & compact. Using DC motor for more durability, low noise pollution, low oil temperatu ...Read more

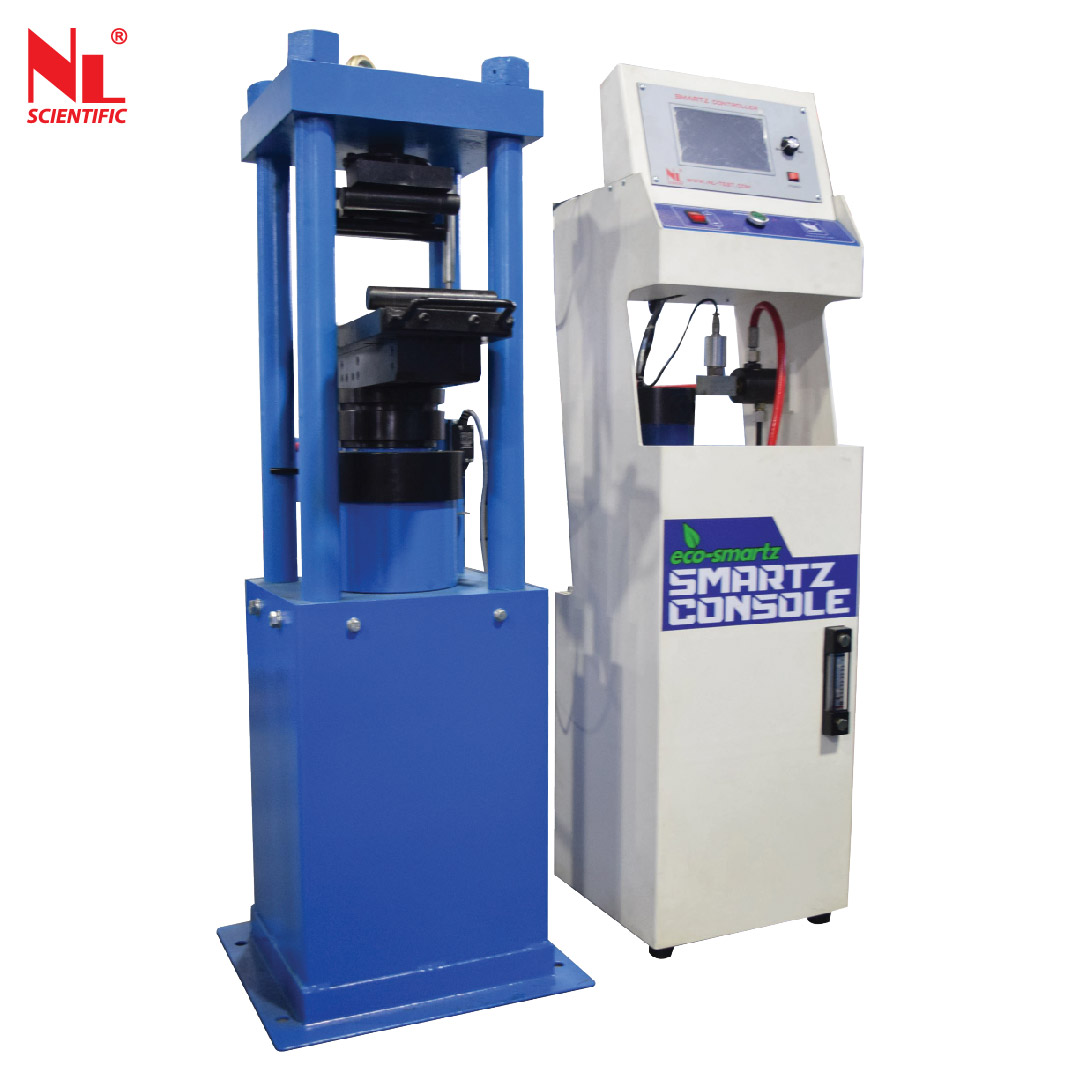

Flexural Machine
NL 4008 X / 003 & 004

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: EN 12390-5, ASTM C78 & C293

Flexural Test

Our flexural frame has been designed to achieved minimum deflection at maximum pressures resulting in very high accuracy. Overall structure are rigid & compact. Using DC motor for more durability, low noise pollution, low oil temperature & low power consumption.

Technical Specifications :

Model Number	NL 4008 X / 003	NL 4008 X / 004
Max. Capacity	100 kN x 0.1 kN Sensitivity	150 kN x 0.1 kN Sensitivity
Load Sensor Capacity	30 kPa	50 kPa
Roller Size (mm)	28 Dia. x 160 mm Lg.
Max. Vertical Clearance	165 mm
Max. Horizontal Clearance	160 mm
Max. Piston Travel	80 mm
Loading span	100 mm / 150 mm or Single
Support span	300 mm / 450 mm
Frame Dimension	300 (L) x 340 (W) x 1108 (H)
Console Unit Dimension	350 (L) x 400 (W) x 1158 (H) mm
Power	220 V, 2.5 Amp, ½ ph, 50 / 60 Hz
Approx. Product Weight	261 kg	260 kg

*1 Copy of Manual Instruction
