Coring Machine, 4 Stroke Petrol Engine
NL 4006 P / 002


  • Description

Standard: EN 12390-4, ASTM C39, AASHTO T22

Product Description

Coring Machine 4 Stroke Petrol Engine is a construction tool used for drilling holes or cores in various materials such as concrete, asphalt, or masonry. This is a specialised drilling machine designed for creating holes or cores in hard materials. It typically consists of a motor, a drilling mechanism, and controls for guiding the drill bit. The coring machine utilises a 4-stroke petrol engine powered by gasoline. In construction applications, coring machines play a vital role in creating openings for pipes, cables, and ventilation system within structures. The inclusion of a 4-stroke petrol engine ensures a dependable and robust energy source, facilitating the drilling process with efficiency. The use of a gasoline engine also grants the machine portability and flexibility, especially in construction sites where electric power sources may be scarce or inconvenient. The machine comes with a special cast aluminium main frame solid vertical movement pole and strong steel base with 4” Delrin wheels. Built-in water swivel for cooling the diamond bit.

Features of Coring Machine 4 Stroke Petrol Engine

  • The 4-stroke petrol engine provides reliable and sufficient power for drilling into hard materials like concrete, asphalt, or masonry.

  • The drilling speed reinforce machine's capability to rotate the drill bit at different speeds, allowing for flexibility based on the material being drilled and the desired hole size.

  • Machine's portability allows easy transportation and maneuverability on construction sites.

  • The machine's versatility showcases the ability to drill into various construction materials, making the machine suitable for a range of applications in the construction industry.

Standard: EN 12390-4, ASTM C39, AASHTO T22

  • EN 12390-4

This European standard provides specifications for testing machines used to determine the comprehensive strength of hardened concrete. It outlines the requirements for the design, performance, and verification of these machines to ensure accurate and reliable testing procedures in the European context.

  • ASTM C39

This standard test method for Compressive Strength of Cylindrical Concrete Specimens. This standard is published by ASTM International, this standard describes the procedure for determining the compressive strength of cylindrical concrete specimens. It is widely used in the United States and internationally for quality control in concrete construction.

  • AASHTO T22

AASHTO T22 is the standard developed by the American of State Highway and Transportation Officials (AASHTO), establishes standardised guidelines for assessing the compressive strength of cylindrical concrete specimens. As a widely recognised authority highway and transportation standards, AASHTO guarantees consistency and reliability in construction practices across the United States.

Test Procedure

  1. Preparation: Before initiating the drilling process, ensure the coring machine is placed on a smooth stable surface, verify the proper functioning features of safety features such as emergency shit-off switches and guards, and inspect the 4-stroke petrol engine to conform adequate fuel and oil levels.

  2. Start-Up Procedure: Follow the step-by-step procedure according to the manufacturer's instructions for starting the equipment. Allow the engine to warm up to the recommended temperature.

  3. Functional Checks: Check and test all controls and switches to ensure they are responsive and functional. Verify the accurate engagement and disengagement of the coring mechanism. Water cooling system should be check (if applicable) to ensure its functioning properly.

  4. Drilling Operation: Select an appropriate drill bit according to the intended application and material, secure the drilling material speed, precision, and efficiency.

  5. Performance Testing: The drilling performance should be evaluated by assessing the drilling speed, precision and efficiency. Also. monitor the 4-stroke petrol engine's performance, ensuring it maintains consistent power throughout the drilling process.

  6. Vibration and Noise Levels: Vibration levels should be assess during the operation.

  7. Cooling System Check: If the coring machine is equipped with a cooling system, monitor its effectiveness in preventing the machine from overheating during extended use.

  8. Shutdown Procedure: Follow the step-by-step procedure given by the manufacturer for shutting down the coring machine safely.

  9. Data Recording: Relevant data should be recorded which includes drilling time, depth, and any observations related to the machine's performance.

  10. Post-Test Inspection: Visual inspection should be conducted on the coring machine of any signs of wear, damage, or potential issues. Also, check for loose components and tighten it.

Technical Specifications :

 Model Number

 NL 4006 P / 002

 Max. Core Bit

 6” or 150 mm (up to 500 mm coring depth)



 Engine

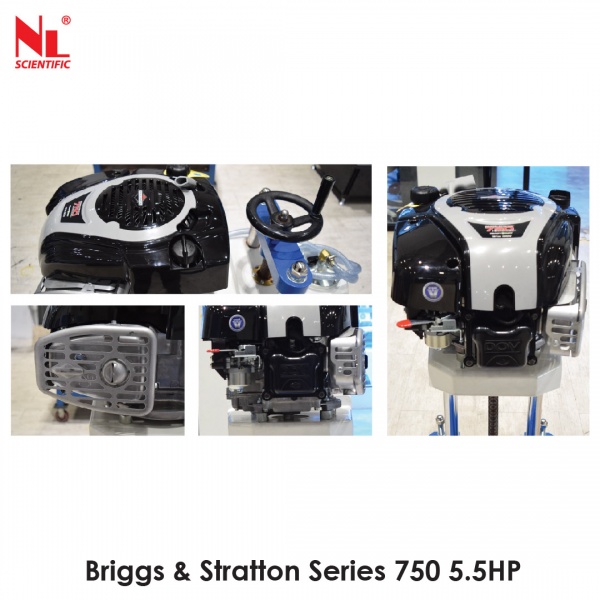

 Briggs & Stratton, USA, Series 750, 5.5Hp (161cc)



 Gross Torque

 9.8Nm @ 2,600 rpm
 Materials Processed  Concrete, Asphalt, Rock
 Cooling System  Integrated Water-Cooling System

 Spindle Thread

 1-1/4” UNC

 Product Dimension

 770 (L) x 450 (W) x 1110 (H) mm

 Packing Dimension

 870 (L) x 550 (W) x 1300 (H) mm

 Approx. Product Weight

 87 kg

 Approx. Packing Weight

 97 kg

Unit Consists Of:

 Model Number

Parts Description

Qty

 NL 4006 P / 002 - P002

 Strap Wrench & Spanner

 1set

 NL 4009 X / 009 - P004

 1¼” x 3P Bit Adaptor

 1no.

Optional Accessories:

 Model Number  Parts Description  Qty
 NL 7018 X Serial  Core Bit Set (Refer to NL 7018 X Group)  1pc
 NL 4006 X / 002 - A001  Core Extractor  1set
