nl3006x002-01
Standard: EN 196-1, EN ISO 679   Preparation of 40 x 40 x 160 mm cement mortar prisms The apparatus is used to compact cement mortar prisms in three gang mould. Made with galvanized chrome steel with quick locking device for prism mould. Easily removable to check weight. Drop height 15 mm with 60 ...Read more

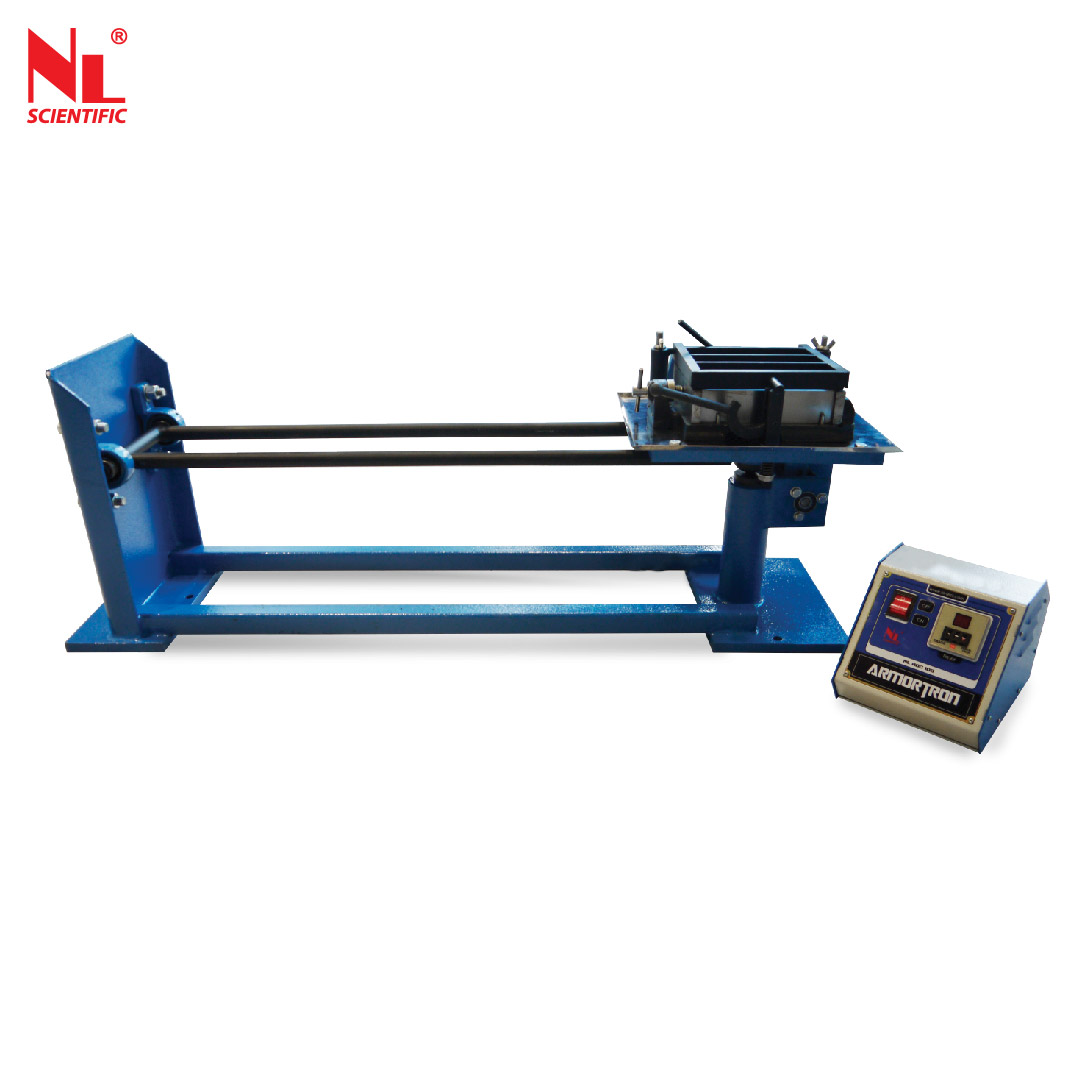

Jolting Apparatus
NL 3006 X / 002


  • Description

Standard: EN 196-1, EN ISO 679



Preparation of 40 x 40 x 160 mm cement mortar prisms

The apparatus is used to compact cement mortar prisms in three gang mould. Made with galvanized chrome steel with quick locking device for prism mould. Easily removable to check weight. Drop height 15 mm with 60 drops per minute cycle. Control panel with main switch. Start / Stop button with digital selector, to select number of cycles which the machine automatically stop. Built in feed hopper and quick clamp.



Technical Specifications:

 Model Number  NL 3006 X / 002
 Dimension (mm)    1150 (L) x 225 (W) x 360 (H)
 Approx. Weight  39 kg
 Power  220 - 240 V, 50 / 60 Hz, 1 ph



PRODUCT VIDEO



HOW TO OPERATE VIDEO
