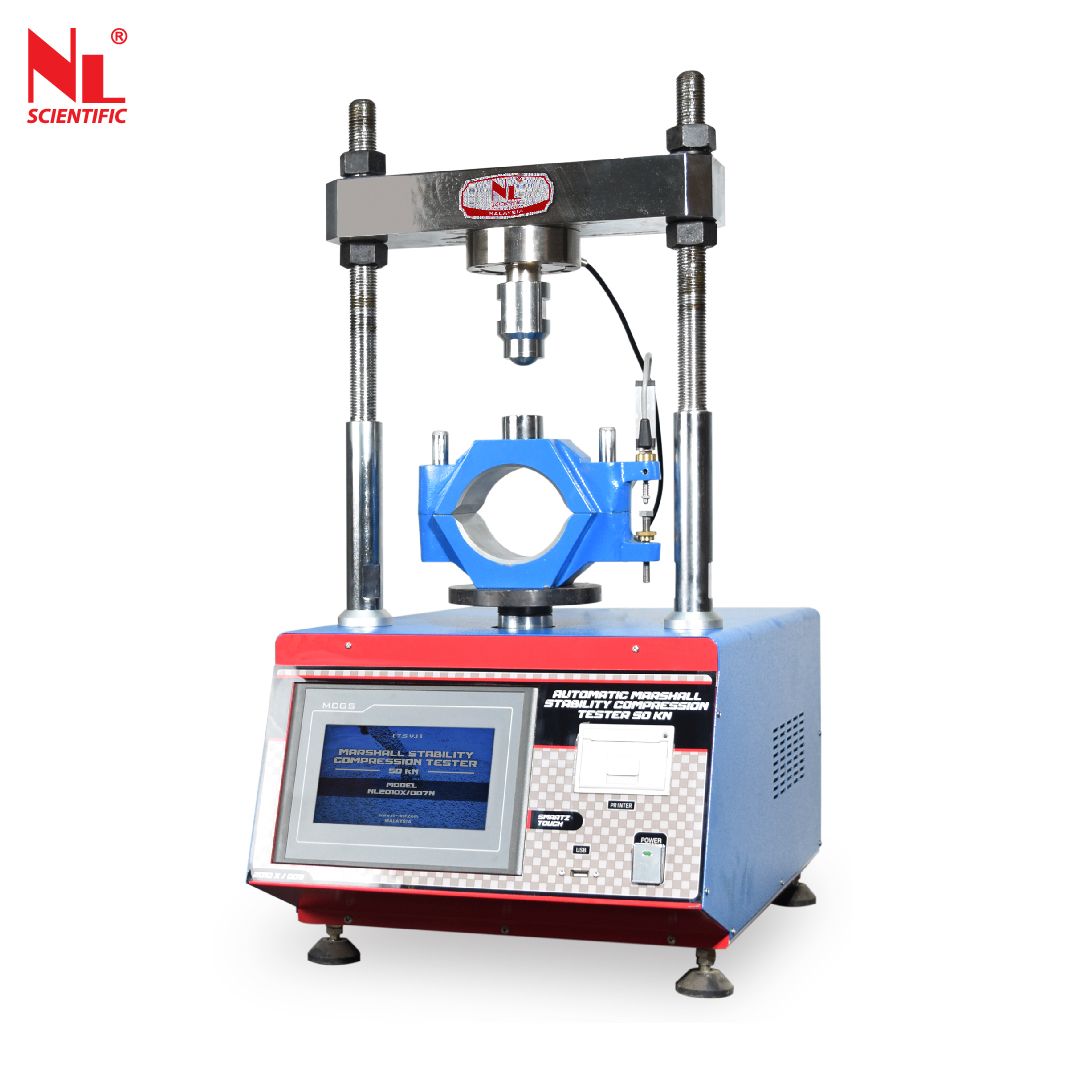

Marshall Stability Compression Tester 50kN (Autouch)
NL 2010 X / 007N

  • Description

Standard: ASTM D1559, D5581, AASTHO T245, EN 12697-34, BS 598:107

Stability Compression

Newly invented bench mounting type machine, with rigid and compact design compare with previous model. By using DC motorized drive system to achieve more reliable and high accuracy result.

Technical Specifications

 Model Number  NL 2010 X / 007N
 Capacity  50 kN
 Testing Speed  50.8 mm/minutes
 Cross Head Travel  35 mm
 Transducer Sensor  <30mm
 Vertical Clearance  300 mm
 Horizontal Clearance  270 mm
 Product Dimension  420 (L) x 650 (W) x 800 (H) mm
 Packing Dimension
  620 (L) x 850 (W) x 1000 (H) mm
 Approx. Product Weight  86 kg
 Approx. Packing Weight
  106 kg
 Power  220~240 V, 1 Ph, 50/60 Hz, 6 A, 0.5 Hp

Unit Consists Of:

 Model Number  Accessories Description Qty
 NL 2010 X / 007 – P 001  50 kN ‘S’ Type Load Cell 1no.
 NL 2010 X / 007 – P 002  Displacement Transducer Probe 1no.

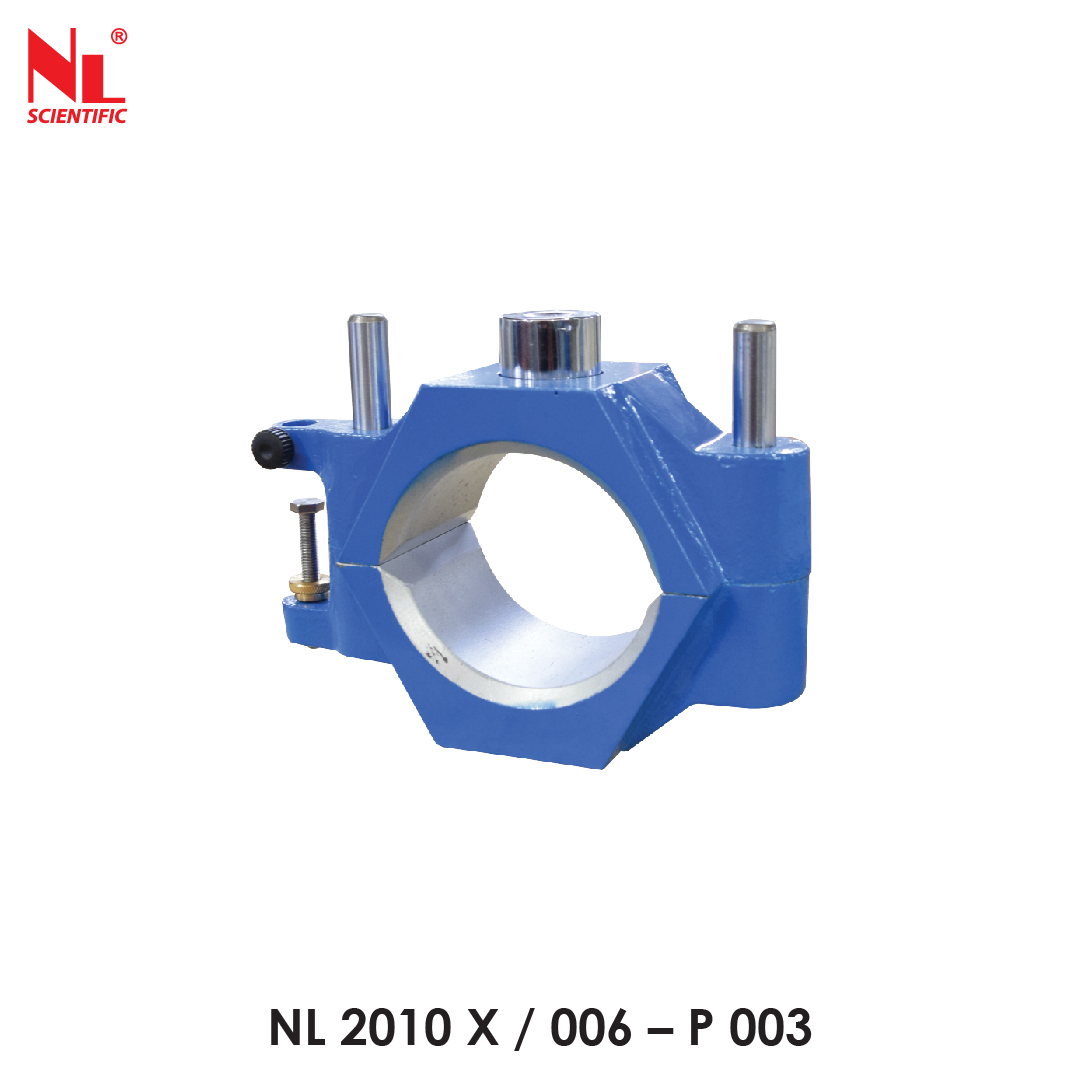

 NL 2010 X / 006 – P003  4” Diameter Stability Mould 1no.

*1 Copy of Manual Instruction

Optional Accessories

 Model Number  Accessories Description Qty

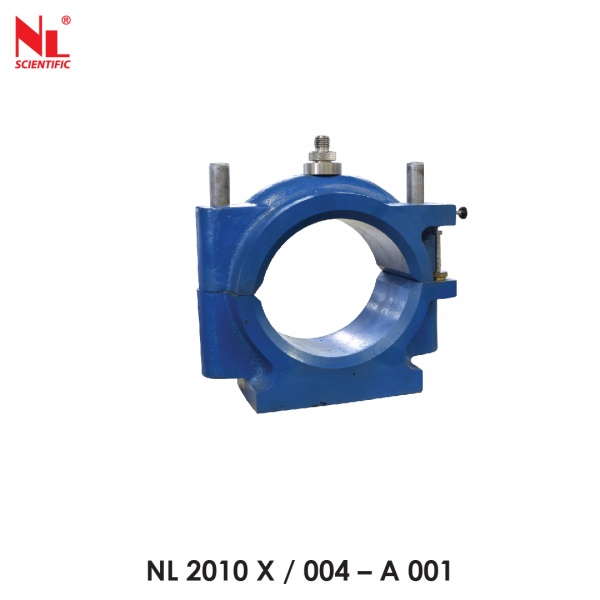

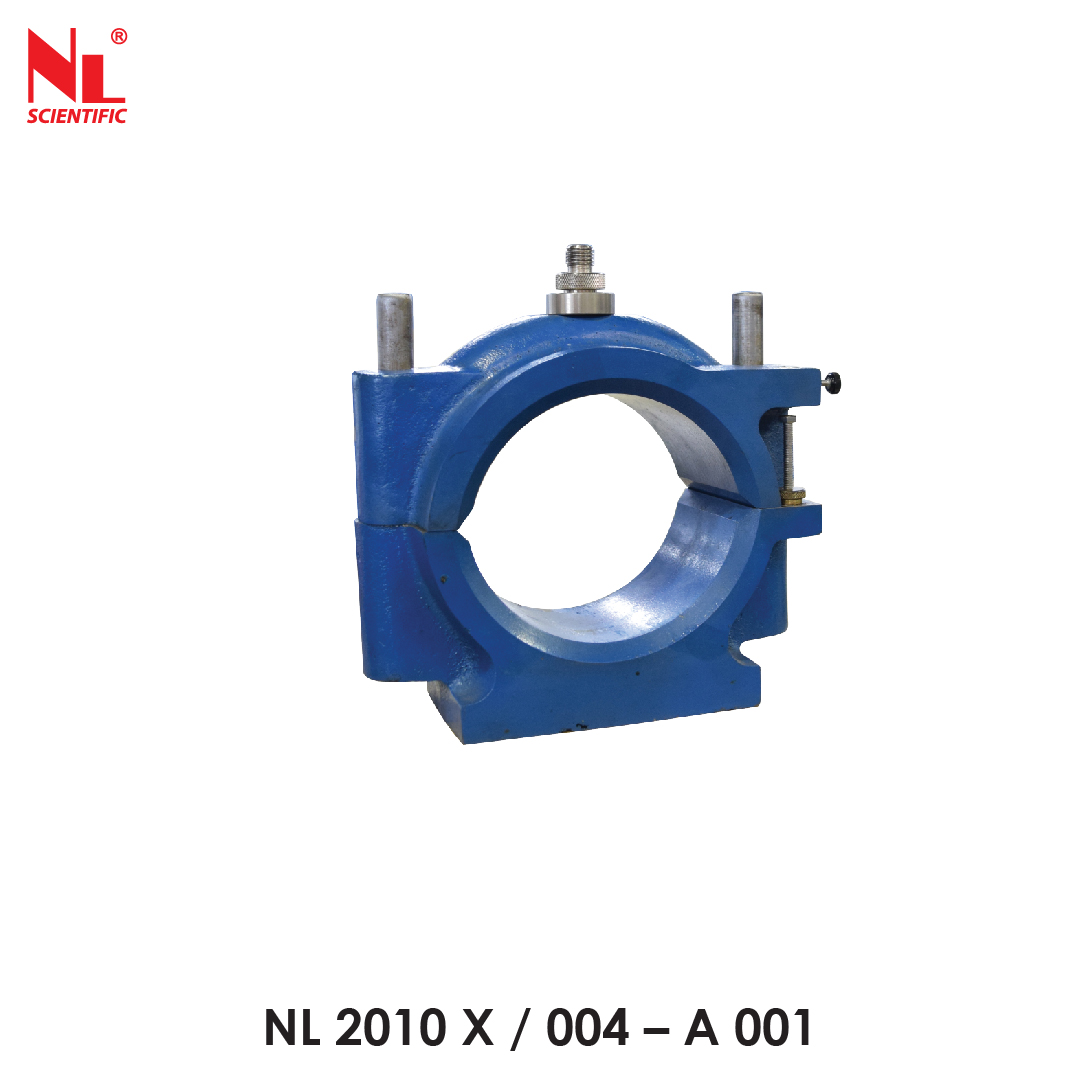

 NL 2010 X / 004 – A001  6” Diameter Stability Mould 1no.
 NL TPR - 57  Thermo Paper Roll 57mm x 31 mm Dia. (5 rolls/pack) 1pack

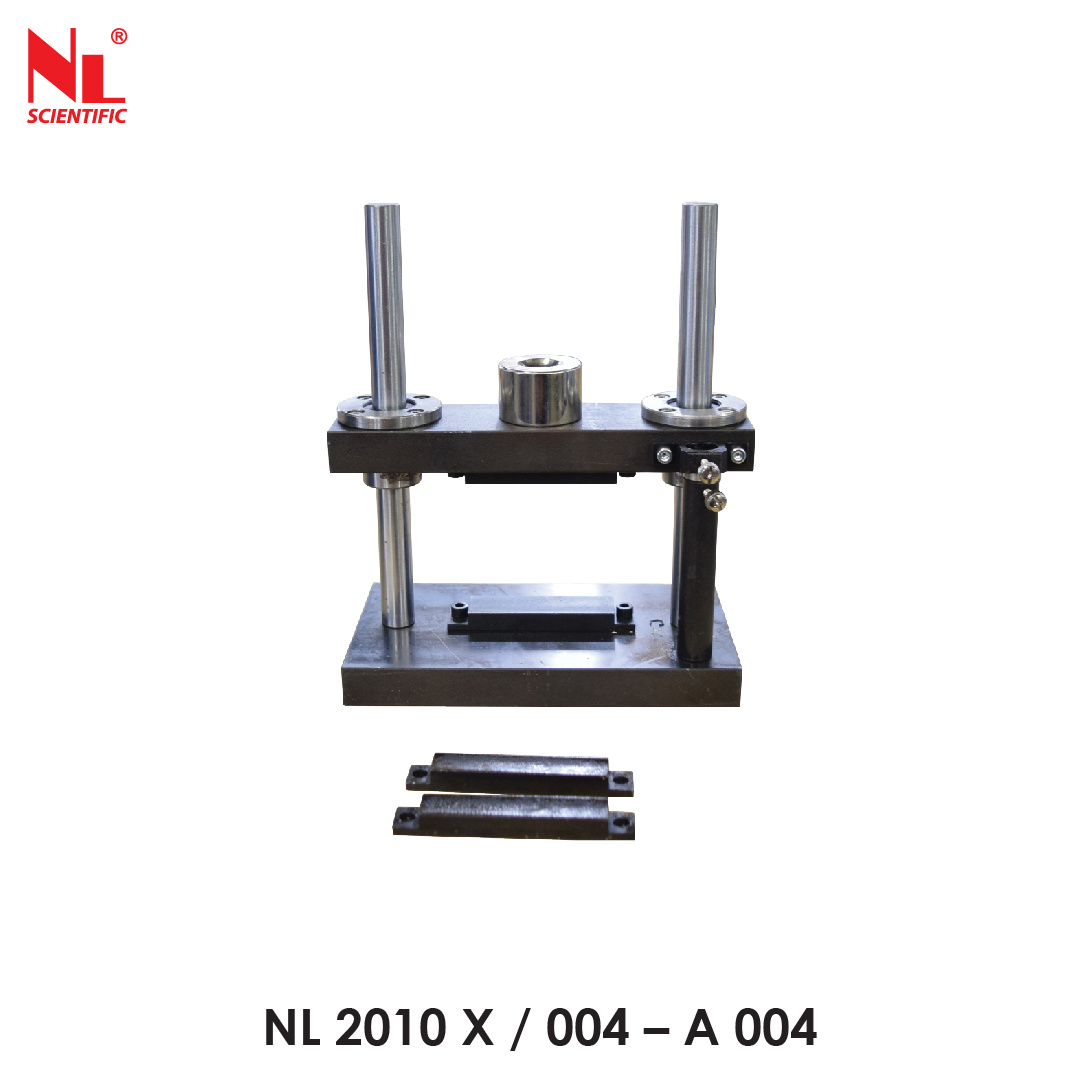

 NL 2010 X / 004 - A004  Tensile Splitting Device (for 4” Sample) 1no.

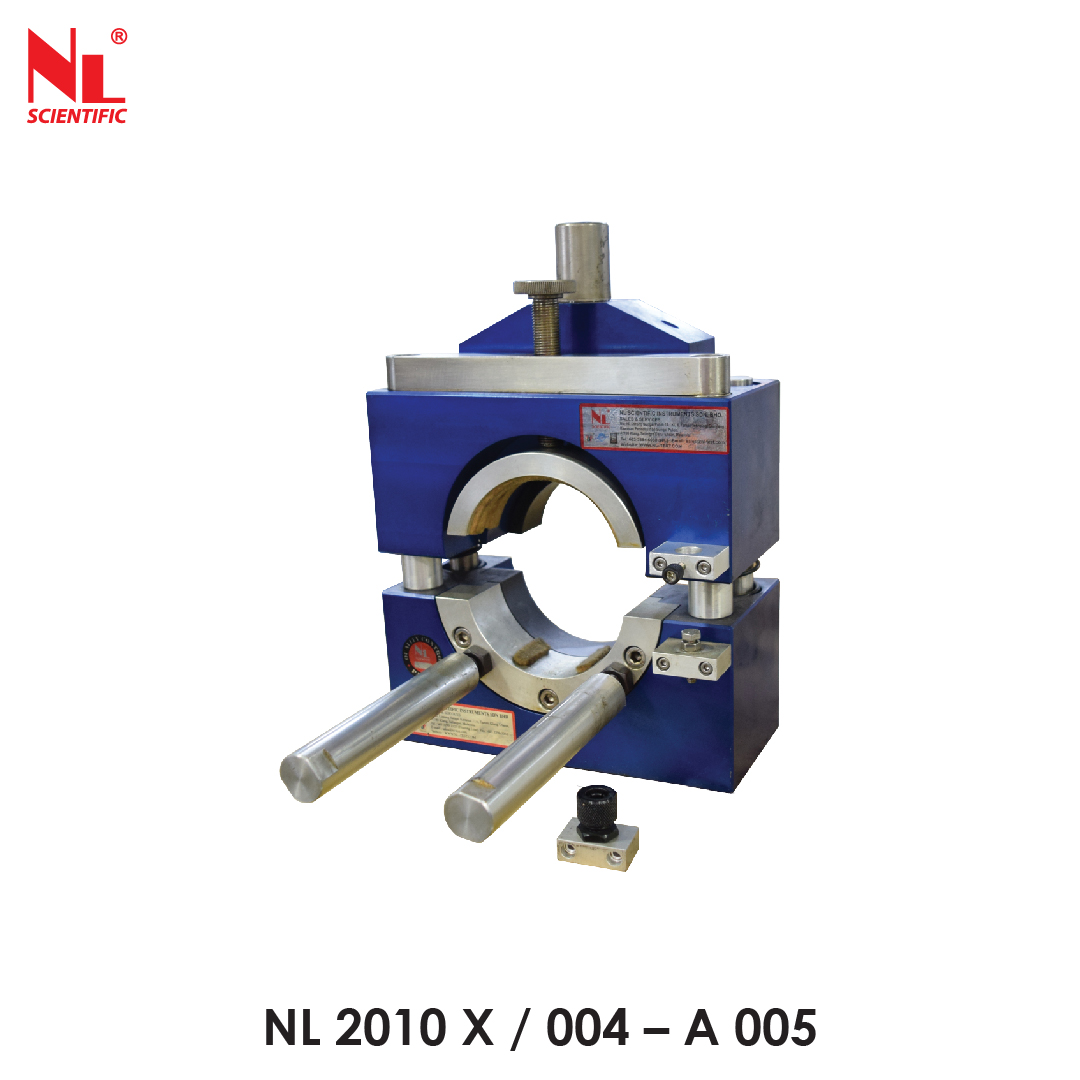

 NL 2010 X / 004 - A005  LEUTNER Testing Head 1no.
