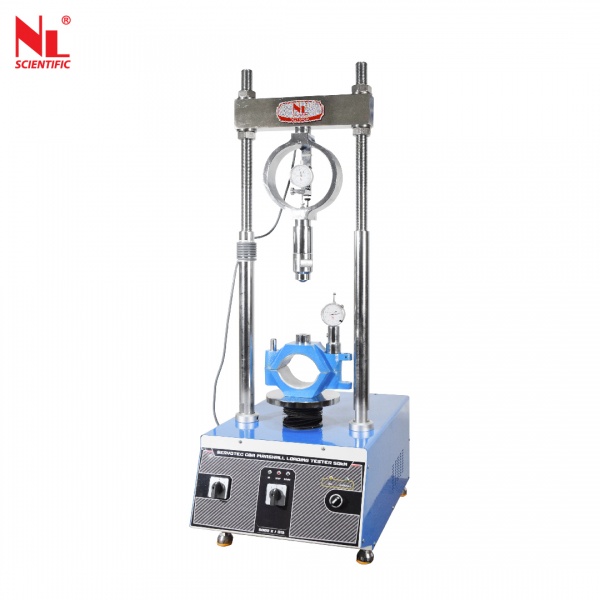

Servotec Marshall Stability Compression Tester 50kN
NL 2010 X / 010

  • Description

Standard: ASTM D1559, D5581, AASTHO T245, EN 12697-34, BS 598:107

Immediate Bearing Index

Newly invented bench mounting type machine, with rigid and compact design compare with previous model. By using servo drive motorized system to achieve more reliable and high accurate testing result.

*Supplied without accessories which have to ordered separately.



FEATURES:-
*Compact, table top design
*Energy saving with servo drive power motor
*Less vibration & noise during operation

Technical Specifications

 Model Number  NL 2010 X / 010
 Capacity  50 kN
 CBR Testing Speed  1.2 mm / min
 Plunger Travel  100 mm
 Vertical Clearance  680 mm
 Horizontal Clearance  270 mm
 Product Dimension  440 (L) x 630 (W) x 1200 (H) mm
 Packing Dimension  640 (L) x 830 (W) x 1400 (H) mm
 Product Weight  77 kg
 Packing Weight  97 kg
 Power  220~240 V, 370 W, 1 Ph, 50/60 Hz, 2.5 A

Unit Consists Of:

 Model Number  Parts Description  Qty
 NL 2010 X / 006 – P 001  4" (100mm) Marshall Stability Mould c/w Flow Meter Attachment  1no
 NL 7023 X / 007  Proving Ring 30 kN  1set
 NL 2010 X / 006 – P 002  Extended Plunger  1no
 NL 7020 X / 001  Analogue 25 x 0.01 mm  1no
 NL 2010 X / 006 – P004  Handle (Manual Adjustment)  1no

*1 Copy of Manual Instruction

Optional Accessories

 Model Number  Parts Description
 NL 2010 X / 006 – A 001  6" (150mm) Marshall Stability Mould c/w Flow Meter Attachment
 NL 7023 X / 009  50.0 kN (5000 kgf)
 NL 2010 X / 004 – A 004  Tensile Splitting Device (for 4’ Sample)
