Specimen Cutting

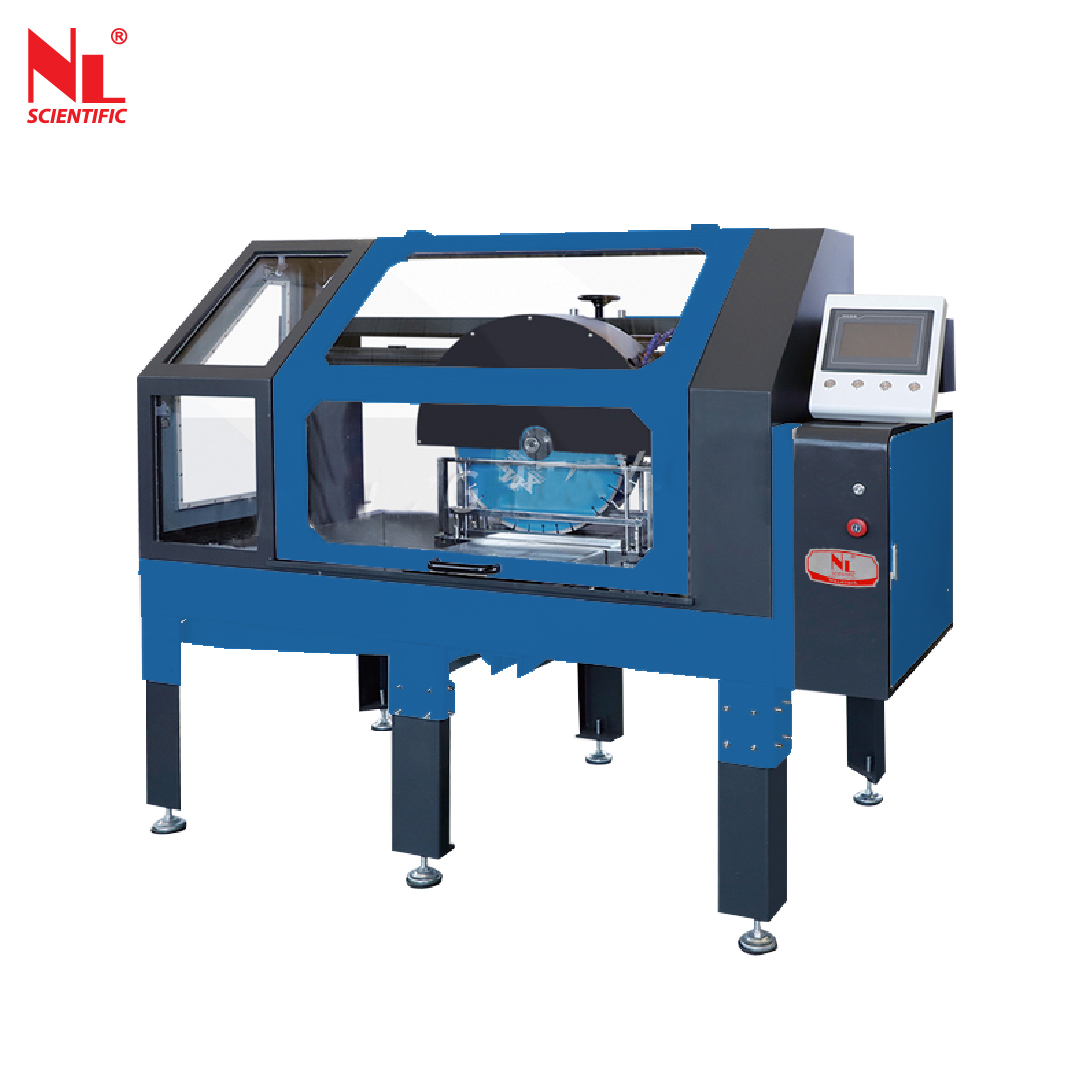

Automated Pave Cutting Saw is a fully enclosed automatic specimen cutting machine for cutting the standard asphalt mixture cylindrical (Φ100 ~ Φ155mm) or 300 mm x 300 mm plate specimen into asphalt mixture. Mechanical testing required for other sizes, with high precision, automated operation, safe and reliable features. It also can be based on user needs to install other clamping accessories, for others type of material such as terrazzo, natural stone, concrete products, ceramics, refractory bricks and other non-metallic materials and pipe. The instrument uses intelligent control equipment and software, which can automatically complete the cutting of cylindrical and plate-shaped specimens of specified width. The specimen feeding is controlled by a stepper motor, and the human-computer interaction is simple and easy to use.
Technical Specifications:
Model Number |
NL 2015 X / 002 |
Saw Blade Diameter |
500 mm, 5 mm thickness |
Cutting Depth |
≤200 mm |
Cutting Width |
≤400 mm. |
Cutting Speed |
≤200mm/min |
Round Fixture |
φ101.6mm/φ152.4mm two types |
Plate-shaped Fixture |
400mm long x 150mm thick max. |
Motor Speed |
1400r/min |
Cutting Accuracy |
± 0.3 mm |
Air Supply |
(Fixed Specimen) 700 kPa Min |
Dimension (mm) |
1670(L) x 920 (W) x 1230 (H) |
Packing Dimension (mm) |
1685(L) x 1070 (W) x 1435 (H) |
Approx. Weight |
350 kg |
Packing Weight |
450 kg |
Power |
Host : 380 ~ 415 V, 50/60 Hz Air Pump : 220 ~ 240 V |
