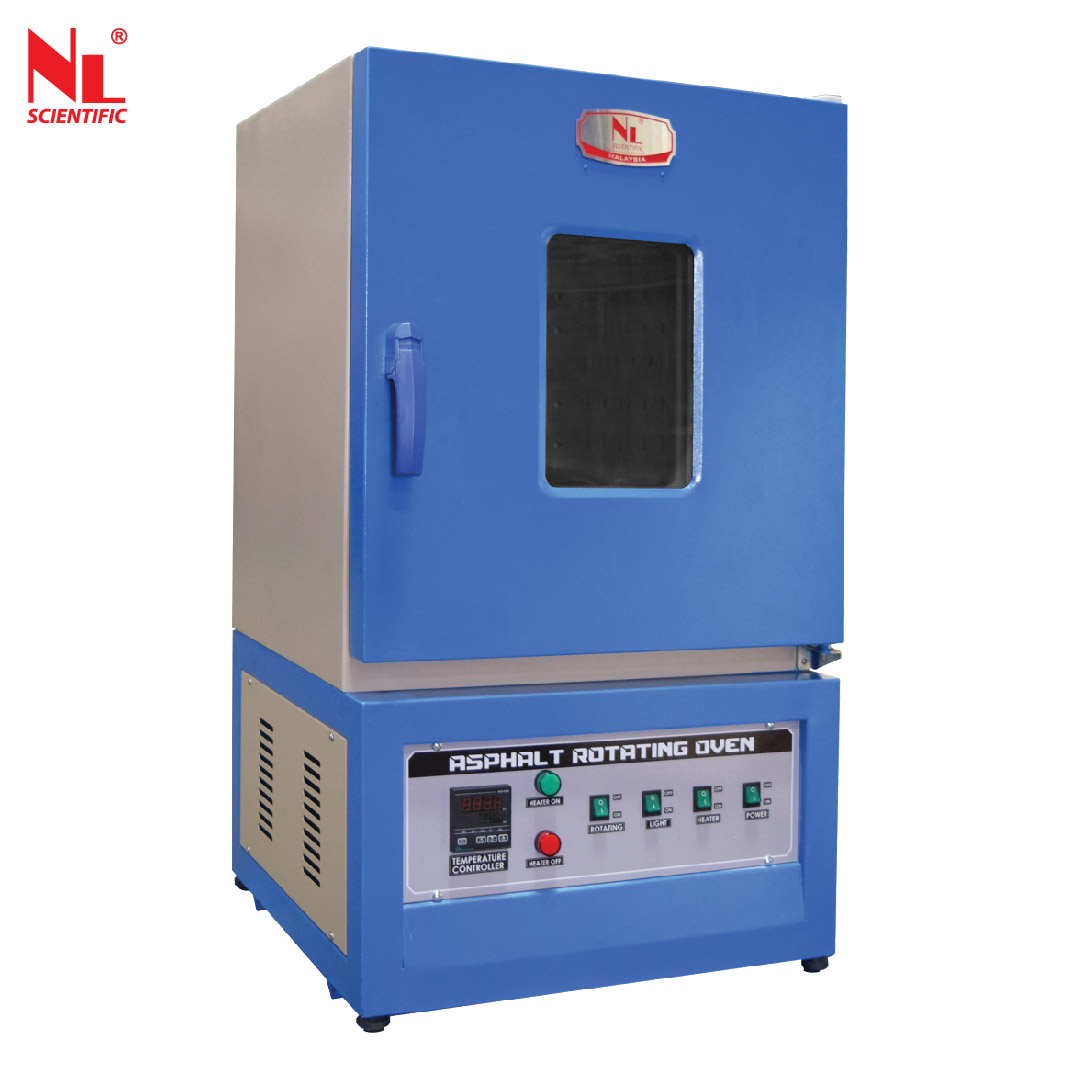

Asphalt Rotating Plate Oven
NL 2021 X / 001A


  • Description

Standard: EN 12607-2, EN 13303, ASTM D6, D1754, AASTHO T47, T179, BS 2000, UNE 7110, NF T66-011



TFOT Method

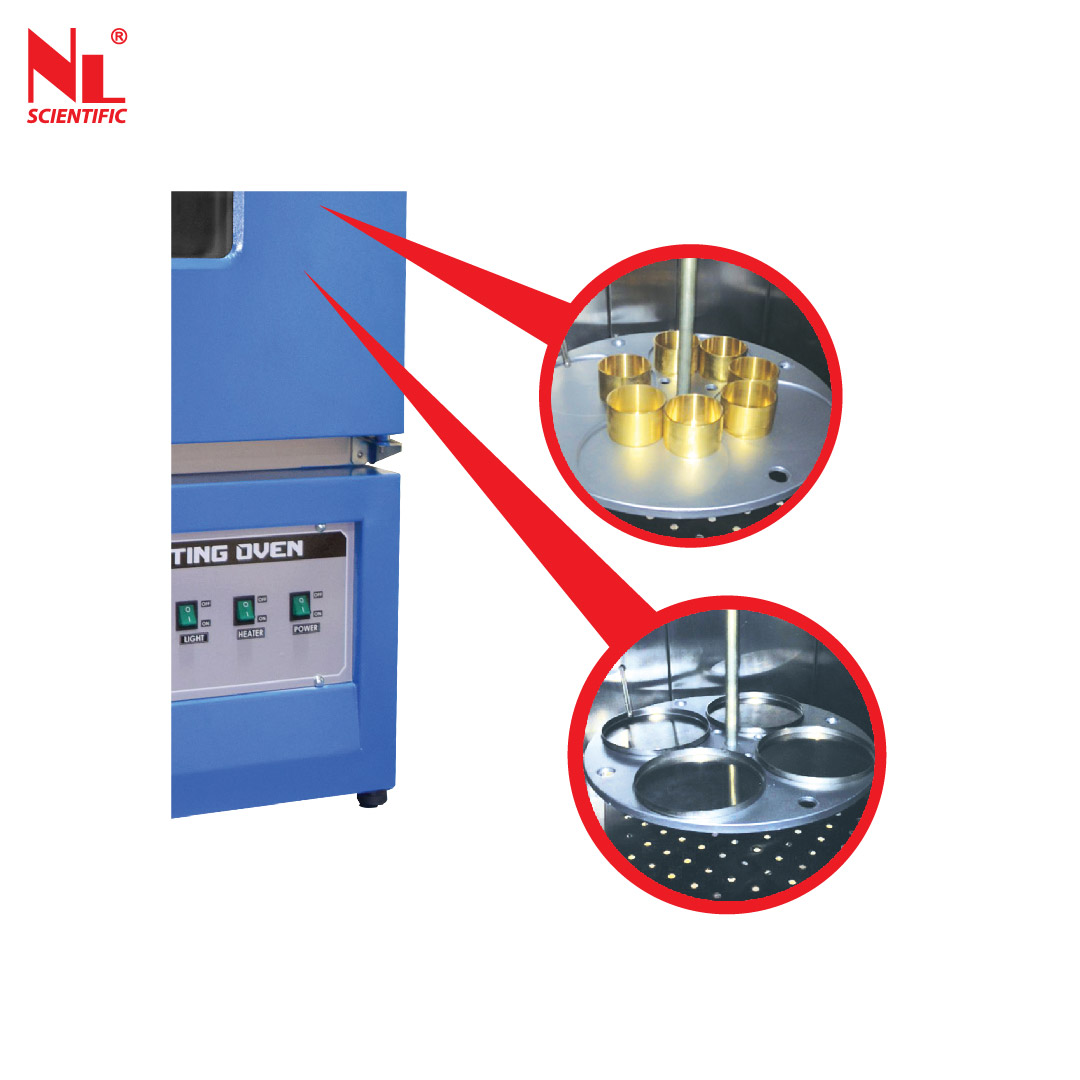

Used for determining the loss in mass of oil and bituminous and the effect of heat and air on a film of semisolid bituminous material . Internal chamber are fully stainless steel with thick isolated fibreglass. External casing coated with hard wearing paint & having glass viewing door.



Technical Specifications:

 Model Number  NL 2021 X / 001A
 Working Temperature  163°C
 Working Space  400 x 400 x 430 mm
 Plate Rotating Speed  5 - 6 r.p.m.
 Resolution  0.1°C
 Temperature Fluctuation  ±0.5°C
 Product Dimension (mm)  560 (L) x 630 (W) x 1070 (H)
 Packing Dimension (mm)  660 (L) x 745 (W) x 1190 (H)
 Approx. Product Weight  58 kg
 Approx. Packing Weight  69 kg
 Power  240 V, 1 ph, 50 / 60 Hz, 1800 W, 7.5 Amp

*1 Copy of Manual Instruction
