Standard: EN 13398, ASTM D113, AASHTO T51

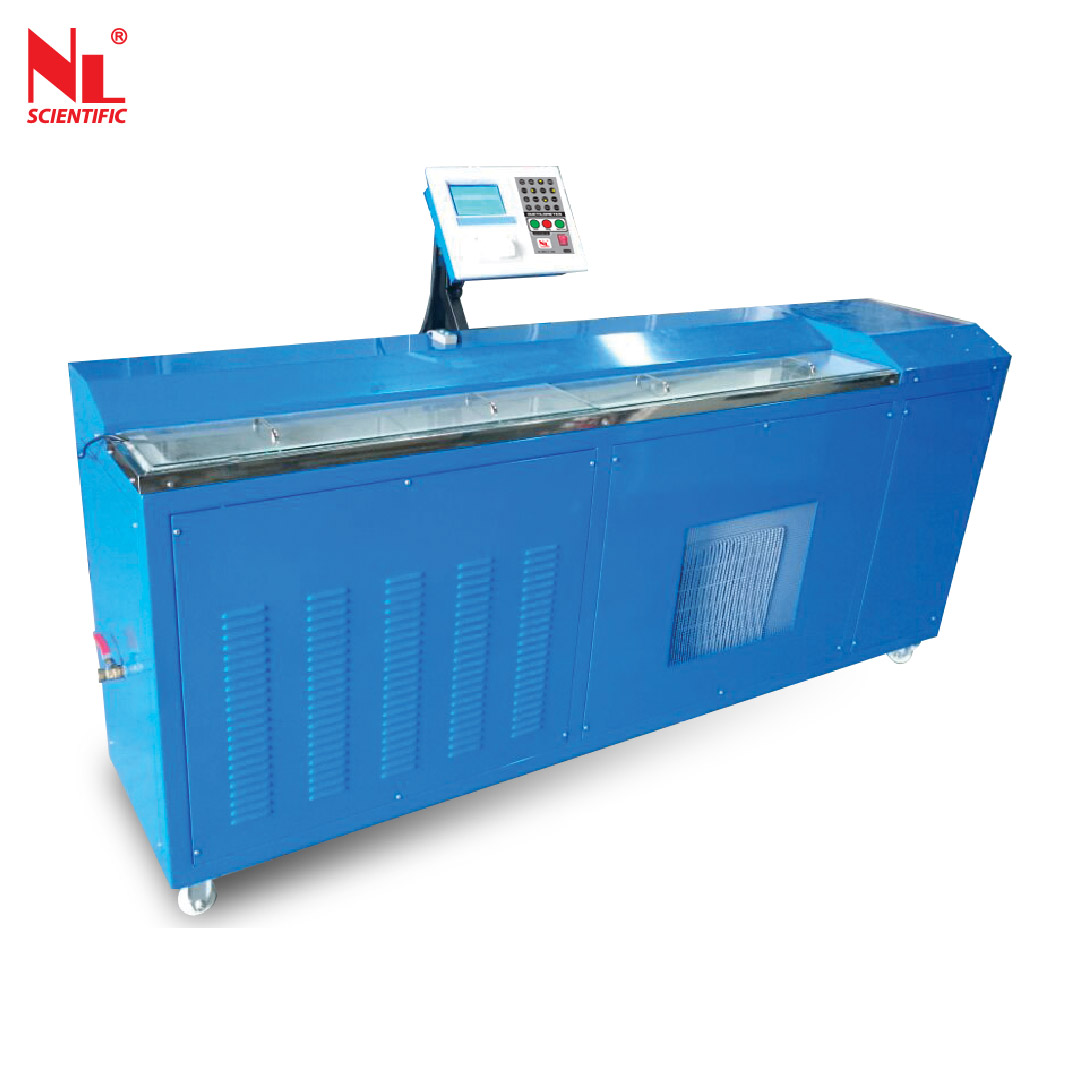

Ductility Tester

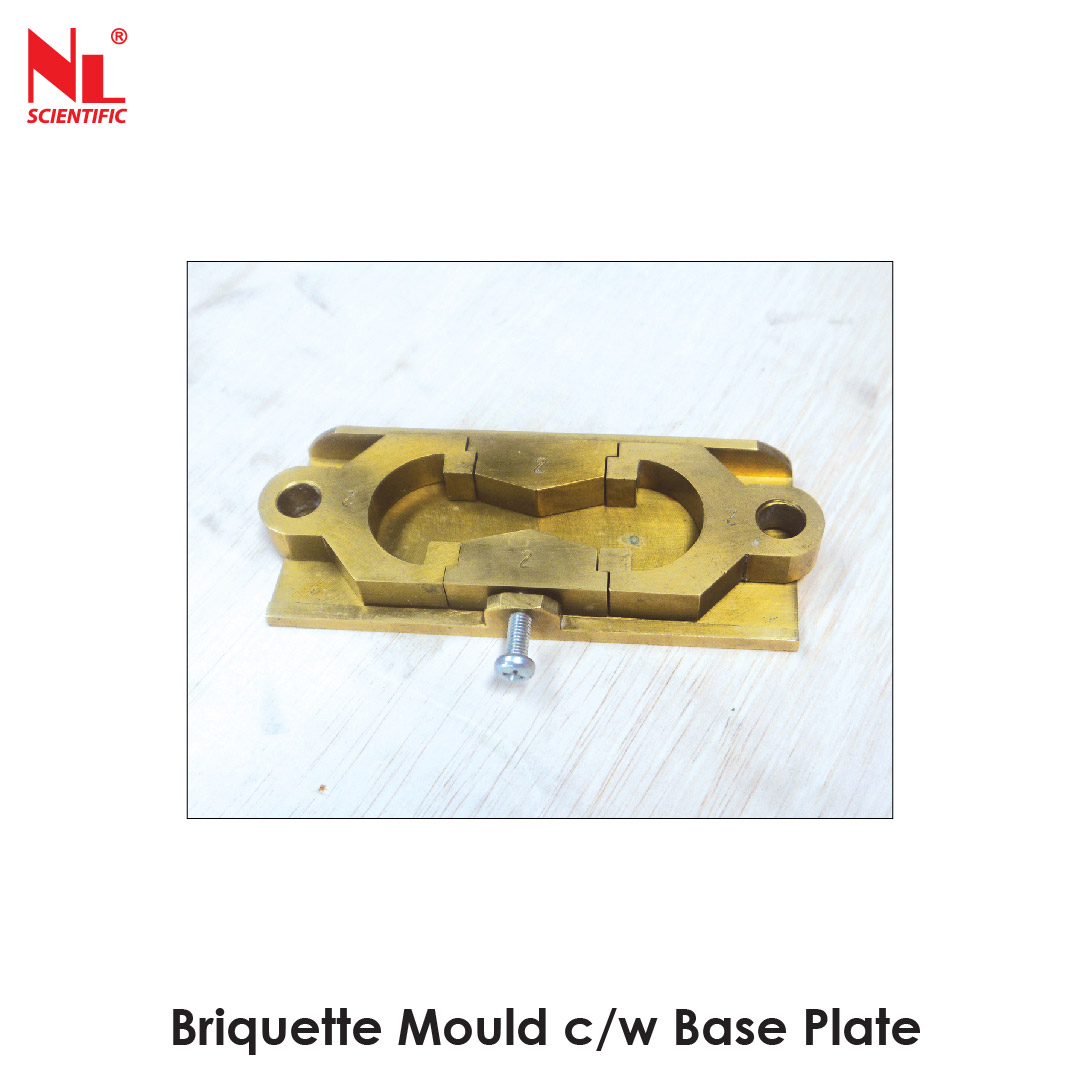

Latest upgraded product for determine the bituminous ductility. By measuring the elongation before breaking when two end of briquettes specimen are pull apart at a specified speed temperature. Single specimen with tension load result supplied WITHOUT briquettes moulds.
FEATURES:-
*2 speed setting for elongation movement
*High accuracy LED test parameter
*Using double ball screw with servo motor for uniform movement
*Save up to 10 groups test result

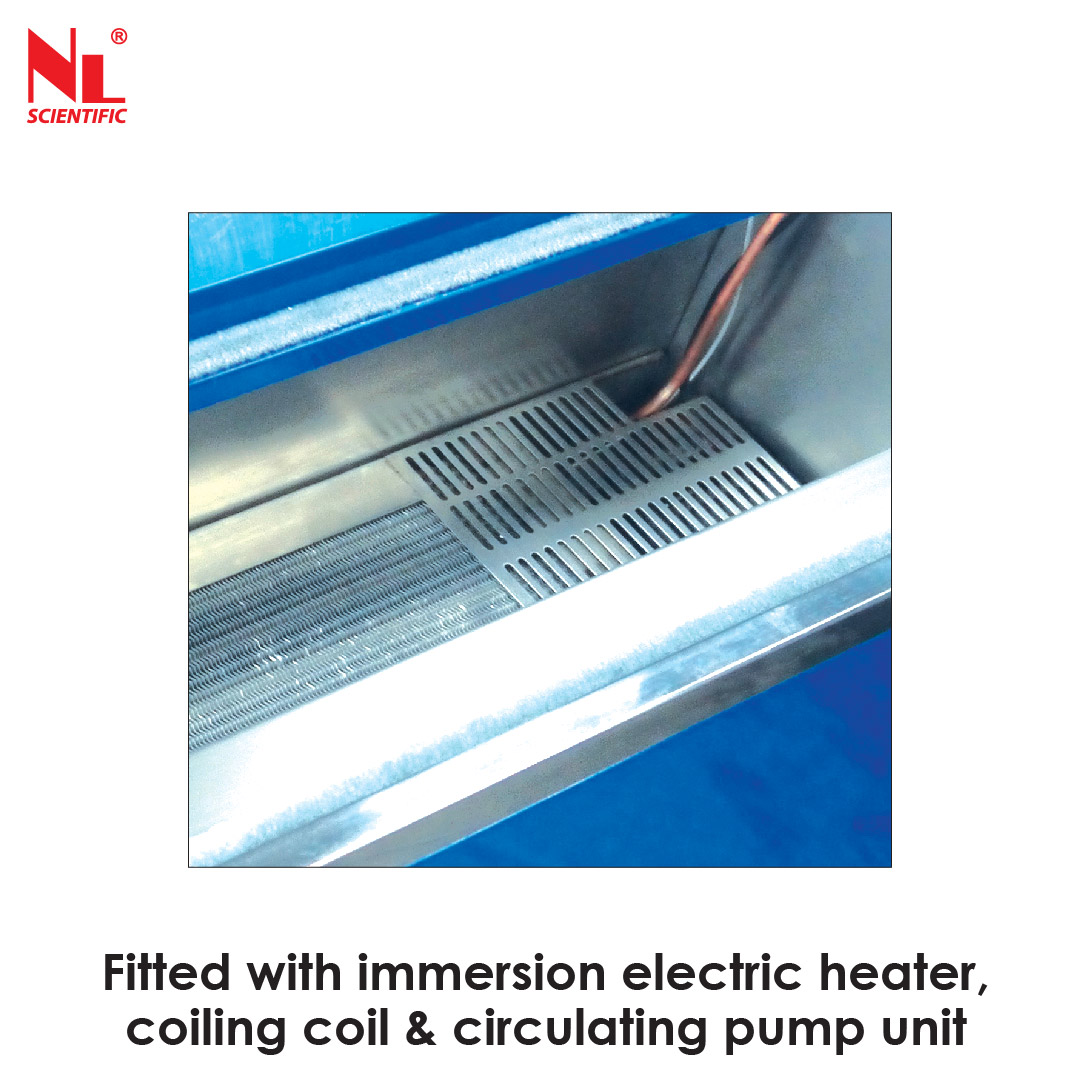

*Fitted with immersion electric heater, coiling coil & circulating pump unit
*Built in Mini printer for instant print out 3 groups average test result

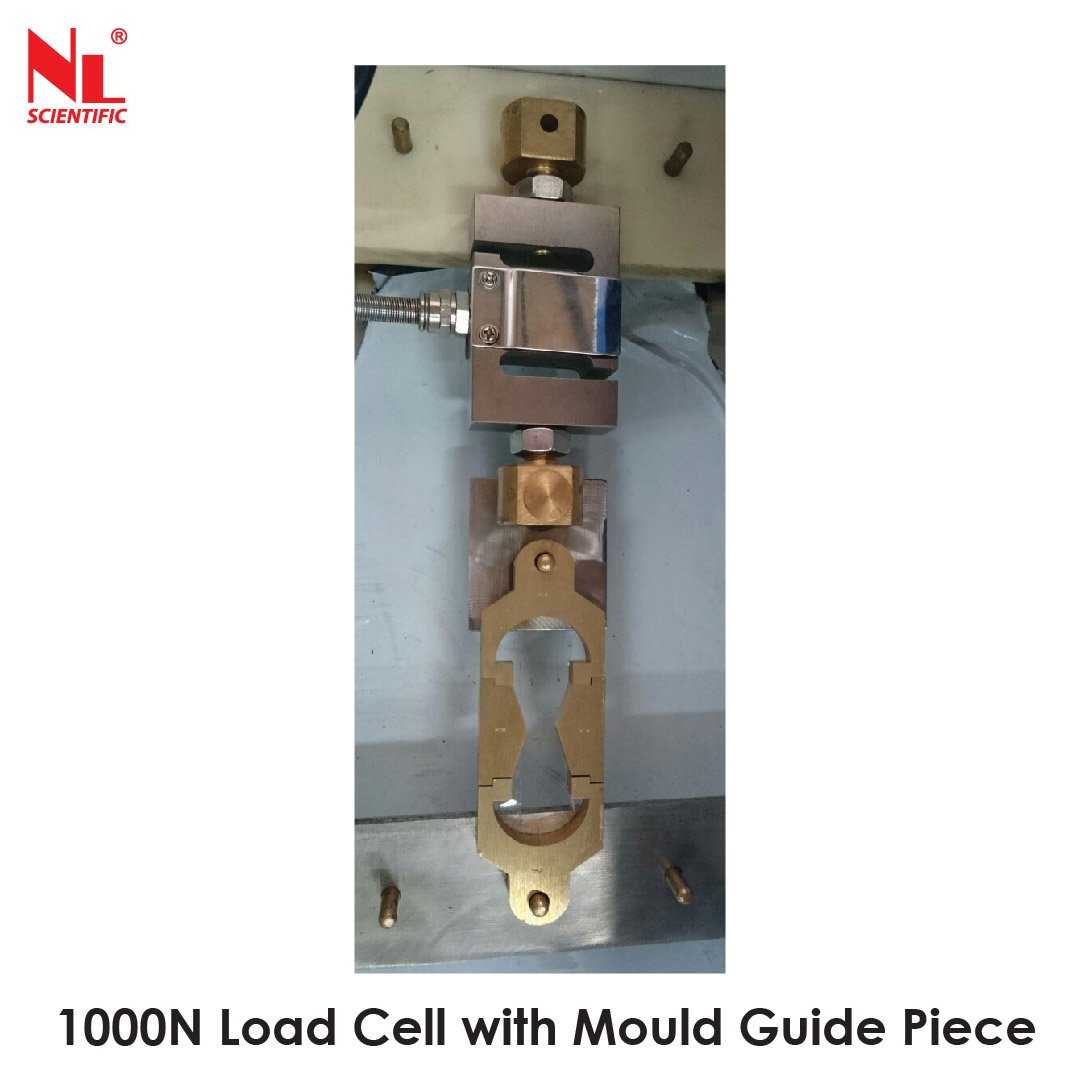

*1000N (Newton Load Cell with Mould Guide Piece)
Technical Specifications:
Model Number |
NL 2006 X / 004 |
Max. Carriage Displacement |
1500 mm |
Displacement Accuracy |
1 mm |
Temperature Range |
5 - 40°C |
Temperature Accuracy |
±0.1°C |
Test Speed |
10 x 50 mm / min |
Tension Load |
1000 N (Newton) |
Cooling Power |
1200 W |
Heating Power |
3800 W |
Nos. of Specimen Carriage |
Standard & 1 with load cell |
Product Dimension |
2120 (L) x 440 (W) x 970 (H) mm |
Packing Dimension |
2130 (L) x 5400 (W) x 1200 (H) mm |
Approx. Product Weight |
158 kg |
Approx. Packing Weight |
170 kg |
Power |
220 V, 1 ph, 50 / 60 Hz |
