Standard: ASTM C127/C136/D558/D698/D1559, EN 932-5/1097-5, BS 1377/1924 Drying Sample Digimatic Drying Oven is used to dry samples or materials to remove moisture and solvents. These ovens provide a controlled environment with precise temperature and timer for drying processes without causing dama ...Read more

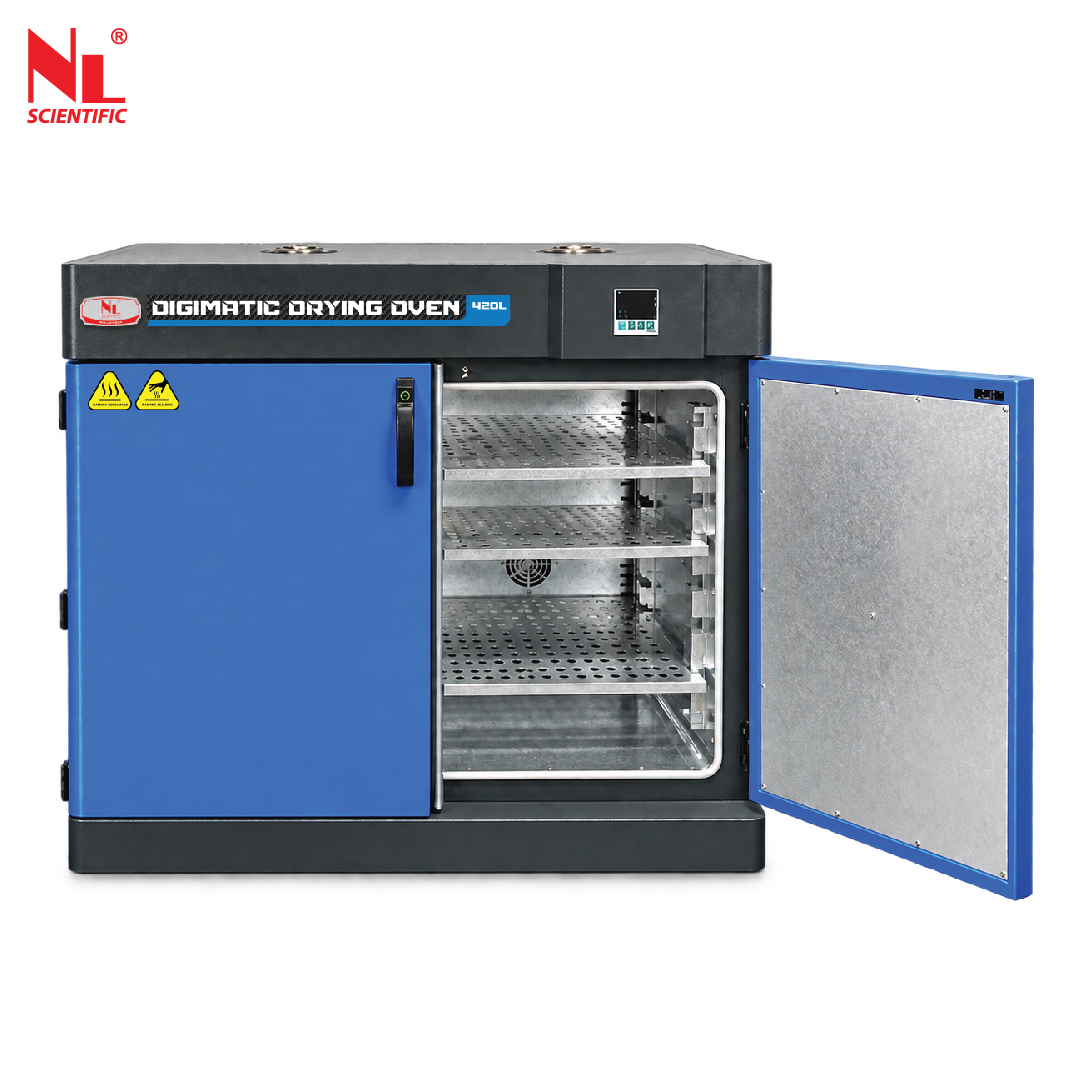

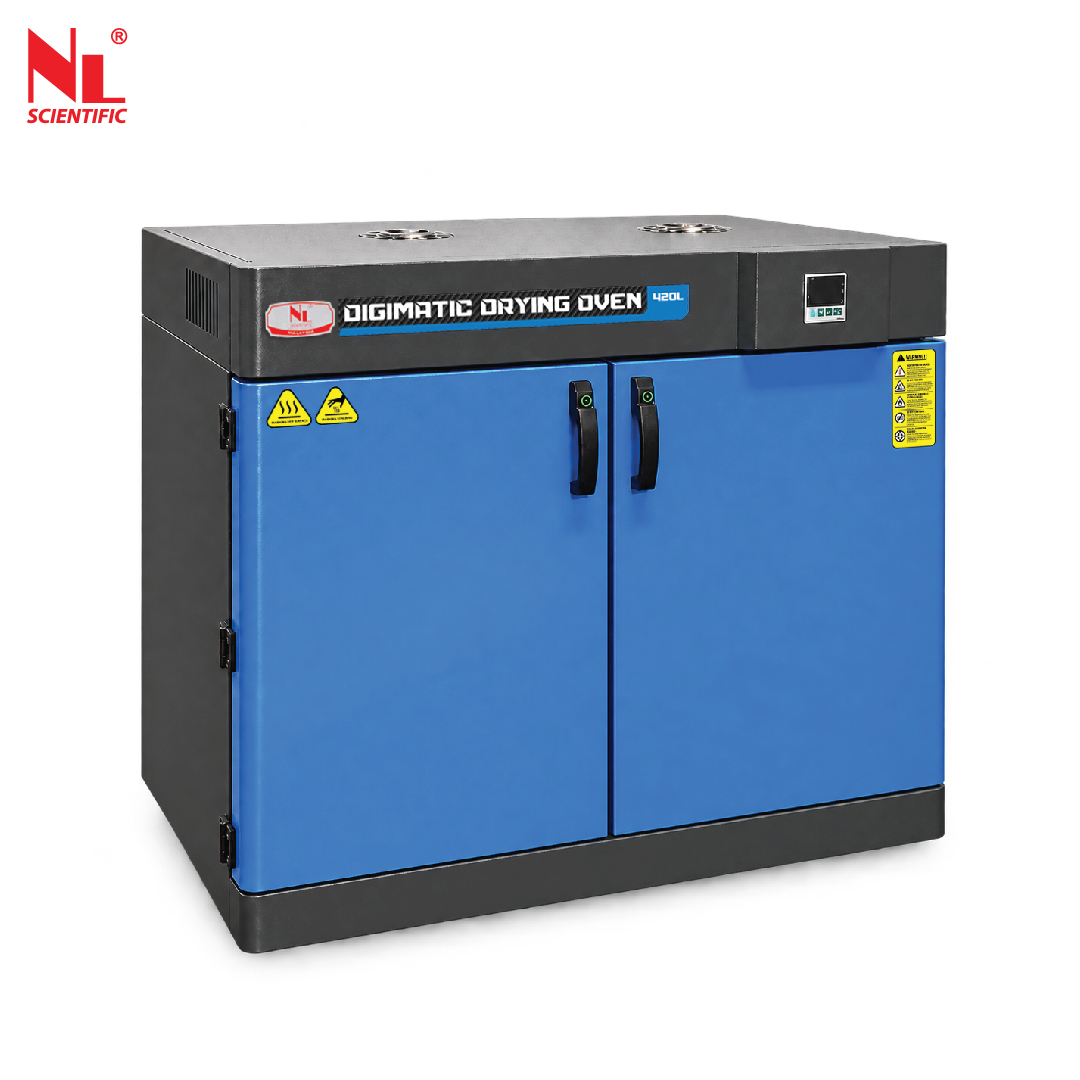

Digimatic Drying Oven (2 Doors) 240L & 420L
NL 1017 GI / 003DD & 004DD

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: ASTM C127/C136/D558/D698/D1559, EN 932-5/1097-5, BS 1377/1924

Drying Sample

Digimatic Drying Oven is used to dry samples or materials to remove moisture and solvents. These ovens provide a controlled environment with precise temperature and timer for drying processes without causing damage to the samples, generating heat, and a ventilation system to remove moisture-laden air. Heat generated by high precision digital controller & temperature range from RT + 10-250°C. Come with hidden air inlet at the bottom and adjustable air exchange port at the top.

Unique Features :
1. Circulation air flow system.
2. Built-in ventilation point.

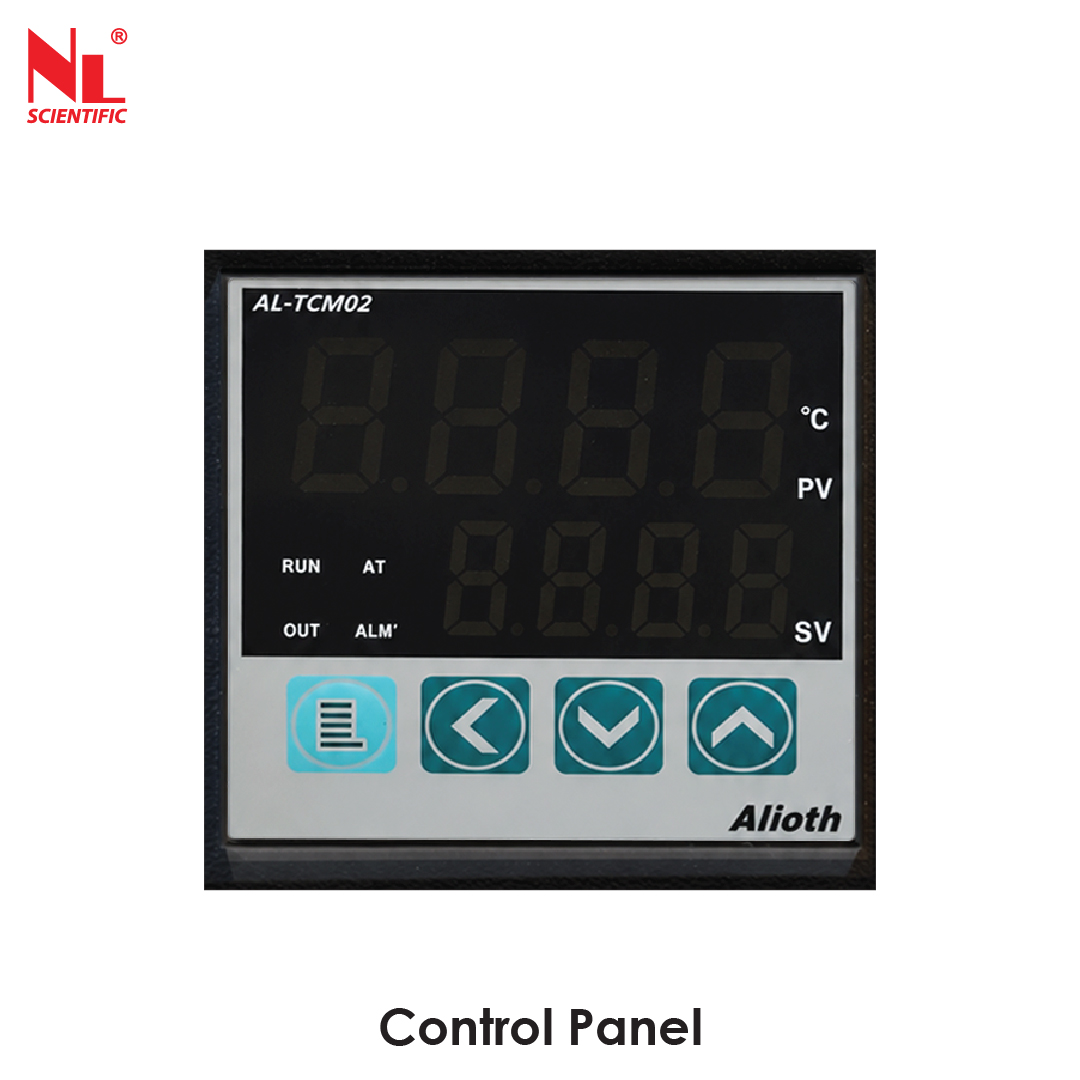

3. PID electronic control unit.

Model Number	NL 1017 GI / 003DD	NL 1017 GI / 004DD
Chamber Volume	240 Litres	420 Litres
Temp. Fluctuation	+-1.0°C
Temp. Range	Ambient temperature +10°C to 250°c
Number of Heaters	2 kW x 2 nos.

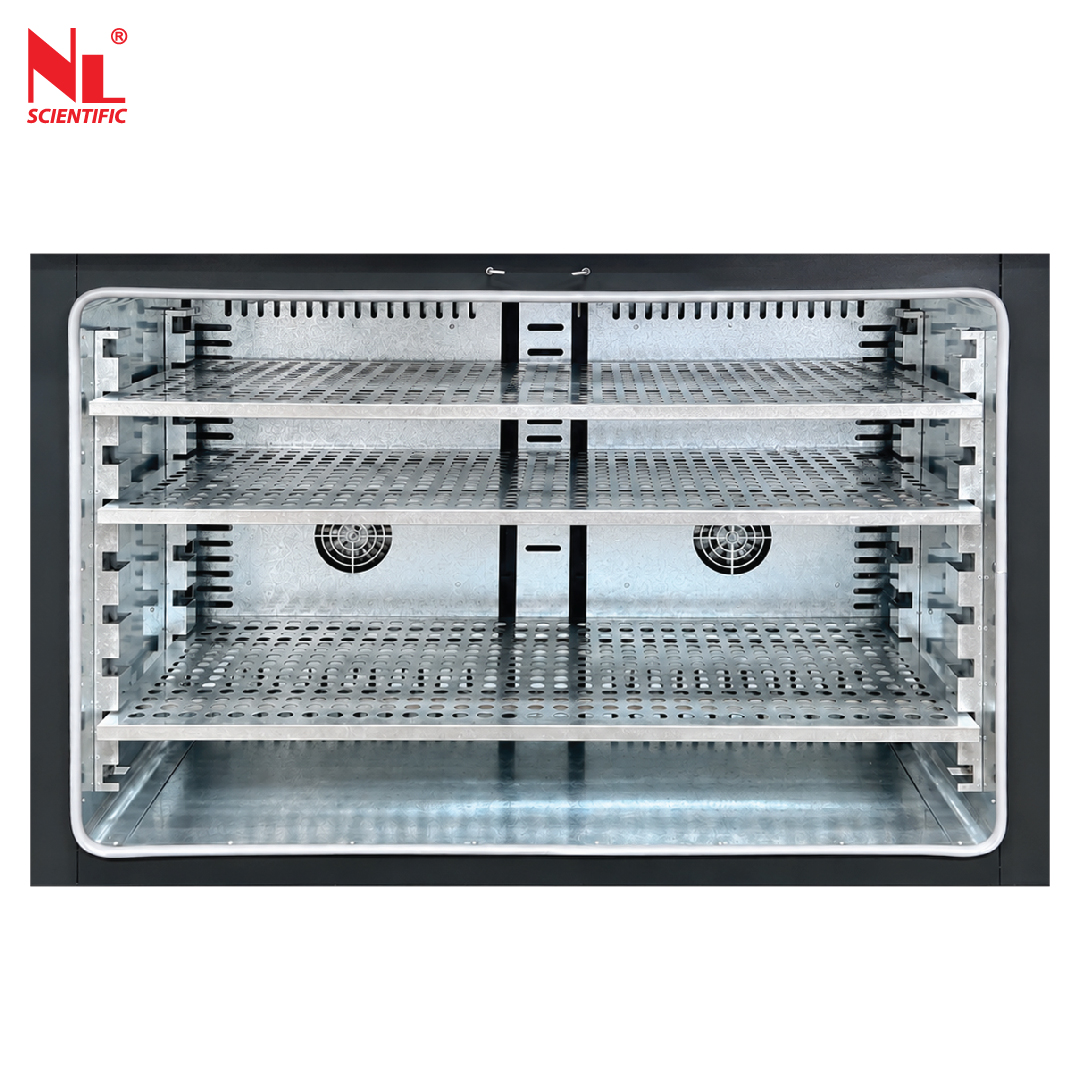

Number of Shelves	3 Shelves
Load Per Shelve	30kg Standard Configuration
Internal Chamber Material	Galvanized Iron
External Casing	Cool Roll Plate with Powder Coating
Ventilation Fan	2 Nos.
Timer Function	Not Available
Interior Dimension (mm)	800(W) × 500(D) × 600(H)	1100 (L) x 545 (W) x 700 (H) mm
Exterior Dimension (mm)	950(W) × 800(D) × 1000(H)	1270 (L) x 840 (W) x 1100 (H) mm
Packing Dimension (mm)	1160(W) x 900(D) x 1200(H)	1370 (L) x 1120 (W) x 1310 (H) mm
Approx. Weight / Packing Weight	115 kg / 140 kg	156 kg / 220 kg
Power	220~240 V, 4800 W, 1 Ph, 50/60 Hz, 20 A	220~240 V, 3600 W, 1 Ph, 50/60 Hz, 15 A

*1 Copy of Manual Instructions

Model Number	Parts Description

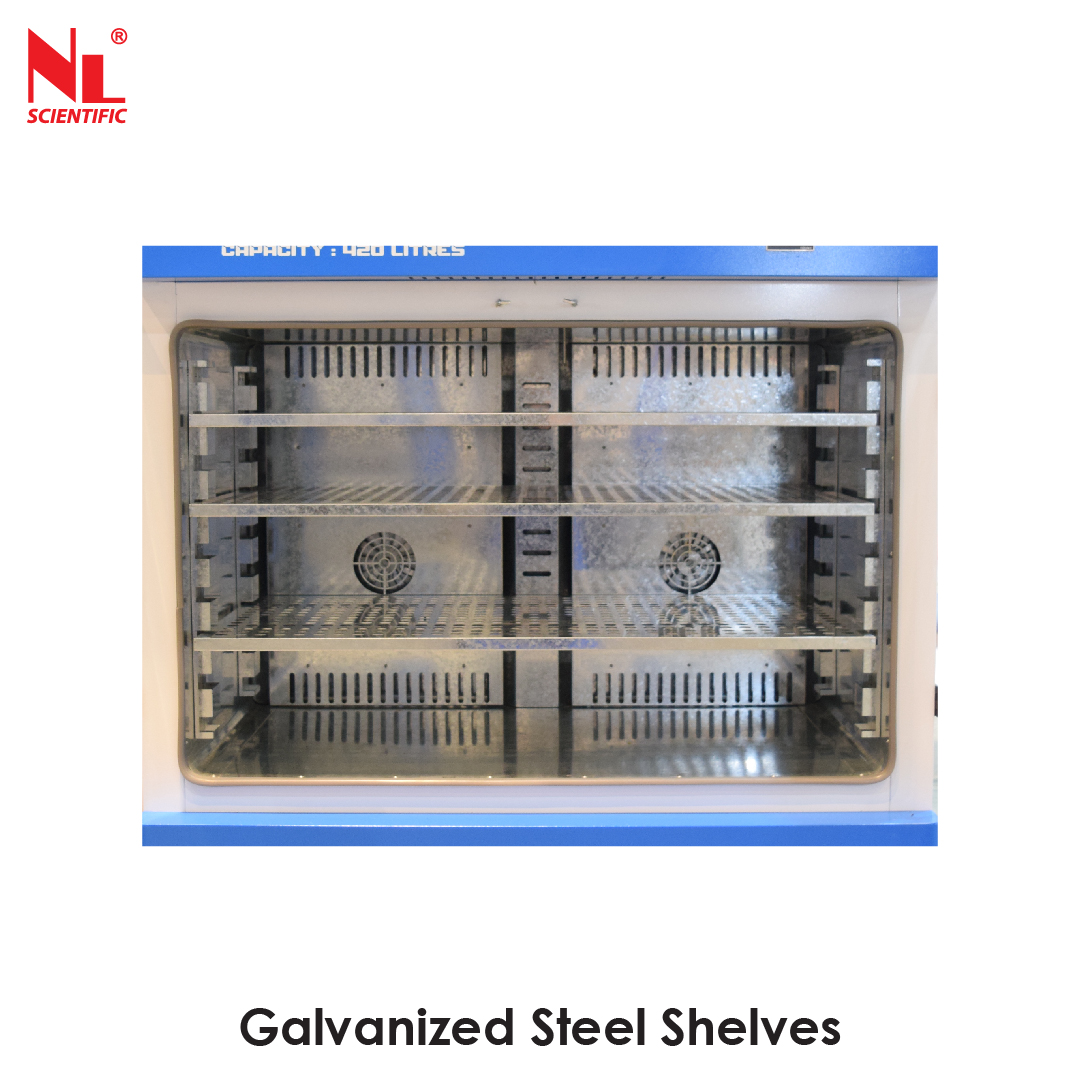

NL 1017 GI / 3DD – P001	240 Litres Shelves (Galvanized Steel)
NL 1017 GI / 4DD – P001	420 Litres Shelves (Galvanized Steel)
