PRODUCT DETAIL

Description

Standard: ASTM C127/C136/D558/D698/D1559, EN 932-5/1097-5, BS 1377/1924

Drying Sample

Digimatic Drying Oven is used to dry samples or materials to remove moisture and solvents. These ovens provide a controlled environment with precise temperature and timer for drying processes without causing damage to the samples, generating heat, and a ventilation system to remove moisture-laden air. Heat generated by high precision digital controller & temperature range from RT + 10-250°C. Come with hidden air inlet at the bottom and adjustable air exchange port at the top.

Unique Features :
1. Circulation air flow system.
2. Built-in ventilation point.

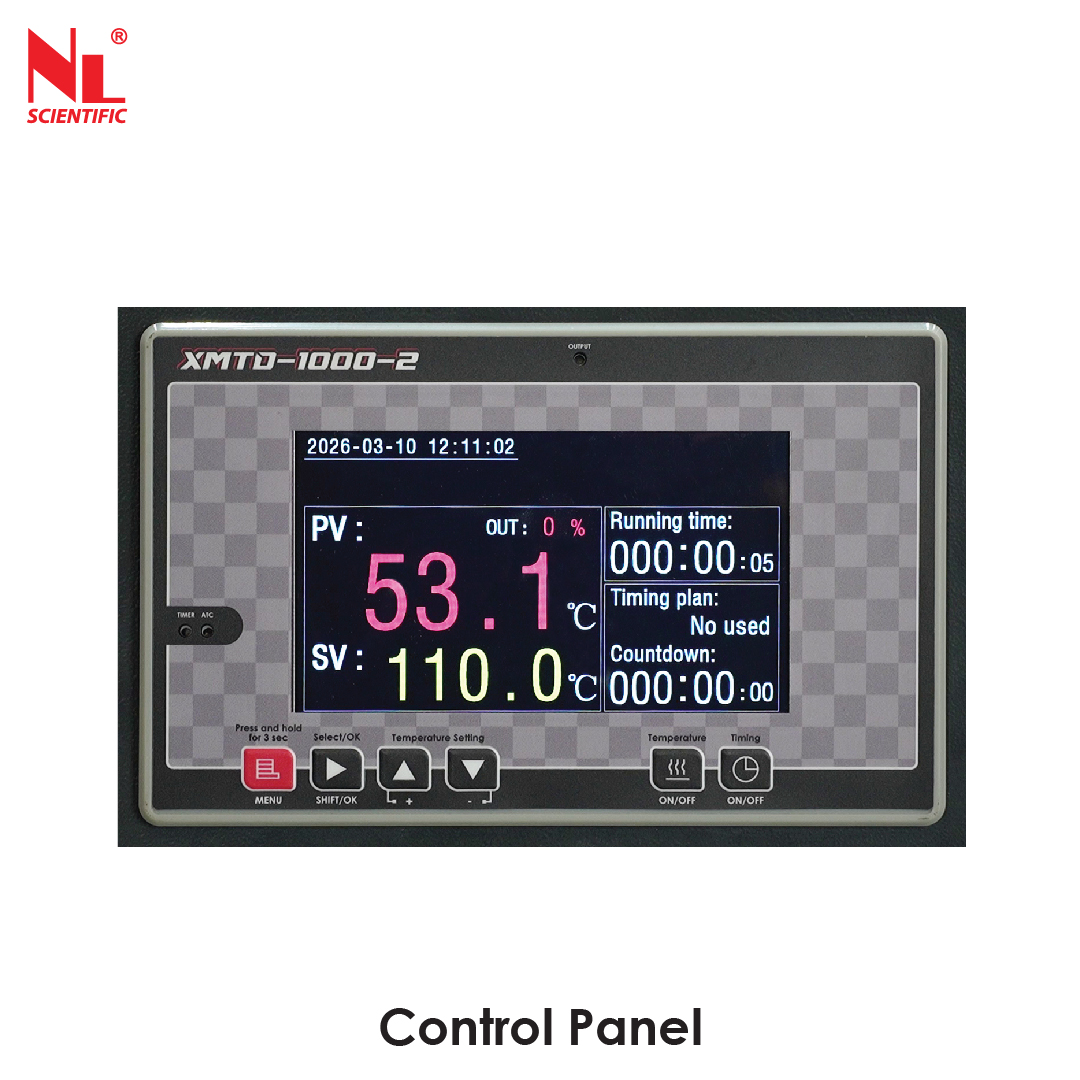

3. 5 inch LCD Screen features;-
-Real-time clock display
-Scheduled start and temperature control
-Scheduled start and stop
-Scheduled alarm
-Fault prompt alarm

Technical Specifications

Model Number	NL 1017 SS / 003DD	NL 1017 SS / 004DD
Chamber Volume	240 Litres	420 Litres
Temp. Fluctuation	+-1.0°C
Temp. Range	Ambient temperature +10°C to 250°c
Number of Heaters	2 kW x 2 nos.
Number of Shelves	3 Shelves
Load Per Shelve	30kg Standard Configuration

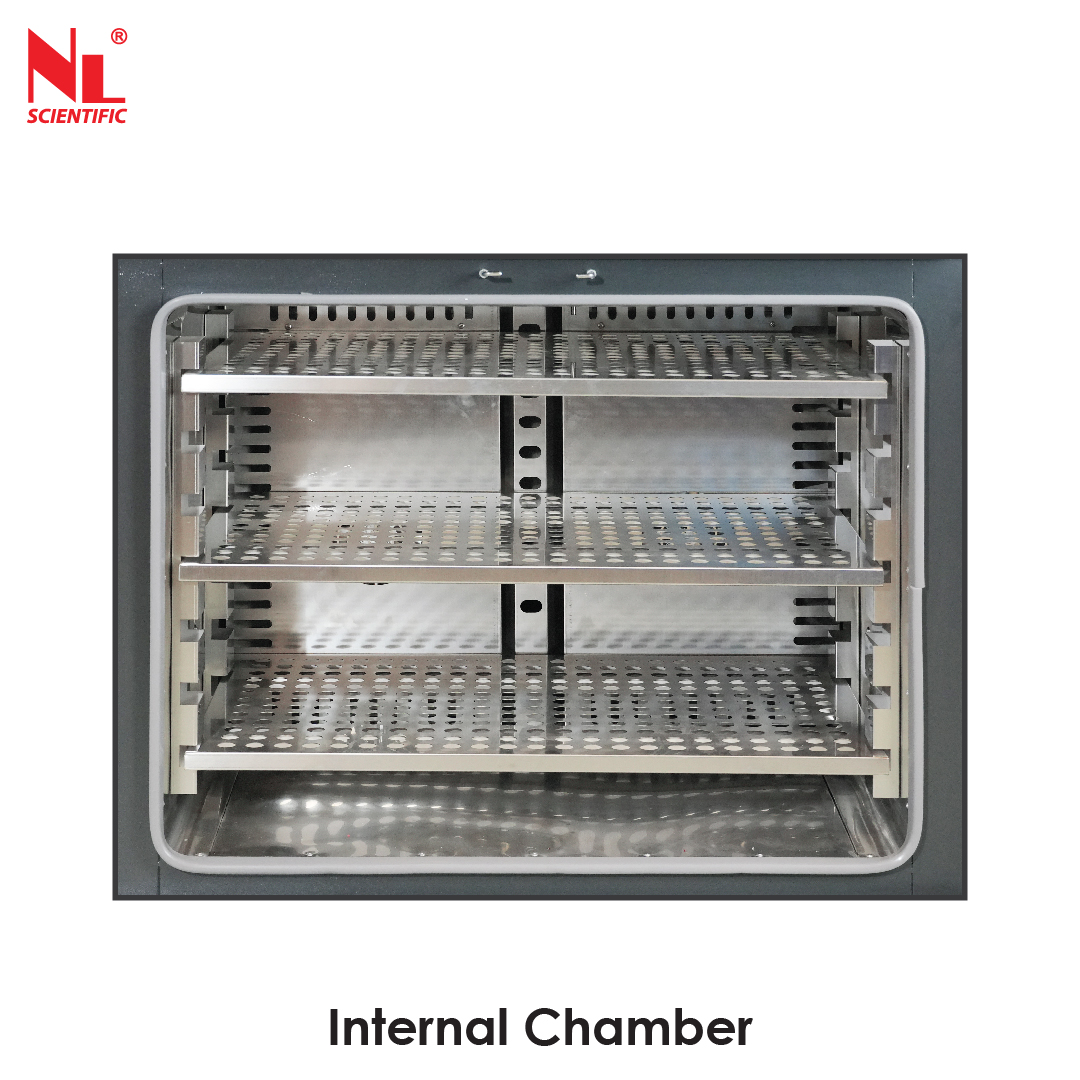

Internal Chamber Material	304 Stainless Steel
External Casing	Cool Roll Plate with Powder Coating
Ventilation Fan	2 Nos.
Interior Dimension (mm)	800(W) × 500(D) × 600(H)	1100(W) × 550(D) × 700(H)
Exterior Dimension (mm)	950(W) × 800(D) × 1000(H)	1280(W) × 960(D) × 1150(H)
Packing Dimension (mm)	1160(W) x 900(D) x 1200(H)	1480(W) x 1160(D) x 1500(H)
Weight	115 kg	154 kg
Power	220~240 V, 1 Ph, 50/60 Hz, 15 A, 4 kW	220~240 V, 1 Ph, 50/60 Hz, 15 A, 4.8 kW

*1 Copy of Manual Instructions for each model
