Standard: EN 933-8, ASTM D2419, AASHTO T176, NF XP18-598, UNE 83131, UNI 8520-15, CNR N.27 Assessment of Fine The digimatic sand equivalent shaker features consist of digimatic timer (can be set at required time) to increase accuracy and ease of operation compared to a spring-type timer. The unit ...Read more

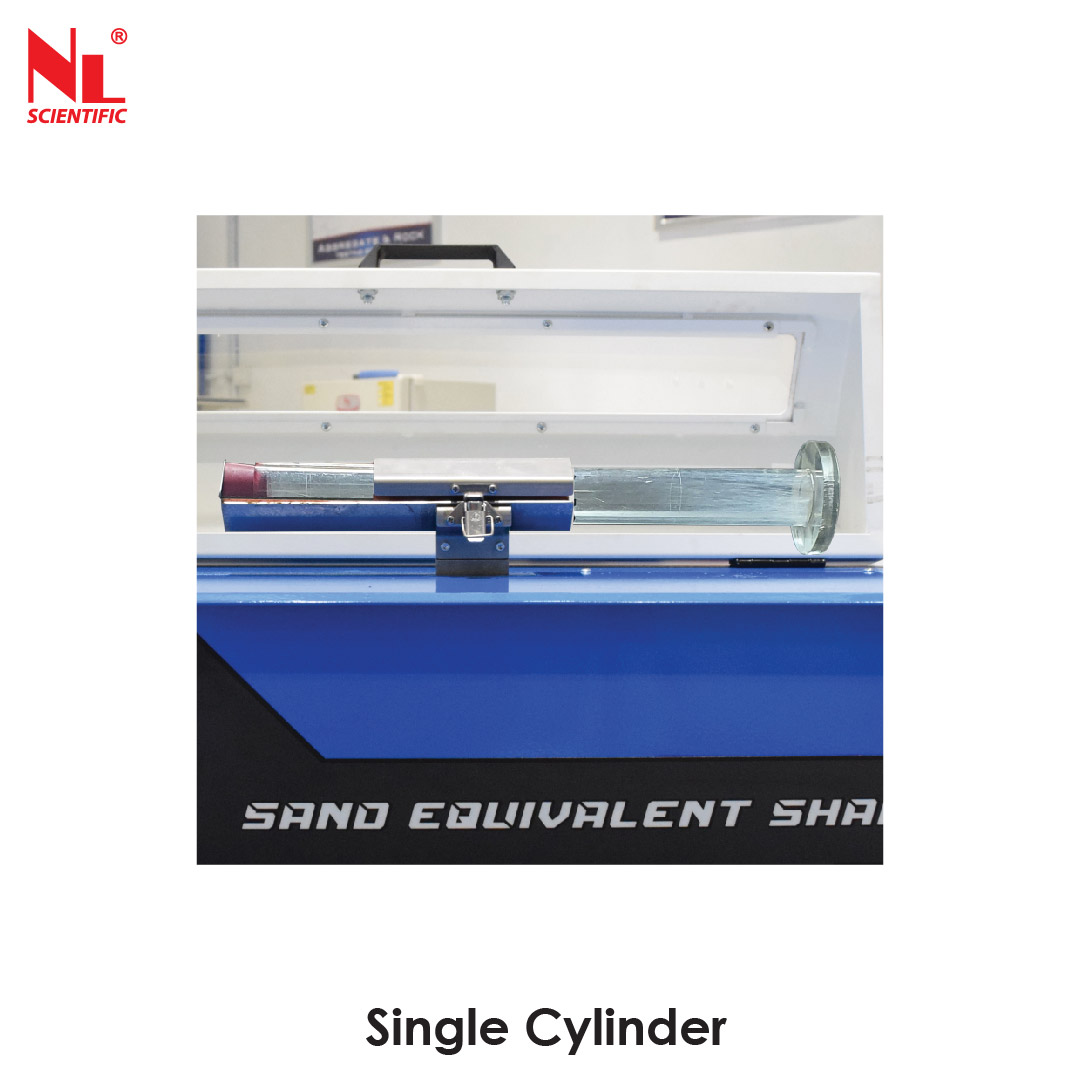

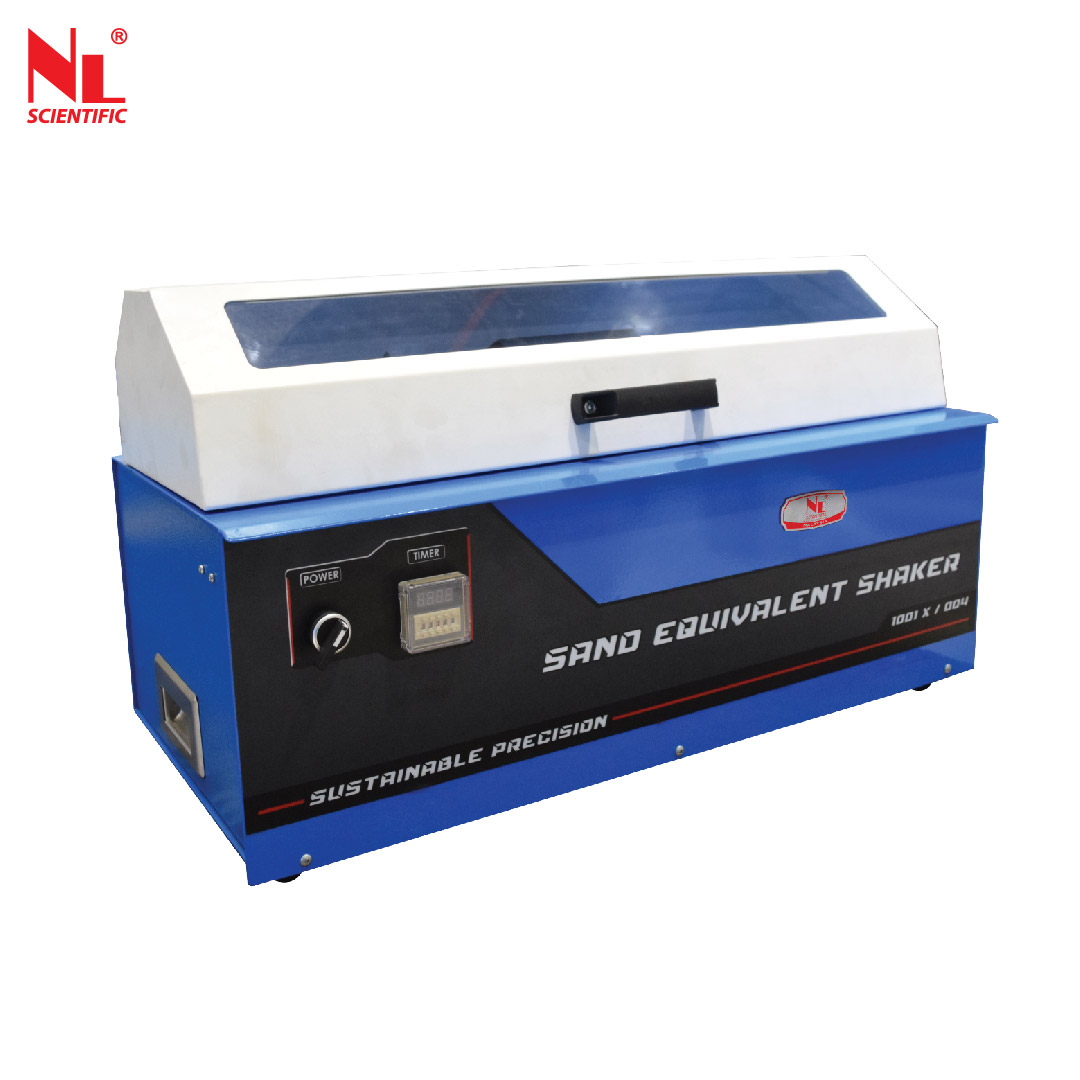

Sand Equivalent Shaker
NL 1001 X / 004


  • Description

Standard: EN 933-8, ASTM D2419, AASHTO T176, NF XP18-598, UNE 83131, UNI 8520-15, CNR N.27

Assessment of Fine

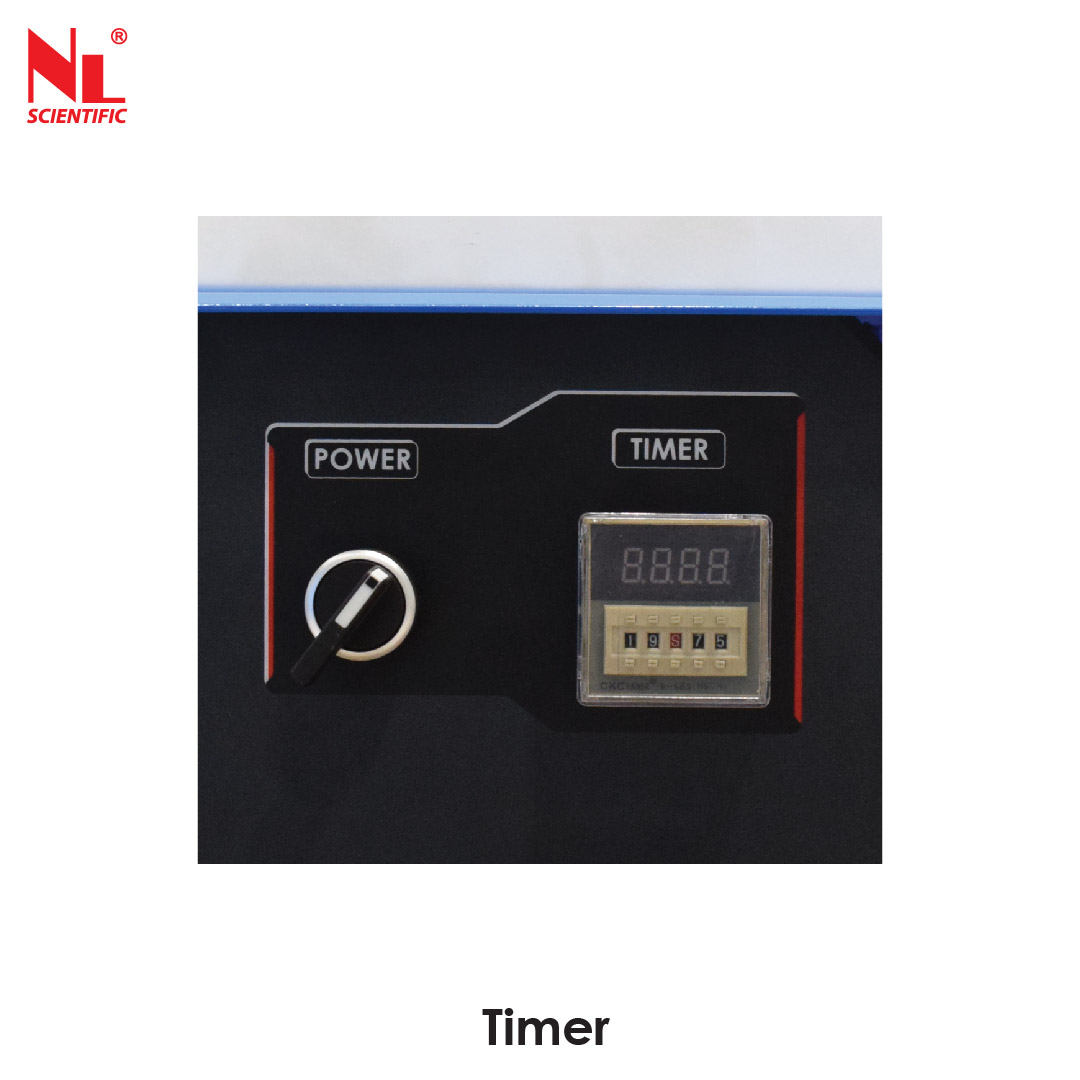

The digimatic sand equivalent shaker features consist of digimatic timer (can be set at required time) to increase accuracy and ease of operation compared to a spring-type timer. The unit provides adjustable oscillation speed to confirm with both ASTM & EN test procedure,also eliminating variations from on operator to the next. The unit provides a consistent and repeatable oscillation, eliminating variations from one operator to the next.

Technical Specifications:

 Model Number  NL 1001 X / 004
 Speed Of Strokes  175 - 180 strokes / min
 Dimension  770 (L) x 350 (W) x 435 (H) mm
 Packing Dimension  830 (L) x 490 (W) x 480 (H) mm
 Approx. Weight  44 kg
 Packing Weight  55 kg
 Power  220 VAC, 50 / 60 Hz, 0.8 A, 1 pH,128 W
