Digimatic Point Load Tester 50kN (Australia STD)
NL 1012 X / 009

  • Description

Product Description

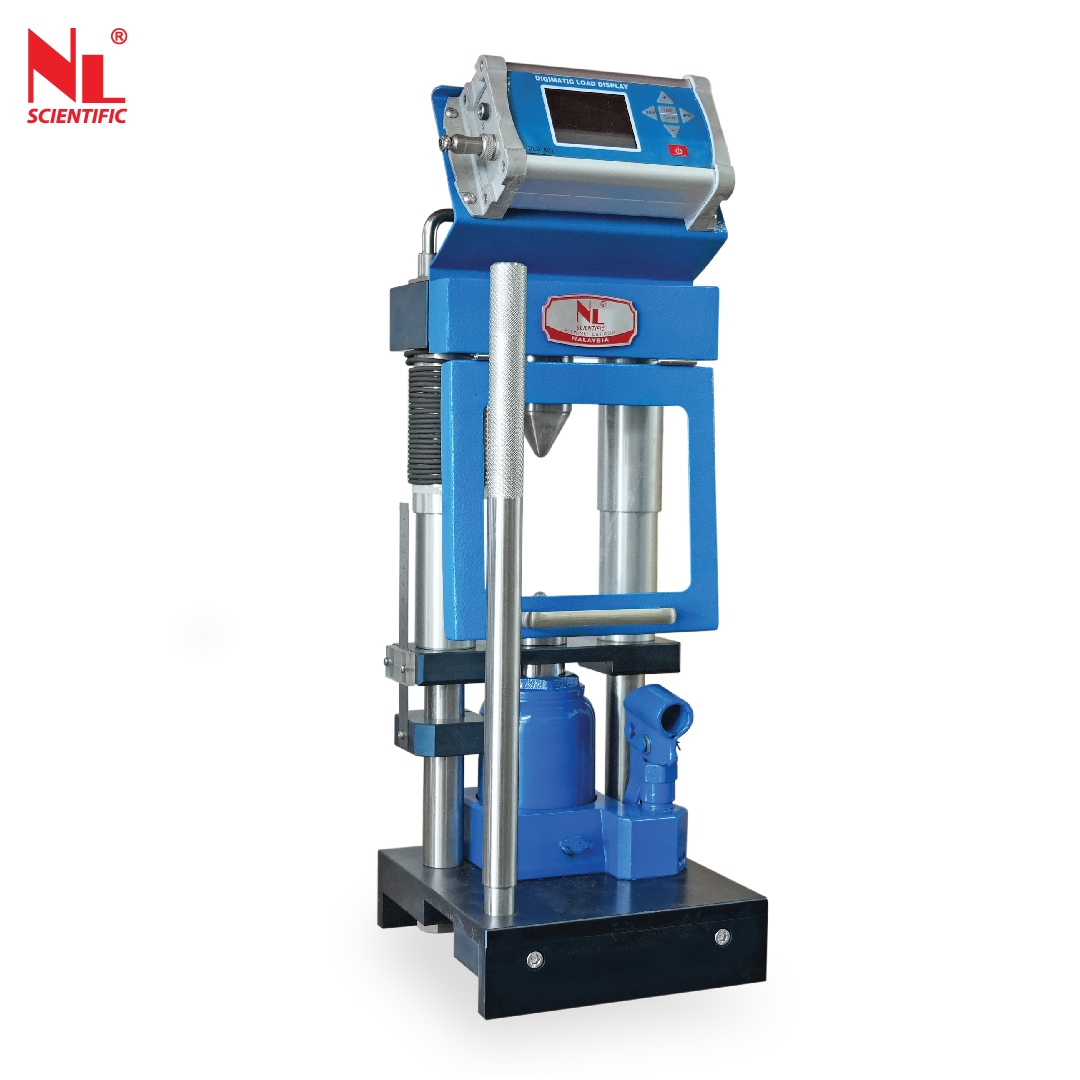

A Digimatic Point Load Tester (PLT) is a reliable testing apparatus designed to determine the strength values of rock specimens in both laboratory and field-testing applications. The unit consists of a rigid load frame equipped with manually operated hydraulic jack for controlled load application. The apparatus incorporates a high accuracy load cell and a fine resolution reading control unit to ensure precise measurement results. This tester is widely used in mining operations, geotechnical engineering, research, and education.

Applications and Features

Introducing our digimatic Point Load Tester:

  • Equipped with safety cover for protection.

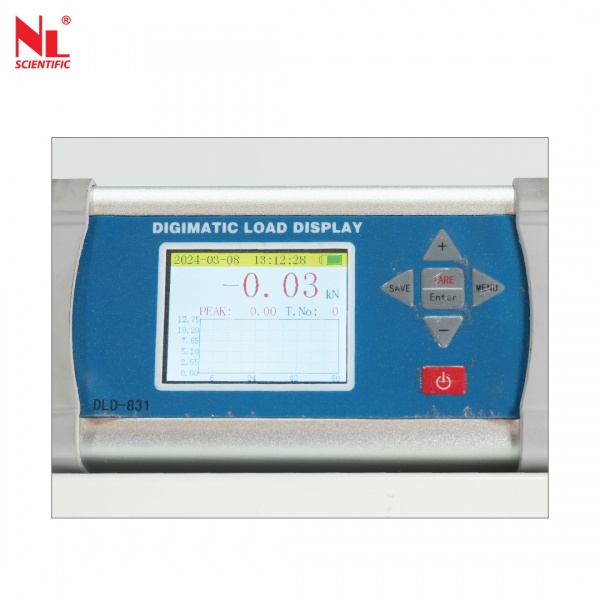

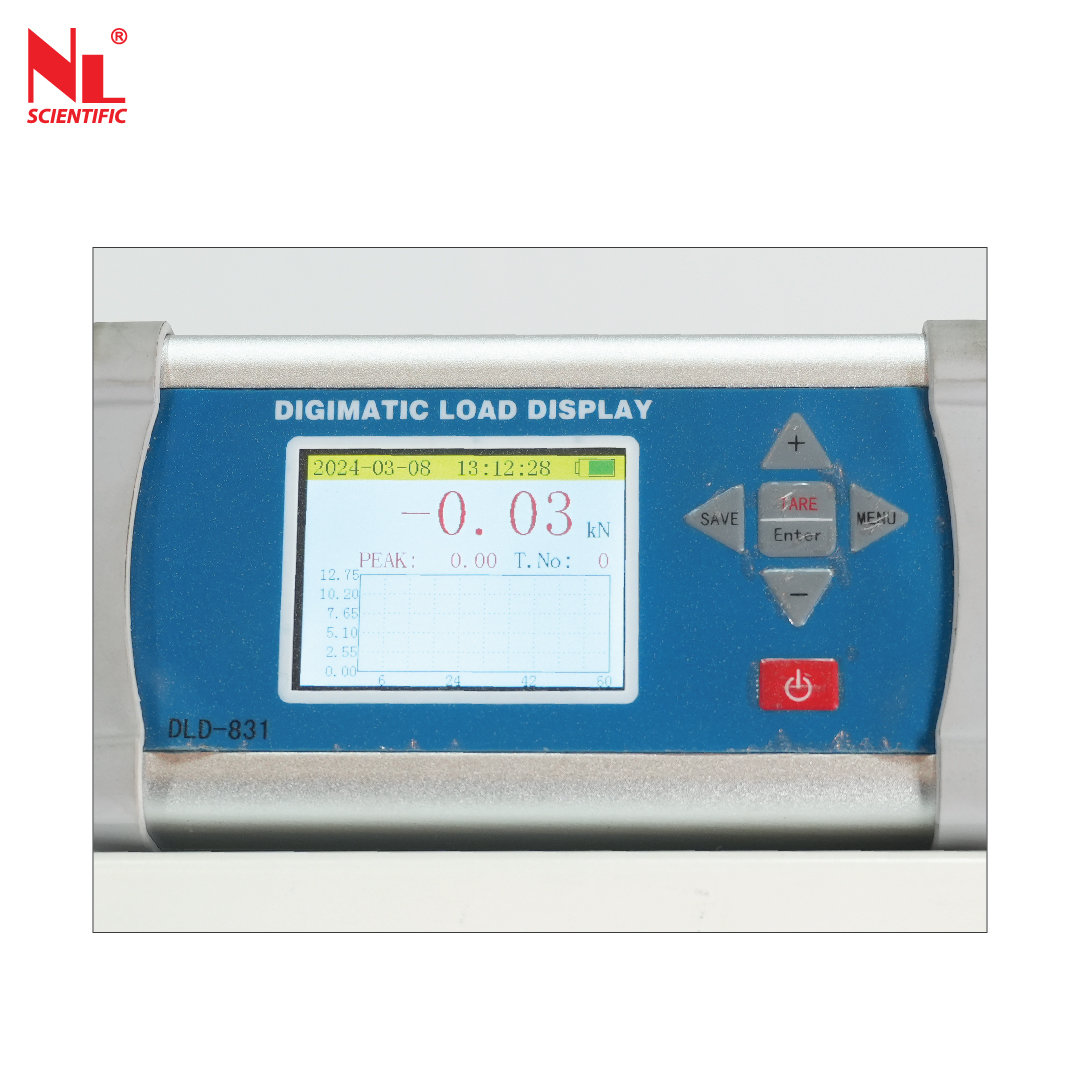

  • Digital display for real-time load monitoring.
  • Equipped with a rubber grip lifting handle.

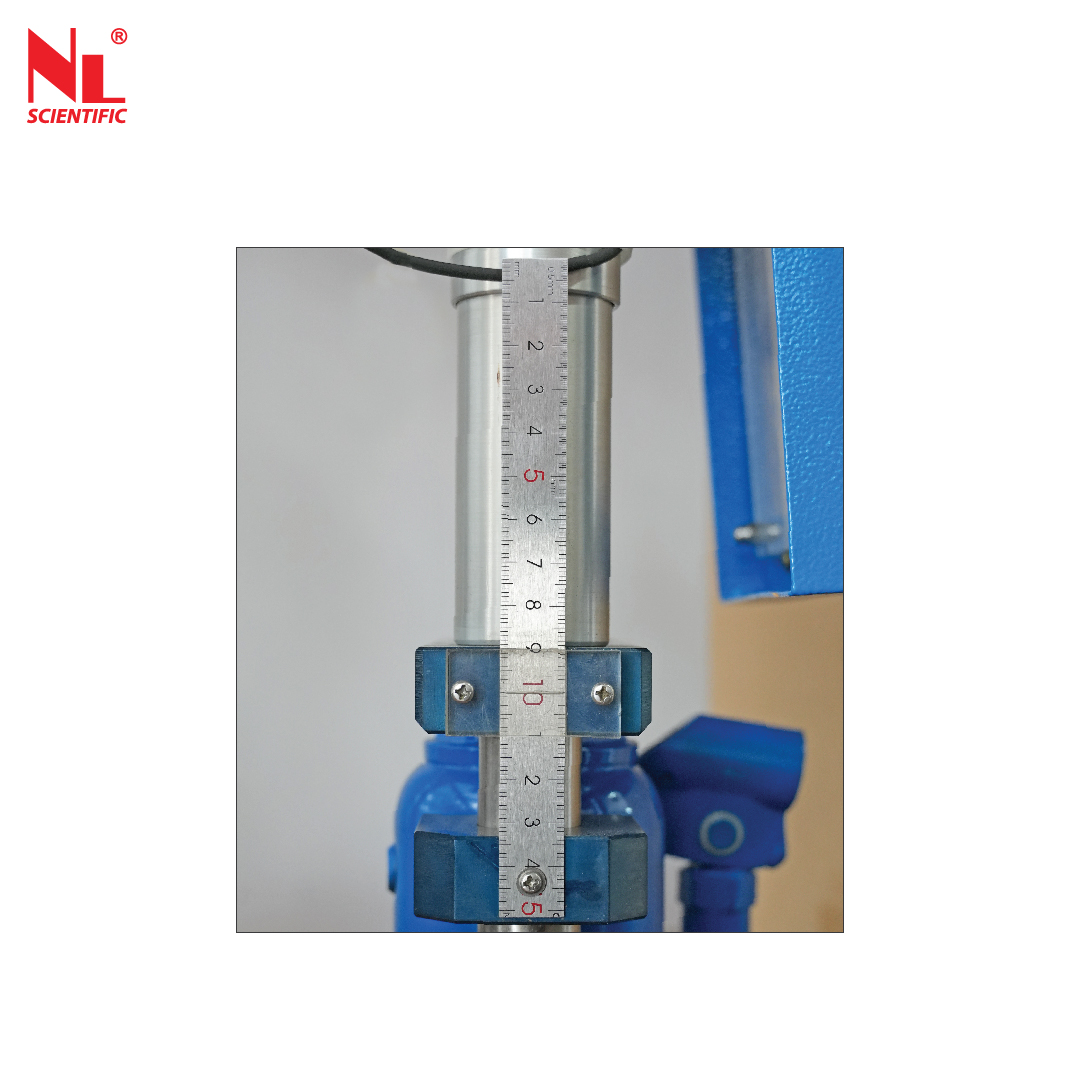

  • A ruler attached on the frame allows for direct measuring specimen diameter.

Technical Specifications:

 Model Number  NL 1012 X / 009
 Max. Capacity  50 kN x 0.001 kN Sensitivity
 Max. Specimen Test  90 mm Dia.
 Platen Tip Radius (Top & Bottom)
  5 mm Spherical Tip Radius
 Loading Conical Platen (Top & Bottom)  60° Cone
 Battery  3000 mAh, rechargeable
 Result Storage  50 Test Results
 Accuracy & Repeatability  ≤1.0 % F.S
 Length/Material of Jack Handle
  390 mm / Stainless Steel
 Product Dimension  180 (L) x 190 (W) x 550 (H) mm
 Packing Dimension  300 (L) x 300 (W) x 700 (H) mm
 Product Weight  14 kg
 Packing Weight  25 kg

Unit Consists Of:

 Model Number  Parts Description Qty
 NL 1012 X / 006 – P 001  50 kN S Type Load Cell c/w Cable 1no.
 NL DLD – 200  Digital Load Display 1unit
 NL 1012 X / 006 – P 003
  Measuring Guide Plate 1no.
 NL 1012 X / 006 – P 006
  Conical Cone Set (Upper & Lower) 1set
 NL 1012 X / 009 – P 008
  Safety Cover 1pc.
 NL 1012 X / 006 – P 008  Power Charger 1no.
 NL 1012 X / 009 – P 013  Lifting Handle 1no.

*1 Copy of Manual Instruction
