Standard: BS 812, ASTM D4944, AASHTO T217
Rapid Moisture Tester
Rapid Moisture Tester is a device used to quickly determine the moisture content of a substance, including sand, soil, fine aggregate, or other construction materials. This device utilizes the rapid drying method, allowing for on-the-spot measurements of moisture levels. The device typically works by heating a sample of the material to evaporate the moisture content and then measuring the weight loss to calculate the moisture content percentage.
The procedure involves the reaction between water and calcium carbide when mixed, a gas is produced. The gas is directly proportional to the amount of water present in the sample and results in a percentage moisture range of 0-25% & 0-50%.
Features of Rapid Moisture Tester
-
Rapid Drying Method: Utilizes a quick drying process to provide on-the-spot measurements of moisture levels in substances like sand, soil, fine aggregate, and other construction materials.
-
Moisture Content Range: Provides moisture content measurements within a range of 0-25% and 0-50%, allowing for comprehensive assessment and control of moisture levels in different materials.
-
Portable Design: Often designed to be portable for ease of use in the field or on-site testing, enabling quick and convenient moisture measurements wherever they are needed.
Technical Specifications
| Model Number |
NL 1022 X / 004 |
NL 1022 X / 005 |
| Moisture Range |
50 % |
25 % |
| Gauge Sensivity |
0.5% / Div. |
0.2% / Div. |
| Dimension (mm) |
350 (L) x 280 (W) x 130 (H) |
| Approx. Weight |
5 kg |

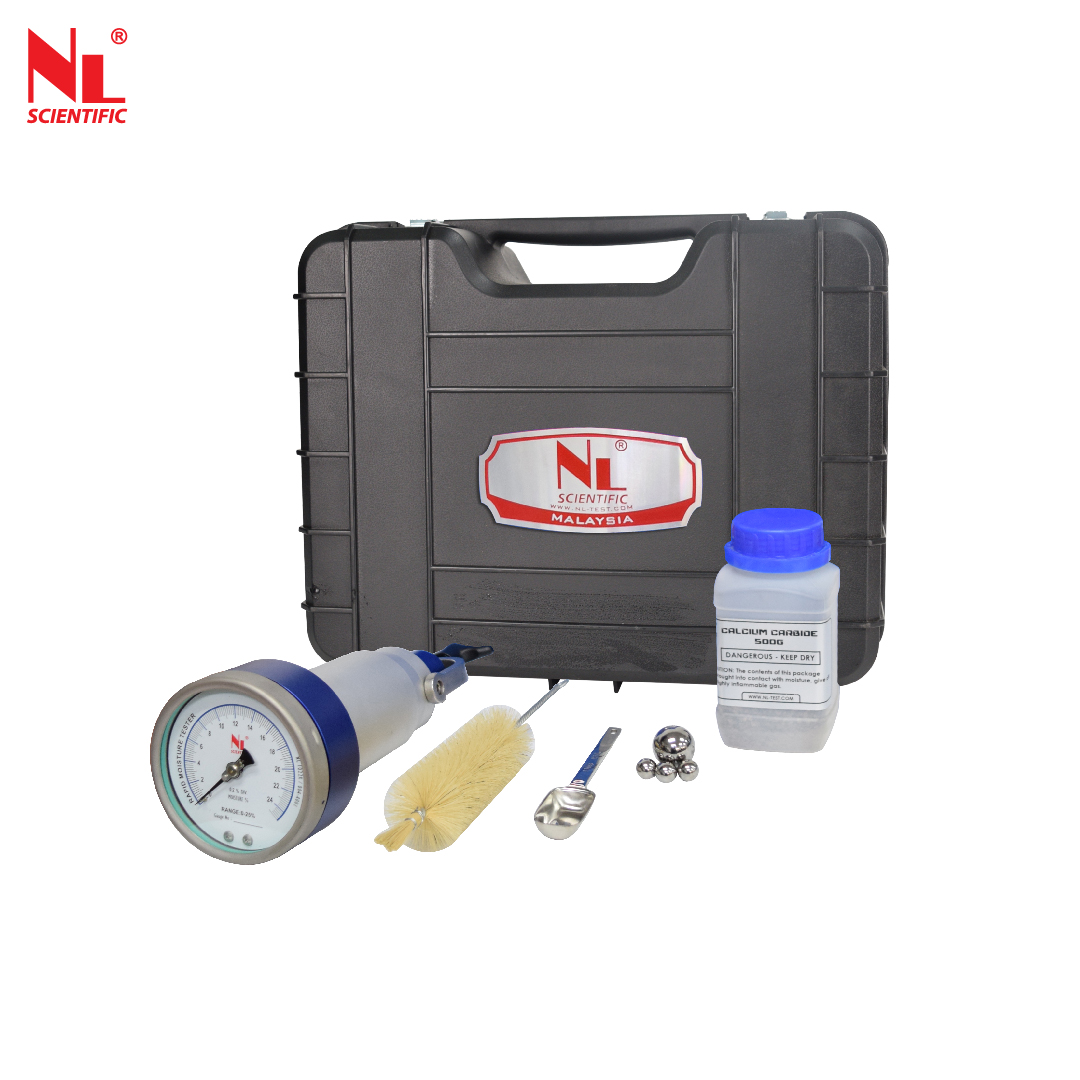

Set Consists Of:
| Model Number |
Parts Description |
| NL 1022 X / 004 - P001 |

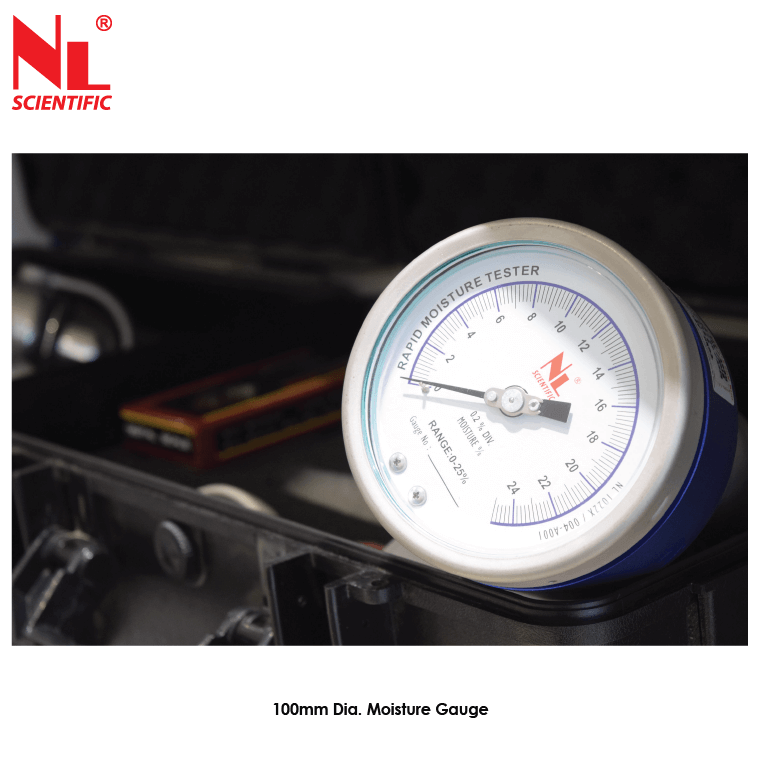

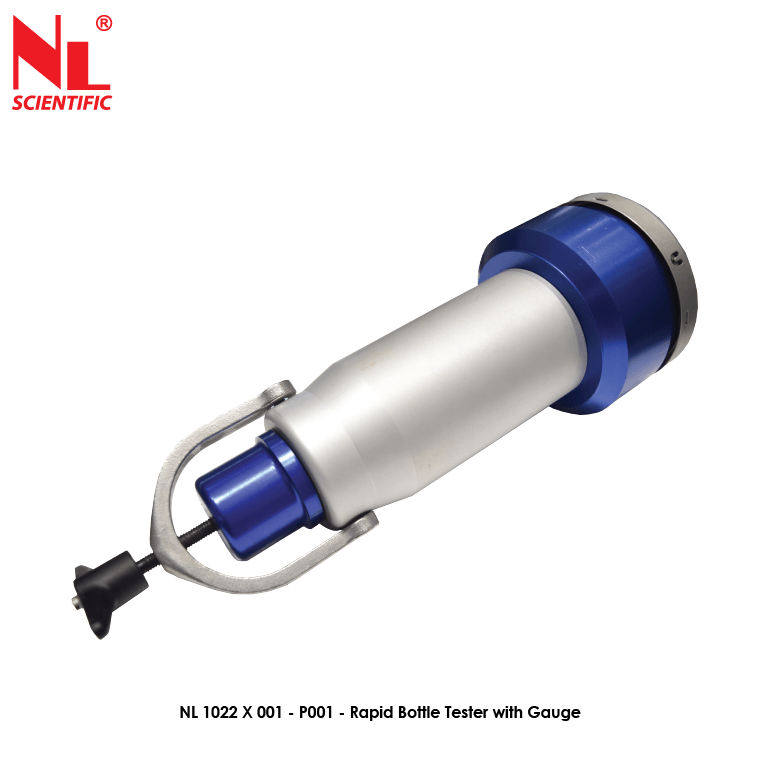

Rapid Bottle Tester with 50% Gauge (004 only) |
| NL 1022 X / 005 - P001 |
Rapid Bottle Tester with 25% Gauge (005 only) |
| NL 1022 X / 001 – P 002 |

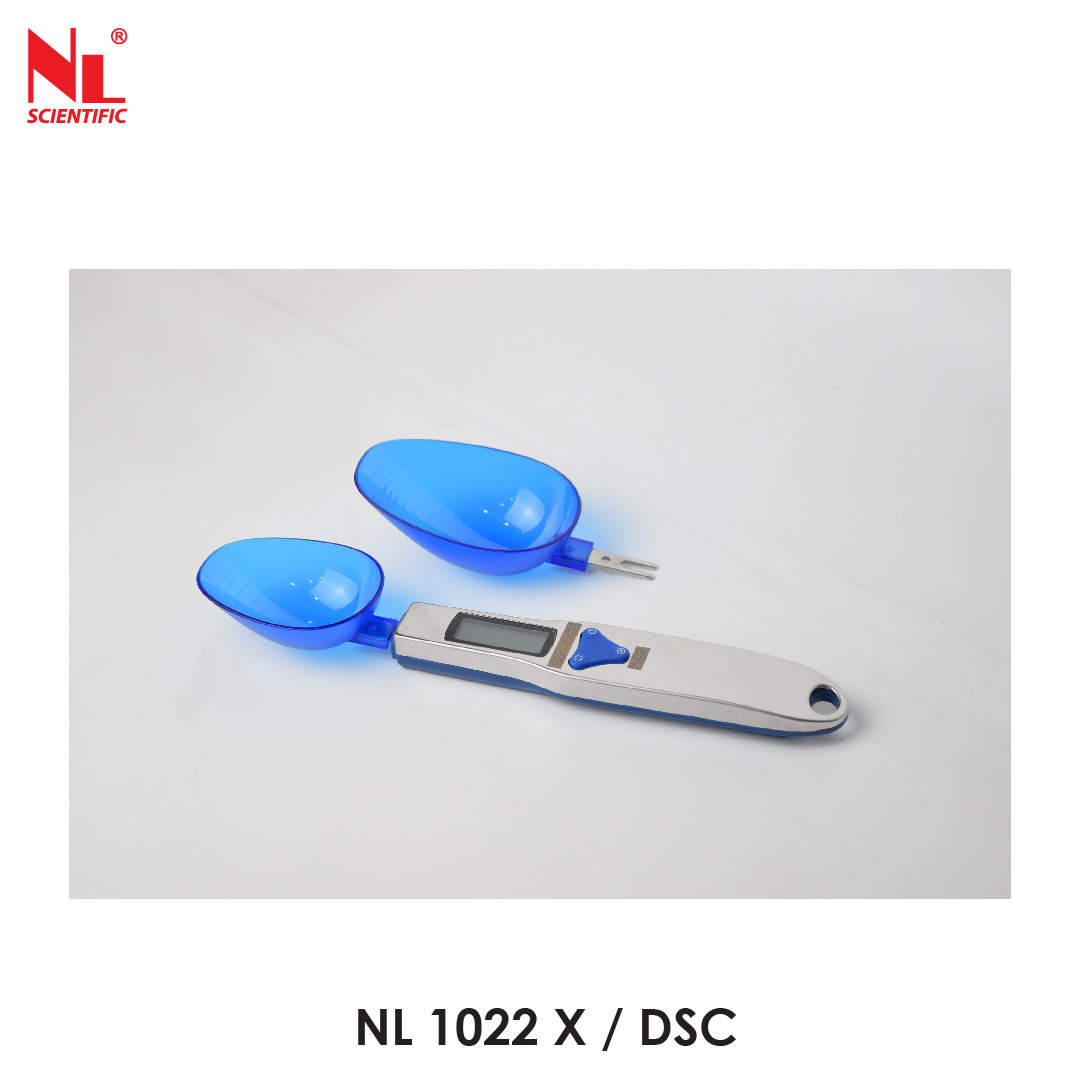

Electrical Digital Balance |
| NL 1022 X / 001 – P 003 |

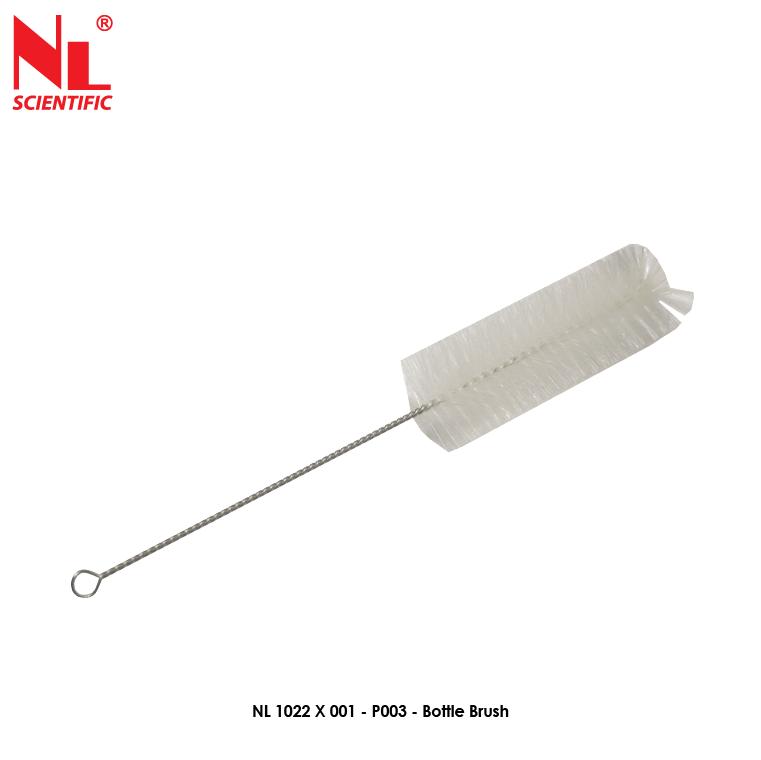

Bottle Brush |
| NL 1022 X / 001 – P 004 |
Measuring Scoop |
| NL 1022 X / 001 – P 005 |

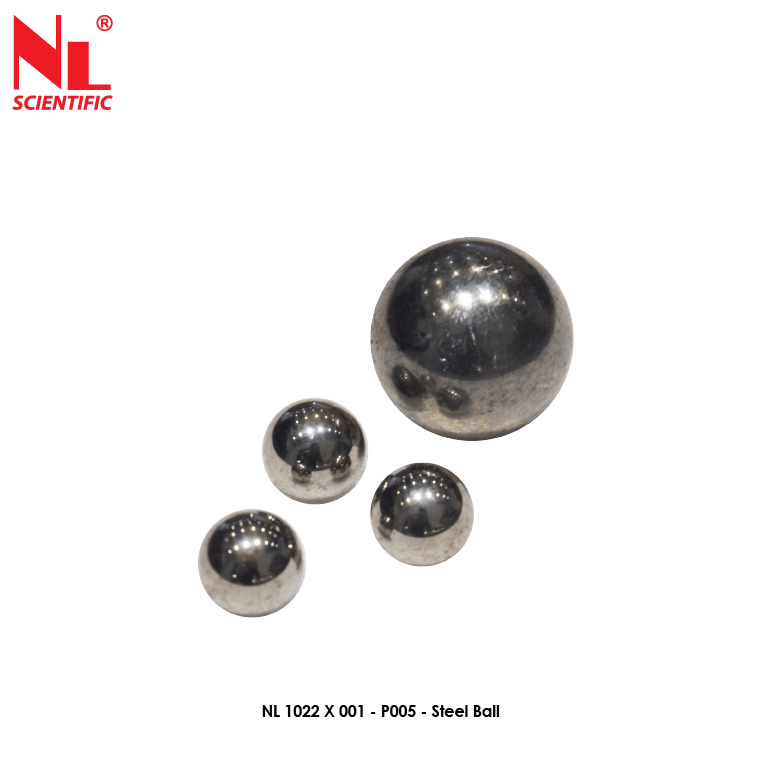

Steel Ball |
| NL 1022 X / 001 – P 006 |
Carrying Case |
| NL 1022 X / 001 - P 007 |
Pouring Dish |
| NL 7016 X / 001 |
Calcium Carbide 500 g |
*1 Copy of Manual Instruction
Standard
- BS 812: British Standard for testing aggregates in construction. Covers methods for determining properties like particle size, shape, and resistance to crushing.
- ASTM D4944: ASTM International standard for determining in-place density of soil in the field. Uses nuclear gauges or other methods to measure the density of compacted soils.
- AASHTO T217: American Association of State Highway and Transportation Officials (AASHTO) standard. Determines in-place density and unit weight of soil and soil-aggregate in the field, using methods similar to ASTM D4944.
Test Procedure of Rapid Moisture Tester
- Equipment Check: Ensure the Rapid Moisture Tester is in proper working condition.
- Calibration: Calibrate the tester according to the manufacturer's instructions.
- Sample Collection: Obtain a representative sample of the material, ensuring it is homogenous.
- Sample Preparation: Weigh the sample accurately and record its initial weight.
- Testing Chamber Setup: Place the sample in the testing chamber, ensuring even distribution.
- Start Test: Begin the rapid drying process as per the tester's specifications.
- Moisture Measurement: Measure the moisture content after the rapid drying cycle is complete.
- Recording Results: Record the final weight of the sample and the moisture content.
- Calculation: Calculate the moisture content using the formula. Moisture Content (%)=Initial Weight - Final WeightInitial
- Quality Assessment: Assess the material's moisture level for suitability in its intended application.
- Clean Equipment: Clean the tester thoroughly after each use to prevent cross-contamination.
- Reporting: Include test details, results, and any relevant observations in the test report.
