Sieve Shaker, Magnetic Triple Motion
Sieve Shaker, Magnetic Triple Motionnoise reduction cabinetClamping KnobController
Standard: EN 932-5, ISO 3310-1 Sieve Shaker, Magnetic, Triple Motion A Sieve Shaker with magnetic features for better sieve attachment is used to shake or agitate a stack of sieves to separate particles based on their size. Sieves are mesh-like devices with uniform holes of different sizes. When a ...Read more

Sieve Shaker, Magnetic, Triple Motion
NL 1015 X / 010N


  • Description

Standard: EN 932-5, ISO 3310-1

Sieve Shaker, Magnetic, Triple Motion

A Sieve Shaker with magnetic features for better sieve attachment is used to shake or agitate a stack of sieves to separate particles based on their size. Sieves are mesh-like devices with uniform holes of different sizes. When a sample is placed on the top sieve and the stack is shaken, particles smaller than the openings in the sieve fall through, while larger particles remain on top. This process is commonly used in various industries and research fields to analyze particle size distribution in materials such as soil, aggregates, pharmaceuticals, and food products. Unlike traditional sieve shakers that typically employ only vertical or horizontal motion, NL Scientific provides the triple motion sieve shaker that combines three types of motions: Vertical Motion, Horizontal Motion, and Rotational Motion.

This magnetic technology allows for quick and effortless attachment and ensures a secure fixation of the sieves during the sieving process. By securely holding the sieves in place, the magnetic attachment promotes uniform distribution of motion, enhancing the efficiency and accuracy of particle size analysis.

Type of Sieve Shaker Motion Settings

  • Vertical Motion: This motion helps to move the particles through the sieve openings, ensuring proper separation.
  • Horizontal Motion: It ensures that the particles are evenly distributed across the sieve surface, preventing clogging and ensuring accurate results.
  • Rotational Motion: This motion mimics the rotational motion of the sieve, aiding in the passage of particles through the sieve mesh.

Features of Sieve Shaker, Magnetic Triple Motion

  • Triple Motion Functionality: Incorporates vertical, horizontal, and rotational motions to ensure thorough and efficient sieving.
  • Low noise pollution
  • Comes with a vibration control potentiometer. The user can effortlessly adjust and customize the vibration speed to their preferences.

Technical Specifications of Sieve Shaker, Magnetic Triple Motion

 Model Number  NL 1015 X / 010N
 Sieves Diameter  200 & 300 mm, 8” & 12” Diameter
 Timer  1 - 60 min
 Sieve Max Capacity   up to 10 nos.
 Product Dimension  540 (L) x 460 (W) x 1230 (H) mm
 Packing Dimension  640 (L) x 560 (W) x 1330 (H) mm
 Approx. Weight  62 kg
 Power  220~240 V, 400 W, 1 Ph, 50 / 60 Hz

Unit Consists Of:

 Model Number  Parts Description

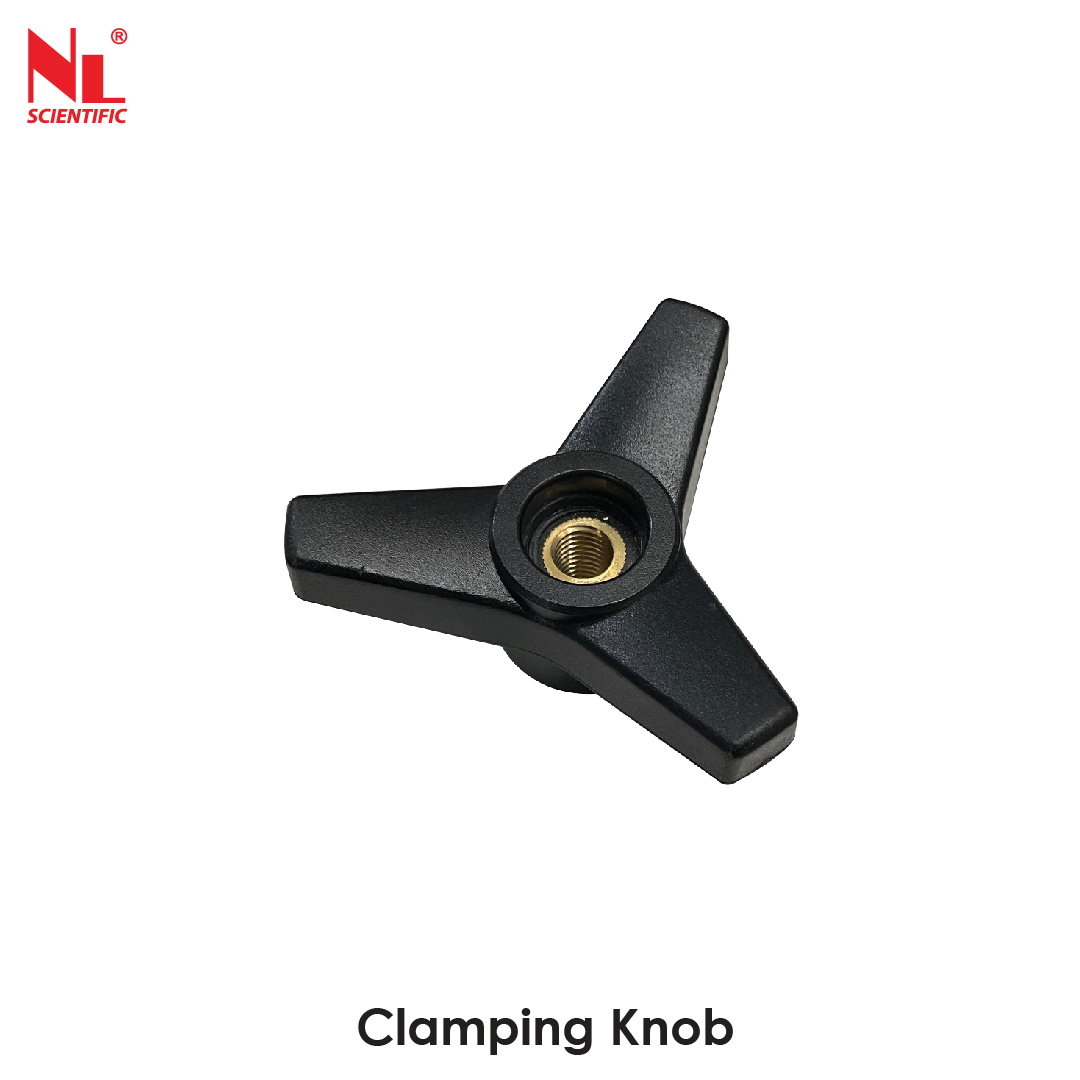

 NL 1015 X / 006 – P 001  Clamping Knobs (Pair of 2)
 NL 1015 X / 006 – P 002  Clamping Beam
 NL 1015 X / 006 – P 003  Threaded Rod c/w Extended Rod

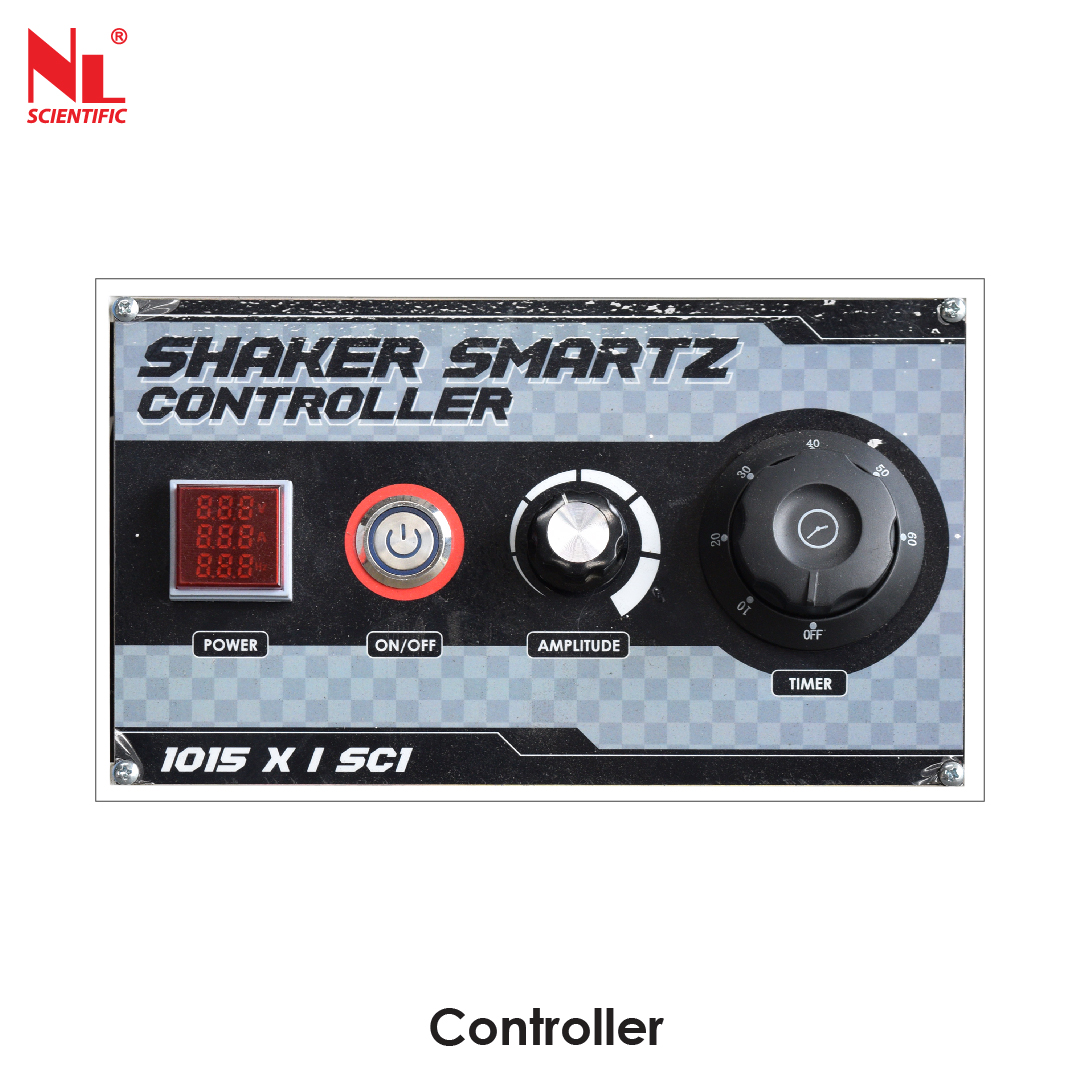

 NL 1015 X / SC1  Shaker Smartz Controller

*1 Copy of Manual Instruction

Optional Accessories of Sieve Shaker, Magnetic, Triple Motion

 Model Number  Parts Description
 NL 1015 X / SPC  Noise Reduction Cabinet

Standards

  • EN 932-5: This standard is part of the European Norm (EN) series and specifies the method for the determination of the percentage of particles retained on sieves after sieving aggregates for concrete. It outlines procedures for preparing the test sample, selecting appropriate sieves, conducting the sieving process, and calculating the particle size distribution based on the results obtained.

  • ISO 3310-1: This standard is issued by the International Organization for Standardization (ISO) and provides specifications for test sieves used in particle size analysis of materials such as aggregates, ores, and powders. ISO 3310-1 defines the requirements for the construction, dimensions, and tolerances of test sieves, ensuring consistency and accuracy in particle size analysis across different laboratories and testing procedures.

Test Procedure of Sieve Shaker, Magnetic, Triple Motion

Preparation of Sample:

  • Ensure that the sample to be sieved is representative and properly prepared according to the specific testing requirements.
  • If necessary, reduce the sample size to an appropriate amount that can be accommodated by the sieves without overloading.

Selection of Sieves:

  • Choose the appropriate set of sieves with mesh sizes suitable for the desired particle size distribution analysis.
  • Stack the sieves in ascending order of mesh size, with the finest sieve at the bottom and the coarsest sieve at the top.

Assembling the Sieve Stack:

  • Place the stack of sieves securely onto the sieve shaker platform, ensuring that each sieve is properly nested within the next one and that the stack is stable.

Setting Parameters:

  • Adjust the settings on the Triple Motion Sieve Shaker according to the specifications of the test method and the characteristics of the sample.
  • Set the desired shaking speed, duration, and type of motion (vertical, horizontal, tapping) based on the requirements of the analysis.

Starting the Shaker:

  • Start the Triple Motion Sieve Shaker to initiate the sieving process.
  • Monitor the shaking action to ensure that the sample is being properly agitated and sieved.

Observation and Inspection:

  • Periodically inspect the sieves during the sieving process to check for any signs of clogging or irregularities.
  • If necessary, adjust the shaking parameters or stop the shaker to address any issues that may arise.

Completion of Sieving:

  • Once the sieving process is complete, stop the Triple Motion Sieve Shaker and remove the stack of sieves from the platform.
  • Carefully disassemble the sieves and inspect the retained material on each sieve for further analysis.

Analysis of Results:

  • Weigh the retained material on each sieve to determine the mass fraction of particles retained at each size fraction.
  • Calculate the particle size distribution based on the mass fractions and the mesh sizes of the sieves used.

Cleaning and Maintenance:

  • Clean the sieves and the sieve shaker platform thoroughly after use to remove any residual material and prevent contamination.
  • Perform routine maintenance on the Triple Motion Sieve Shaker as recommended by the manufacturer to ensure its proper functioning and longevity.

Product Video of Sieve Shaker, Magnetic Triple Motion


How to Operate Sieve Shaker, Magnetic Triple Motion
