Electromechanical Universal / Tensile Testing Machine
An electromechanical universal testing machine (UTM) is a pivotal tool that combines electrical and mechanical components to assess material properties by applying controlled forces for analyzing factors such as tensile strength, compression resistance, and flexural properties. With a compact design featuring a load frame, control system, and adaptable grips, electromechanical UTMs provide precise force application and displacement measurement.
SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 3 kN
Specifications | Description |
|---|---|
Model Number | TT 6000 X / 021N |
Capacity | 3 kN |
Test Force Accuracy | ±0.8% |
Test Speed Range | 0.01 - 500mm/min |
Measuring Range | 0.5% - 100% F.S |

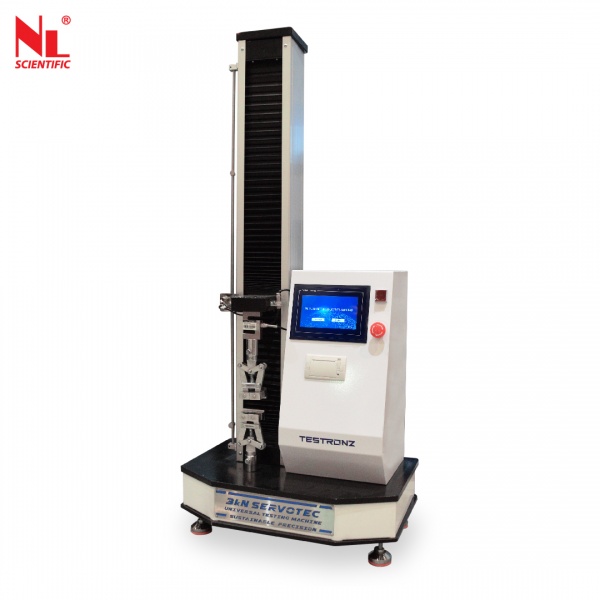

SERVOTEC DIGIMATIC UNIVERSAL TESTING MACHINE 10 kN
Specifications | Description |
|---|---|
Model Number | TT 6000 X / 021N |
Capacity | 3 kN |
Test Force Accuracy | ±0.8% |
Test Speed Range | 0.01 - 500mm/min |
Measuring Range | 0.5% - 100% F.S |

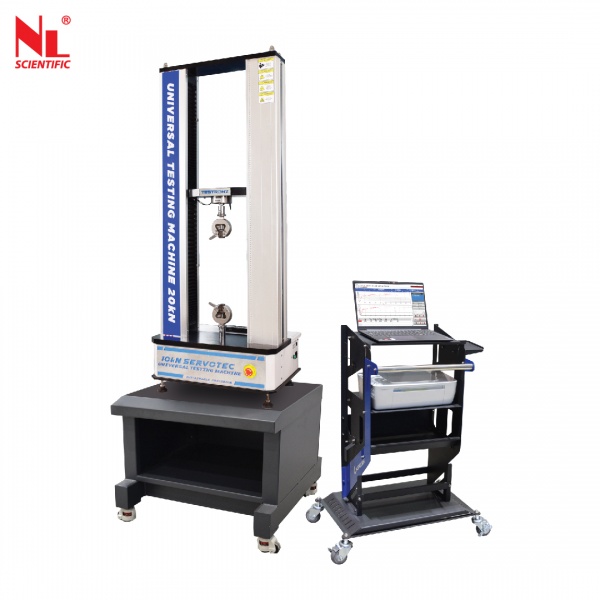

SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 10 kN
Specifications | Description |
|---|---|
Model Number | TT 6000 X / 032N
|
Capacity | 10 kN |
Test Force Accuracy | ±0.5% |
Test Speed Range | 0.01 - 500mm/min |
Measuring Range | 0.5% - 100% F.S |
SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 20 kN
Specifications | Description |
|---|---|
Model Number | TT 6000 X / 020N
|
Capacity | 20 kN |
Test Force Accuracy | ±0.8% |
Test Speed Range | 0.01 - 500mm/min |
Measuring Range | 0.5% - 100% F.S |
SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 50 kN
Specifications | Description |
|---|---|
Model Number | TT 6000 X / 019N |
Capacity | 50 kN |
Test Force Accuracy | ±0.5% |
Test Speed Range | 0.01 - 500mm/min |
Measuring Range | 0.5% - 100% F.S |
SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 100 kN
Specifications | Description |
|---|---|
Model Number | NL 6000 X / 018N |
Capacity | 100 kN |
Test Force Accuracy | ±5% |
Test Speed Range | 0.1 - 250mm/min |
Measuring Range | 0.5% - 100% F.S |
SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 200 kN
Specifications | Description |
|---|---|
Model Number | TT 6000 X / 024N |
Capacity | 200 kN |
Test Force Accuracy | ±0.5% |
Test Speed Range | 0.01 - 250mm/min |
Measuring Range | 0.5% - 100% F.S |
SERVOTEC FULLY AUTOMATIC UNIVERSAL TESTING MACHINE 300 kN
Specifications | Description |
|---|---|
Model Number | TT 6000 X / 023N |
Capacity | 300 kN |
Test Force Accuracy | ±0.5% |
Test Speed Range | 0.01 - 500mm/min |
Measuring Range | 0.5% - 100% F.S |
Order A Universal Testing Machine in Malaysia & Singapore
Each test can help businesses to better understand the performance and quality of materials, components, or products. And this is an essential aspect of product design and development. With the results of a tensile, compression or flexure test, can better adapt, optimize or redesign a product.
With the advanced features and capabilities, these machines are perfect for businesses of all sizes that need high-quality testing equipment for material and engineering tests. For more information on universal testing machines in Malaysia or Singapore, please contact our team today!
With the advanced features and capabilities, these machines are perfect for businesses of all sizes that need high-quality testing equipment for material and engineering tests. For more information on universal testing machines in Malaysia or Singapore, please contact our team today!
