We assure you that we will provide the best solution that you will need when it comes to material tests.
DIGIMATIC DRYING OVEN
Drying Sample
| The Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10C to 250C. All capacity come with fan circulation blower. The oven come with glass viewing door surrounding casing is obtain ed with 50 mm th ick fiber glass & steel shelves. |
| Compliance Standards : ASTM C127 , ASTM C136 , ASTM D558 , ASTM D698 , ASTM D1559 , EN932-5 , EN 1097-5 , BS 1377 , BS 1924 |
Main Specification:
- Voltage : 220V, 1 ph, 50/60 Hz
- Temperature Variation : RT+10 - 250 °C
- Temperature Fluctuation : RT+10 - 250 °C
- Temperature Resolution : 0.1 °C
- Ambient Temperature : +5 - 40 °C
- Load Per Shelve : 25 kg / shelve ( c/w 2nos shelves )
- Timing Range : 1 - 9999 min
Digimatic Drying Oven 65 Litres - NL 1017 X 007
 |
Technical Specification : - Heating Power : 2.1 KW, 9.5 A - Interior Dimension (mm) : 400 x 360 x 450 mm - Exterior Dimension (mm) : 550 x 550 x 840 mm - Packaging Dimension : 610 x 610 x 905 mm - Net Weight : 47 / 61 kg VIEW MORE |
Digimatic Drying Oven 125 Litres - NL 1017 X 008
|
Technical Specification : - Heating Power : 2.3 KW, 10.5 A - Interior Dimension (mm) : 500 x 450 x 550 mm - Exterior Dimension (mm) : 636 x 580 x 915 mm - Packaging Dimension : 730 x 720 x 1000 mm - Net Weight : 47 / 61 kg VIEW MORE |
Features
 |

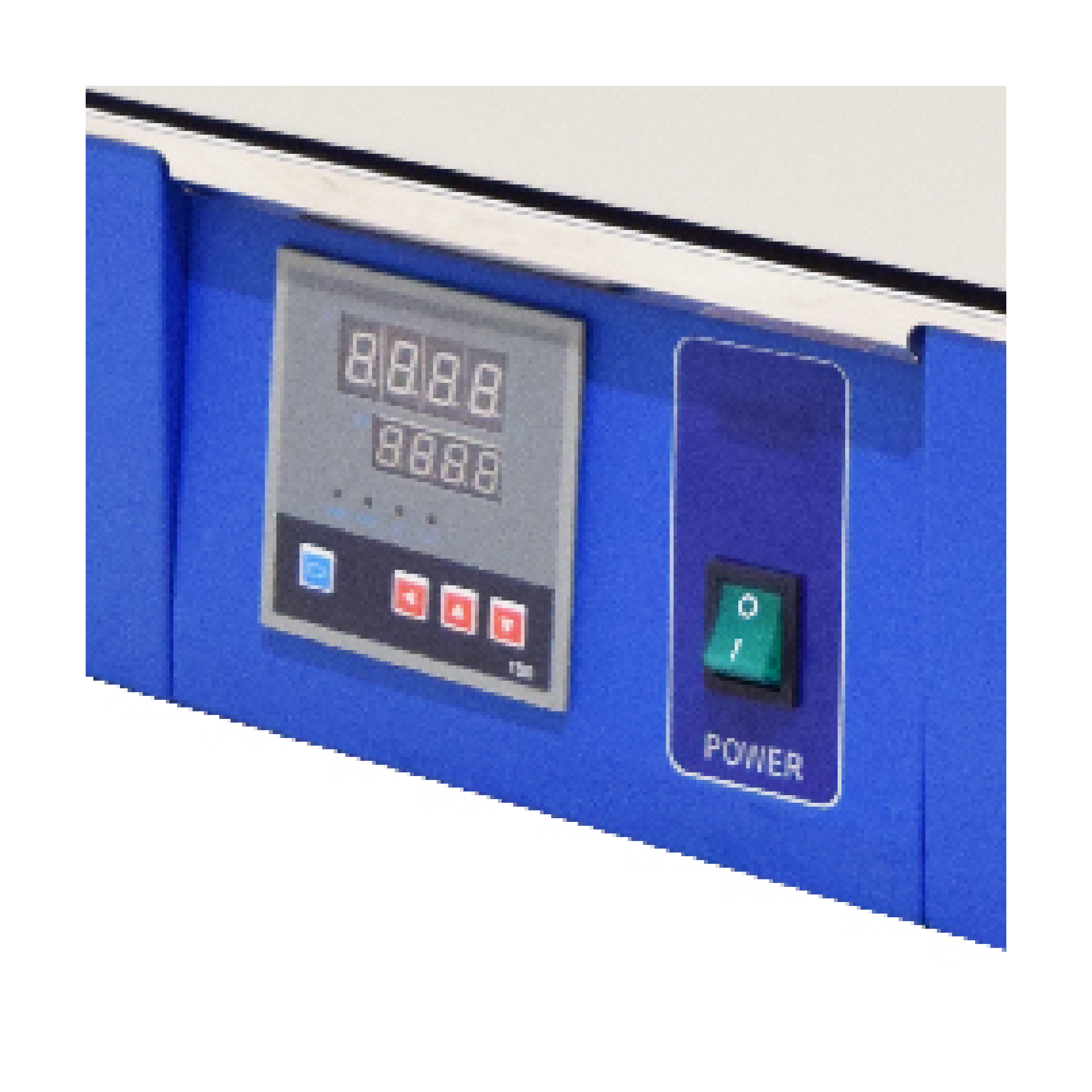

DIGITAL CONTROL Digital controls make itsimple to control andmonitor the temperature.Comparatively, it is more precise and user-friendly. |
 |

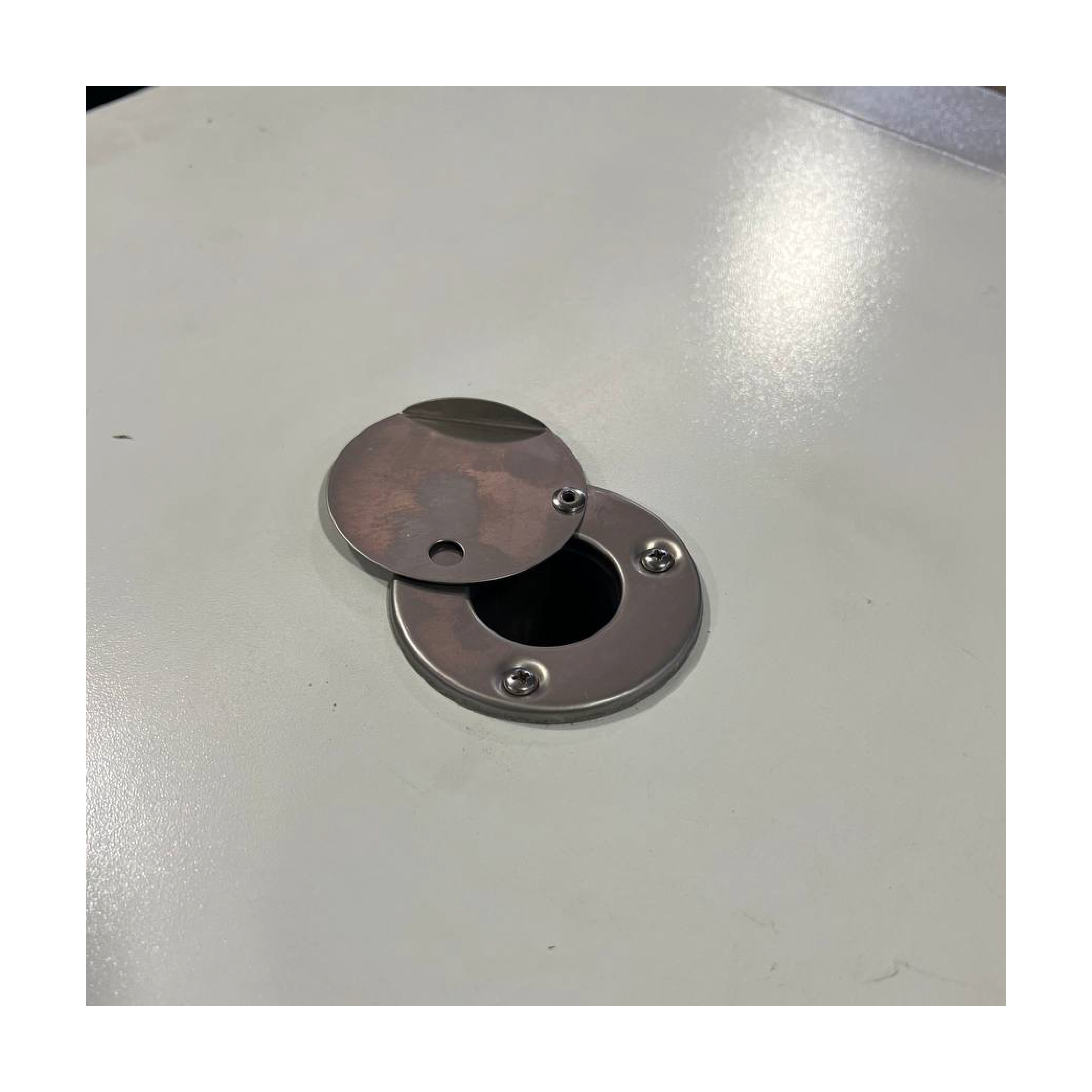

BUILT-IN VENTILATION To control excess heat and moisture, this oven has a built-in vent. It is excellent for preserving the ideal temperature while drying. |
 |

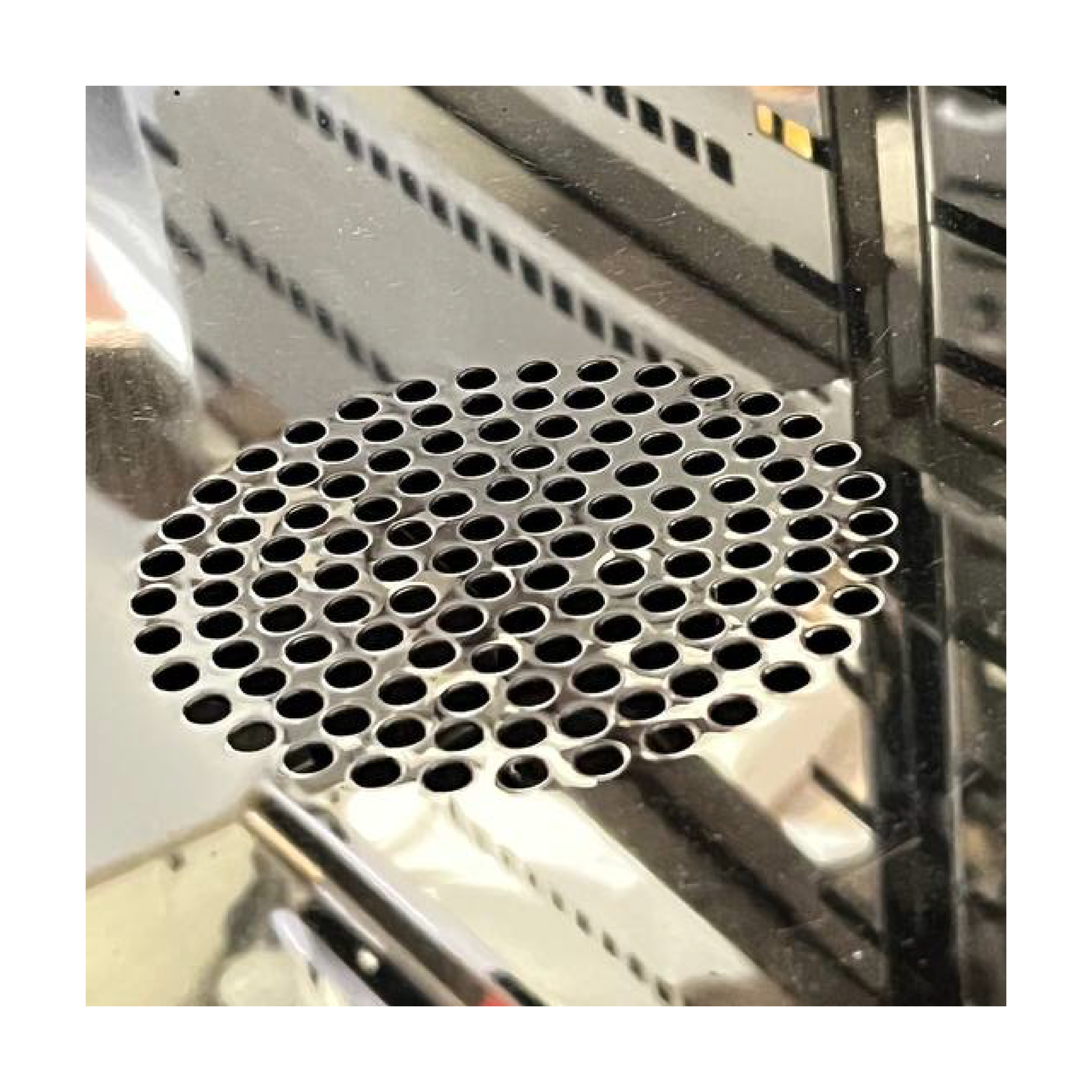

FAN CIRCULATION BLOWER It uses a fan to make sure that inside the oven is heated equally. |
 |

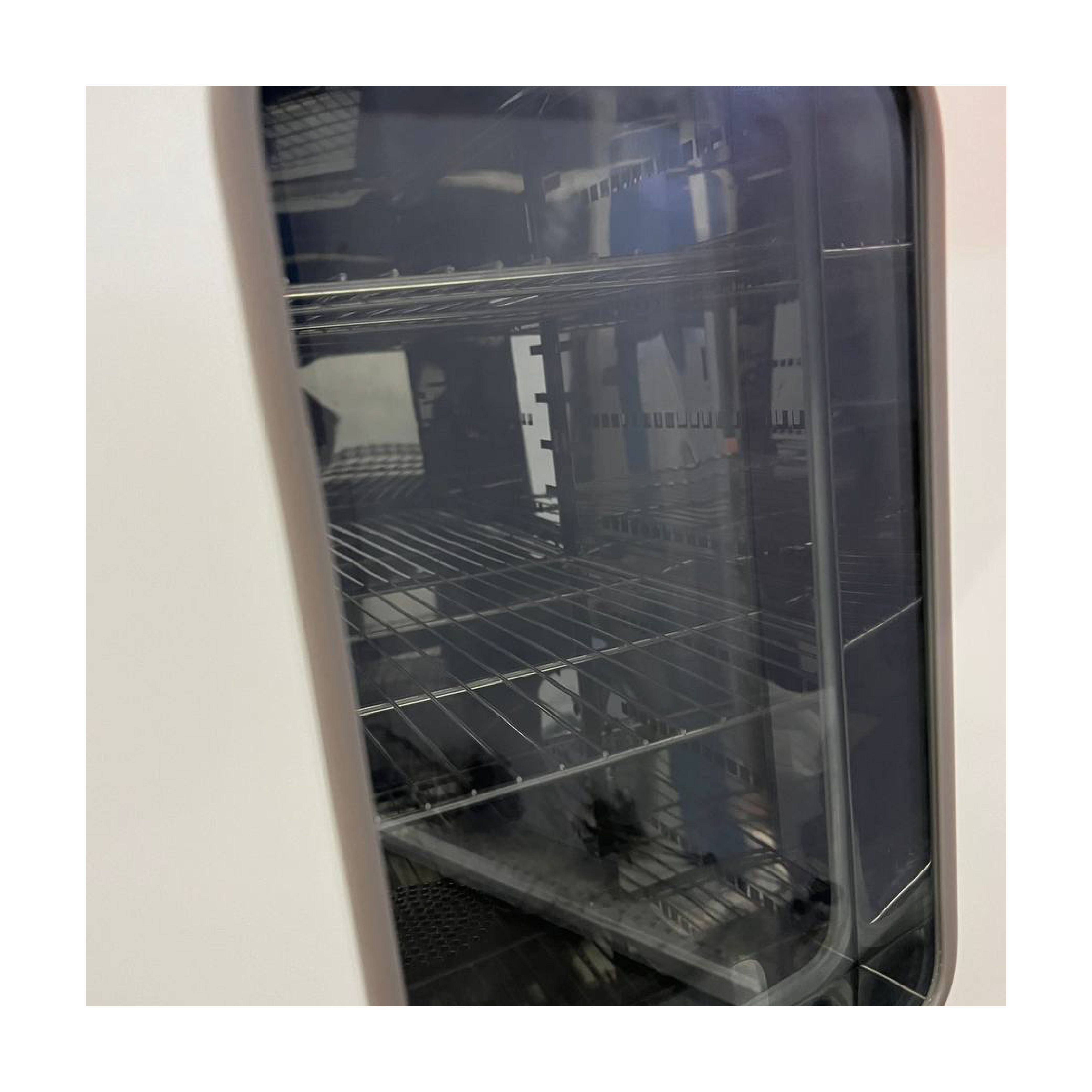

SEE-THROUGH GLASS DOOR Without opening the door, you can check on your specimen through the glass. This helps you save time and maintain a constant temperature. |

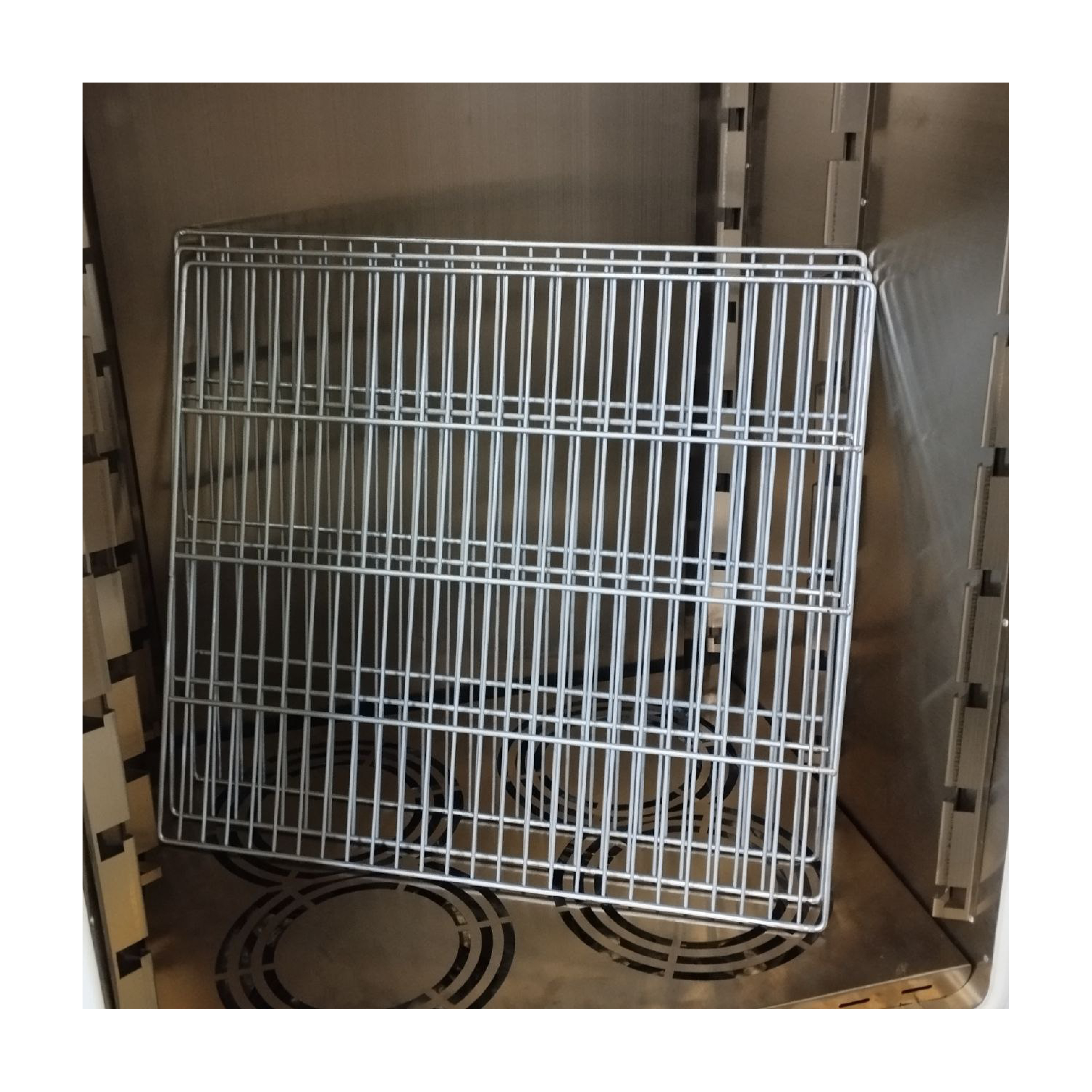

Optional Accessories ( Stainless Steel Shelve )
 |
| - NL 1017 X / 007 - P001 : 65 Litres Shelves with Bracket - NL 1017 X / 007 - P002 : 125 Litres Shelves with Bracket View More |
