DIGIMATIC DRYING OVEN E-VERSION
Drying Sample
| The Digimatic Drying Oven are designed for sample drying work. Available in a variety of sizes, this series of ovens is equipped with adjustable shelves. The high quality cold rolling steel case, baked enamel finish exterior and corrosion resistant interior make this a sturdy, all purpose laboratory oven. |
| Compliance Standards : ASTM C127 , BS 1377 , BS 1924 , ASTM C136 , ASTM D558 , ASTM D698 , ASTM D1559 , EN 932-5 , EN 1097-5 |
| Main Specification : - Temperature Uniformity : ±5°C - Temperature Range : RT+5°C - 250°C - Timer Setting : Not Available - Chamber Material : GI ( Galvanized Steel ) |
Digimatic Drying Oven E-Version 70 Litres
 |
Technical Specification : - Shelve w/ Bracket Supplied : 2 pcs - Interior Dimension (mm) : 450 x 350 x 450 mm - Exterior Dimension (mm) : 730 x 470 x 670 mm - Power : 220~240 V, 1 Ph, 1.3 kW>1.8 kW, 8A, 50/60 Hz - Approx. Weight : 42 kg VIEW MORE |
Digimatic Drying Oven E-Version 136 Litres
|
Technical Specification : - Shelve w/ Bracket Supplied : 2 pcs - Interior Dimension (mm) : 550 x 450 x 550 mm - Exterior Dimension (mm) : 830 x 570 x 770 mm - Power : 220~240 V, 1 Ph, 3 kW>2 kW, 14A, 50/60 Hz - Approx. Weight : 57 kg VIEW MORE |
Digimatic Drying Oven E-Version 225 Litres
|
Technical Specification : - Shelve w/ Bracket Supplied : 3 pcs - Interior Dimension (mm) : 600 x 500 x 750 mm - Exterior Dimension (mm) : 880 x 620 x 970 mm - Power : 220~240 V, 1 Ph, 4 kW>3.6 kW , 17A, 50/60 Hz - Approx. Weight : 76 kg VIEW MORE |

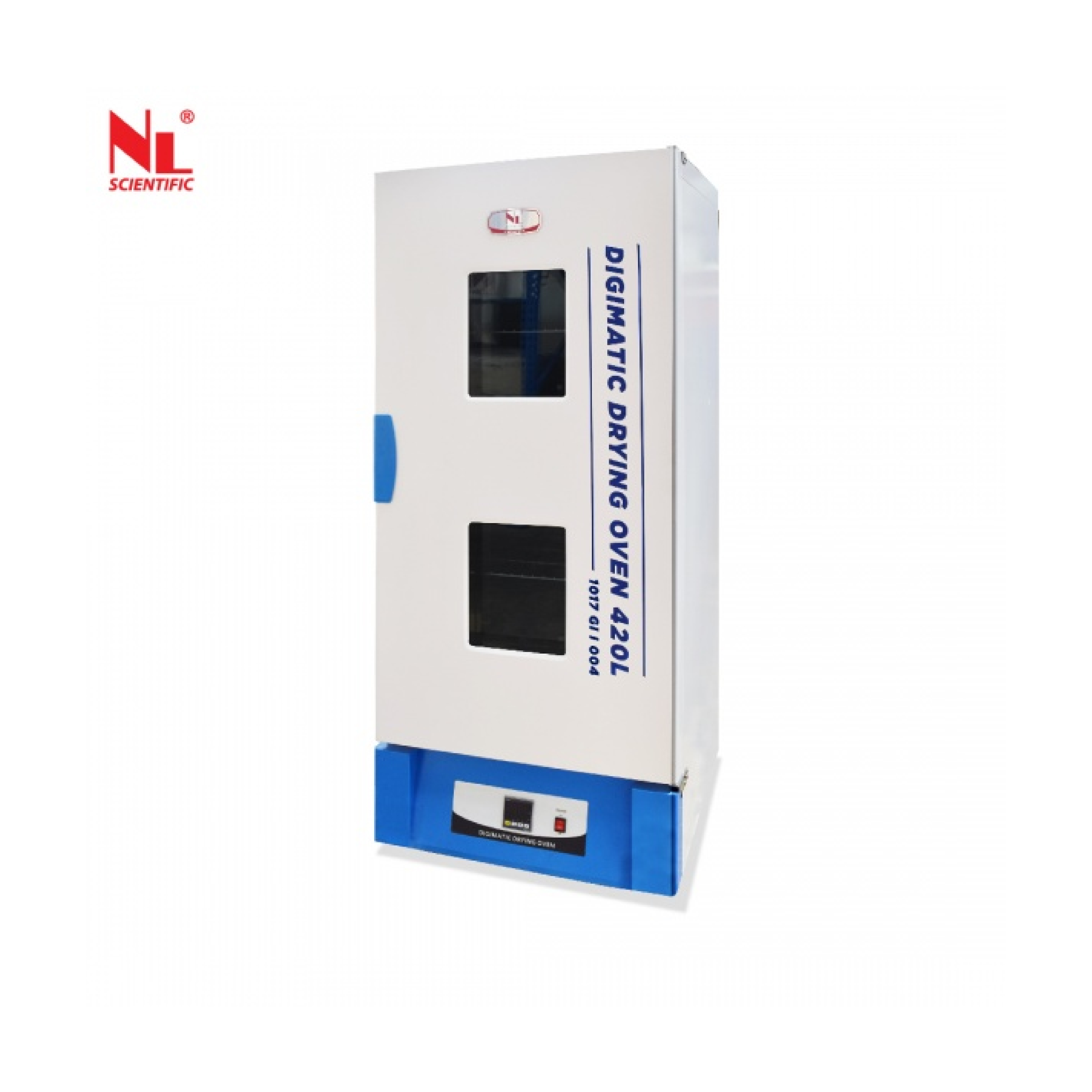

Digimatic Drying Oven E-Version 420 Litres
 |
Technical Specification : - Shelve w/ Bracket Supplied : 3 pcs - Interior Dimension (mm) : 550 x 600 x 1300 mm - Exterior Dimension (mm) : 710 x 720 x 1730 mm - Power : 220~240 V, 1 Ph, 4 kW, 50/60 Hz - Approx. Weight : 115 kg VIEW MORE |

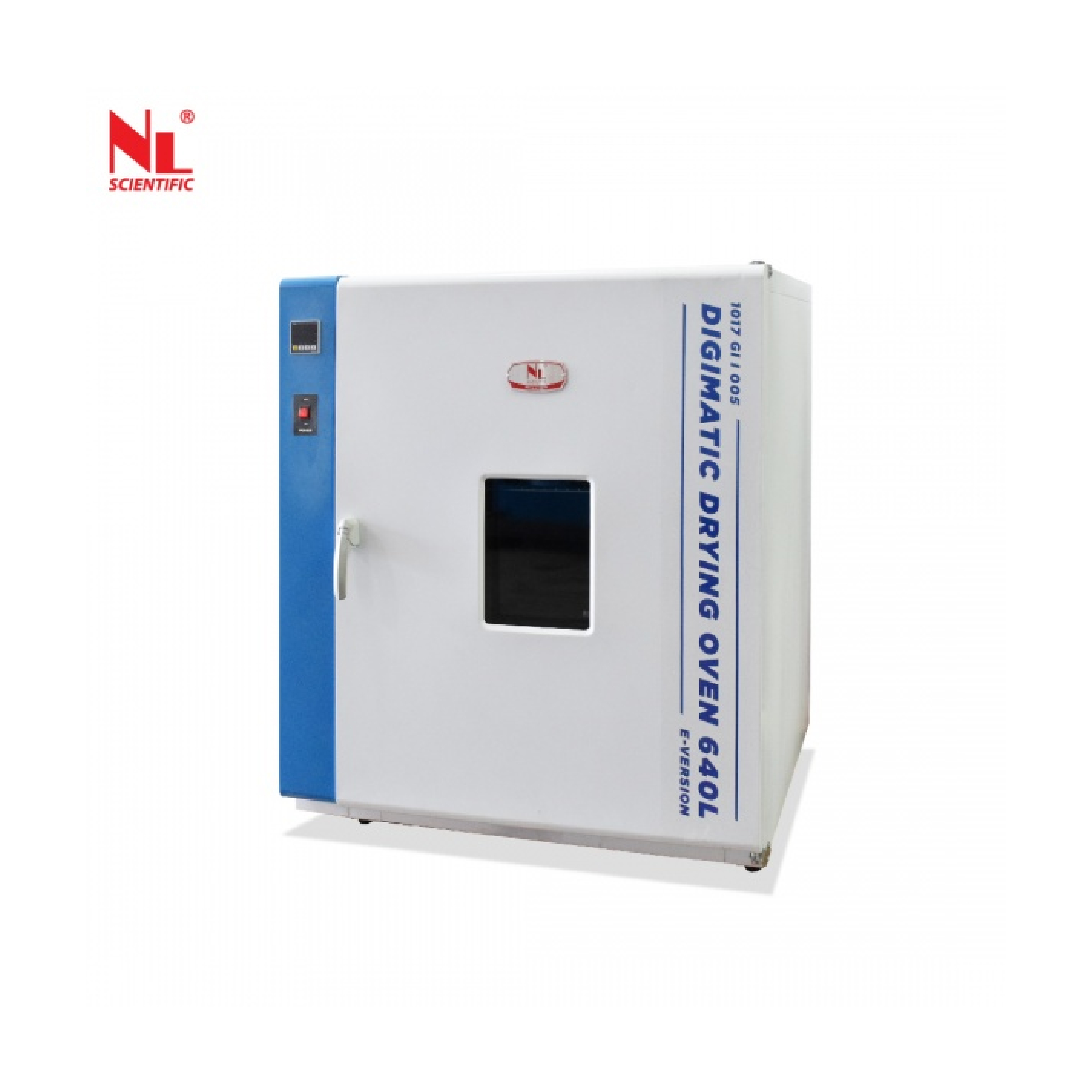

Digimatic Drying Oven E-Version 640 Litres
|
Technical Specification : - Shelve w/ Bracket Supplied : 3 pcs - Interior Dimension (mm) : 800 x 800 x 1000 mm - Exterior Dimension (mm) : 920 x 1080 x 1220 mm - Power : 220~240 V, 1 Ph, 5.4 kW, 50/60 Hz - Approx. Weight : 114 kg VIEW MORE |
Features
 |
CIRCULATION AIR FLOW SYSTEM Encourages uniform temperature conditions for drying and testing processes by ensuring even heat distribution throughout the oven chamber. |
 |

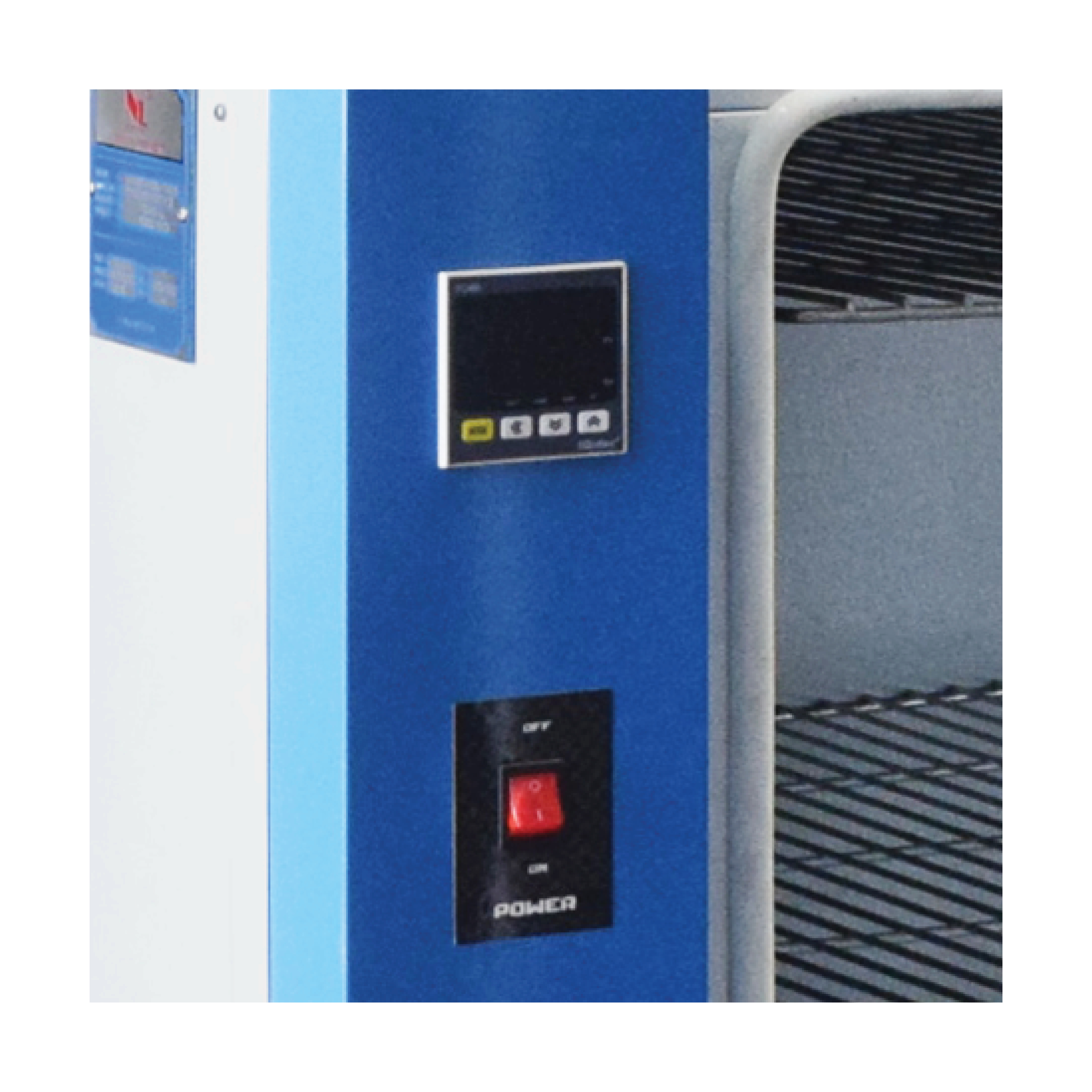

PID ELECTRONIC CONTROL UNIT Improves control over experiments and processes by using a precise and dependable proportional -integral-derivative controller to maintain accurate and stable temperature settings. |
 |

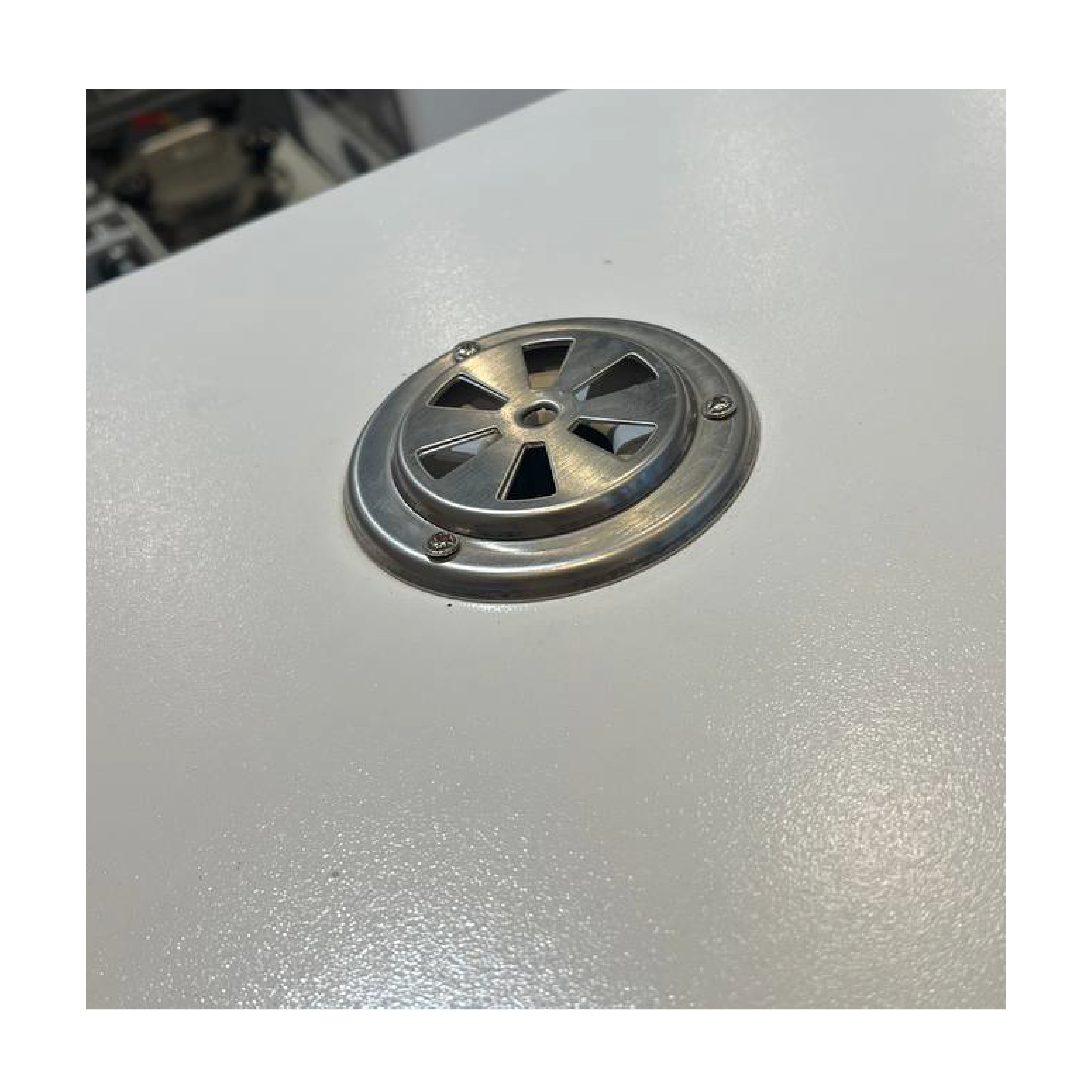

MANUALLY AIR OUTLET CHAMBER Provides users with flexibility in controlling temperature rate and humidity levels by allowing users to control air circulation and ventilation within the oven chamber. |
 |
QUALITY DOOR RUBBER GASKET SEAL Offers a strong and airtight seal when the oven door is shut, preventing heat loss and guaranteeing a safe environment for experiments, drying, or testing. |
Optional Accessories ( Galvanized Steel )
 |
| - NL 1017 GI / 001 - A001 : 70 Litres Shelves - NL 1017 GI / 002 - A001 : 136 Litres Shelves - NL 1017 GI / 003 - A001 : 225 Litres Shelves - NL 1017 GI / 004 - A001 : 420 Litres Shelves - NL 1017 GI / 005 - A001 : 640 Litres Shelves View More |
