DIGIMATIC DRYING OVEN STAINLESS STEEL
Drying Sample
| The Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10C to 250C. All capacity come with fan circulation blower. The oven come with glass viewing door surrounding casing is obtain ed with 50 mm th ick fiber glass & s teel shelves. |
| Standards : ASTM C127 , BS 1377 , BS 1924 , ASTM C136 ,ASTM D558 , ASTM D698 , ASTM D1559 , EN 932-5 , EN 1097-5 |
| Main Specification : - Temperature Variation : RT+10-250°C - Temperature Fluctuation : ±5.0°C - Ambient Temperature : +5-40°C - Load Per Shelve : 25/kg 3 For Standard Configuration - Timer Range : 999 Hours |
Digimatic Drying Oven 420 Litres - NL 1017 SS / 004
 |
Technical Specification : - Number of Heaters : 3 nos. - Number of Shelves : 4 pcs - Interior Dimension (mm) : 600 × 550 × 1300 mm - Exterior Dimension (mm) : 720 × 710 × 1730 mm - Power : 220~240 V, 1 Ph, 4 kW, 19 A, 50/60 Hz - Approx. Weight : 115 kg View More |

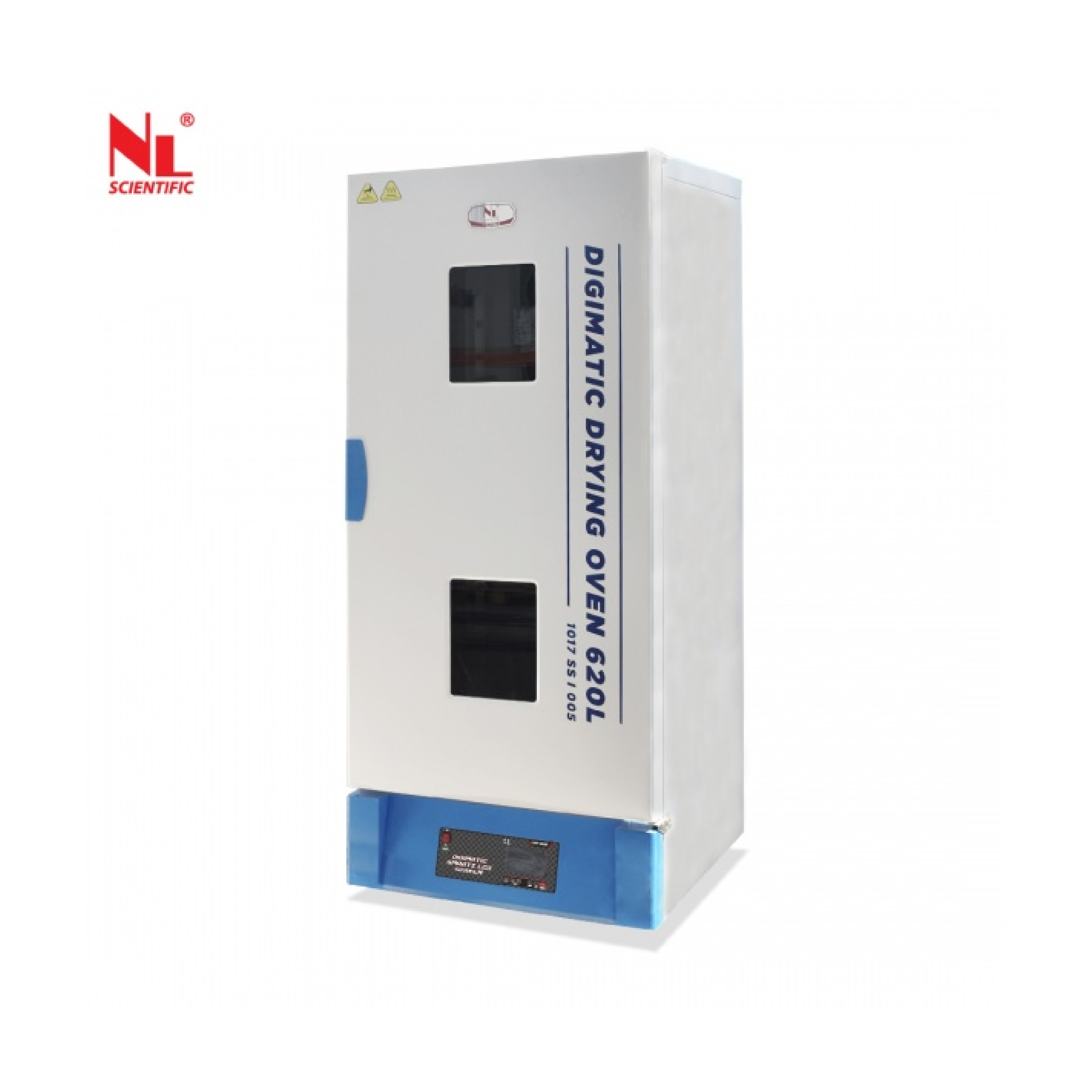

Digimatic Drying Oven 620 Litres - NL 1017 SS / 005
|
Technical Specification : - Number of Heaters : 3 nos. - Number of Shelves : 5 pcs - Interior Dimension (mm) : 700 × 600 × 1500 mm - Exterior Dimension (mm) : 820 × 760 × 1930 mm - Power : 220~240 V, 1 Ph, 6 kW, 26 A, 50/60 Hz - Approx. Weight : 148 kg View More |
Unique Features
 |

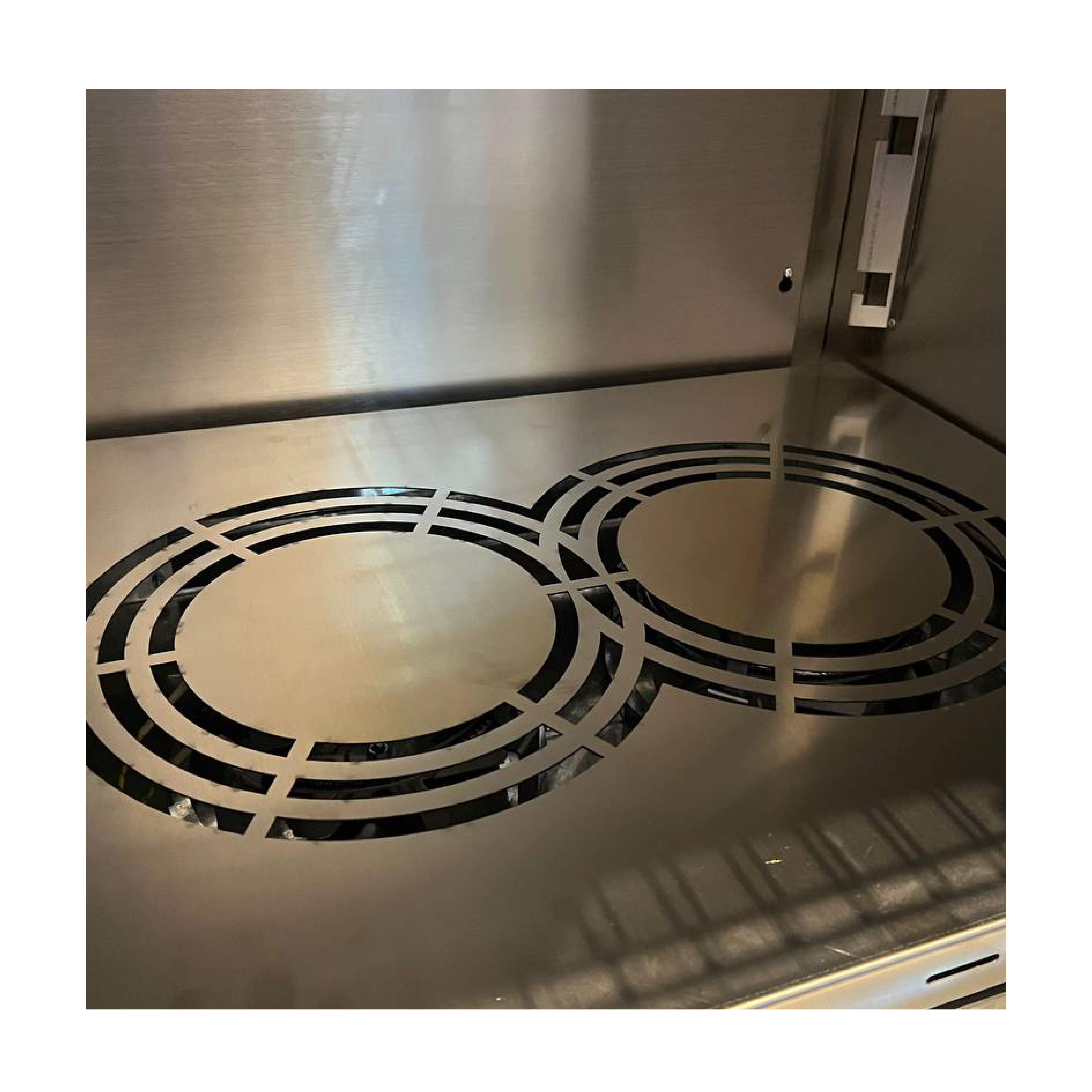

CIRCULATION AIR FLOW SYSTEM To ensure the heat circulates in the oven, to equalize the oven temperature.So that the dried specimen can be tested at the same temperature instead of different temperatures. |
 |
BUILT-IN VENTILATION POINT Can help from the occurrence of overheating problems during the test on the specimen. |
 |

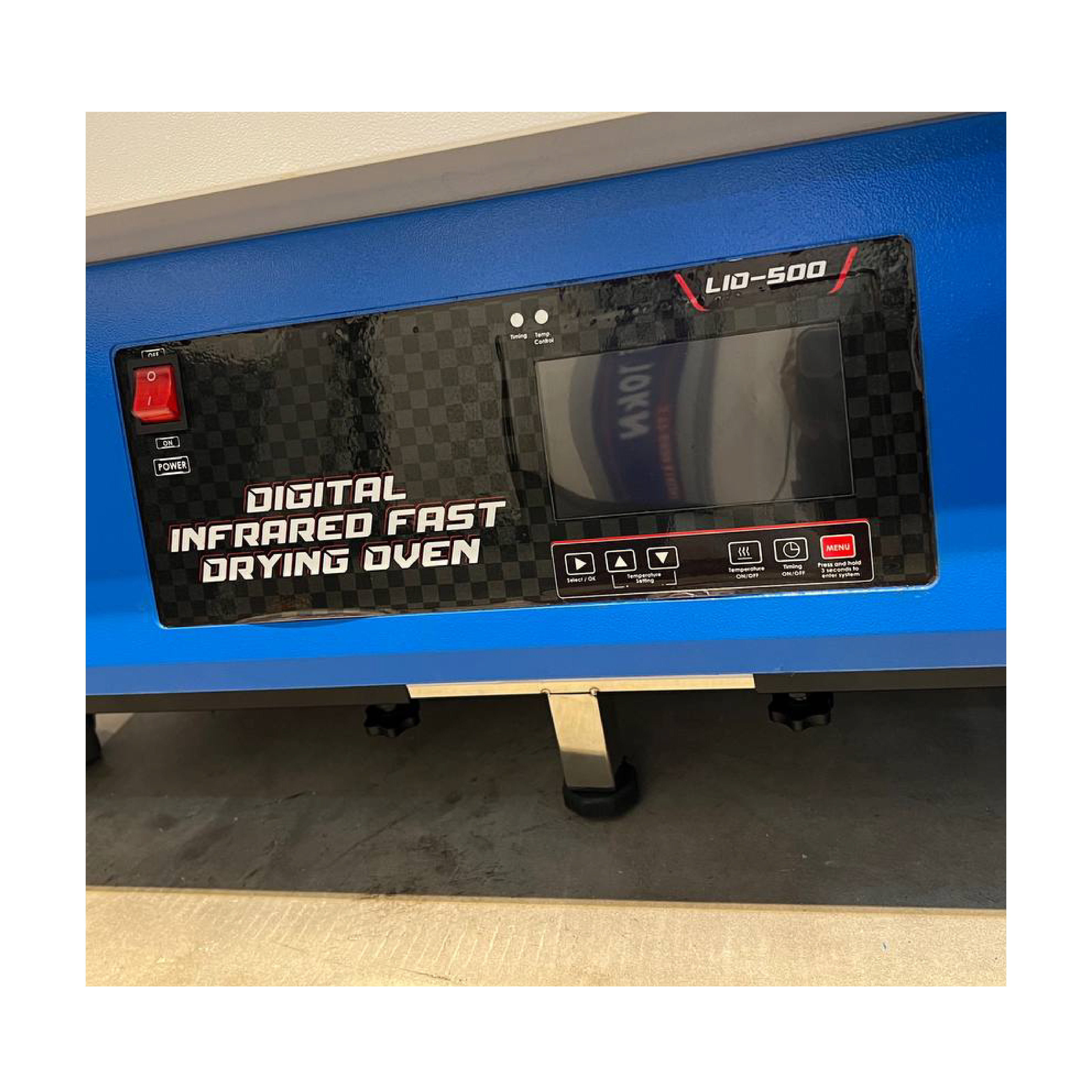

D.S. LCD SCREEN FEATURES Time Setting, Alarm Alert, Real Time Clock Display, Periodic Setting |
Optional Accessories
 |
| - NL 1017 SS / 004 - P001 : 420 Litres Shelves ( Galvanized Steel ) - NL 1017 SS / 005 - P002 : 620 Litres Shelves ( Galvanized Steel ) - NL 1017 SS - A001 : Adjustable / Moveable Trolley Base View More |
Related Product
Digimatic Drying Oven 240 Litres - NL 1017 SS / 003 VIEW MORE
