Grinding Machine
NL 4034 X / 003

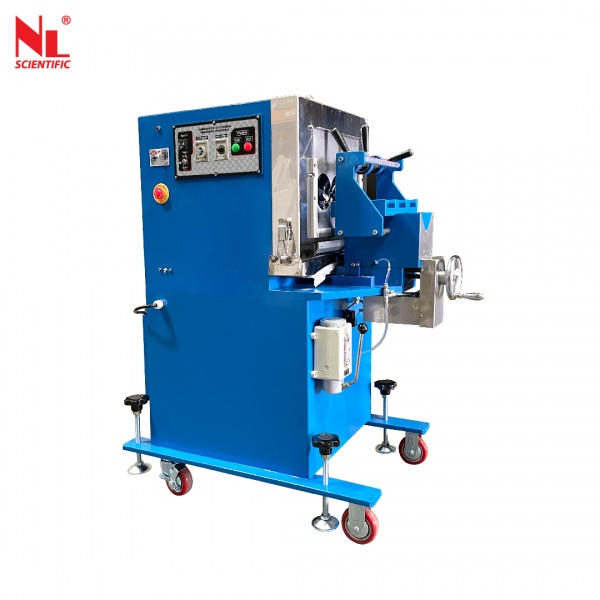

Concrete Cylinder Grinding Machine
By polishing the surface of the concrete cylinder mould (100, 150 mm, etc.) with diamond, this polishing machine for concrete cylinder mould measures the compressive strength with uniform surface contacts without eccentricity. This avoids the inconvenience of using cement glue or compound to cap. |
Technical Specification :
Alternate Code | HJ-3751 |
Unit | 3 Unit (Ø100mm) or 1 Unit (Ø150mm) |
Polishing Motor | 1800 r.p.m |
Speed Control (Polishing) | Volume Control (App. 0.2 ~ |
Timer (Polishing) | Electric Timer |
Water Supply | Automatic Water Supply |
Polishing Wheel | Diamond Wheel 8 inch
|
Dimension(LxWxH) | 600 x 850 x 1350mm |
Weight | 290kg
|
Power | 380~415V, 750kW, 3Ph, 50/60 Hz |
