Specimen Cutting Machine

NL 4018 X / 002

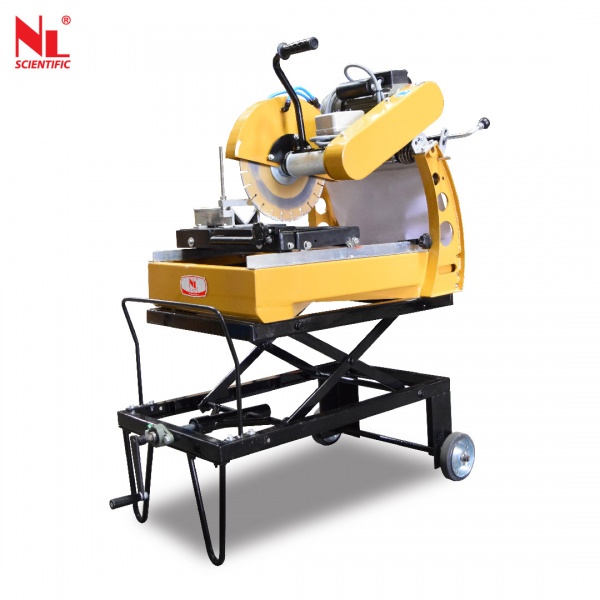

Portable Specimen Cutting Machine

Sample Preparation for the Compression Test (Cutting)
This unit machine has been specially developed to cut rock and core samples. It comes together with special design solid clamping device to allow all kind of irregular specimens to be held firmly position during the cutting operation.

Product Details

Technical Specification :

Blade Diameter	14” (350 mm)
Max. Cutting Height	100 mm
Table Size	1020 (L) x 660 (W) x 1350 (H)
Product Dimension (mm)	1020 (L) x 660 (W) x 1350 (H)
Packing Dimension (mm)	1120 (L) x 760 (W) x 1550 (H)
Approx. Product Weight	62 kg
Approx. Packing Weight	83 kg
Power	220 V, 2 Hp, 50 / 60 Hz, 1 ph

NL 4018 X / 004

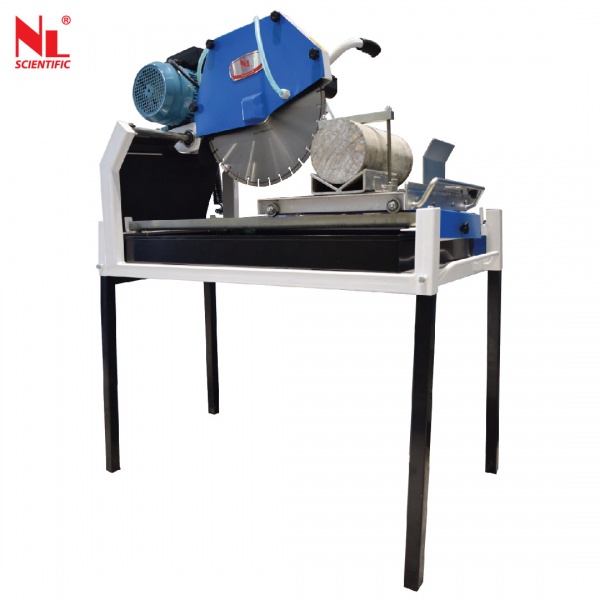

Portable Specimen Cutting Machine 450mm Dia Blade

Sample Preparation for the Compression Test (Cutting)
This unit machine has been specially developed to cut rock and core samples. It comes together with special design solid clamping device to allow all kind of irregular specimens to be held firmly position during the cutting operation.

Product Details

Technical Specification :

Blade Diameter	18” (450 mm)
Max. Cutting Height x Length	150 mm x 600 mm
Table Size	465 (L) x 405 (W)
Product Dimension (mm)	1100 (L) x 600 (W) x 1500 (H)
Packing Dimension (mm)	1120 (L) x 760 (W) x 1550 (H)
Approx. Product Weight	125 kg
Approx. Packing Weight	130 kg
Power	220 V, 4 Hp, 50 / 60 Hz, 1 ph

Order A Compression Testing Machine

Each test can help business to better understand the performance and quality of materials, components, or products. This is an essential aspect of product design and development. With the results of a tensile, compression or flexural test, can better adapt, optimize or redesign a products.

With the advance features and capabalities, these machines are perfect for businesses of all size that need high-quality testing equipment for material and engineering tests.

View Compression Testing Machine
