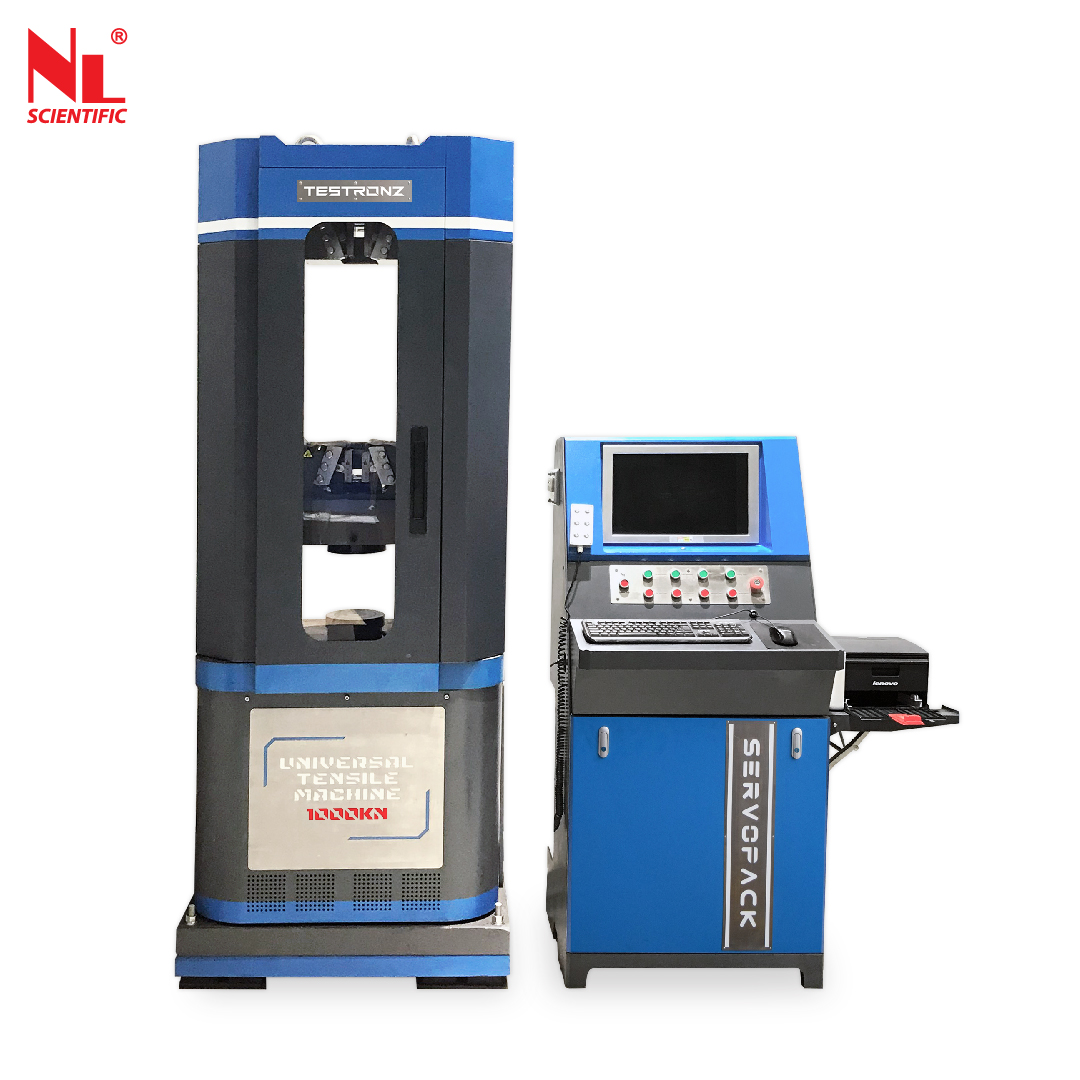

Electro-Hydraulic Servo Control Universal Testing Machine 1000kN
NL 6000 X / 013N




  • Description

Standard: BS EN 10002-1, ISO 7500-1, ASTM A370

Tensile & Compression

This NL 6000 Series UTM used for the mechanics property test such as the tensile, bending, compression and etc to various metallic and non-metallic materials. The testers have been developed according to BS EN 10002-1, ISO 7500-1 & ASTM A370 “Metal Tensile Test Method” with the adoption of the electro-hydraulic servo control and electronic measurement. It can automatically process the test result for statistical purpose and print default or user-defined test report.

NL 6000 Series UTM use the micro-computer automatic data collection and processing, real time display of the test data and curves. It has the functions such as unlimited storage of test result in the computer, printing the test results and curves, processing the batch test result report, managing the database and so on. It also has the network interface. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation and etc.

NL 6000 Series UTM have the features such as the high precision, advantage performance, high reliability, convenient operation etc.

Operation Display
Computer Screen Display unit with the following functions: -

  • Test force display
  • Break detection
  • Full auto test range switching function
  • Auto return function
  • Peak / Break value display function
  • Test conditions

Safety Features
The system includes with the followings safety features:-

  • Emergencies stop switch
  • Overload limiter
  • Ram-stroke limiter
  • Hydraulic pump motor over-current & over heating protection
  • Leak / over current protection
  • Automatic stop control
  • Safety Guard

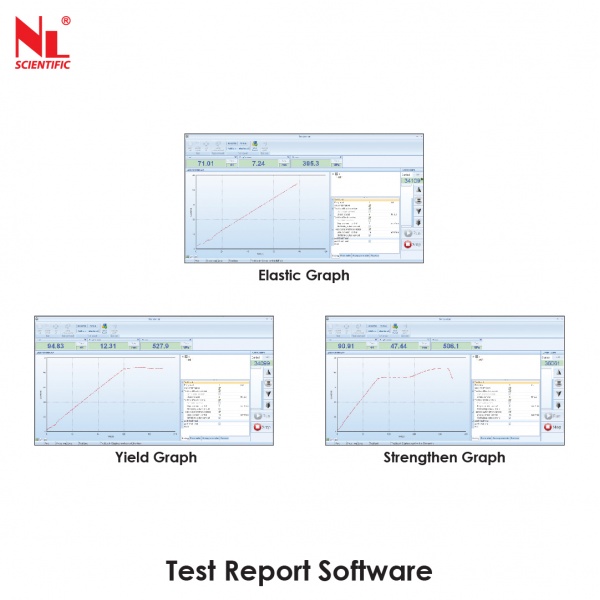

Control & Data Processing Software

  • User friendly & easily due to clear and brief operation – operation interface
  • Automatically save the test conditions & results
  • User define test curves including: Stress / Strain, Force / Elongation, Strength / Time to suit various requirement
  • Individual or combine display test curves on the same screen to compare with other several data at the same time
  • Compatible with Microsoft Excel by import or export function
  • Base of testing with digital sample break detection, auto ranging, auto calibration, quick tare & auto return facilities
  • Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
  • Tension, Compression, Shear, Cycling & Creep Test facilities
  • User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
  • Advanced protection features with software setting or / & hardware switch upper & lower limit setting
  • Operation fully controls by computer
  • USB communication system & ethernet

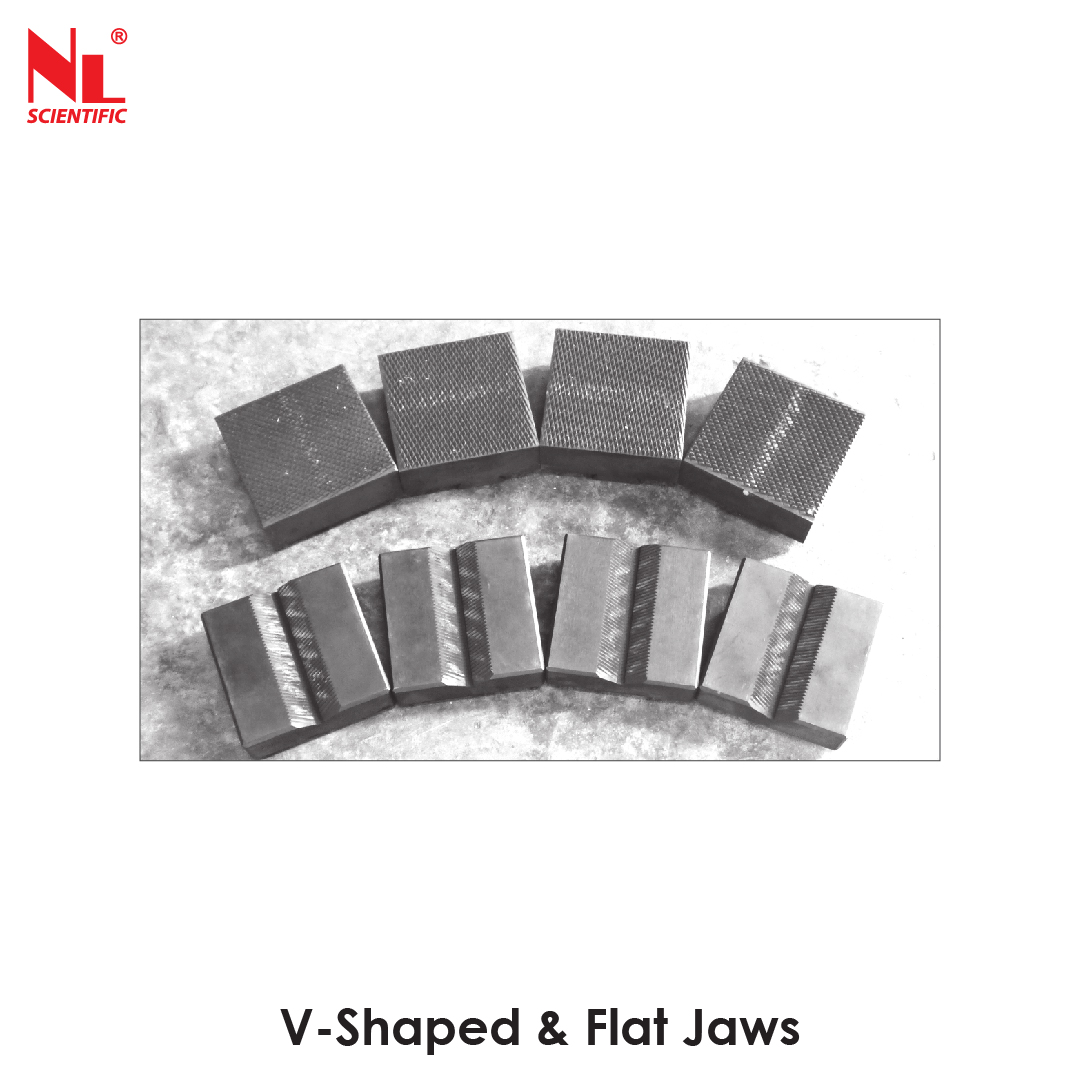

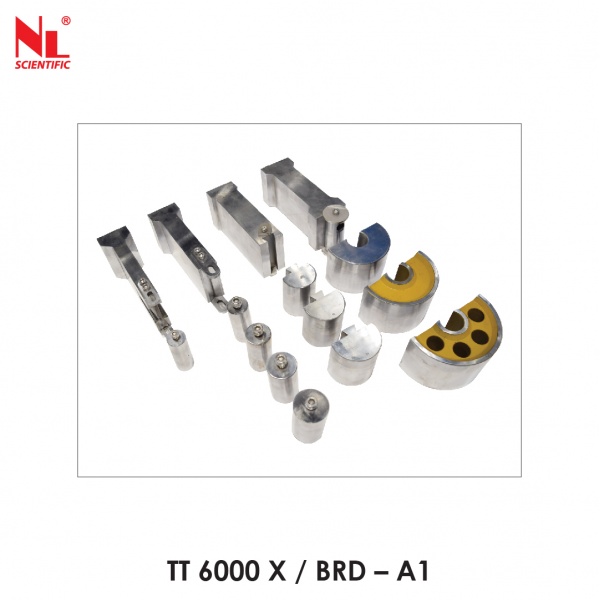

  • Grips & fixtures for tension, compression, flexural, shear & products testing available
  • Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
  • Report sheets consist of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength etc
  • Test unit including: kgf, Nf, lbf, kgf / cm, kfg / cm, N/mm, Mpa, kpa, kgm, mm, %, min, sec, …etc
  • Users define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc

Unique Feature:-

  • Over size prestressed 4 column with twin screw

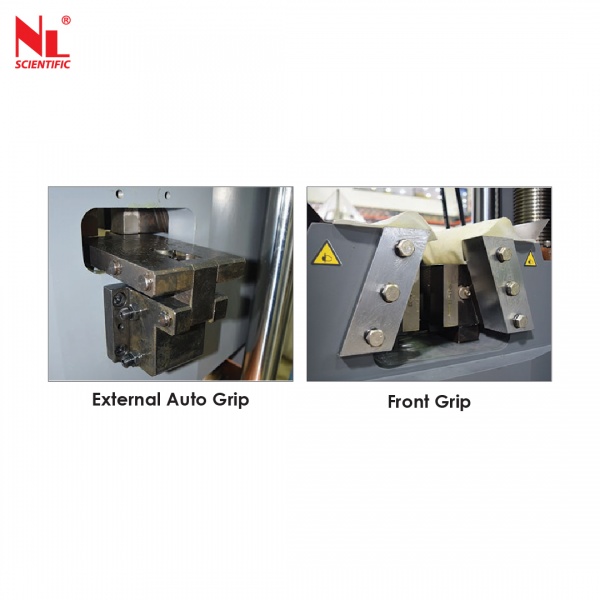

  • External Auto Hydraulic Cylinder Grip System (Easy Maintenance)
  • High toughness fragment safety guard
  • High precision load cell ram
  • Built-in shock absorbing system on base mounting
  • Desktop console unit



Technical Specifications :

 Model Number  NL 6000 X / 013N
 Capacity  1000kN
 Machine Class  Class 1
 Accuracy  ±1%
 Displacement Resolution
 0.001 mm
 Compression Space  600 mm
 Tensile Space  700 mm
 Piston Stroke  200 mm
 Dia. of Round Specimen  14 - 40 mm
 Thickness of Flat Specimen  Up to 40 mm
 Max. Distance of Bending Test  300 mm

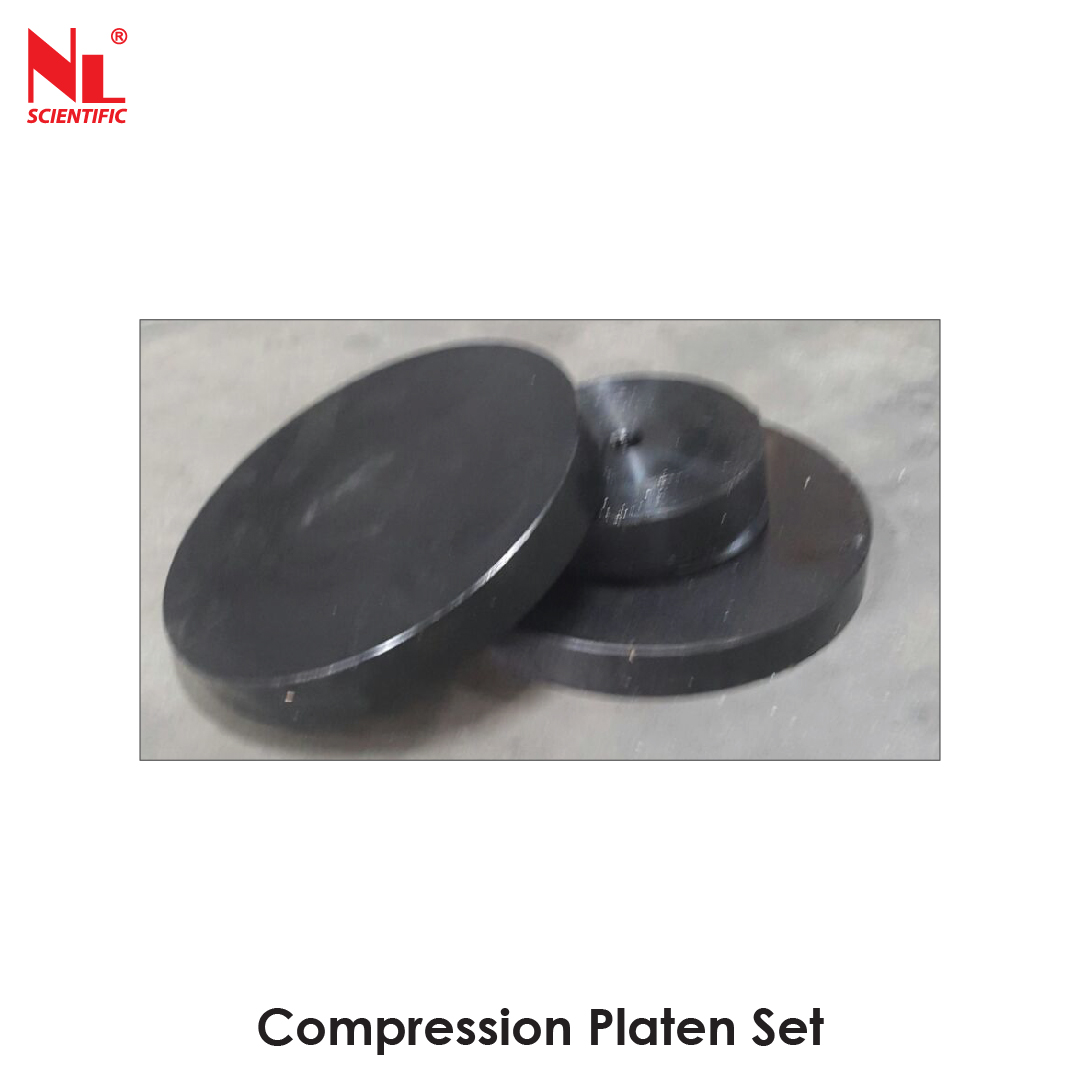

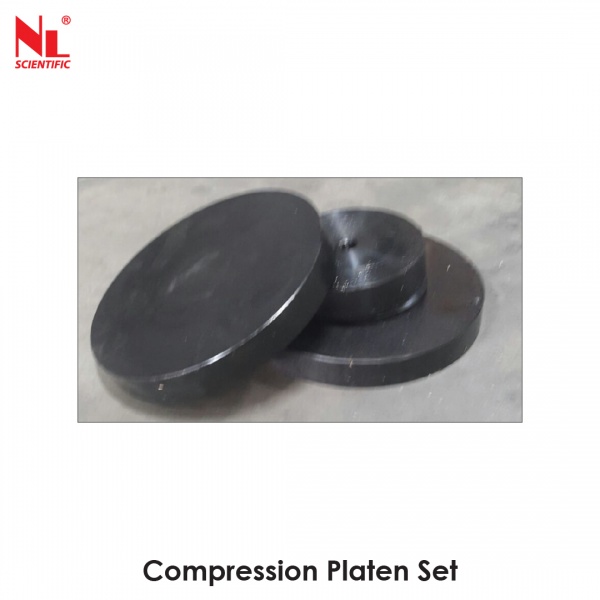

 Dia. Size of Compression Plates  225 mm
 Dimension (Frame)WxLxH  992 x 760 x 2300 mm
 Dimension ( Servopack)WxLxH   840 x 730 x 1600 mm
 Power  415 V, 3ph, 2.2 kw/0.4 kw, 50/60 Hz
 Weight (Control Console)  300 kg
 Weight (Frame)  2600 kg

*1 Copy of Manual Instructions
