Steel Testing Equipments

Product Range

Standard: ASTM E18, ISO 6508-2 Hardness Test The hardness test method consists of identifying the test material with a diamond cone or hardened. Steel ball indenter. Technical Specifications : Model Number TT 6004 X / 003 Alternate Code HRS - 150 Measuring Range 20 - ...Read more

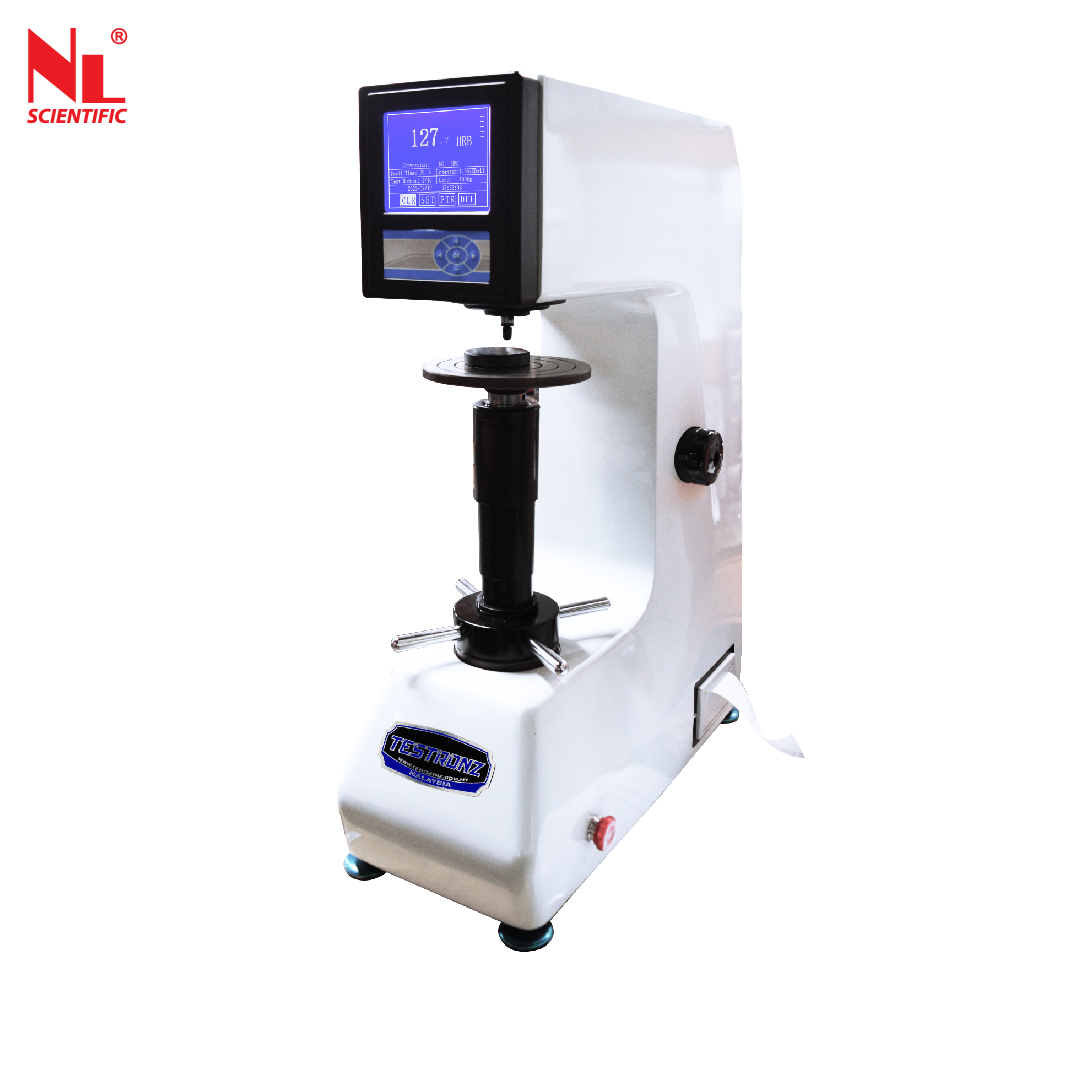

Rockwell Hardness Tester (Digital LED Screen)
TT 6004 X / 003

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: ASTM E18, ISO 6508-2

Hardness Test

The hardness test method consists of identifying the test material with a diamond cone or hardened. Steel ball indenter.

Technical Specifications :

Model Number	TT 6004 X / 003
Alternate Code	HRS - 150
Measuring Range	20 - 88 HRA, 20 - 100HRB, 20 - 70 HRC
Testing Force	60 kgf (588.4N), 100 kgf (980.7N), 150kgf (1471N)
Max. Height of Specimen	210 mm
Max. Depth of Specimen	165 mm
Min, Scale Value	0.1 HR
Indication of Hardness Value	Digital Display with Large LCD Screen
Dimensions	220(L) x 510(W) x 694(H) mm
Overall Dimensions	522(L) x 220(W) x 729(H) mm
Net Weight	98 kg
Power Supply	220V, 100W, 0.2A, 1Ph, 50/60Hz, 0.13Hp
