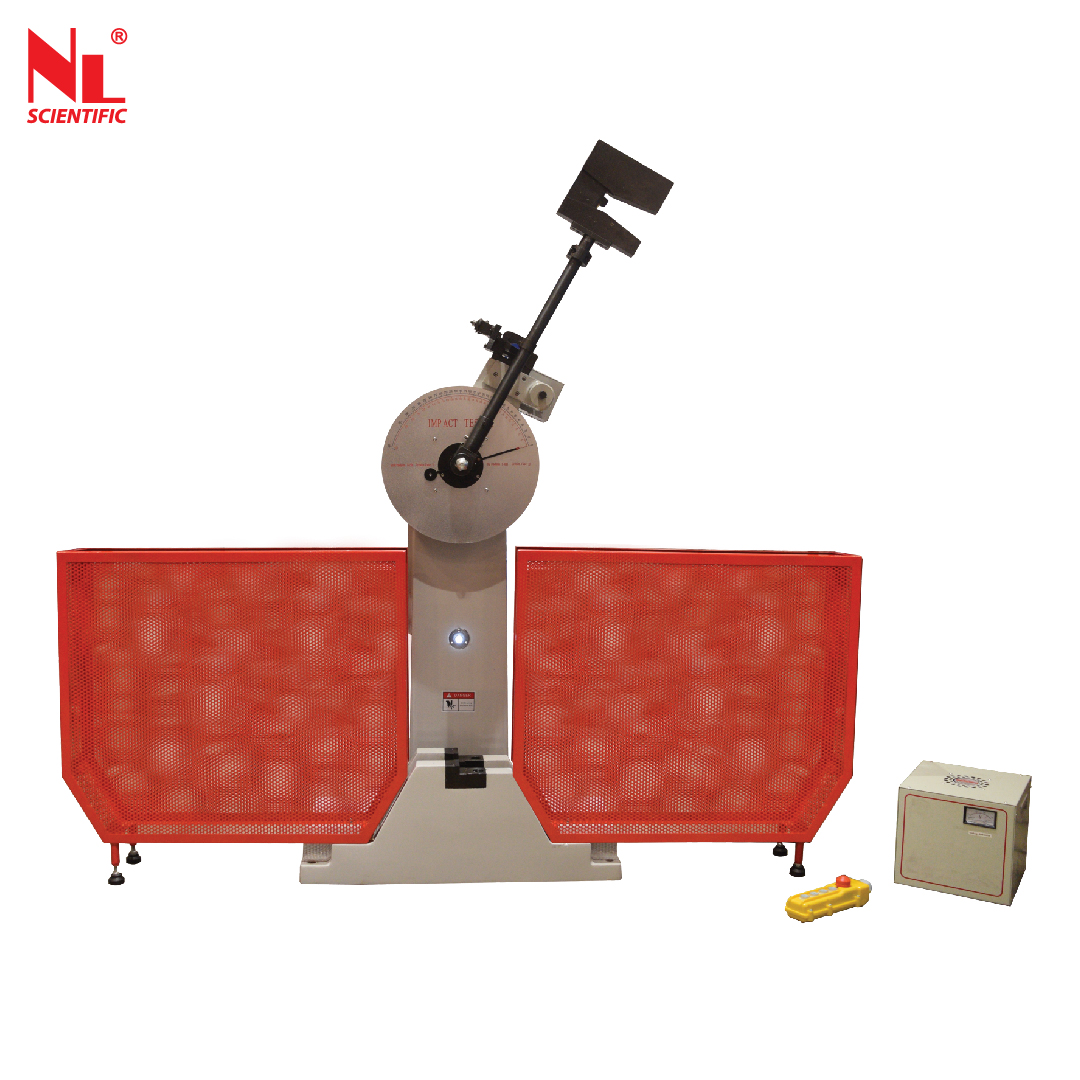

Semi Auto Pendulum Impact Tester
NL 6002 X / 002


  • Description

Standards : BS EN ISO 148, ASTM E23

Resilience Test

This machine is mainly used to determine the anti-impact capability of ferrous metal with high toughness especially for steel and iron and their alloy, under dynamic load. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.



Technical Specifications :

 Model Number  NL 6002 X / 002
 Alternate Code  HD-R802-2
 Testing Material  Steel
 Impact Energy  150J (±1J) / 300J(±2J)
 The Distance Between the
Pendulum Shaft and Impact Tester
 750 mm
 Impact Speed  5.2 m/s
 Pre-rising Angle of the Pendulum  150°
 Specimen Bearer Span  40 mm
 Round Angle of the Jaw  R1 ~ 1.5 mm
 Impact Cutter Radius  R2 ~ 2.5 mm
 Standard Full Size Specimen  10 x 10 x 55 mm with V notch
in the middle
 Dimension (LxWxH)  2124 x 600 x 1340 mm
 Weight  550 kg
 Power  380 ~ 415 V, 3 Ph, 50/60 Hz
