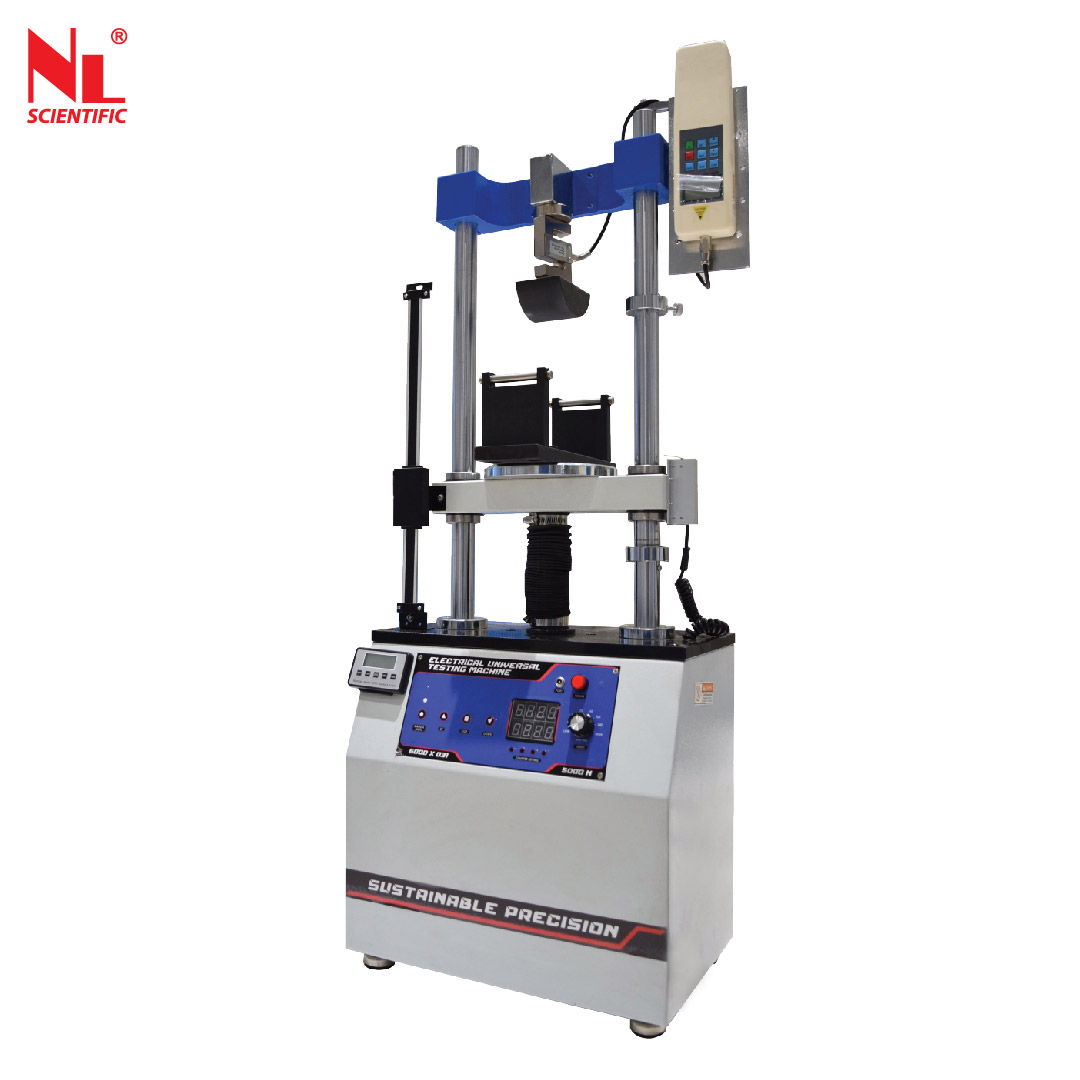

Low Range Compression & Tensile
Small capacity Universal Tensile Machine (UTM) designed couple with HP or NK series of push-pull test process with stepless speed regulation,can perform manual or automatic test option,unit come with overload protection. The unit can perform with range of test application.
Technical Specifications :
Model Number |
NL 6000 X / 031 |
Maximum Capacity |
5000 N |
Horizontal Clearance |
200 mm |
Vertical Clearance |
300 mm |
Plunger Disc |
100 mm Dia. |
Maximum Stroke |
220 mm |
Adjustable Loading Speed |
30 -300 mm / min |
Dimension |
400(W) X 250 (L) X 1300 (H) mm |
Power |
220 V,1 ph, 50/60 Hz |
Approx. Weight |
75 kg |
