  5. Servotec Unconfined Compression Apparatus 50kN NL 5023 X / 005

Product Range

nl5023x005-01
Standard: BS 1377:7, ASTM D2166, AASHTO T208, BS EN ISO 17892-7 Determination of Unconfined Compressive Strength A motorized unconfined compression tester is a precision geotechnical instrument used to determine the Unconfined Compressive Strength (UCS) of cohesive soils and weak rocks. Supplied c ...Read more

Servotec Unconfined Compression Apparatus 50kN
NL 5023 X / 005

  • Description

Standard: BS 1377:7, ASTM D2166, AASHTO T208, BS EN ISO 17892-7

Determination of Unconfined Compressive Strength

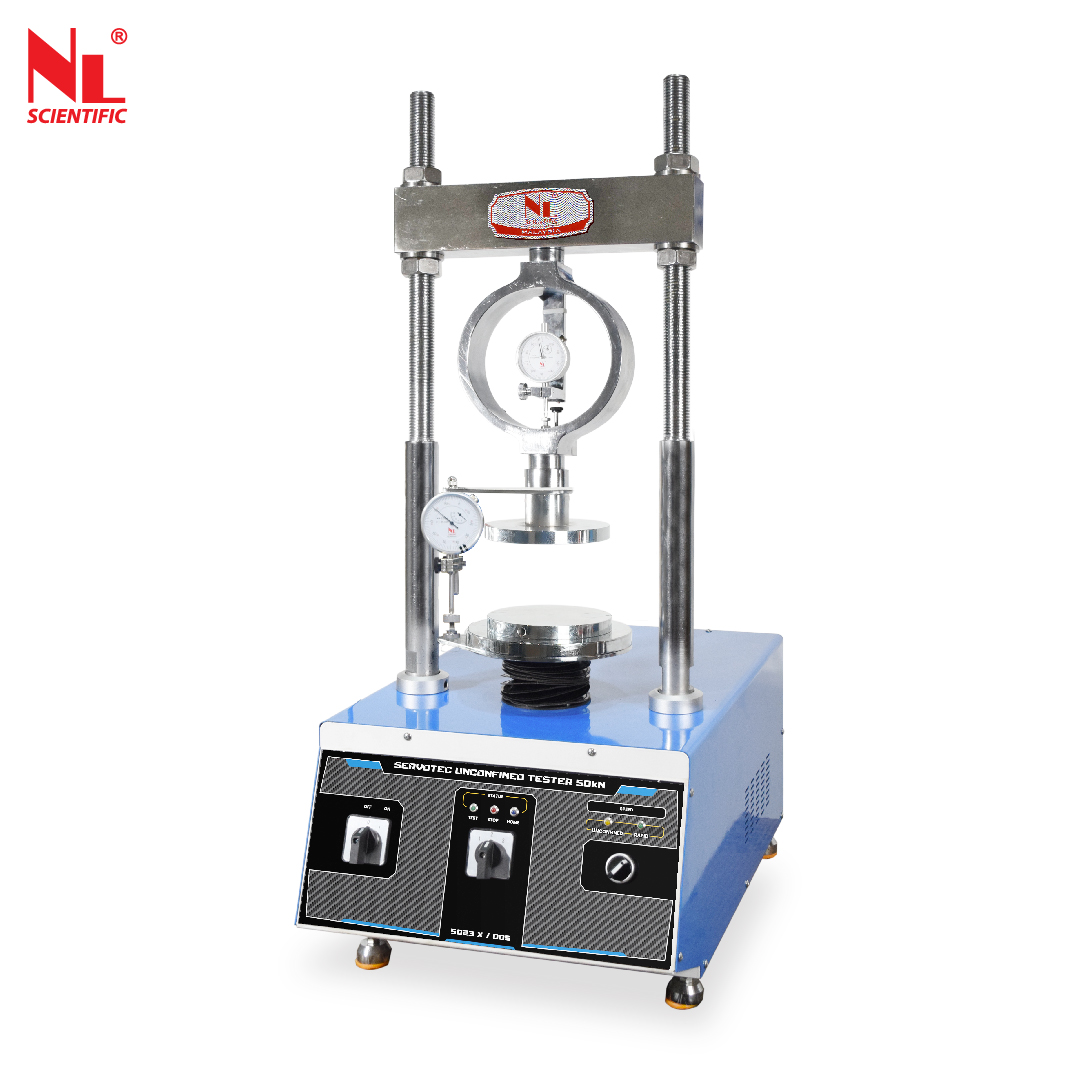

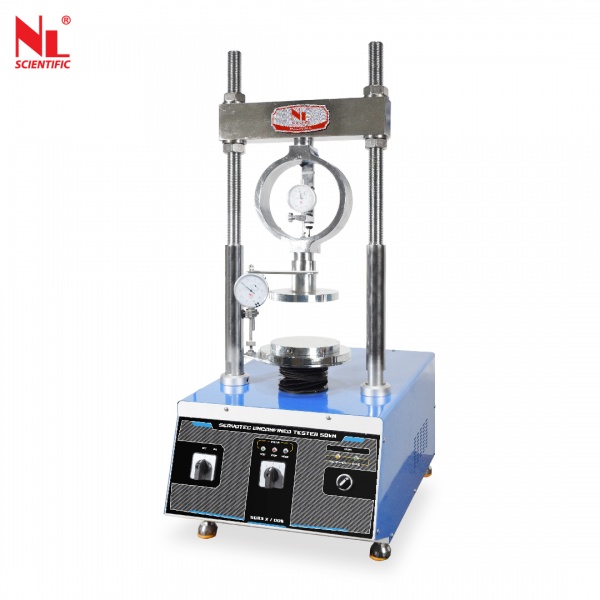

A motorized unconfined compression tester is a precision geotechnical instrument used to determine the Unconfined Compressive Strength (UCS) of cohesive soils and weak rocks. Supplied complete with upper platen, proving ring with calibration certificate, displacement dial gauge 25 mm x 0.01 mm per division with gauge mounting bracket.

Technical Specifications :

 Model Number  NL 5023 X / 005
 Capacity  50 kN
 Max. V. Clearance  590 mm
 Max. H. Clearance  220 mm
 Compression Rate  0.76 mm / min
 Product Dimension  440 (L) x 630 (W) x 1200 (H) mm
 Packing Dimension  640 (L) x 830 (W) x 1400 (H) mm
 Product Weight  77 kg
 Packing Weight  97 kg
 Power  220~240 V, 370 W, 1 Ph, 50/60 Hz, 2.5 A

*1 Copy of Manual Instruction

Unit Consists Of :

 Model Number  Parts Description  Qty
 NL 7023 X / 005  Proving Ring 10 kN  1no
 NL 5023 X / 004 – P 002  Specimen Plunger with Gauge Holder  1set
 NL 7020 X / 001  Dial Indicator 25 mm x 0.01 mm  1no.

Optional Accessories :

 Model Number  Accessories Description
 NL 7023 X / 009  Proving Ring 50 kN
