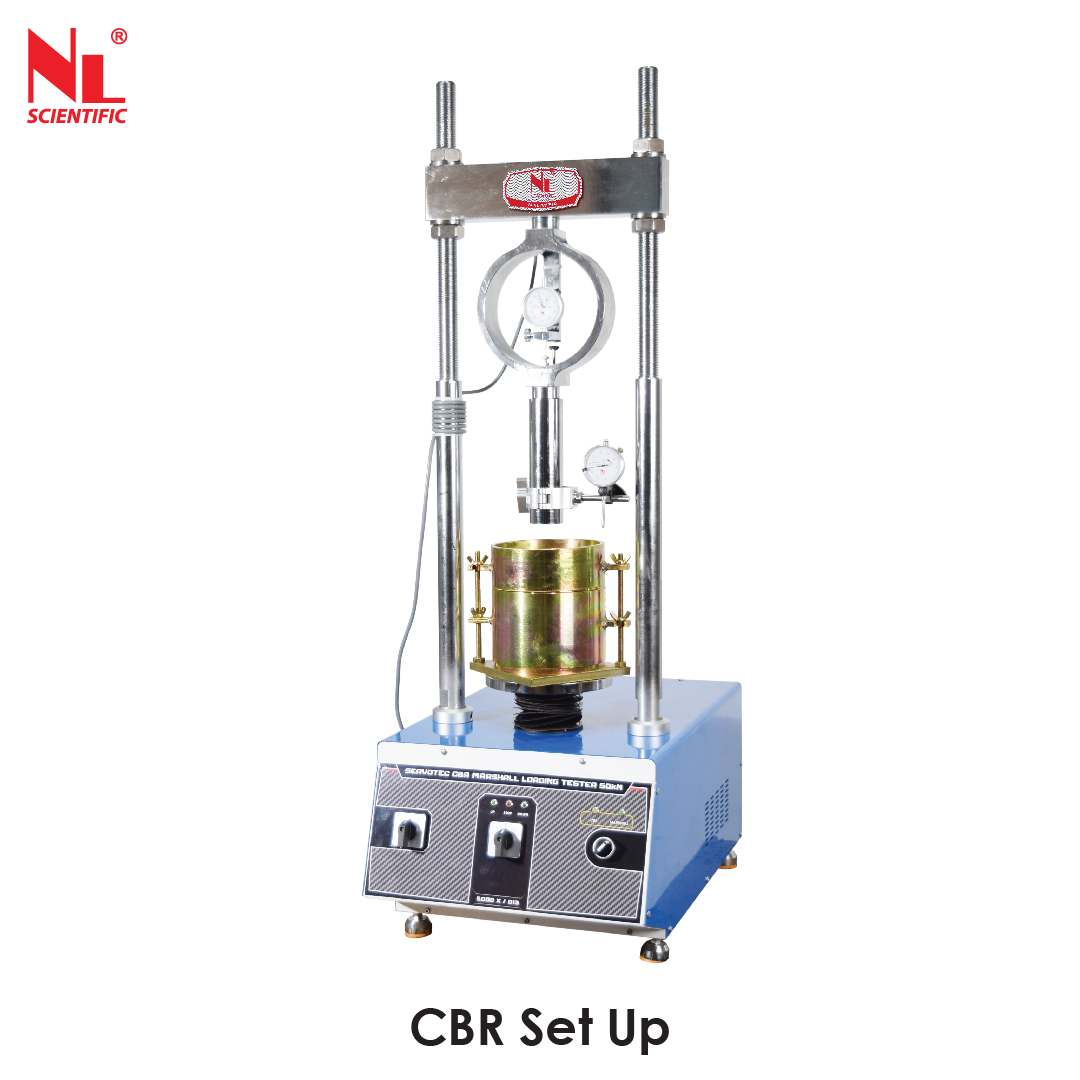

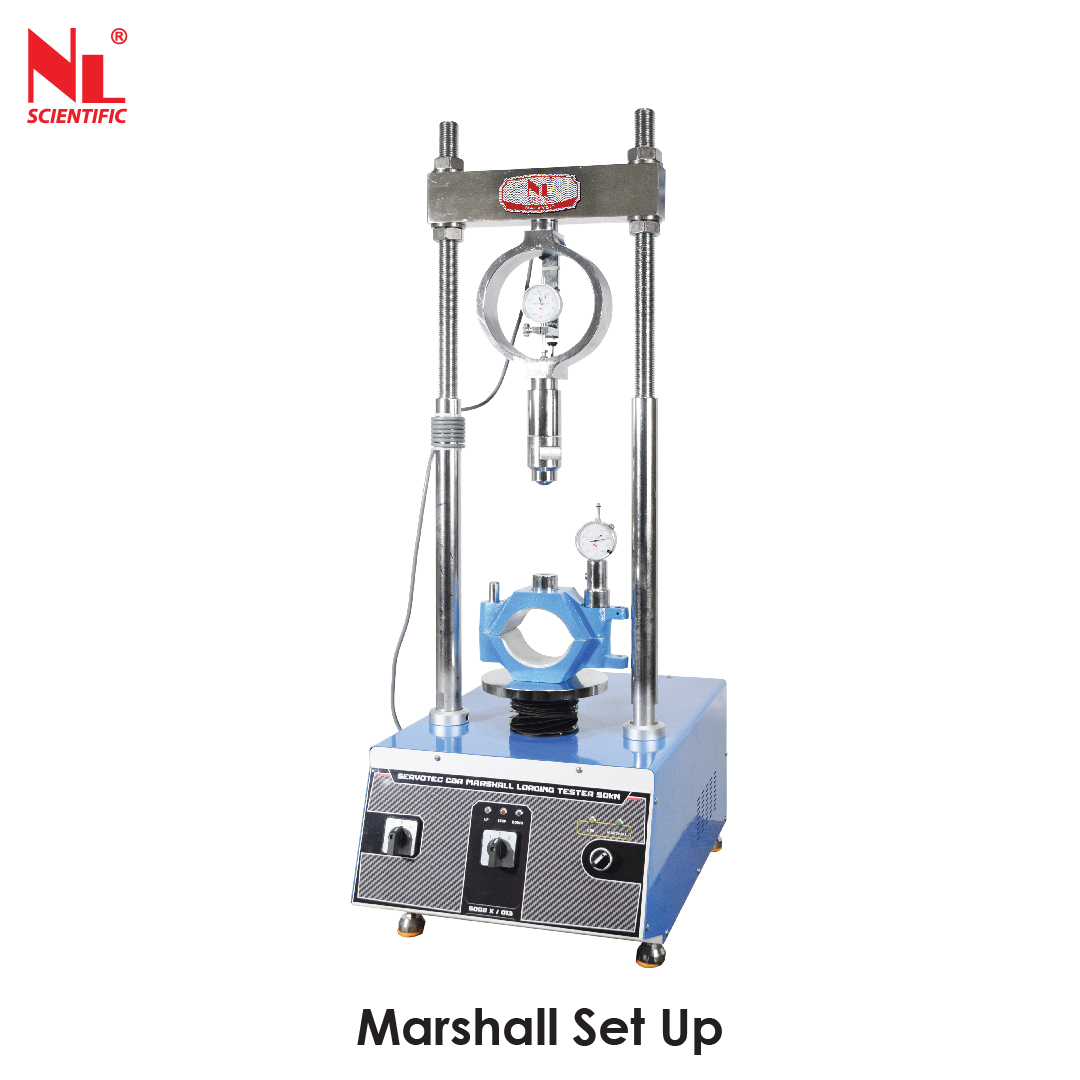

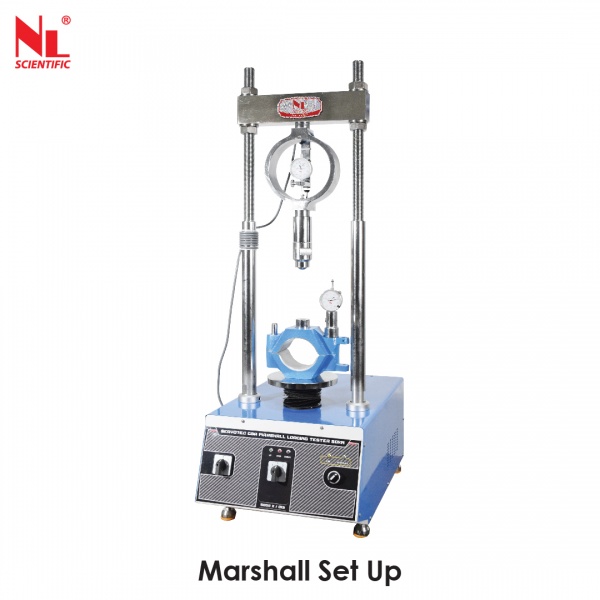

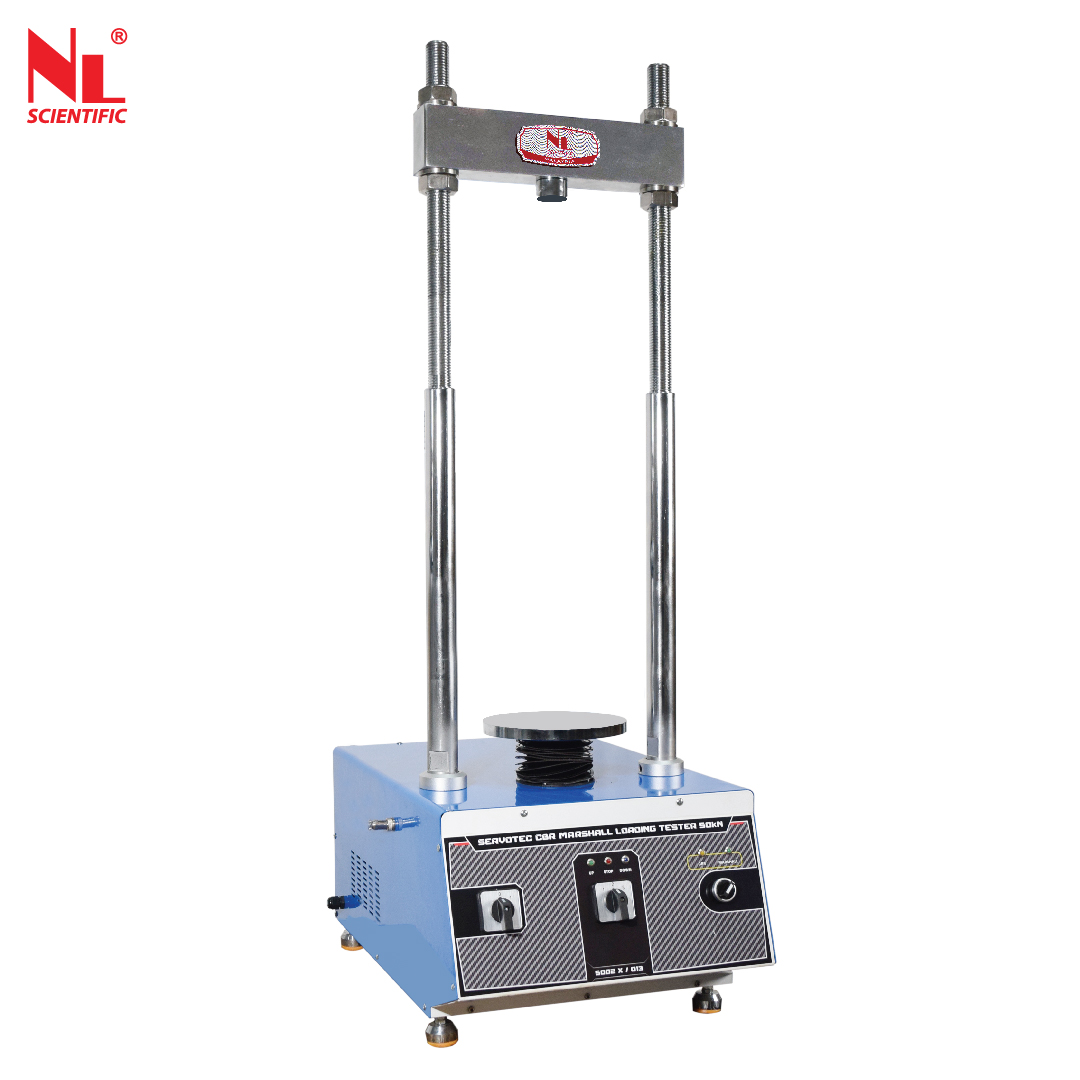

Servotec CBR Marshall Loading Tester 50kN
NL 5002 X / 013

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: CBR-EN 13286-47, BS 1377:4, ASTM D1883, AASHTO T 193/ MASHALL -EN 12697-34, 13108, ASTM D1559, D6927-06, AASHTO T245, BS598:107

Immediate Bearing Index

Newly invented bench mounting type machine, with rigid and compact design compare with previous model. By using servo drive motorized system to achieve more reliable and high accurate testing result.

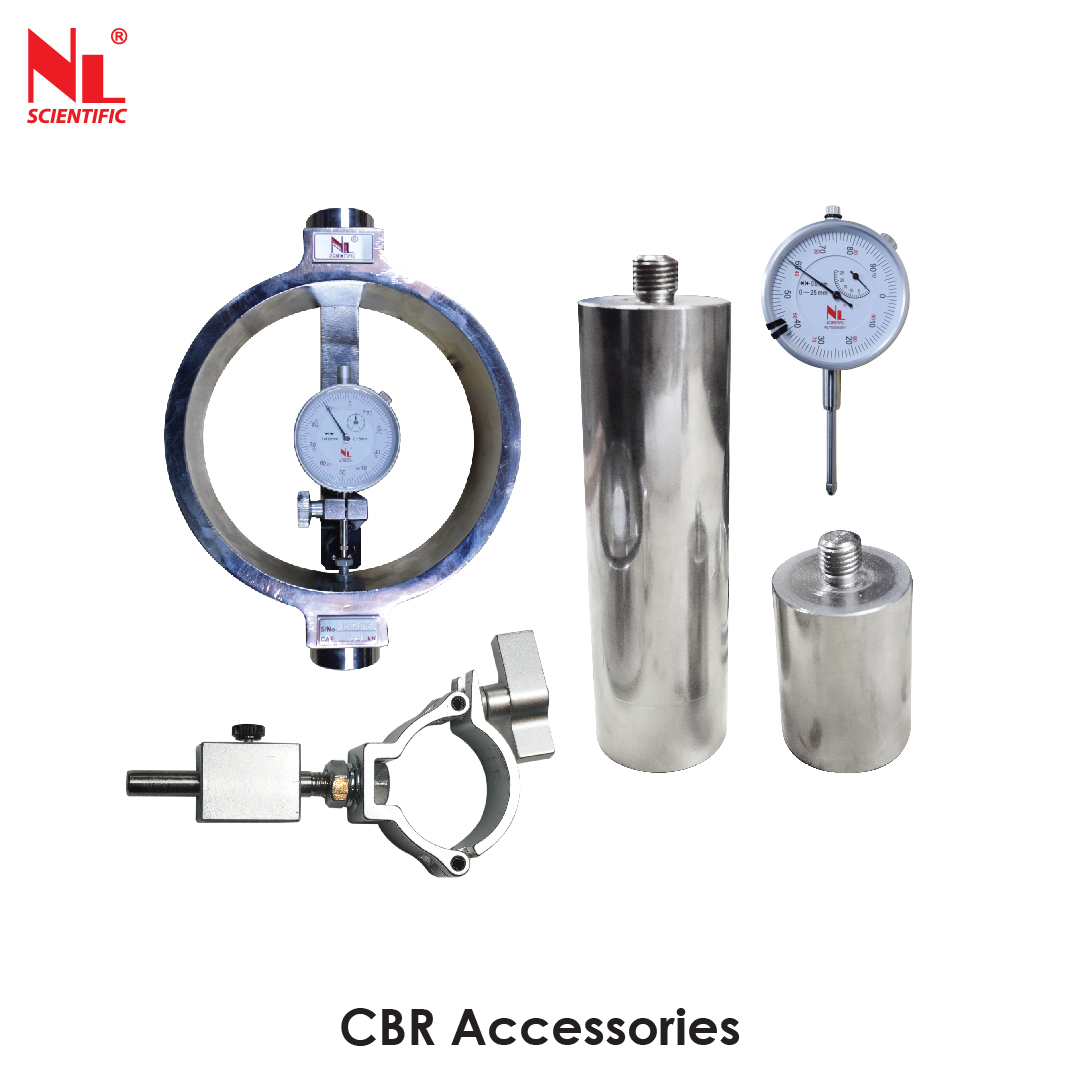

*Supplied without accessories which have to ordered separately.

FEATURES:-
*Compact, table top design
*Energy saving with servo drive power motor
*Less vibration & noise during operation

Technical Specifications :

Model Number	NL 5002 X / 013
Capacity	50kN
CBR Testing Speed	1.2 mm / min
MARSHALL Testing Speed	50.8 mm / min
Plunger Travel	100 mm
Vertical Clearance	680 mm
Horizontal Clearance	270 mm
Product Dimension	440 (L) x 630 (W) x 1200 (H) mm
Packing Dimension	640 (L) x 830 (W) x 1400 (H) mm
Approx. Product Weight	77 kg
Approx. Packing Weight	97 kg
Power	220~240 V, 370 W, 1 Ph, 50/60 Hz, 2.5 A

*1 Copy of Manual Instructions
