PRODUCT DETAIL

Description

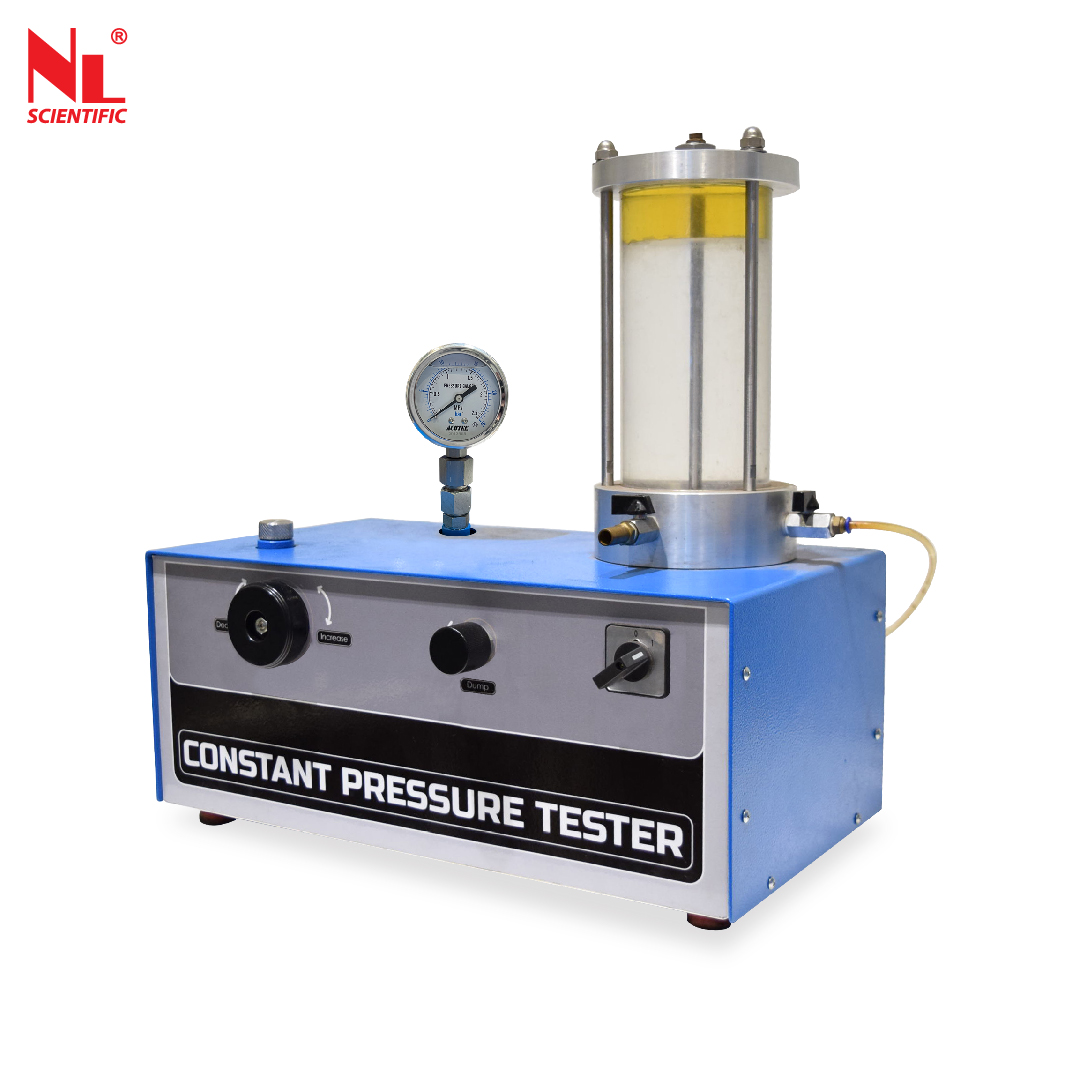

Permeability Constant Pressure System

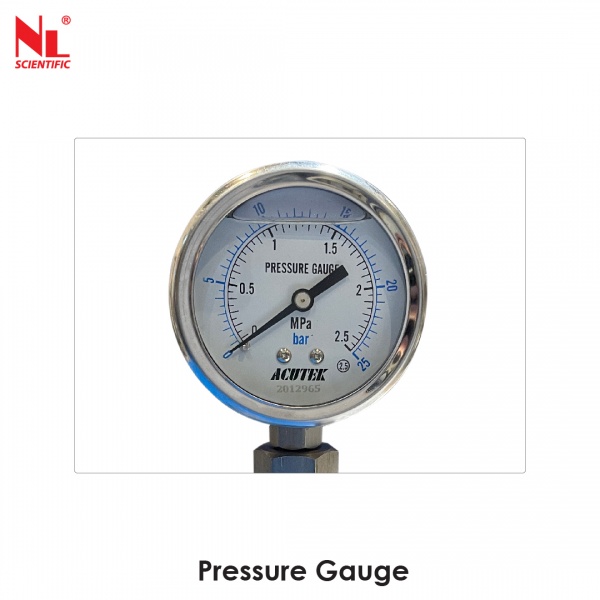

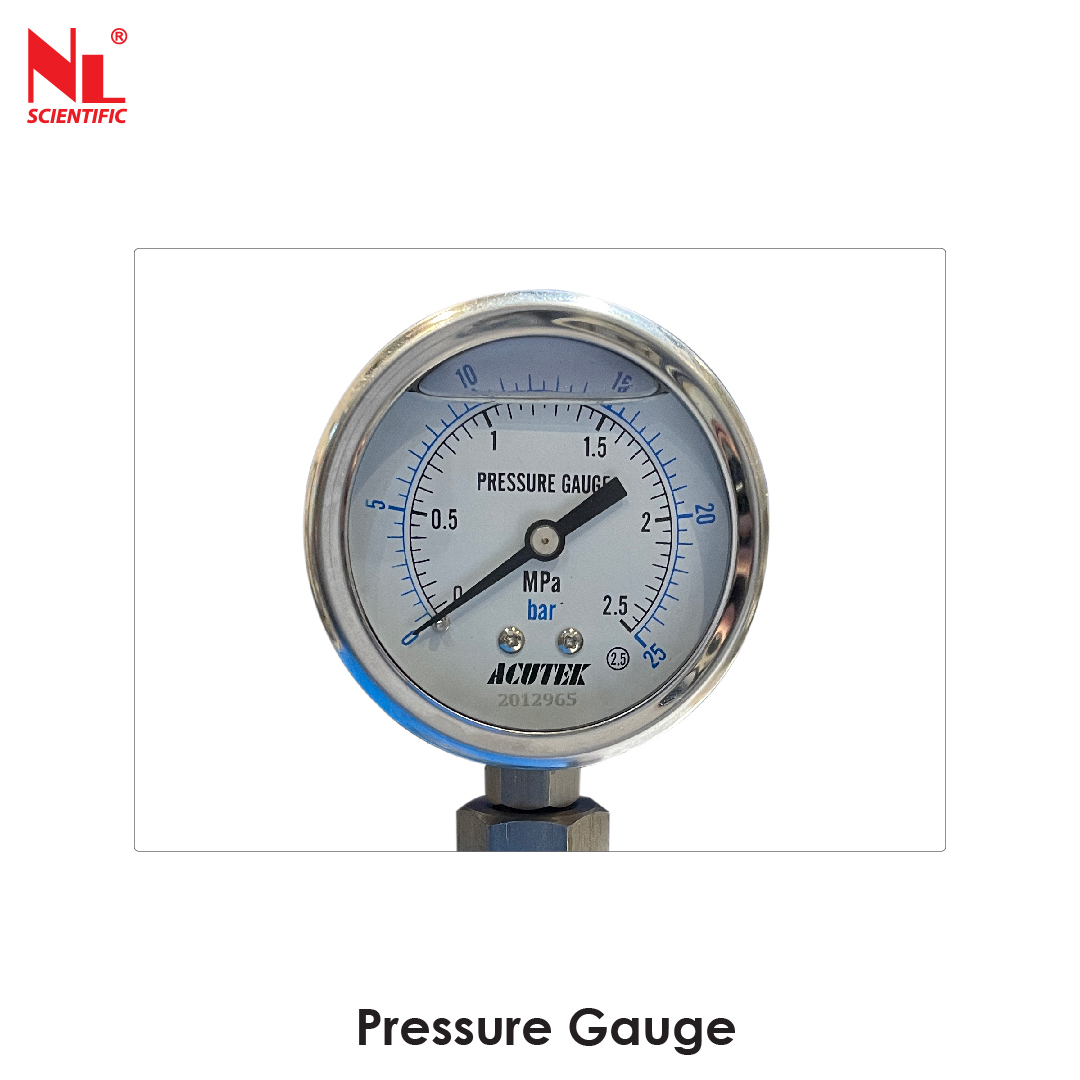

The oil/water constant pressure system is versatile and can be used in conjunction with a wide range of test equipment. The unit provides continuous variable pressure up to pressure test 2500 kPa. Pressure is increased or decreased simply by turning a control wheel. The apparatus is supplied without a gauge for suitable pressure monitoring equipment. The machine features a clear hydraulic/water interface reservoir and up to one liter capacity of water is available under pressure.

Technical Specifications :

Model Number	NL 5048 X / 001
Max. Pressure	1500 kPa
Pressure Accuracy	± 10 kPa
Acrylic Tank Capacity	1.8 Litres
Product Dimension	360 (W) x 560 (L) x 600 (H) mm
Approx. Weight	52 kg
Power	220 ~ 240 V, 375 W, 1 Ph, 0.5 Hp, 1500 RPM
