Loading Frames : Accessories for Uniaxial And Unconfined Compression Tests Special design for low capacity to carry compression test such as triaxial, unconfined and etc. FEATURES:-*Large LED display board.*Accurate stepper motor speed control.*With microprocessor base.*Simple key pad control syst ...Read more

Universal Loading Frame
NL 5019 X / 001

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

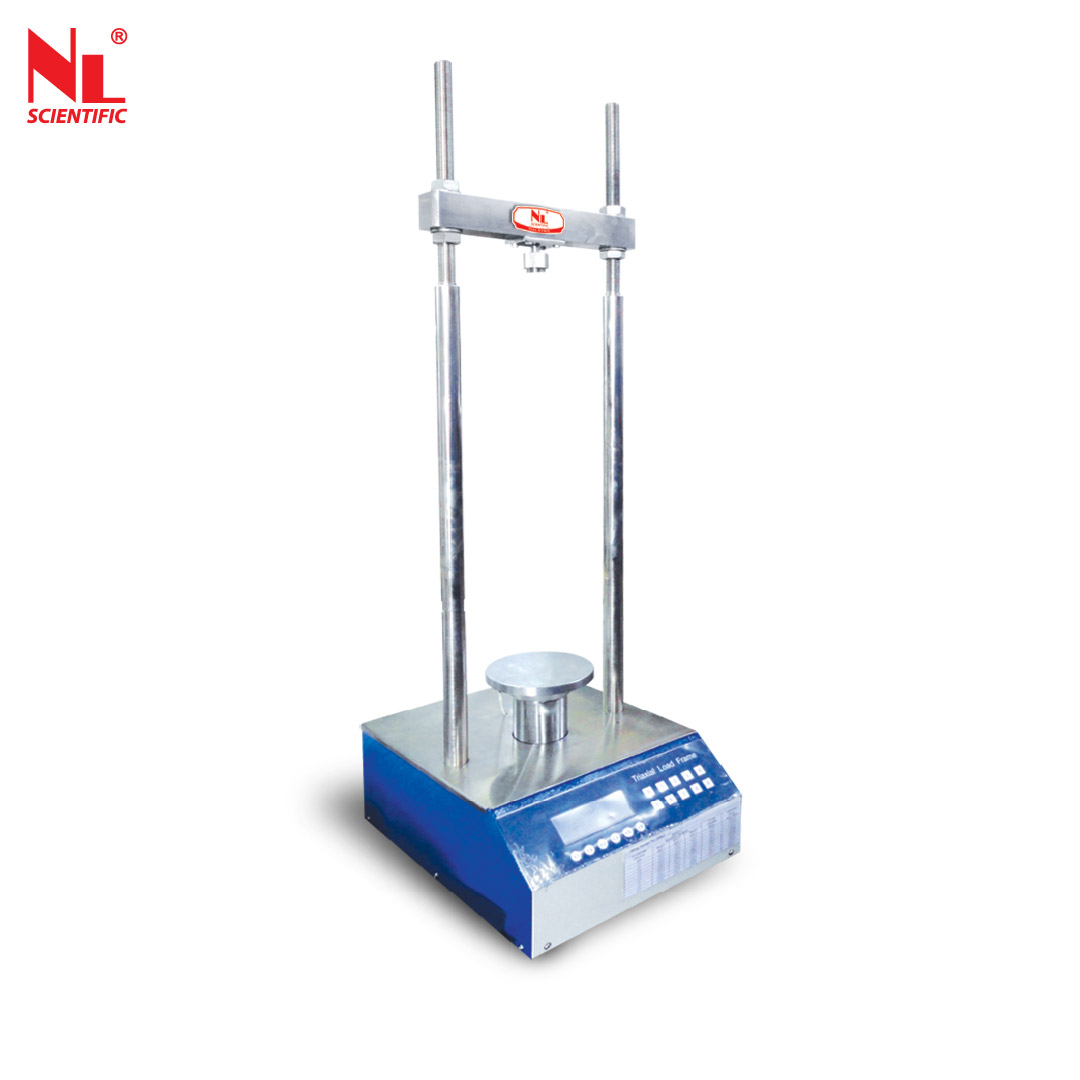

Loading Frames : Accessories for Uniaxial And Unconfined Compression Tests

Special design for low capacity to carry compression test such as triaxial, unconfined and etc.

FEATURES:-
*Large LED display board.
*Accurate stepper motor speed control.
*With microprocessor base.
*Simple key pad control system.

Technical Specifications :

Model Number	NL 5019 X / 001
Capacity	10 kN
Speed Range	0.0001 mm / min - 4.8 mm / min
Platen Travel	100 mm
Dimension (mm)	310 (L) x 380 (W) x 1100 (H)
Approx. Weight	85 kg
Power	220 - 240 V, 50 / 60 Hz, 1 ph
