Standard: CBR-EN 13286-47, BS 1377:4, ASTM D1883, AASTHO T 193/ MASHALL-EN 12697-34, 13108, ASTM D1559, D6927-06, AASTHO T245, BS598:107 Immediate Bearing Index Newly invented bench mounting type machine,with rigid and compact design compare with previous model. By using DC motorised drive system ...Read more

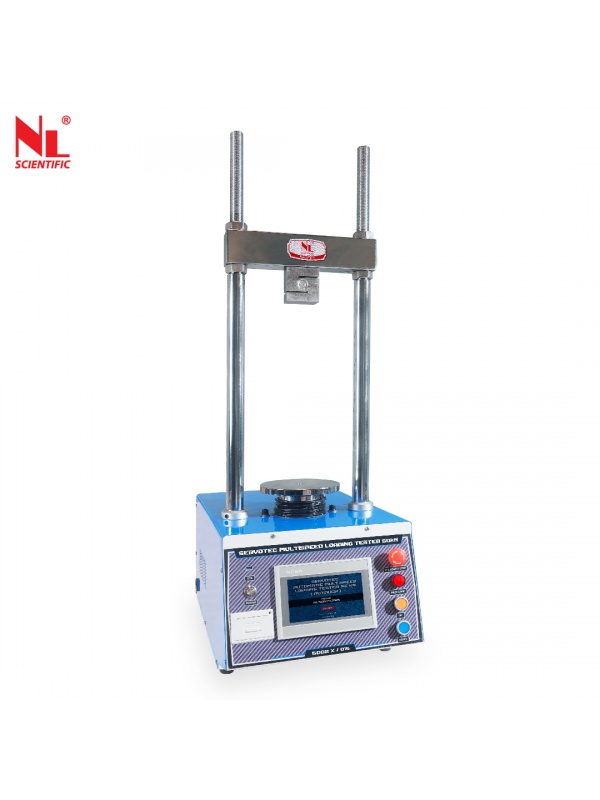

Eco Smartz Advance CBR / Marshall Loading Frame 50kN
NL 5002 X / 011

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: CBR-EN 13286-47, BS 1377:4, ASTM D1883, AASTHO T 193/ MASHALL-EN 12697-34, 13108, ASTM D1559, D6927-06, AASTHO T245, BS598:107

Immediate Bearing Index

Newly invented bench mounting type machine,with rigid and compact design compare with previous model. By using DC motorised drive system to achieve more reliable and high accurate testing result.

*Supplied without accessories which have to ordered separately.

FEATURES:-
*Compact, table top design
*Energy saving with DC power motor
*Less vibration & noise during operation

Technical Specifications :

Model Number	NL 5002 X / 011
Capacity	50kN
Testing Speed	1.2 mm / min
MARSHALL Testing Speed	50.8 mm / min
Plunger Travel	100 mm
Vertical Clearance	680 mm
Horizontal Clearance	270 mm
Product Dimension	840 (L) x 455 (W) x 1310 (H) mm
Packing Dimension	1000 (L) x 560 (W) x 1500 (H) mm
Approx. Product Weight	185 kg
Approx. Packing Weight	205 kg
Power	220 V, 2.5 Amp, 50 / 60 Hz, 1 ph, 370 W

*1 Copy of Manual Instructions
